Description

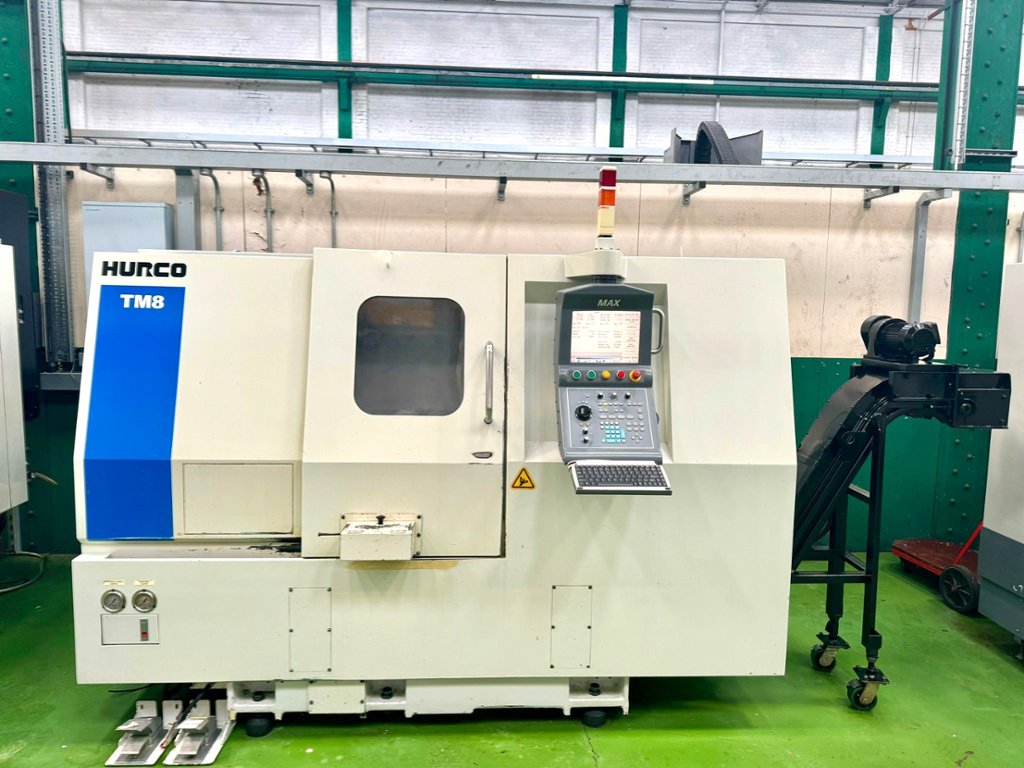

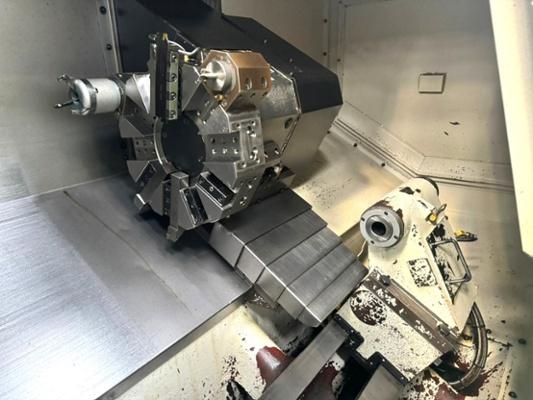

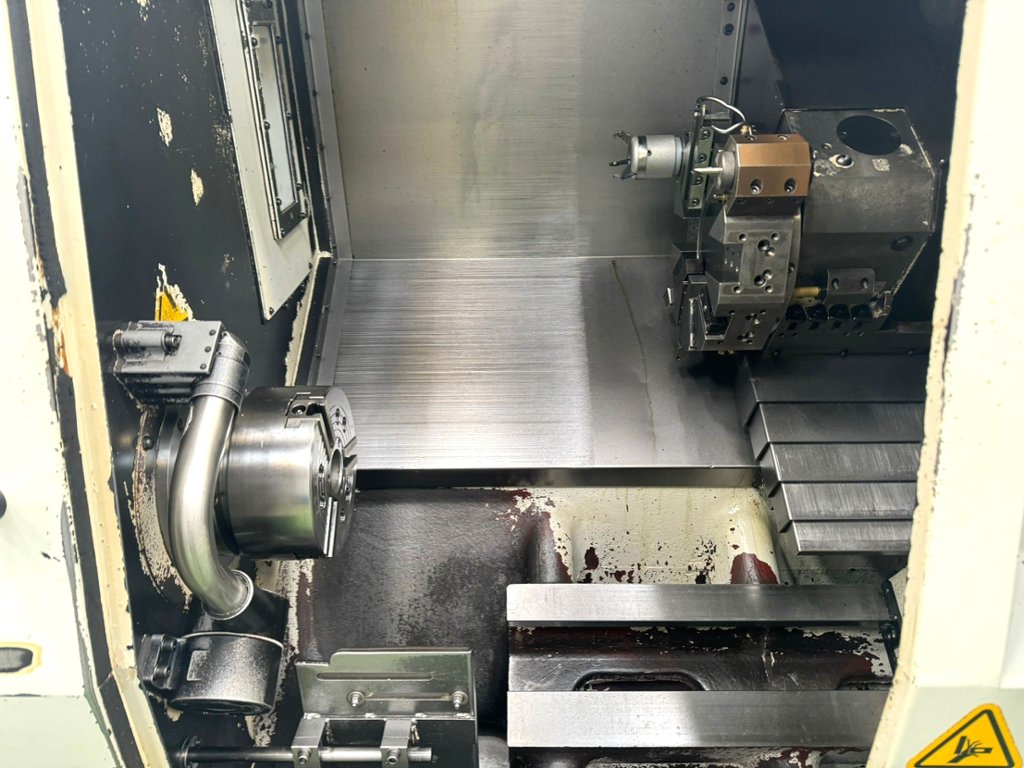

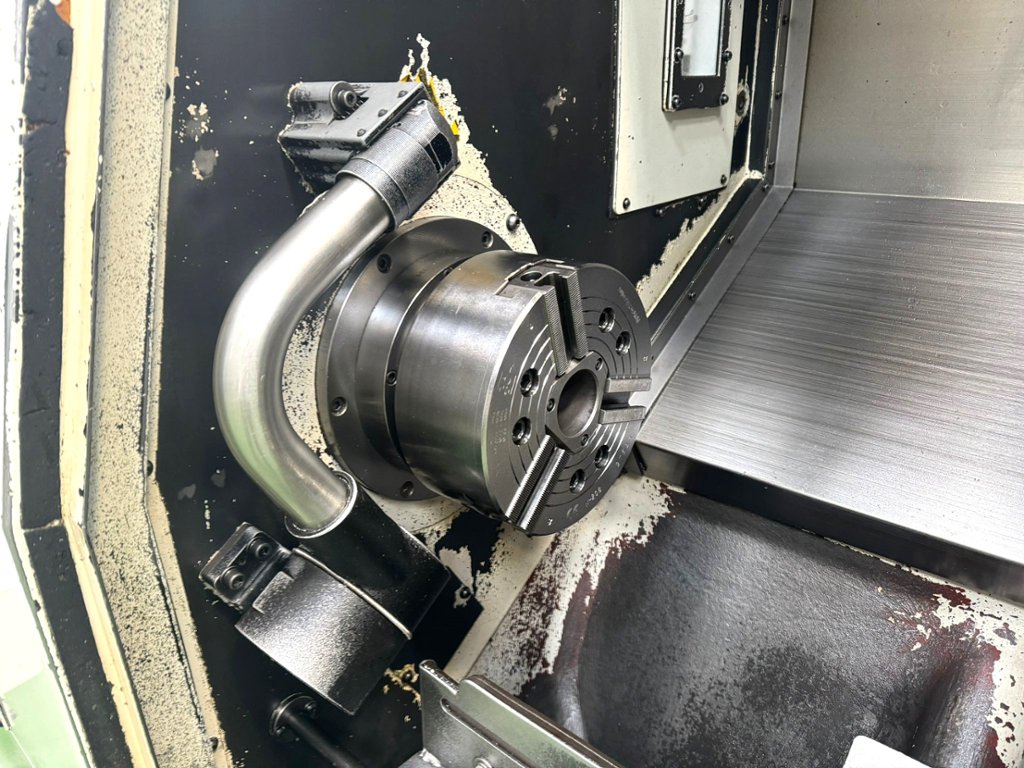

Maximum swing 525mm dia. Maximum Cutting Diameter 356mm. Maximum Cutting Length 483mm.Bar capacity 51mm.10 station turret. Spindle speed 4,800 rpm. Spindle nose A2-6. Spindle power 16 kW. X travel 203mm. Z travel 508mm. Tailstock. Toolsetter. Swarf conveyor. Parts catcher. Rigid tapping. 3D Graphics. Machine complete with 3 jaw 200mm dia. powered chuck. Turret tooling. Bar puller. Coolant.
Machine dimensions L x W x H. 2950mm x 2300mm x 2032mm high. Approx weight 3700 kg
Location: Oldham, Greater Manchester
