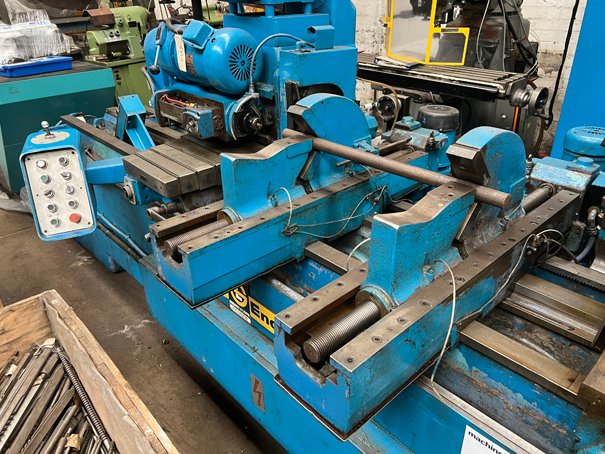

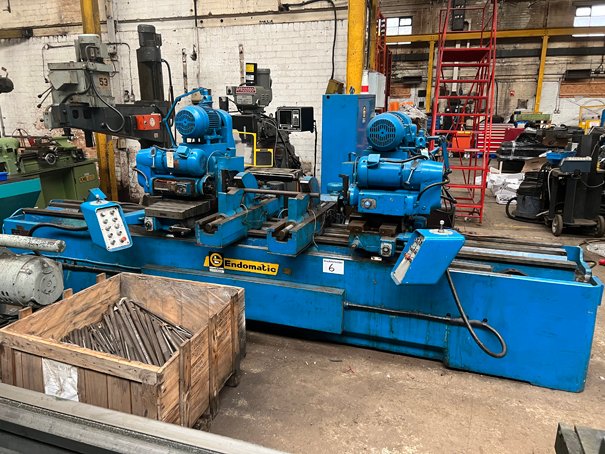

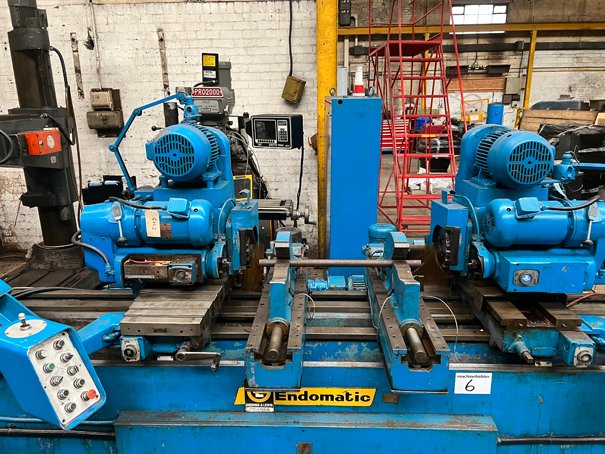

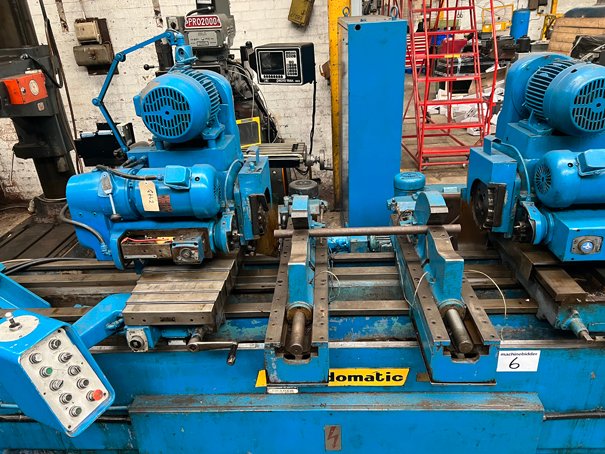

Lot 6: GIDDINGS & LEWIS MC Endomatic Facing & Centering Machine 8" Dia. X 132" Capacity

This lot has been archived

Bidding on this lot has finished

Description

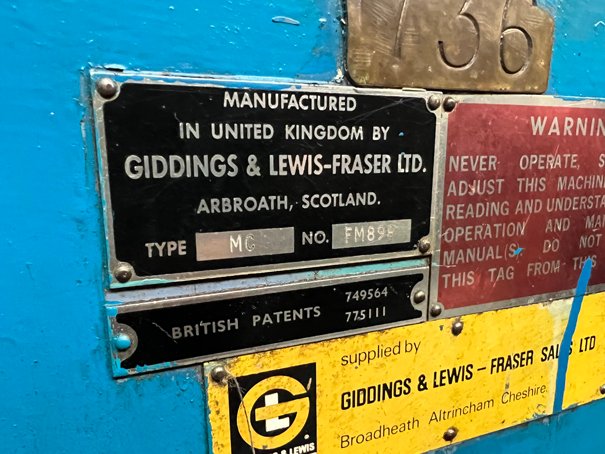

Max Diameter Milling with 10″ Cutters 8″.Max Diameter Milling with 8″ Cutters 6.25″. Max Diameter Milling with 6″ Cutters 3.5″. Minimum Diameter Clamping 1/2″. Maximum Workpiece Length (10″ Cutters) 138″. Min Workpiece Length (6″ Cutters) 4.5″. Milling Spindle Speeds (Thru Pick Off Gears) 42-290 rpm. Size of Taper in Milling Spindles 50 INT. Rapid Traverse Rate of Milling Heads 100″/ min. Feed Rate of Milling Heads (Infinitely Variable) 0-100″/min. Maximum Material Removed at Each End .5″ Drill Spindle Speeds (Thru Pick Off Gears) 377-1145 rpm. Serial No.FM898
