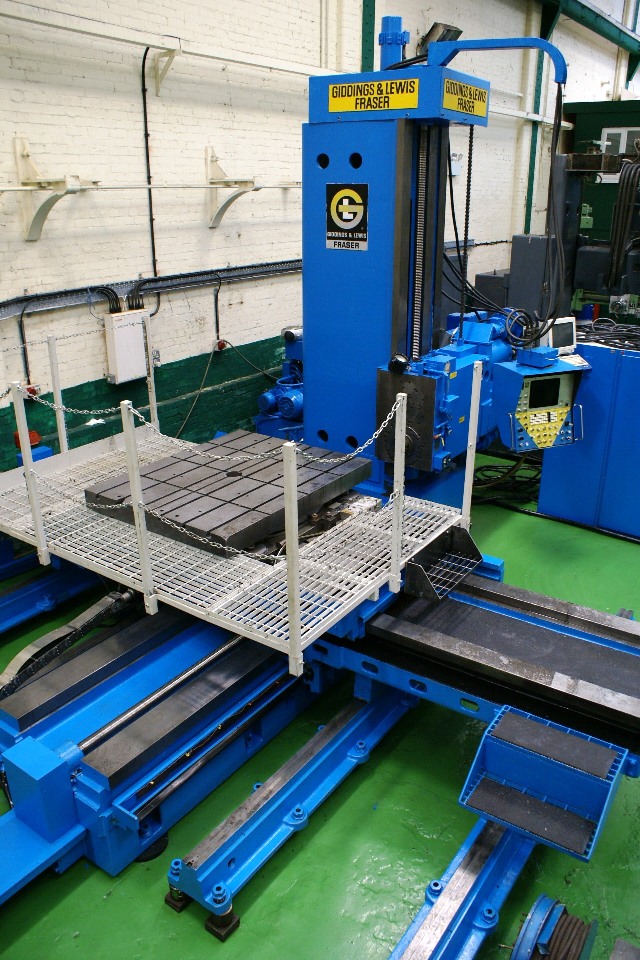

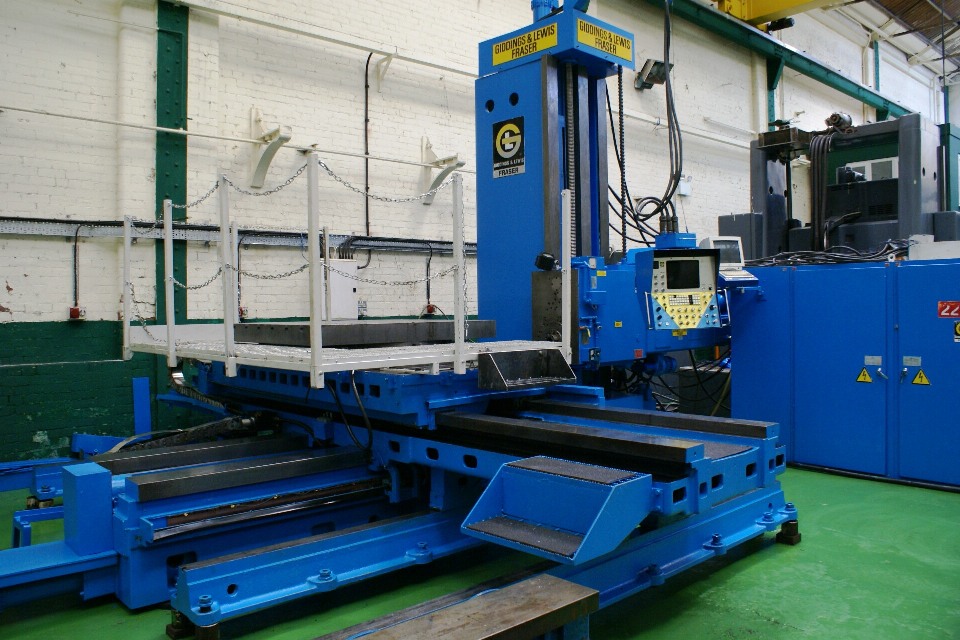

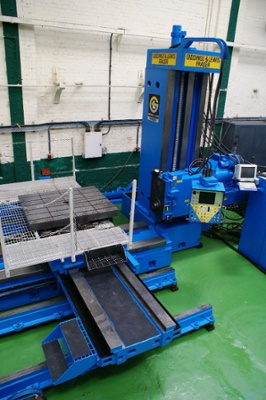

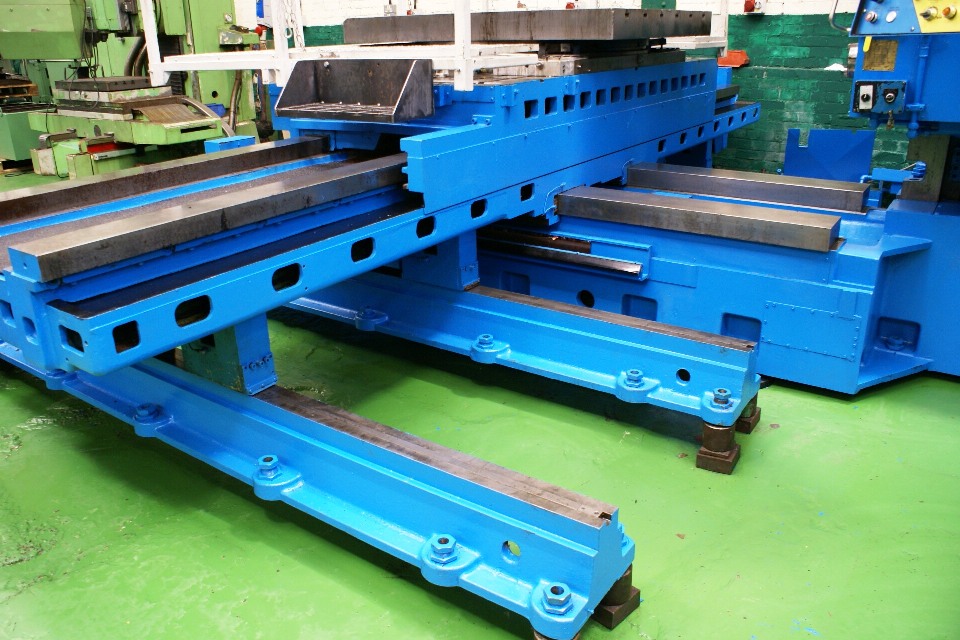

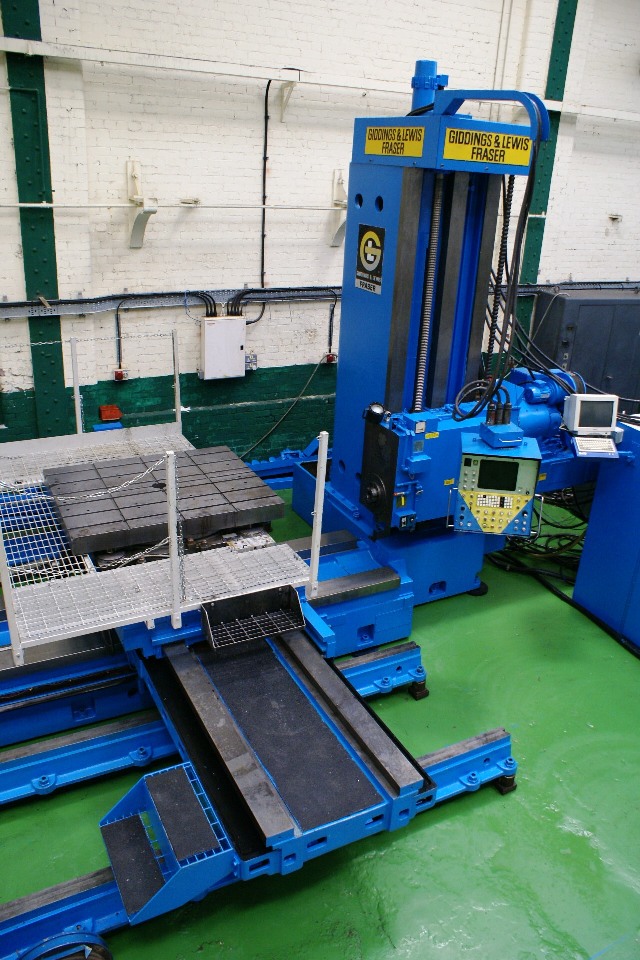

Lot 4: GIDDINGS & LEWIS G50-T CNC Table Type Horizontal Borer

Machine Serial No 450-1058 Year of Manufacture 1985 Spindle taper 50 ISO Spindle dia 130mm Spindle speeds 6 – 1120 rpm Spindle power 40 HP Feed motor 10 HP Table size 1219mm (48”) x 2489mm (98”) Table loading 11 Tons Cross travel - X 2500mm (98.4”) Vertical travel - Y 1828mm (72”) Longitudinal travel - Z 2400mm (94.4”) Spindle travel - W 1066mm (42”) Table feeds 0-4500mm (180”) min Column / Spindle 0-3000mm (120”) min

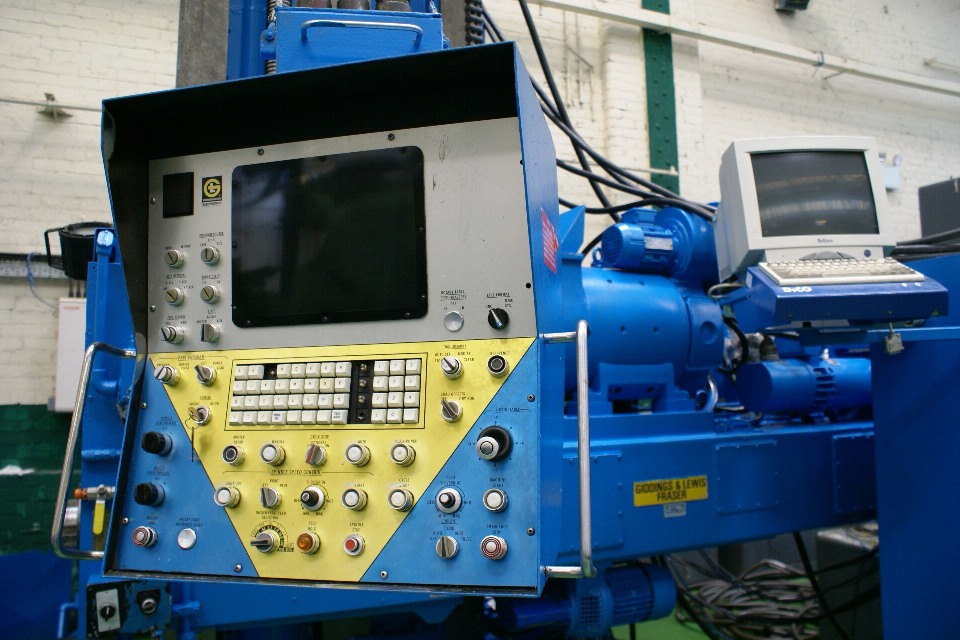

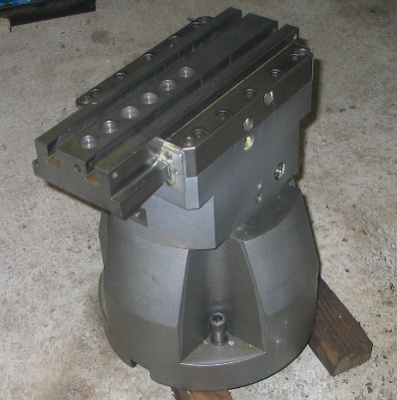

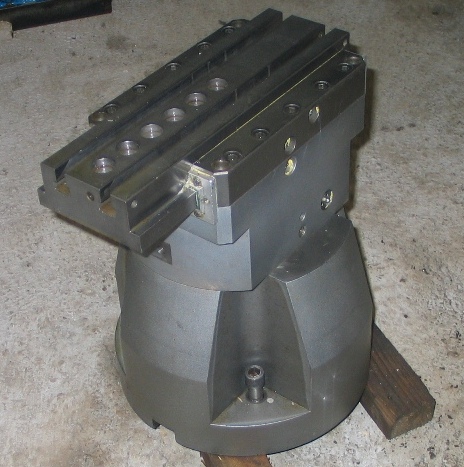

G&L CNC800 CNC Control G&L air lift top table 1219mm (48”) x 1524mm (60”). Powered drawbolt 4 x Outrigger supports Davis CH-16 Contouring Head . Max /Min Bore/Face dia. 0.6”- 25” (15.24-635mm). Max speed 300 rpm.

Overall Dimensions L x W x H (Imperial) 279” x 218” x 173” Weight 35 Tons
