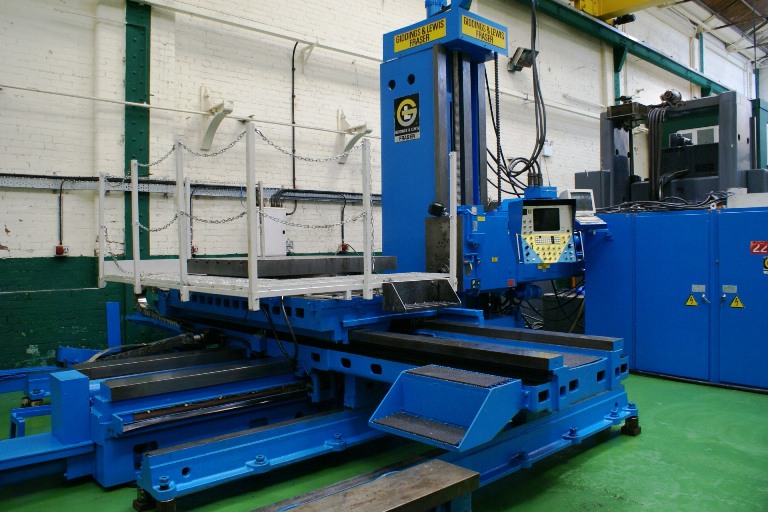

Lot 6: GIDDINGS & LEWIS G50T Horizontal Table Type CNC Horizontal Borer

This lot has been archived

Bidding on this lot has finished

Description

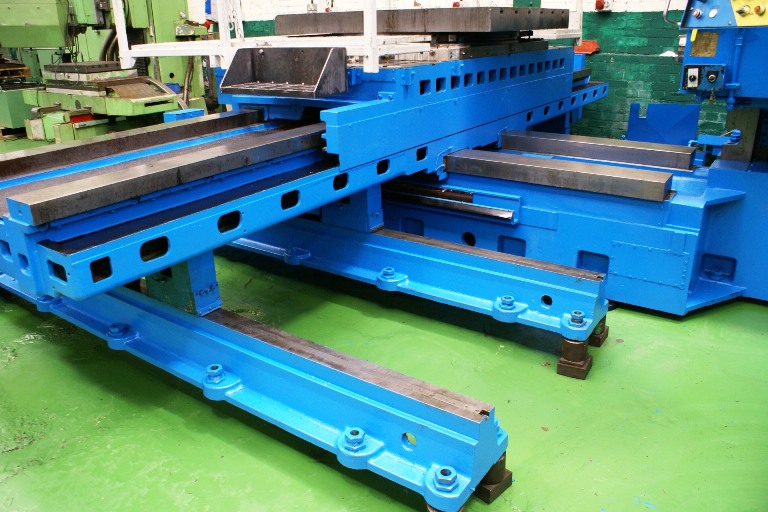

Machine Serial No 450-1058. Year of Manufacture 1985 Spindle taper 50 ISO Spindle dia 130mm Spindle speeds 6 – 1120 rpm Spindle power 40 HP Feed motor 10 HP Table size 1219mm (48”) x 2489mm (98”) Table loading 11 Tons Cross travel - X 2500mm (98.4”) Vertical travel - Y 1828mm (72”) Longitudinal travel - Z 2400mm (94.4”) Spindle travel - W 1066mm (42”) Table feeds 0-4500mm (180”) min Column / Spindle 0-3000mm (120”) min

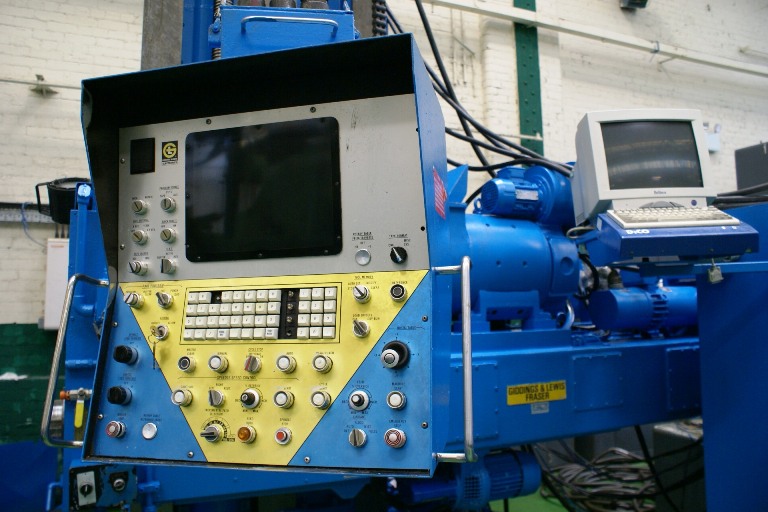

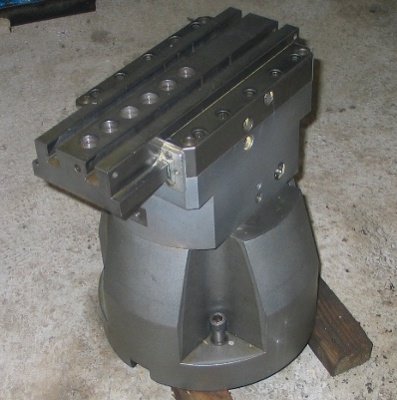

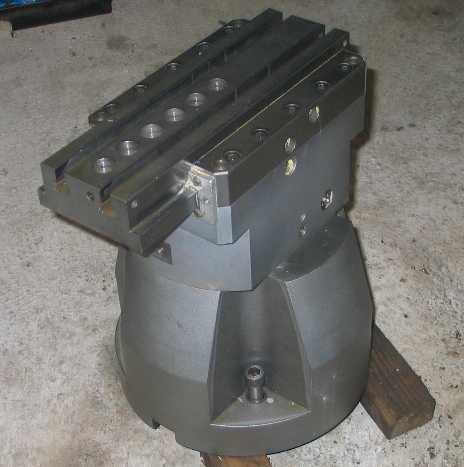

G&L CNC800 CNC Control.G&L air lift top table 1219mm x 1524mm (60”).Powered drawbolt. 4 x Outrigger supports. Davis CH-16 Contouring Head . Max /Min Bore/Face dia. 0.6”- 25” (15.24-635mm). Max speed 300 rpm

Overall Dimensions L x W x H (Imperial) 279” x 218” x 173”

LOCATED AT UNIT A, ACORN INDUSTRIAL ESTATE, OLDHAM, OL1 3NE


PLEASE NOTE


THIS ITEM CAN BE DISMANTLED & LOADED FOR A PRICE OF £1500 TO A FLAT VEHICLE OR STANDARD EUROTRAILER.
