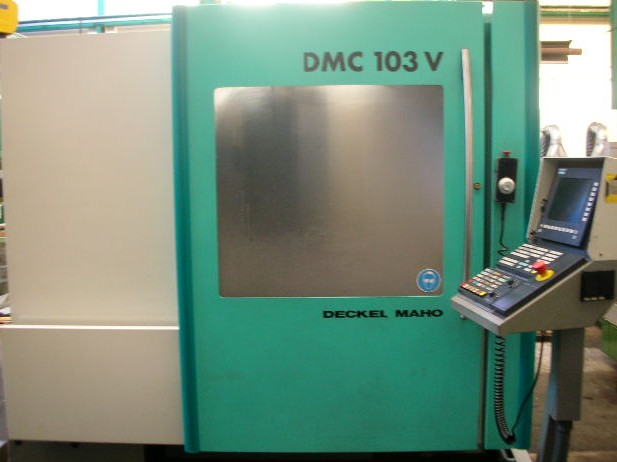

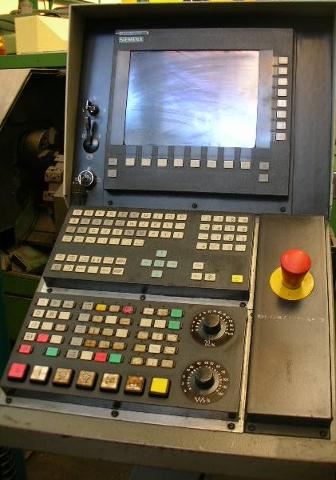

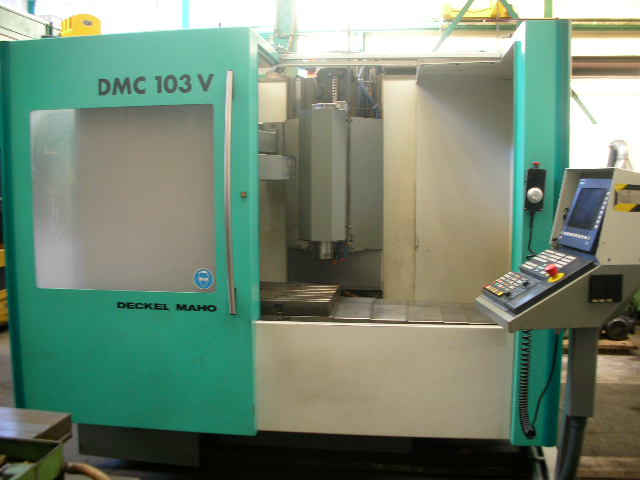

Lot 3: Deckel Maho DMC103V Vertical Machining Centre with Siemens 840D Control.Year 1999
This lot has been archived
Description
Spindle Speeds (steplessly Programmable) 0-8000 rpm.Set up mode 0-800rpm.Table Size 1200mm x 600mm.Table loading 800kgs.Spindle Taper ST40.No of Tools 24.Max tool dia.80mm.Max tool weight 7 kgs.Feedrates (X/Y/Z) 1-30,000 mm/min.Rapid traverse 30,000 mm/min.X Axis 1000mm.Y Axis 600mm.Z Axis 600mm.Distance spindle nose to table (min) 150mm.Distance spindle nose to table (max) 650mm.Floor space required 3700mm x 3600mm.Machine height 2700mm.Machine weight 6800kgs.Input Power 100% duty rating 9kW.40% duty rating 13 kW.
