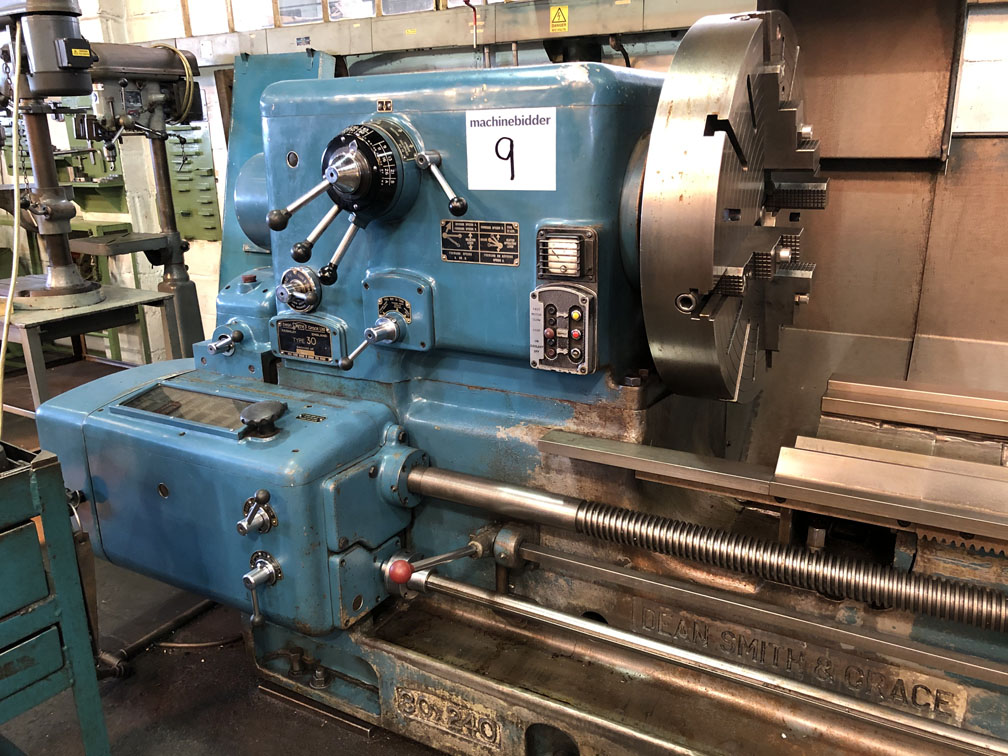

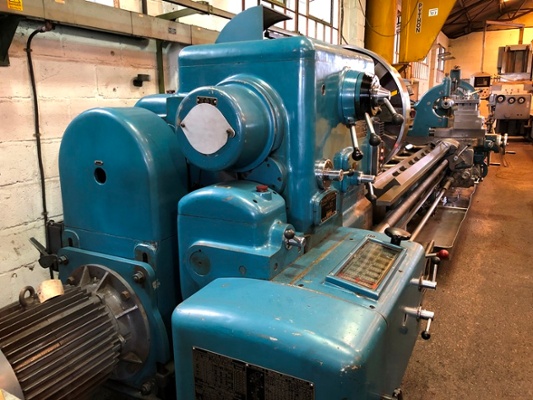

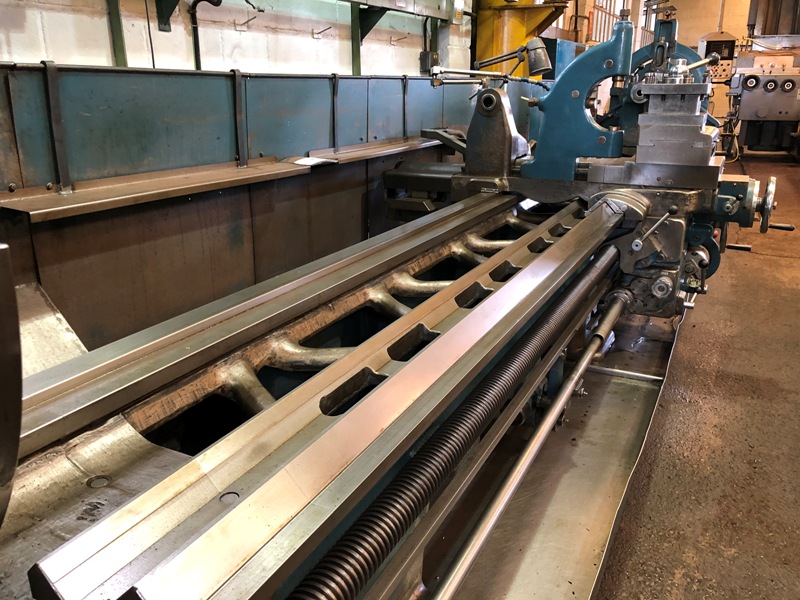

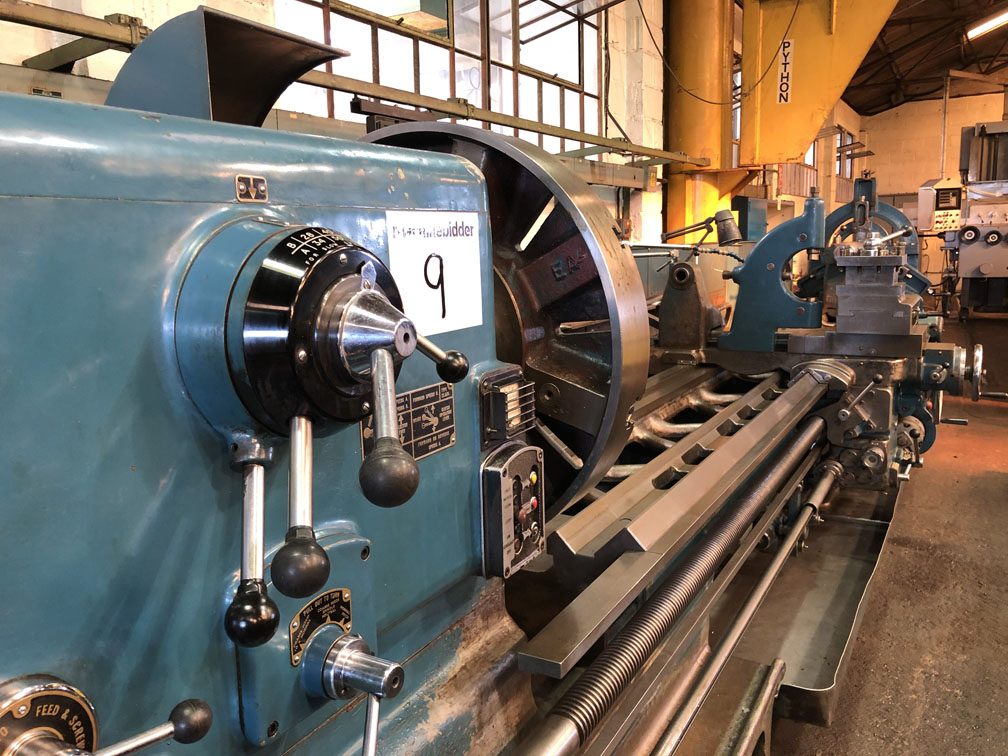

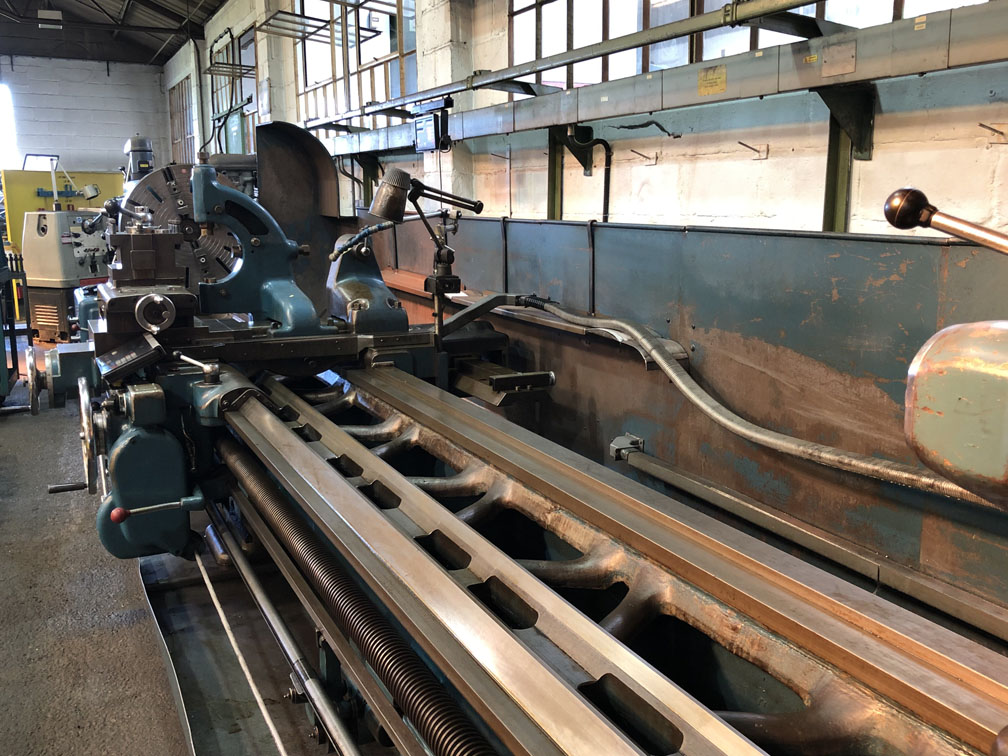

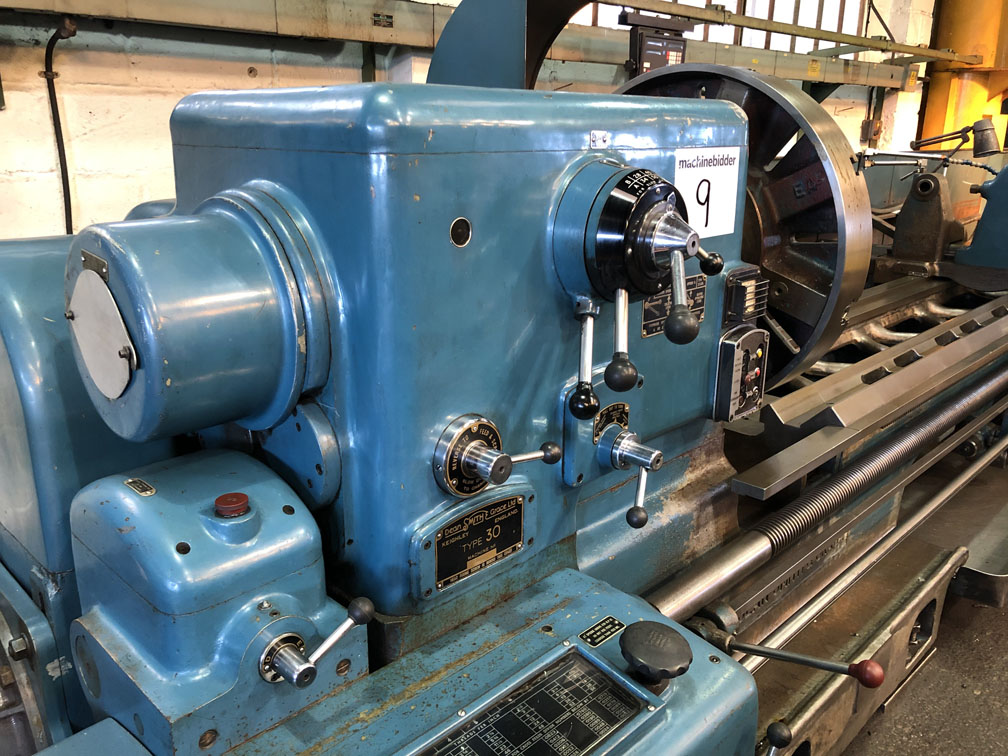

Lot 9: DEAN SMITH & GRACE Type 30 x 240 Gap Bed Centre Lathe with Twin Newall DP8 Digital Readouts - SALE AGREED

This lot has been archived

Description

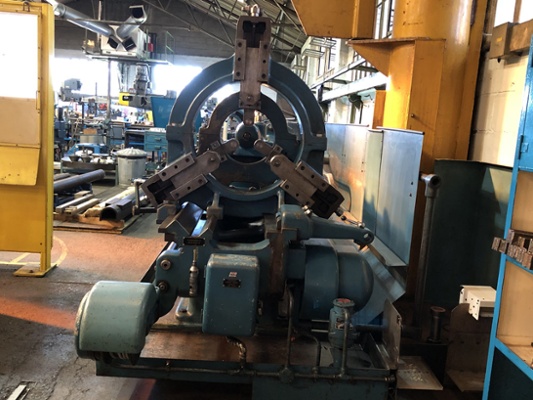

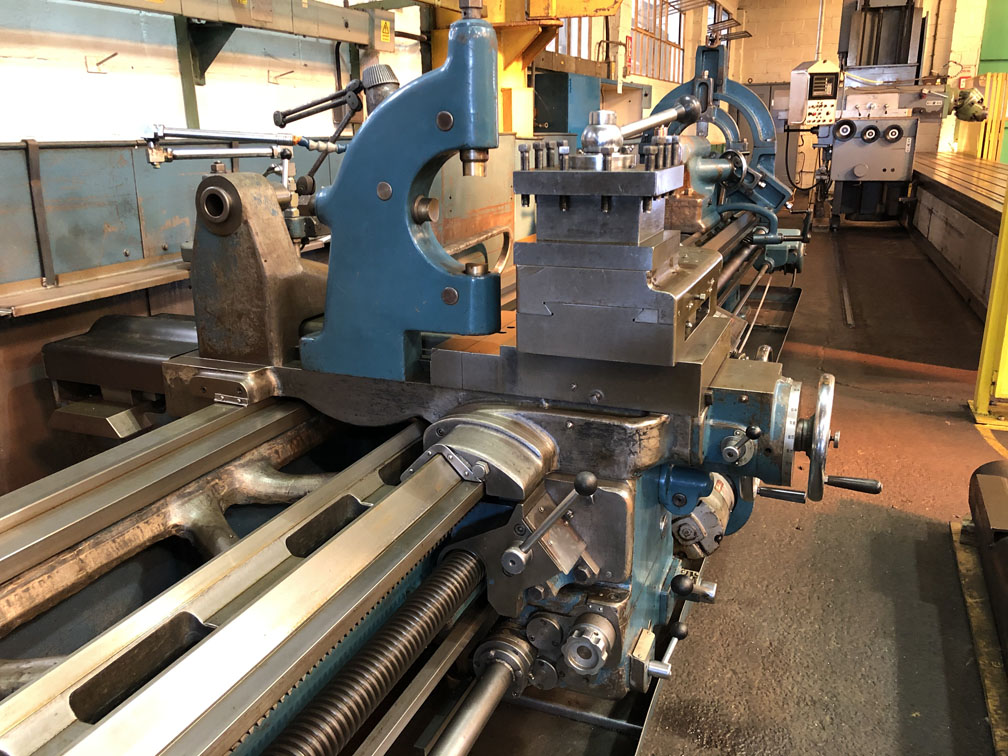

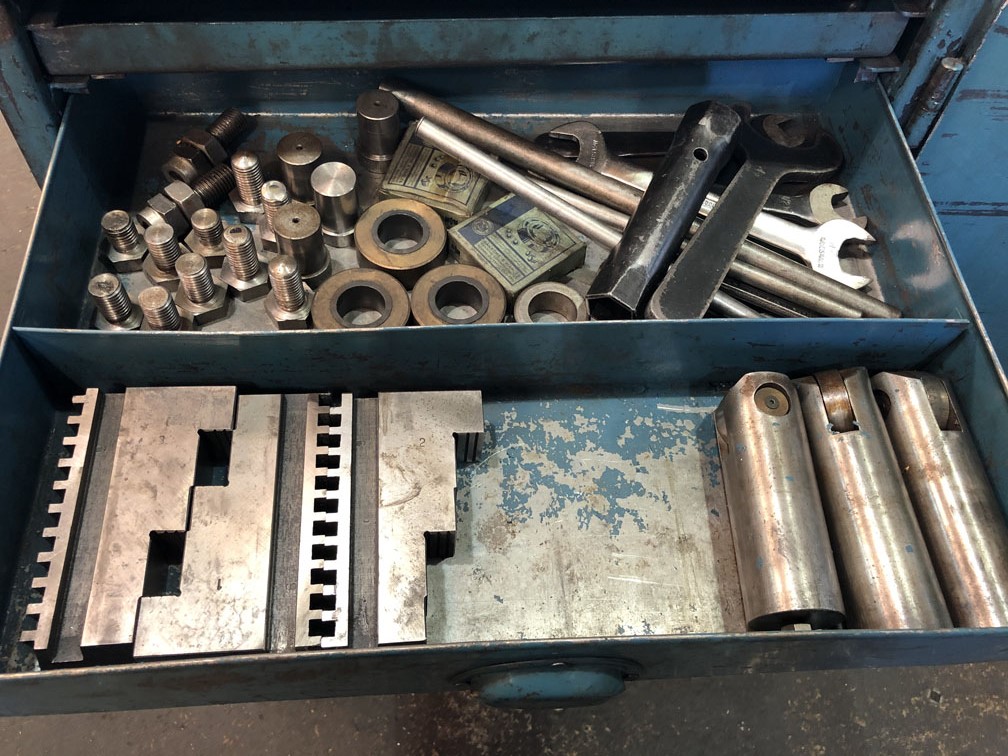

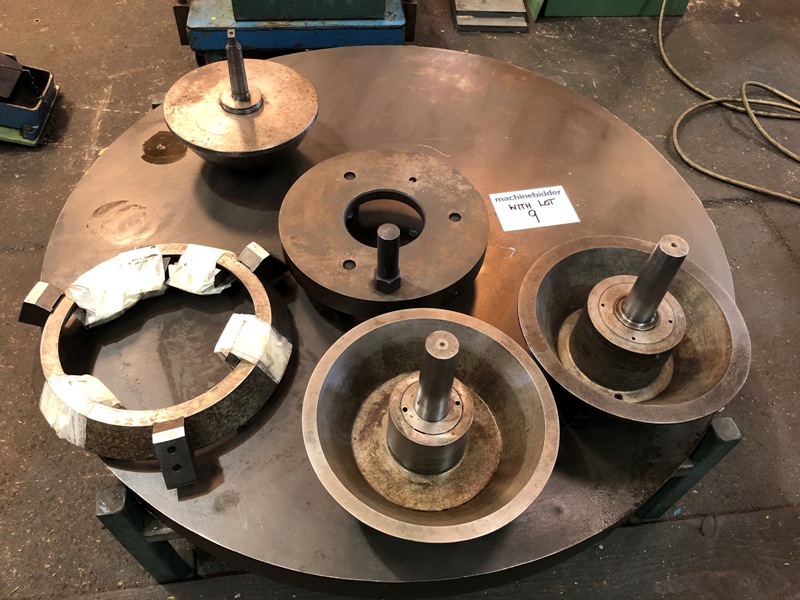

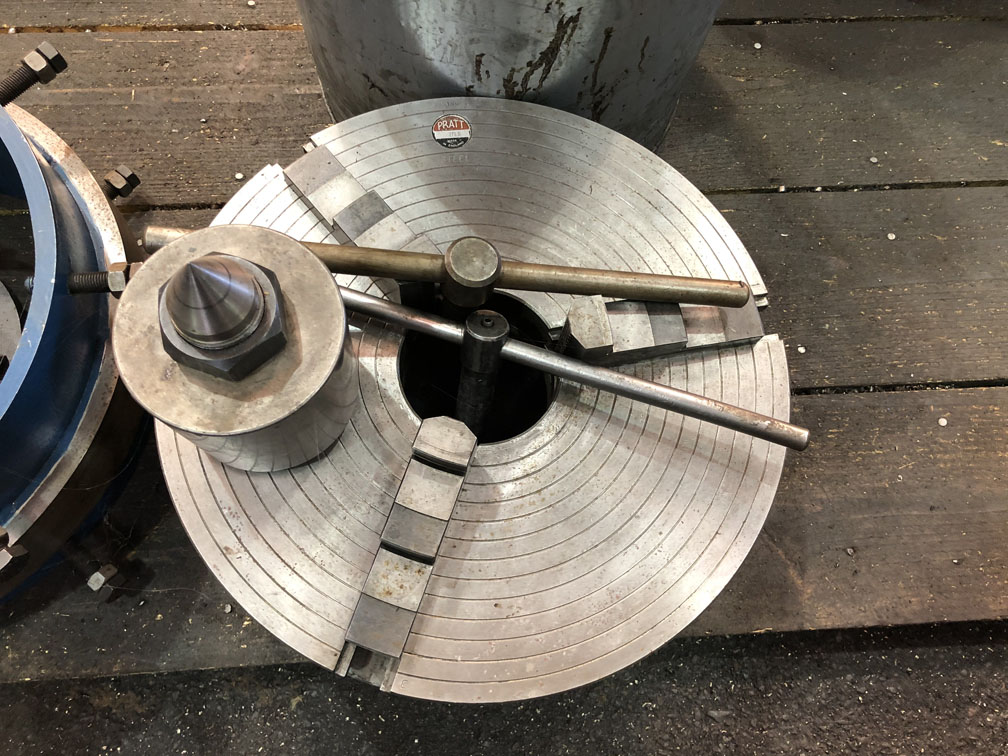

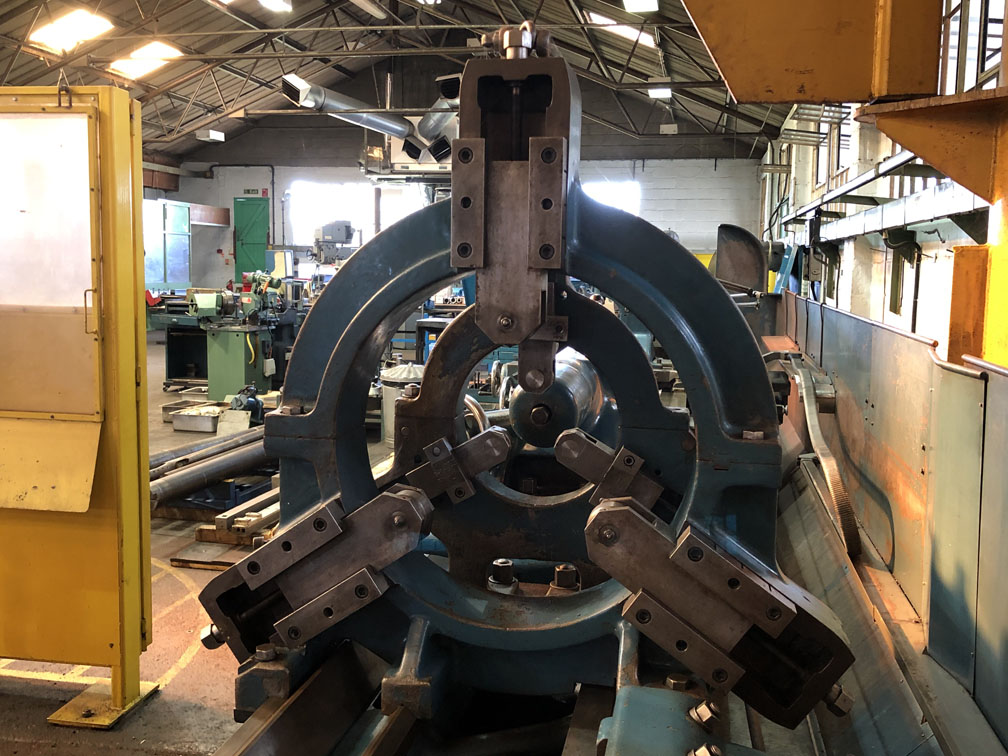

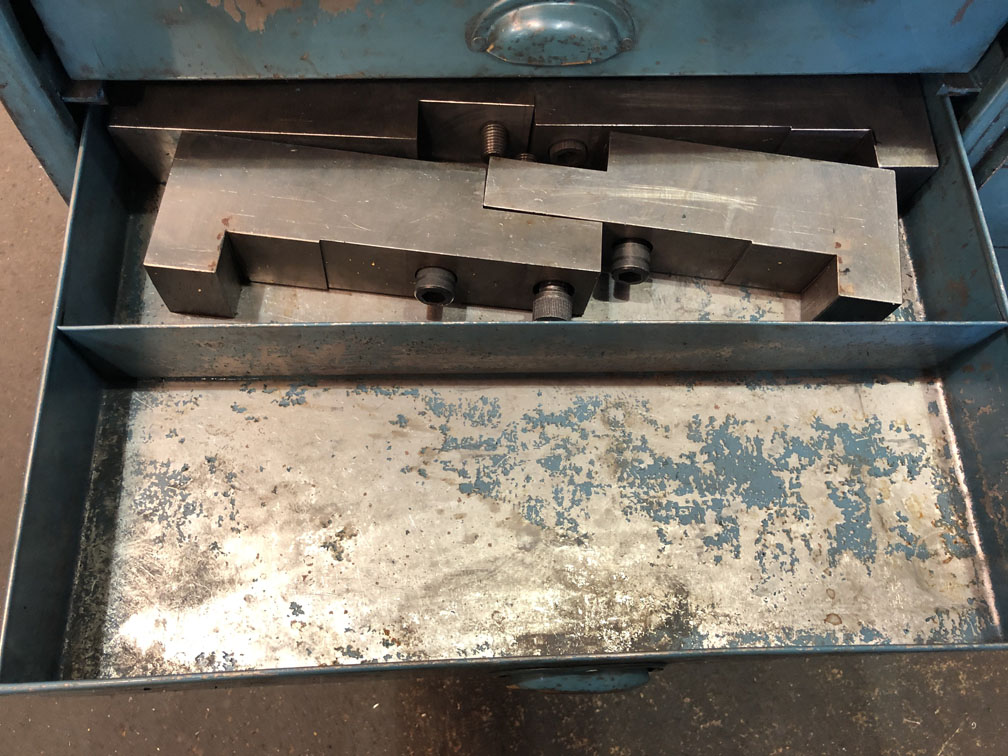

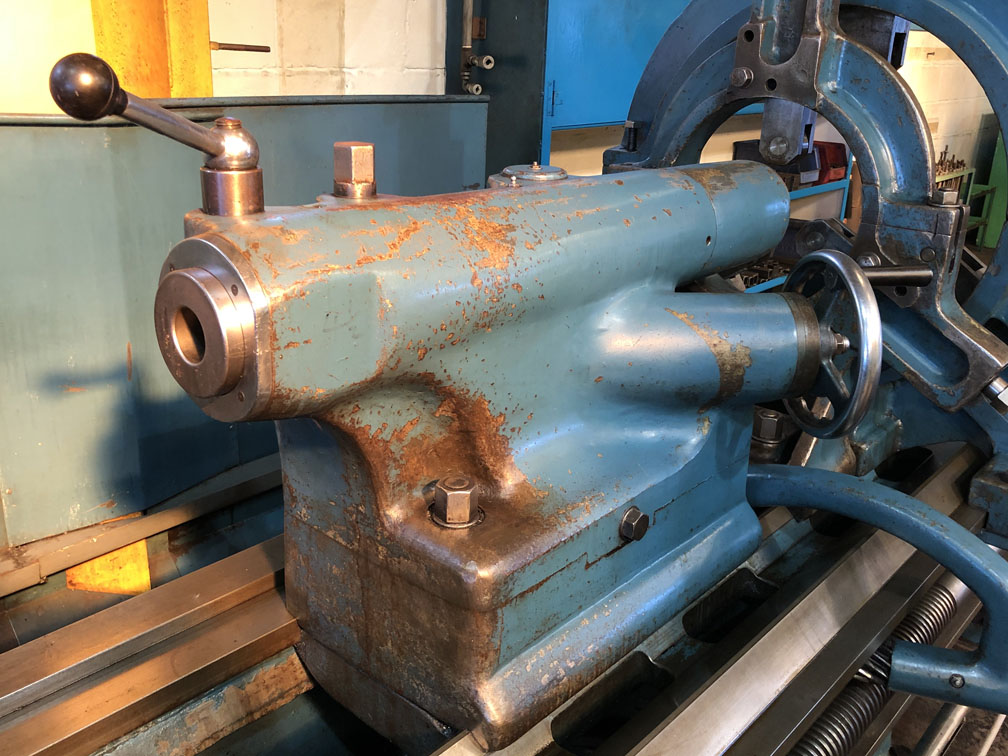

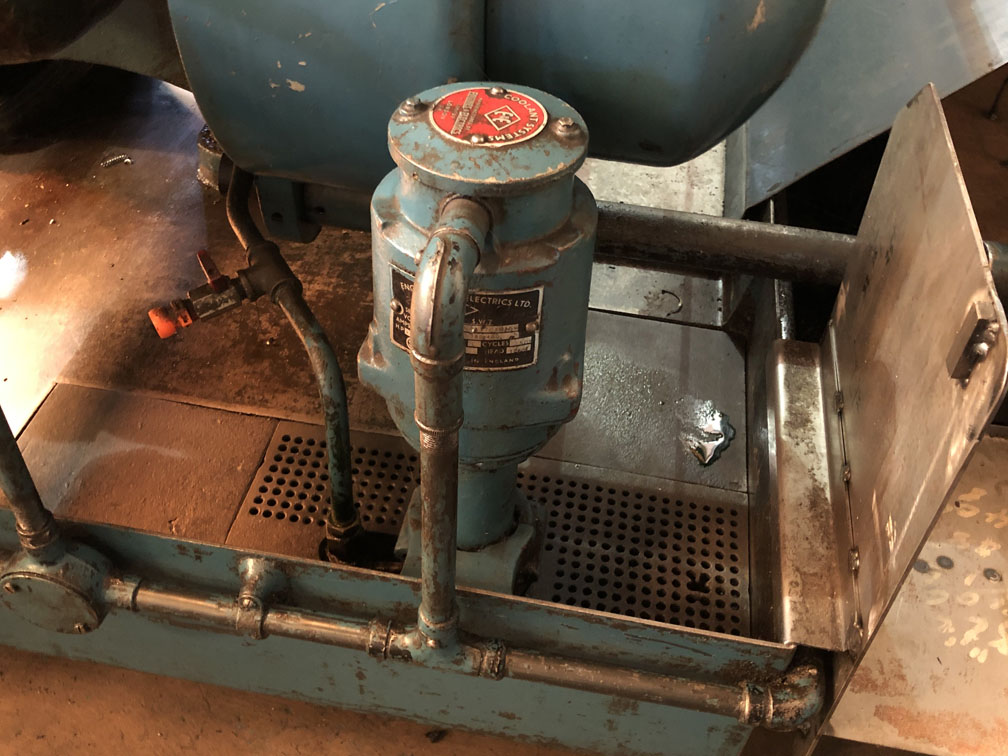

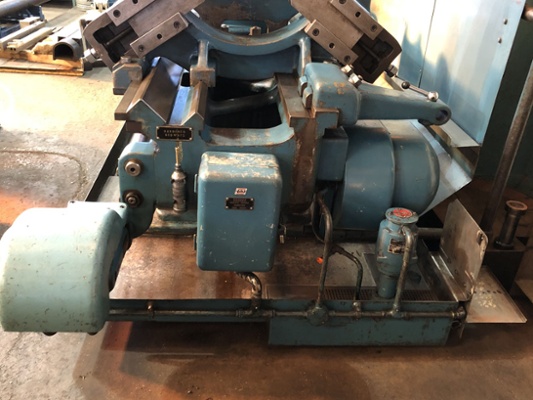

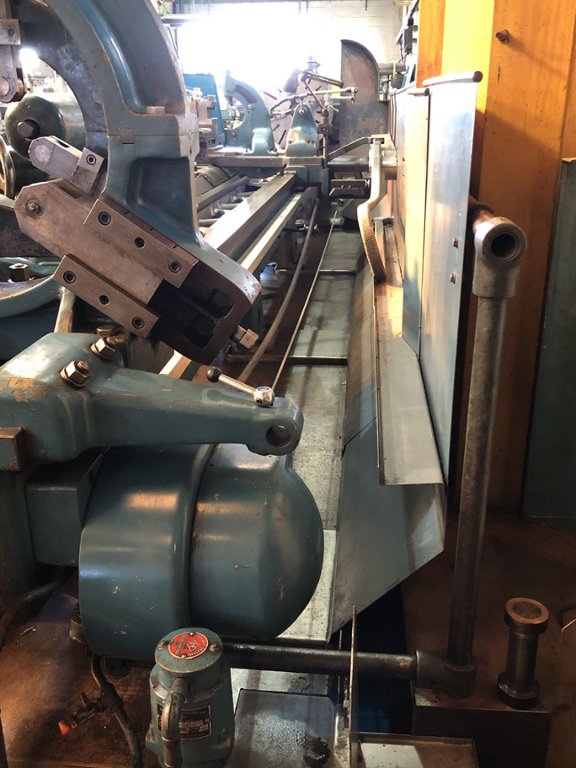

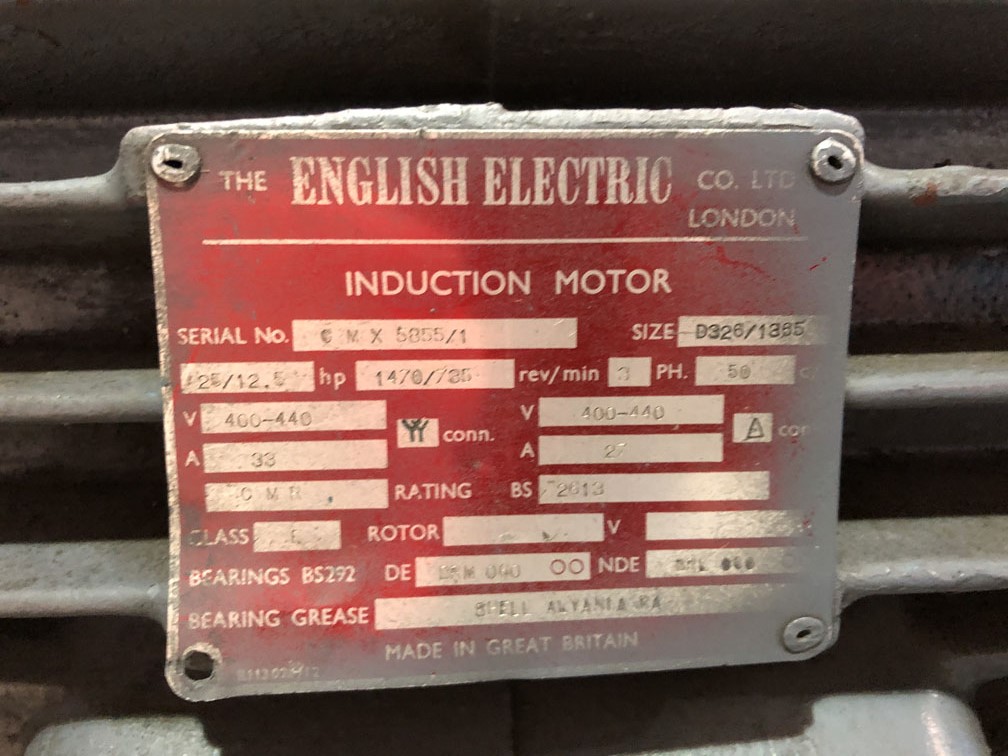

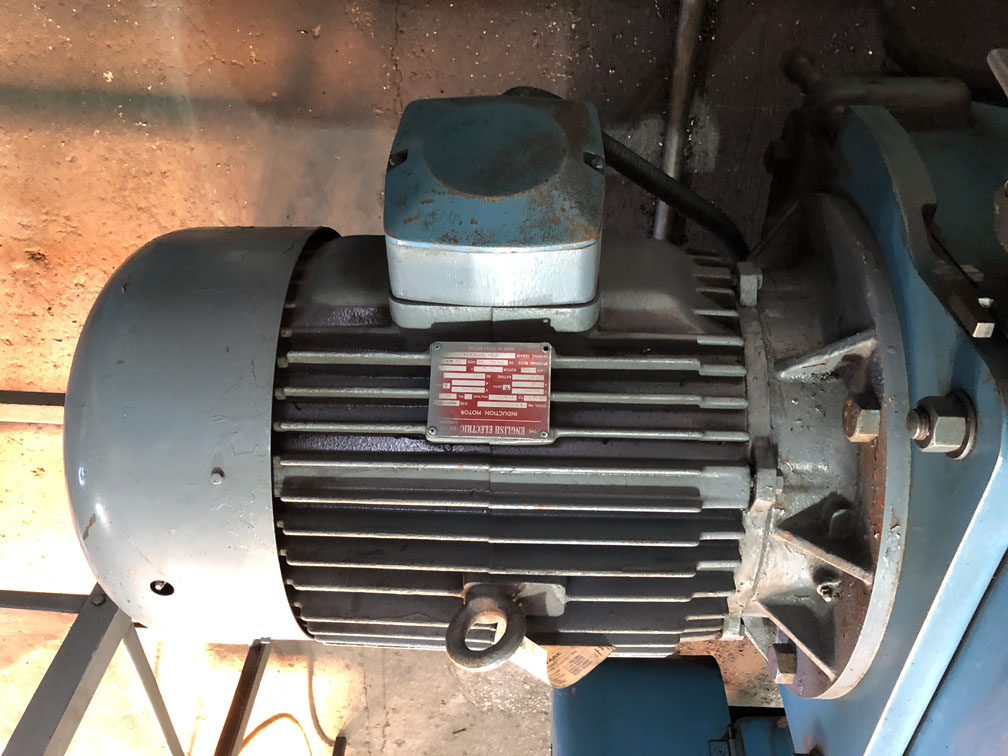

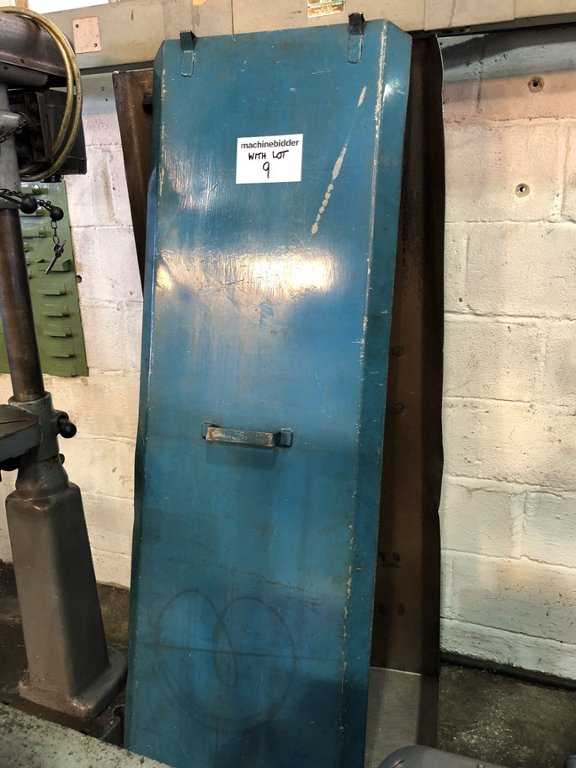

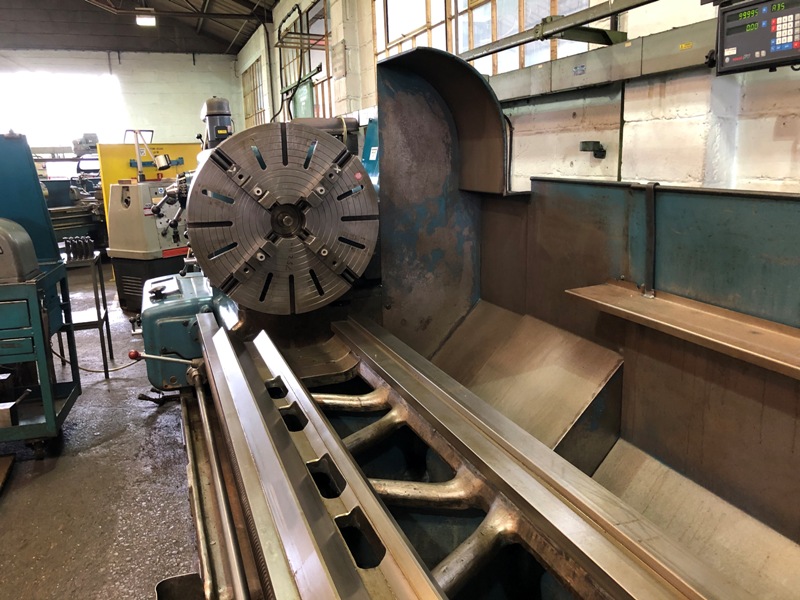

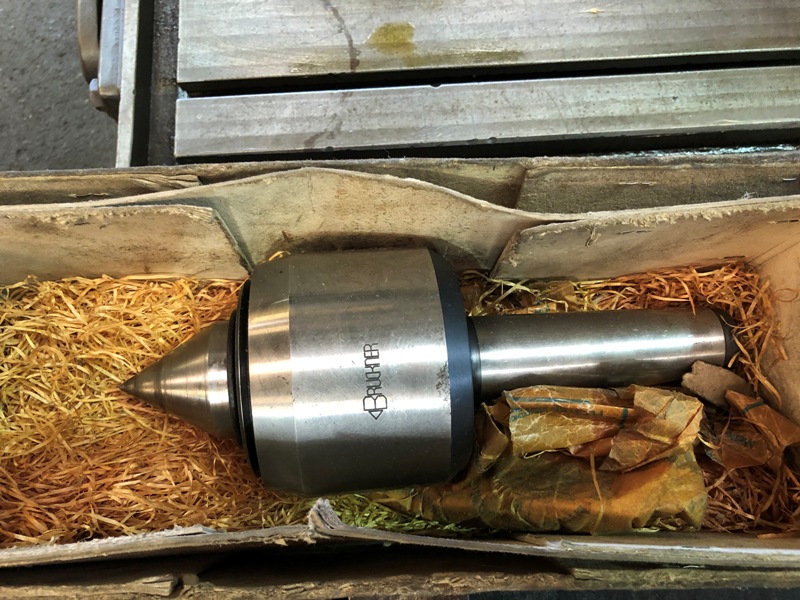

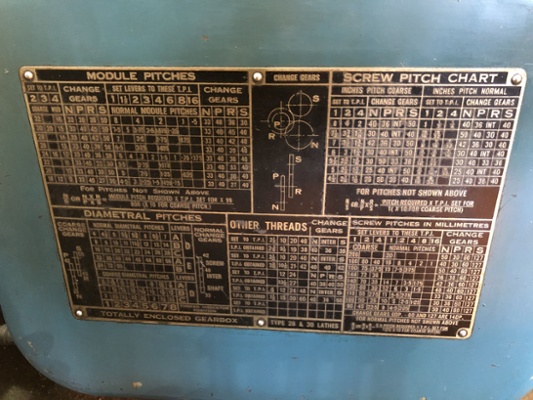

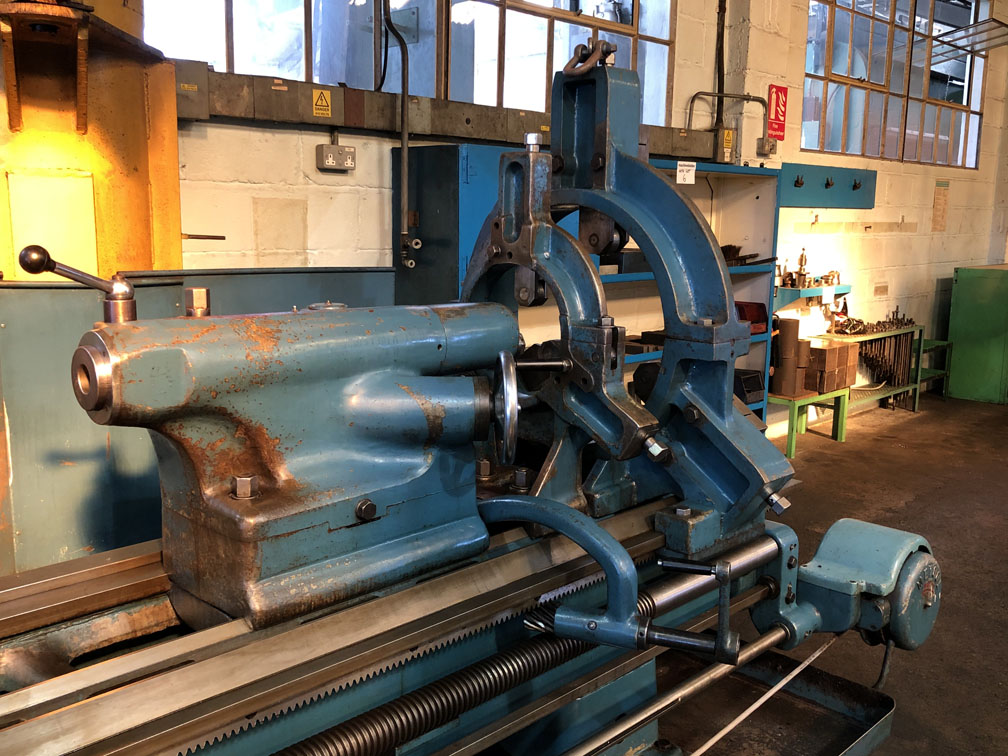

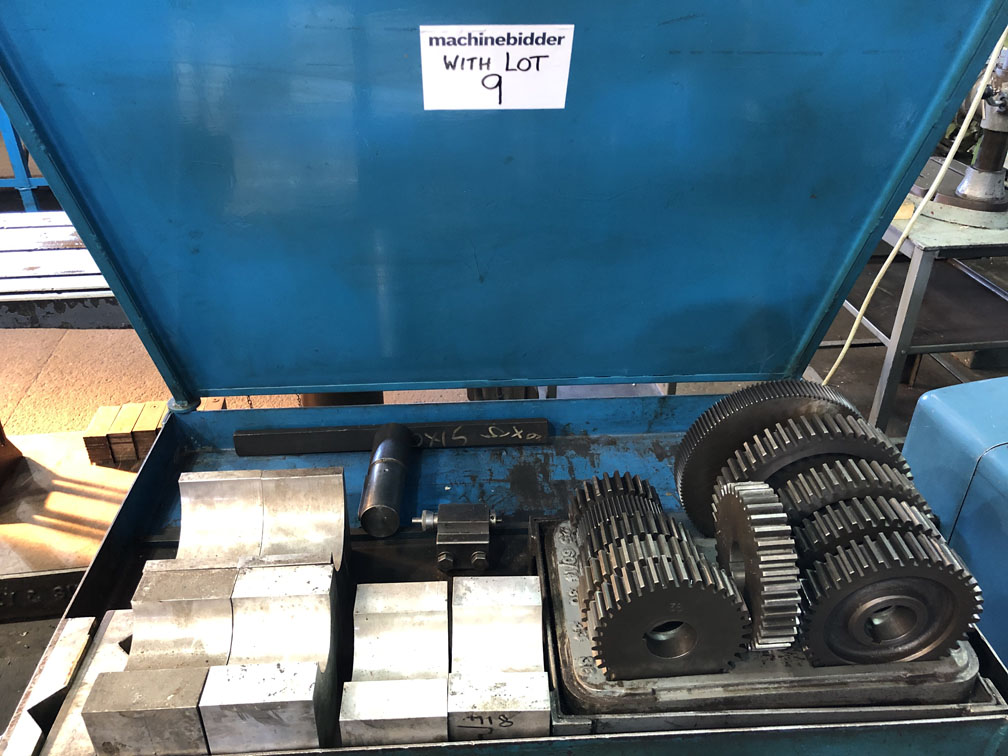

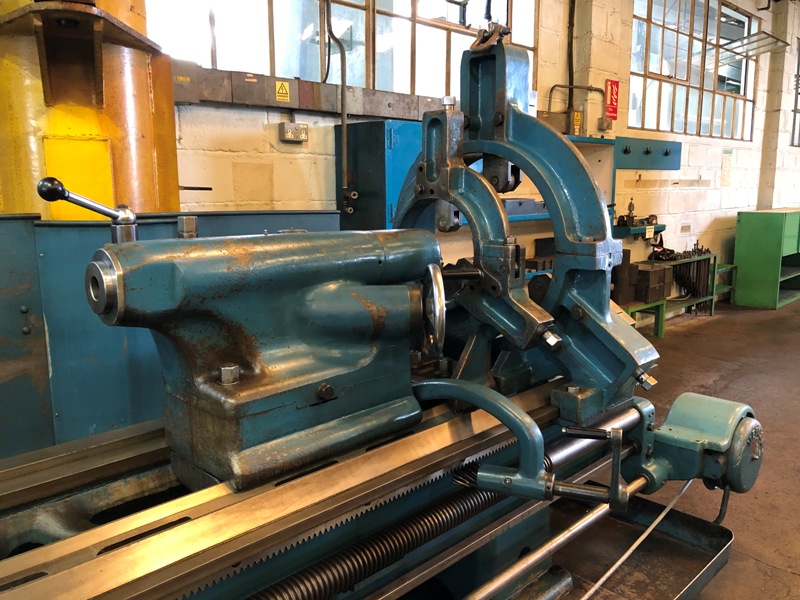

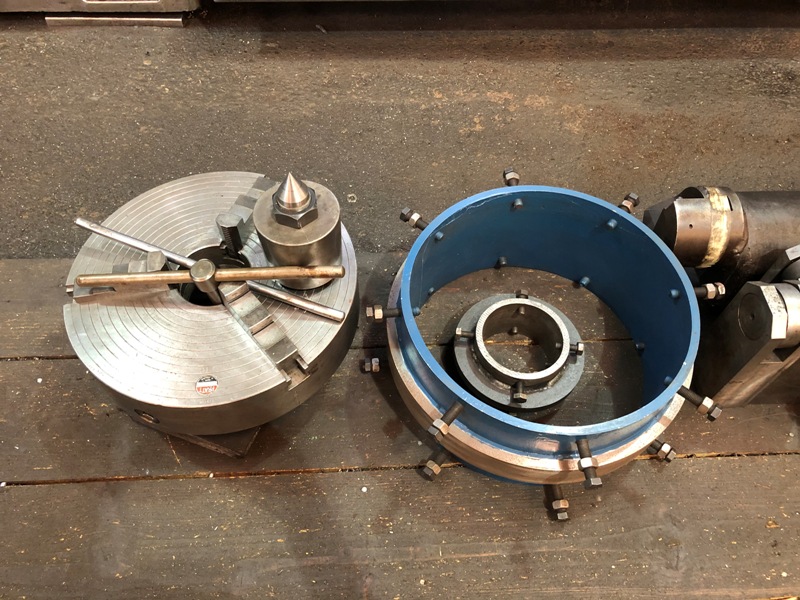

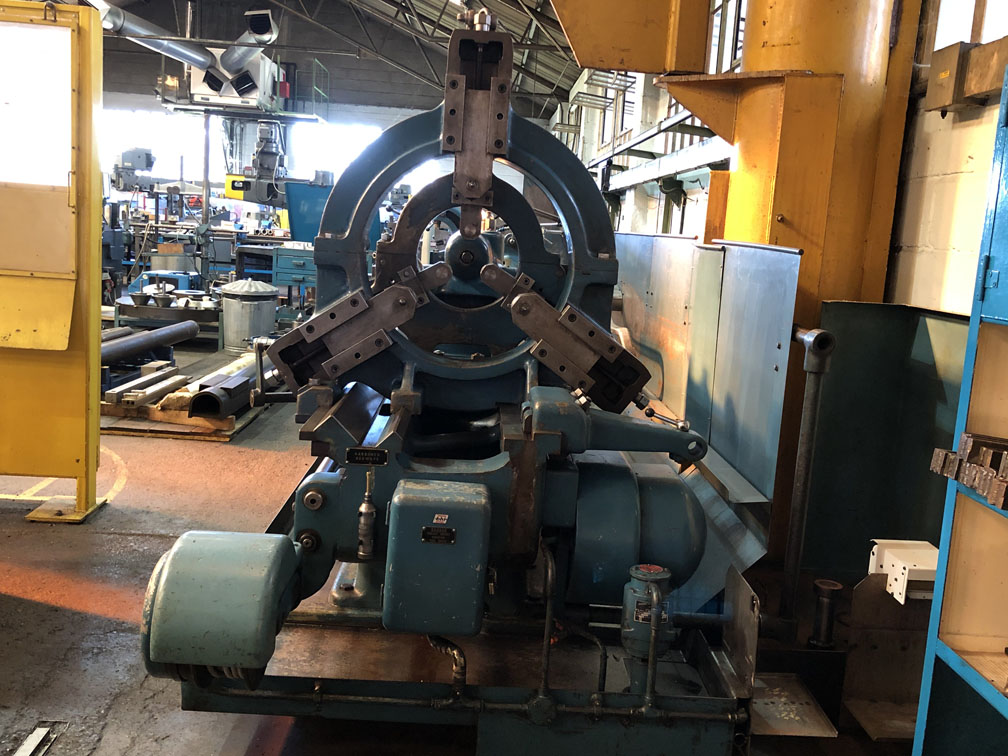

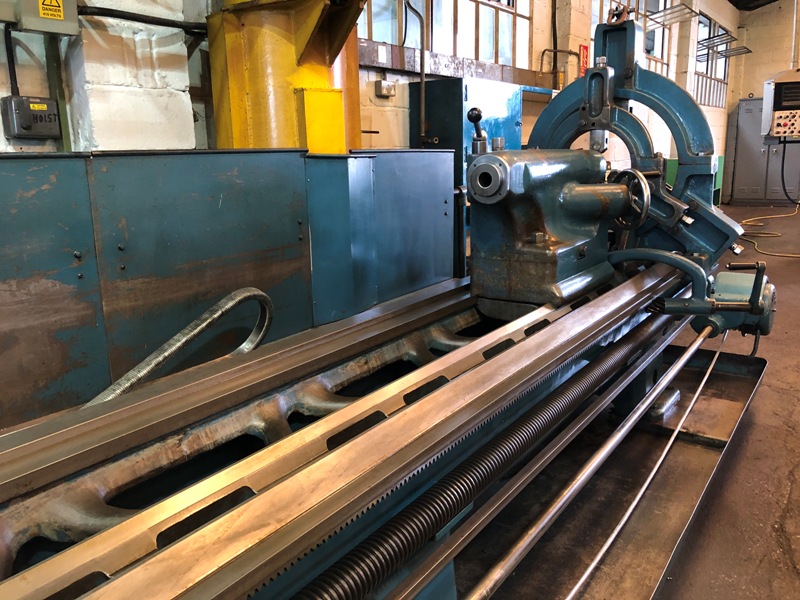

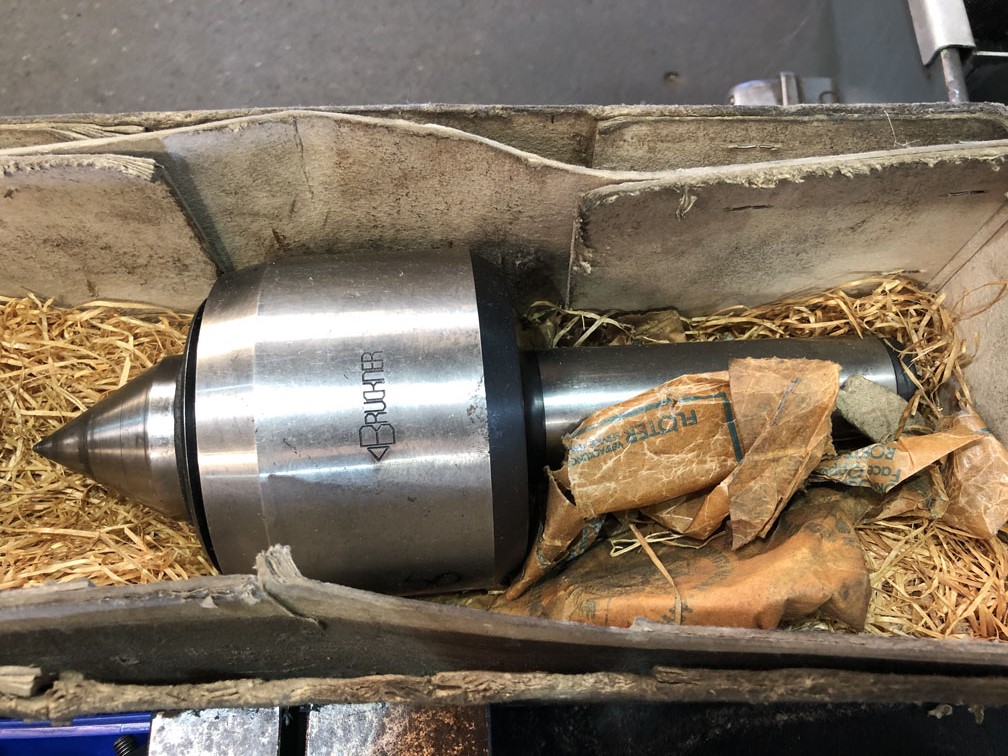

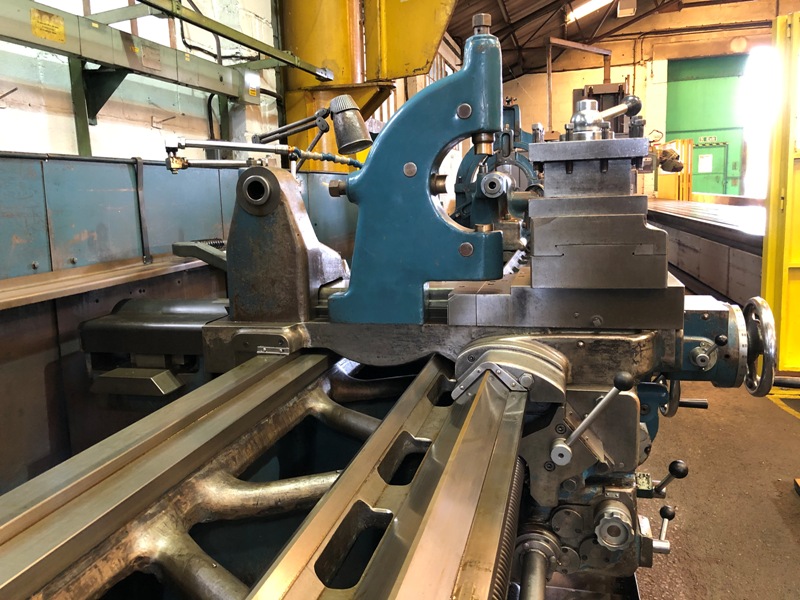

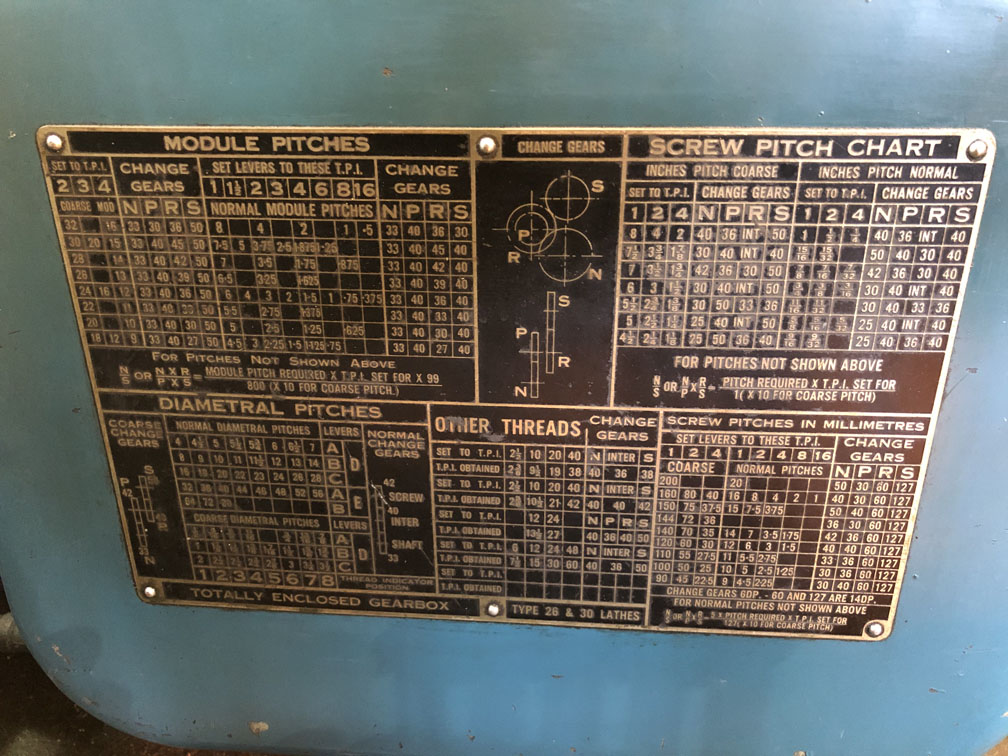

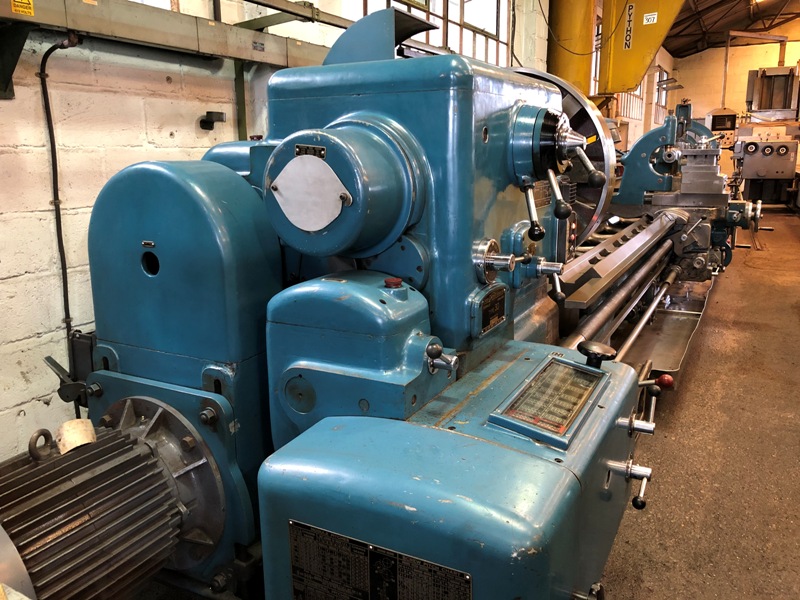

Swing over bed 813mm. Swing over cross slide (with guard) 495mm. Swing over cross slide (without guard) 578mm Distance between centres 6096mm. Spindle speeds 9 - 800 rpm. Spindle bore 117mm. Dual dials. Rapid traverse to saddle. 2 way/quick change toolpost. Spindle bush. Drilling attachment. 1200mm dia, faceplate. 760mm dia. 4 jaw chuck. 460mm dia. 3 jaw chuck. 350mm dia. Drive plate. 2 x 3 point roller steadies 500mm. 300mm. Taper turning attachment. Spare tailstock quill. Bruckner revolving centre 5MT. Change gears. Roller steady spares. Boring bar holder. Qty of Revolving pipe centres. Hard & soft chuck jaws. Coolant. Sliding chuck guard. 2 speed main motor 12.5/25 HP. Full length splash guards.

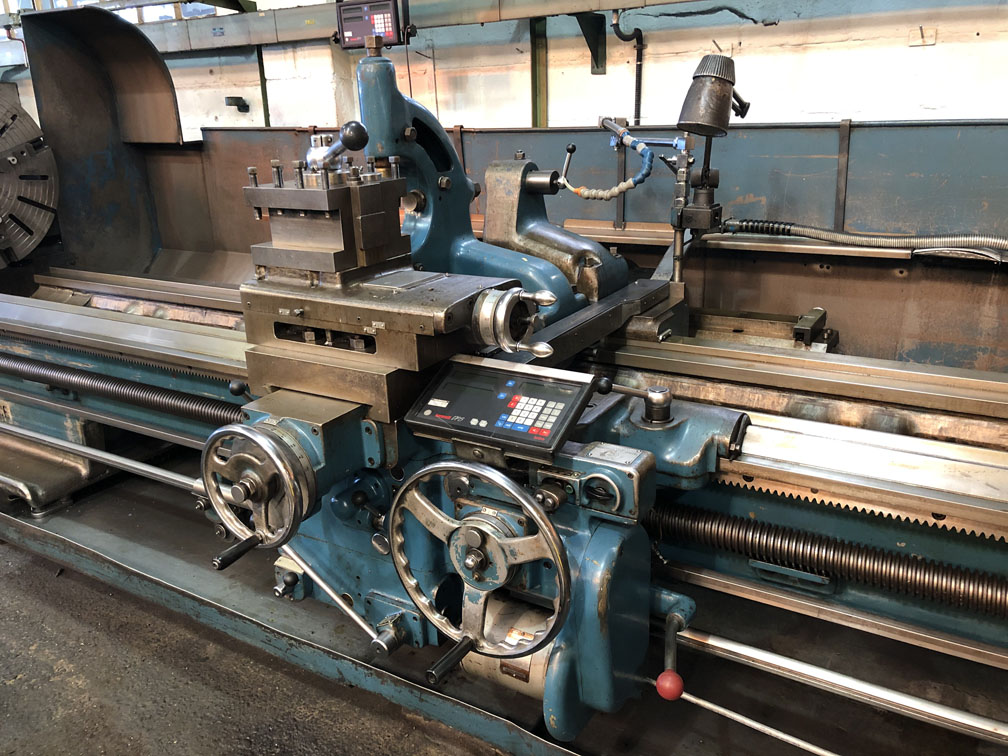

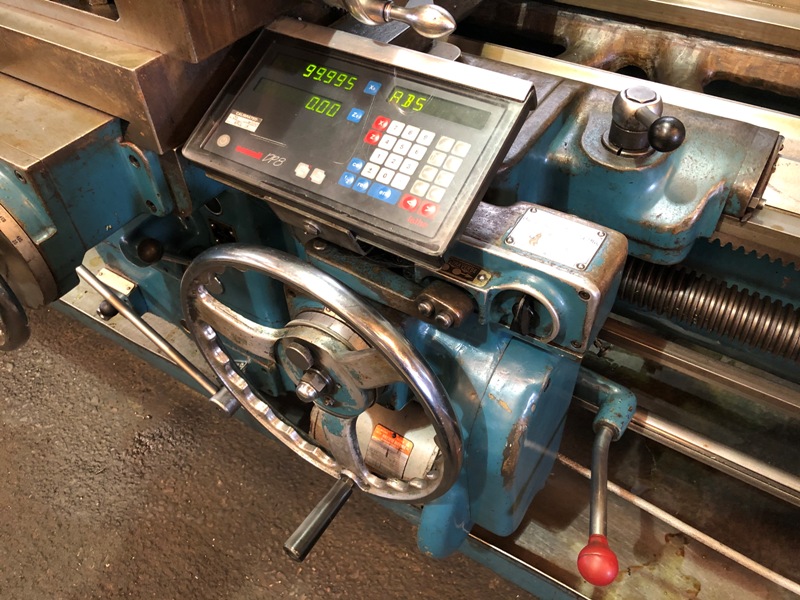

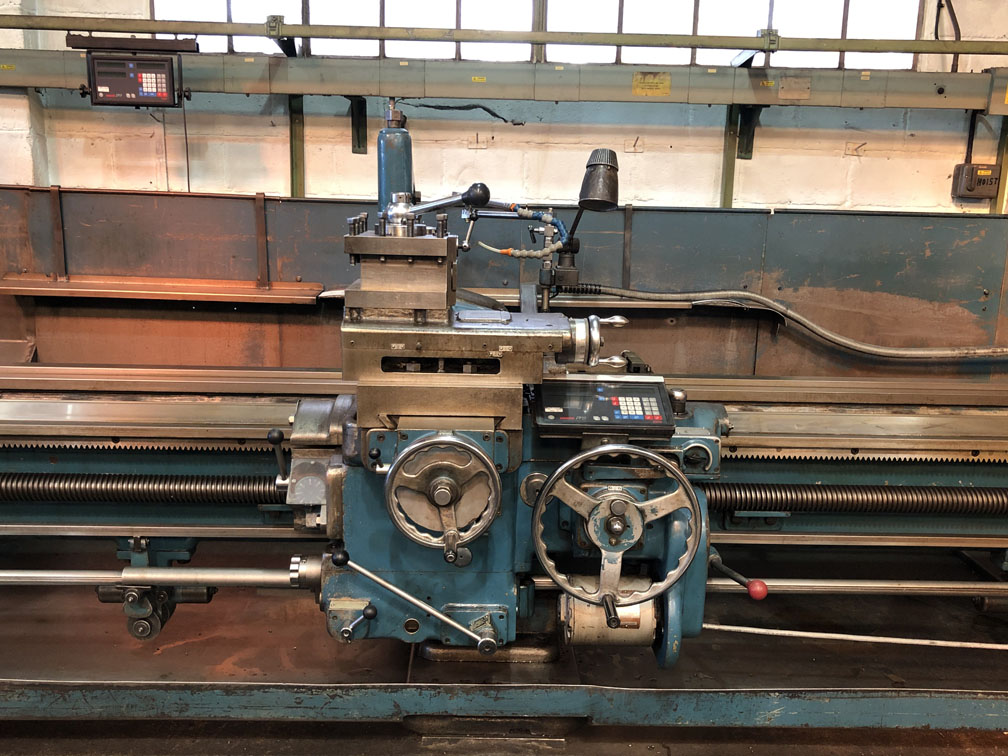

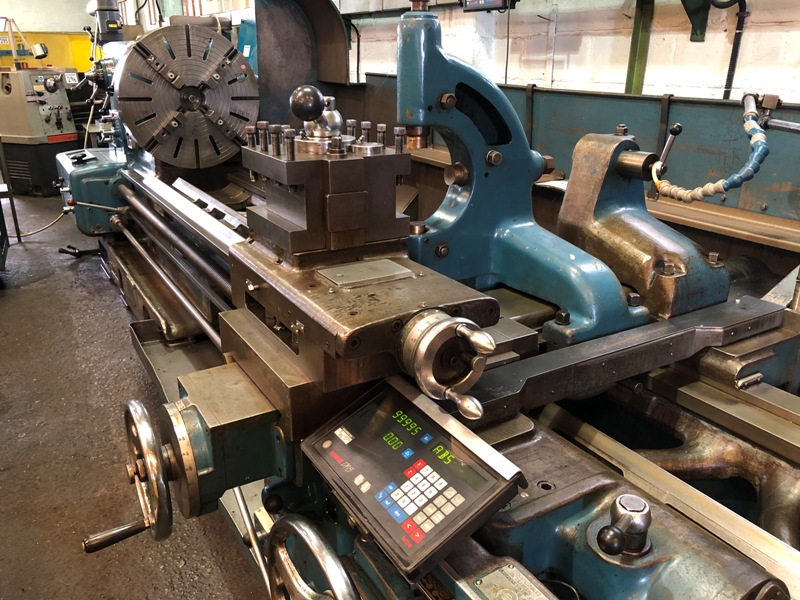

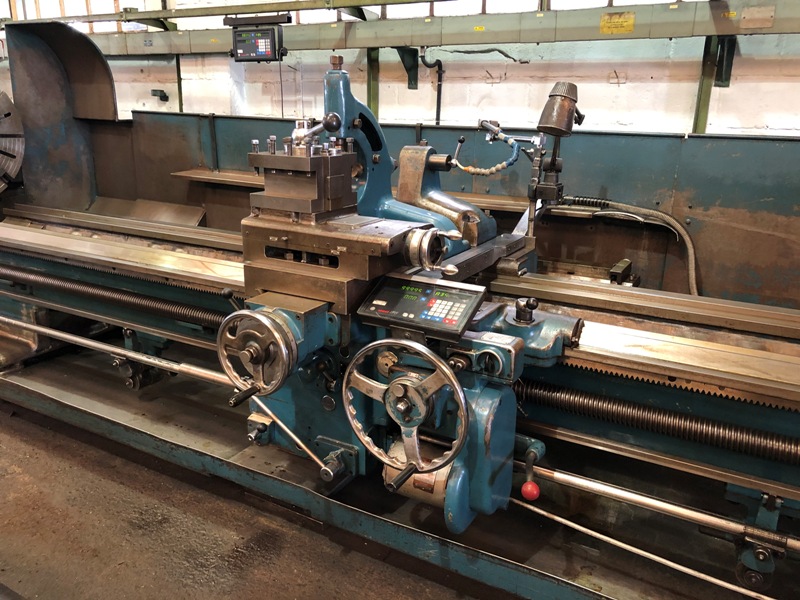

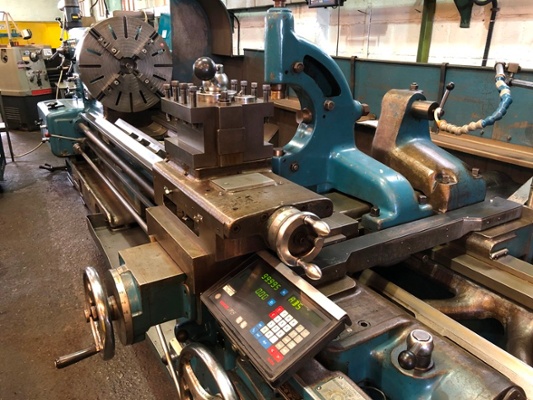

2x Newall DP8 Digital readouts.

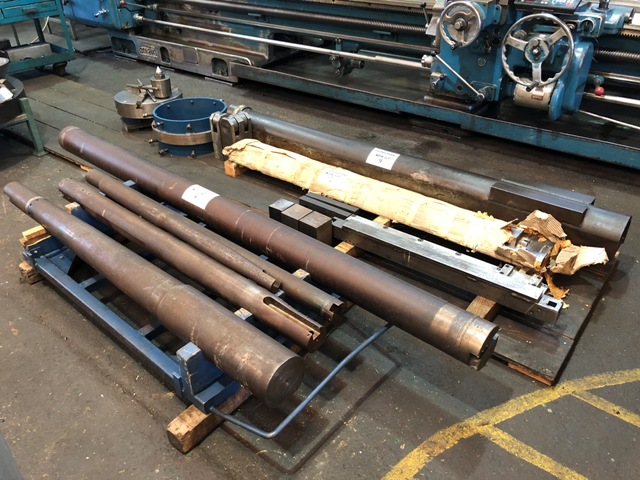

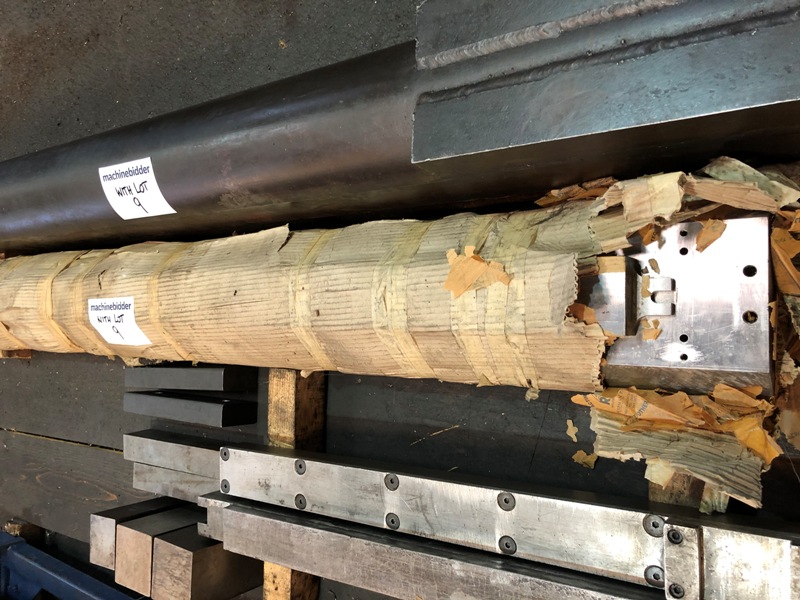

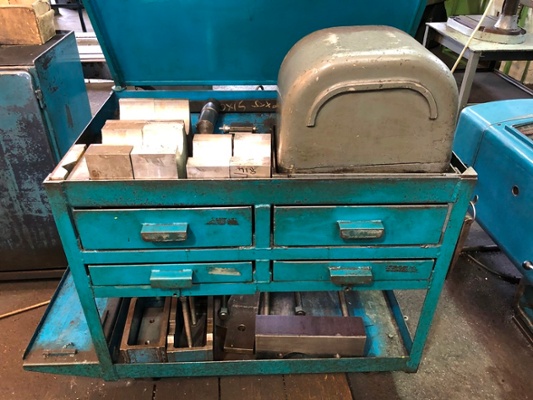

Large selection of tapered & parallel boring bars.

1775mm long tapering from 95mm dia to 150mm dia.

1510mm long tapering from 85mm dia to 100mm dia

1060mm long tapering from 50mm dia to 75mm dia.

1515mm long x 75mm dia.

2450mm long x 140mm dia.

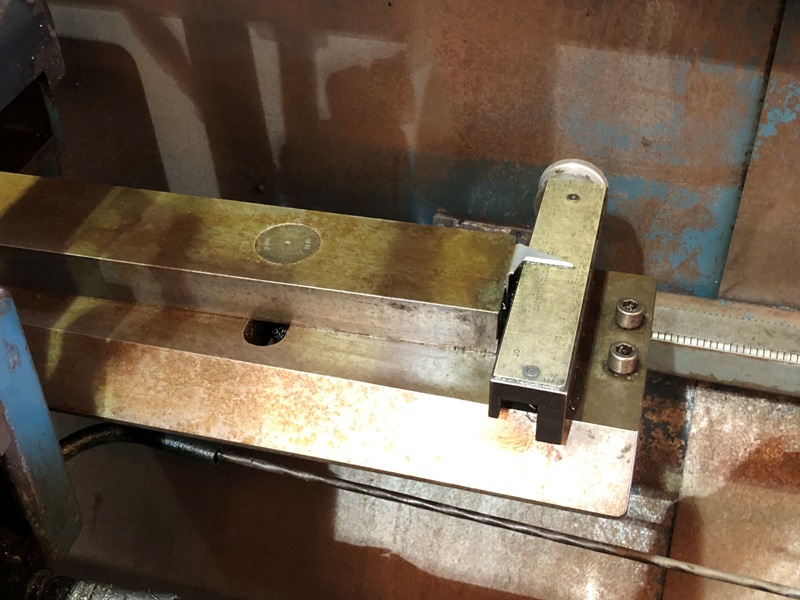

2275mm long x 165mm x 185mm section.

975mm long x 85mm x 65mm section

865mm long x 50mm x 75mm section.

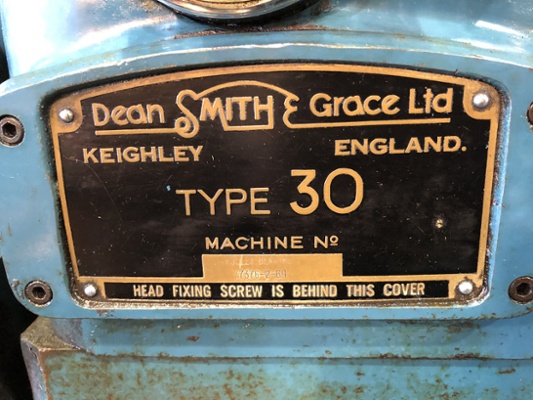

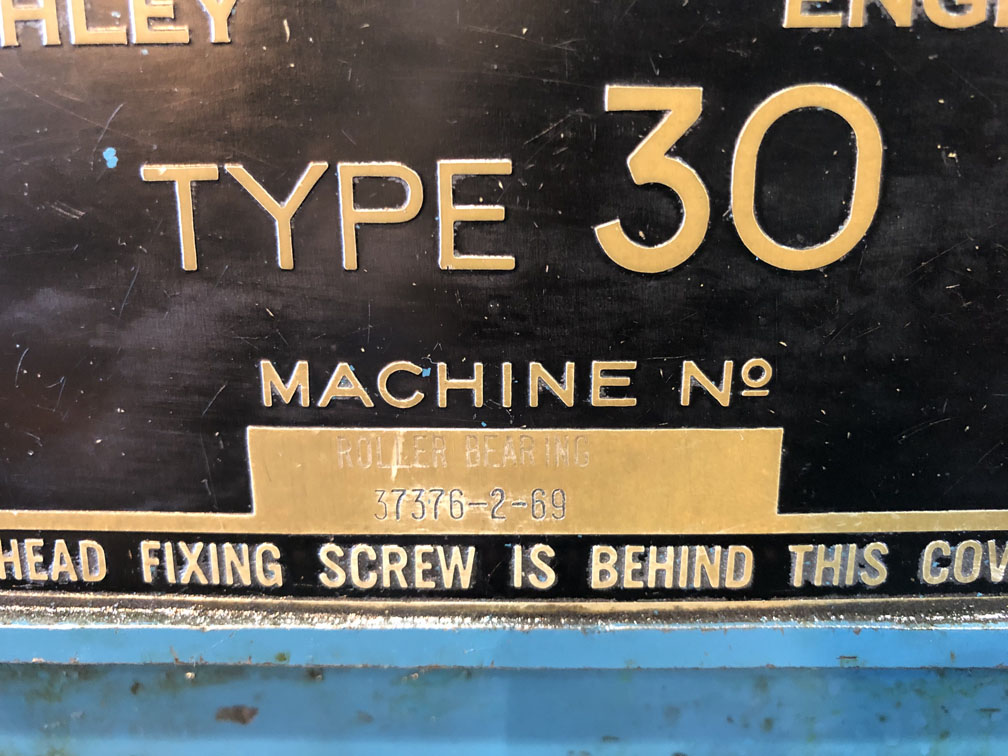

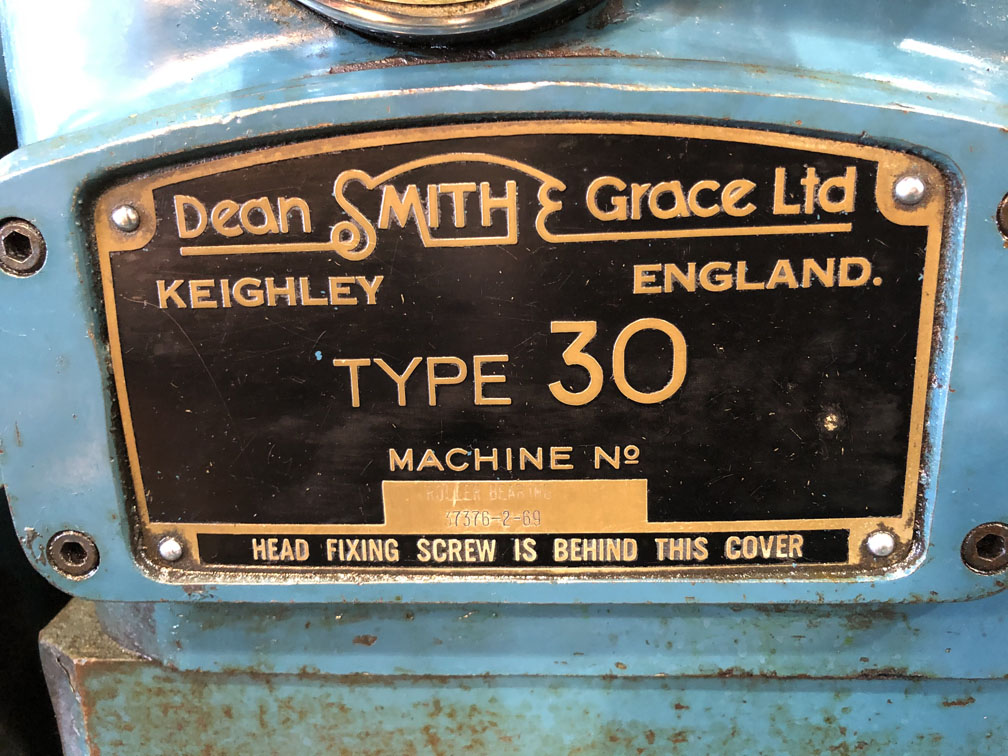

Machine serial no. 37376-2-69. Year 1969.

Dimensions 9400mm x 1920mm x 1850mm high.
