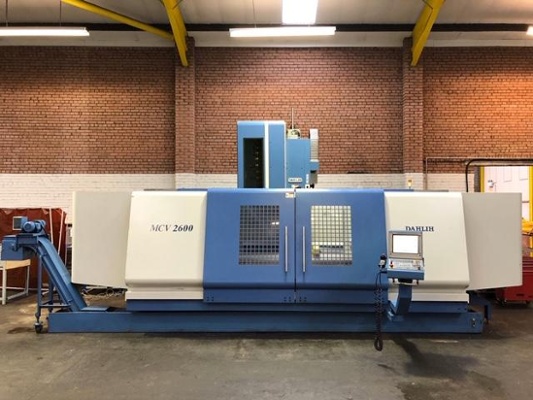

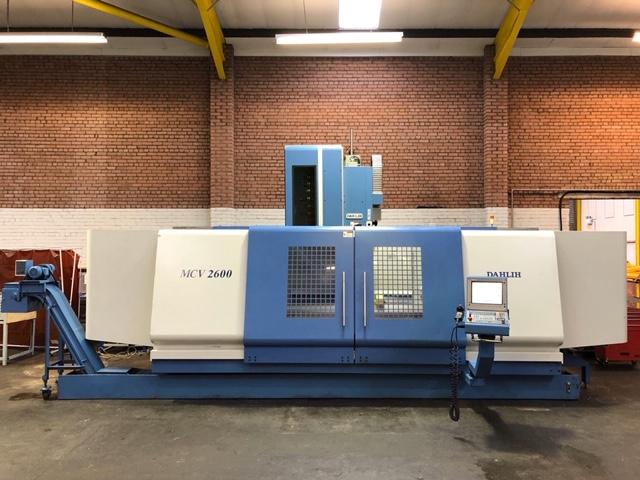

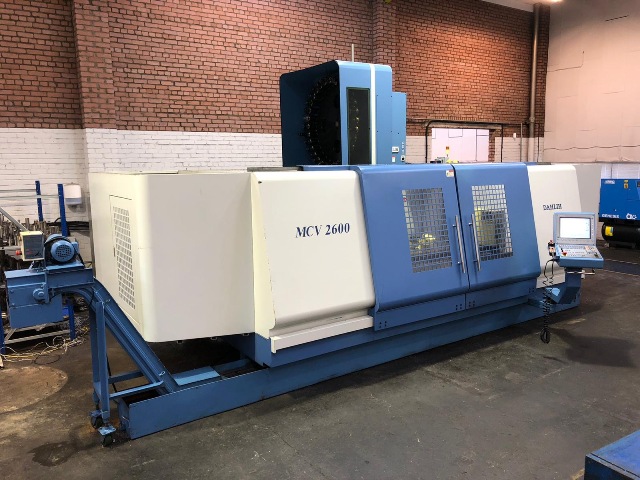

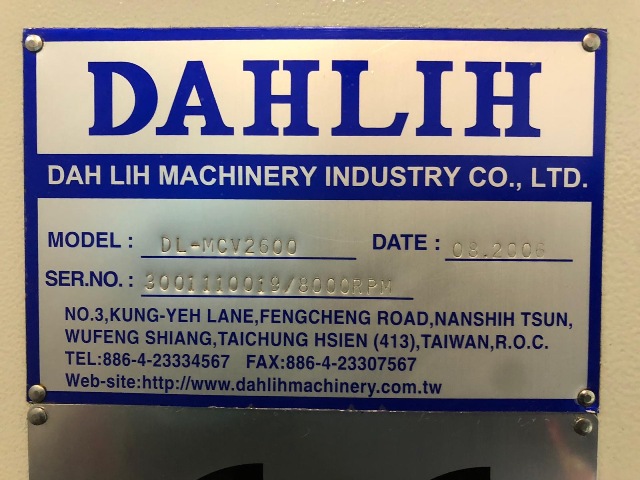

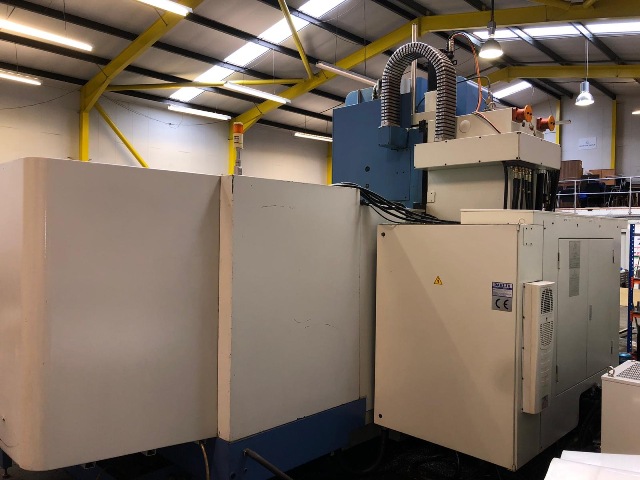

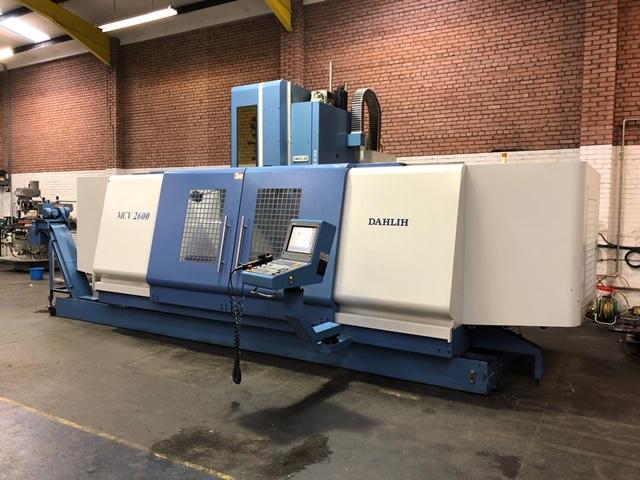

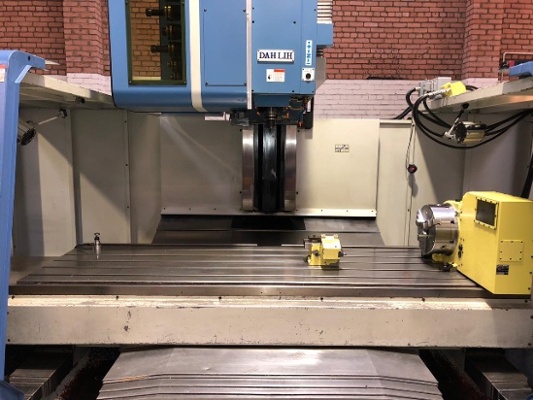

Lot 1: DAHLIH MCV2600 Vertical Machining Centre with NIKKEN 4th Axis Attachment. Heidenhain TNC530 Control. Year 2006

This lot has been archived

Bidding on this lot has finished

Description

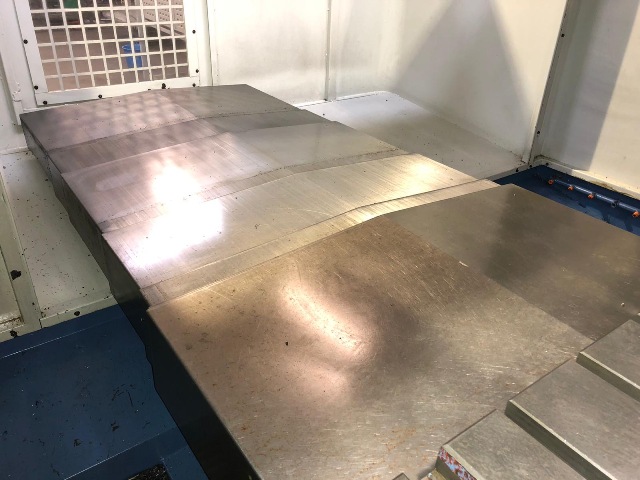

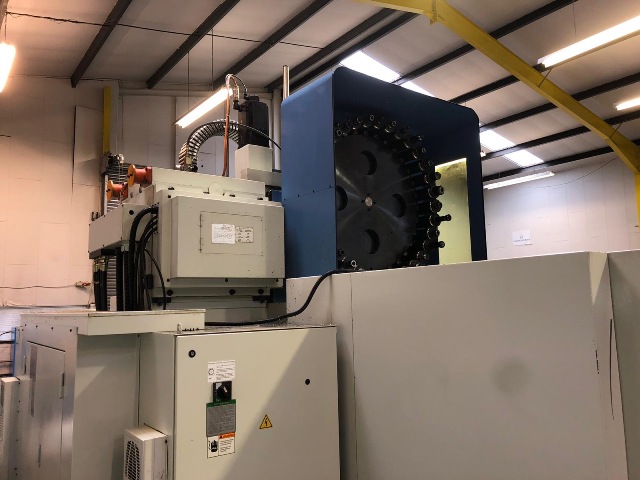

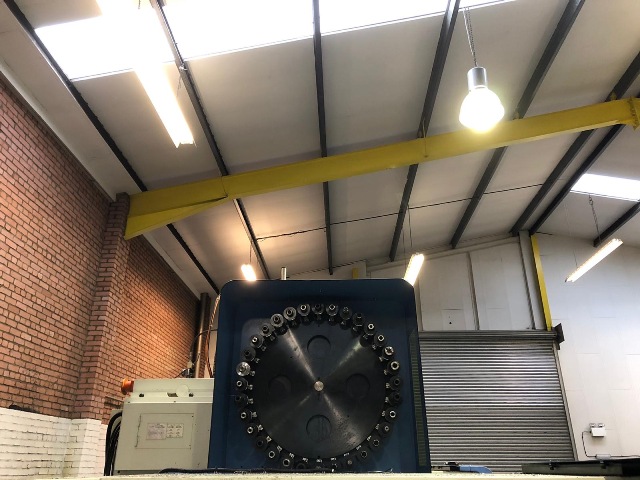

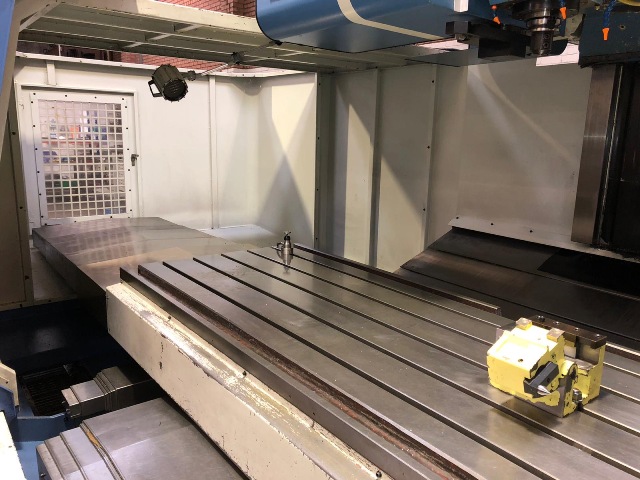

Table Size 2800 x 970mm.Traverses XYZ: 2600 x 870 x 760mm.Min - Max Height Under Spindle 200mm - 960mm.Spindle Taper ISO50.Spindle Motor Power 18.5kW.Spindle Speeds 4500rpm (2 range gearbox).Maximum Spindle Centre to Column 850mm.Feedrates 0-10m/minute.Rapids 10m/min. Auto toolchanger 32 positions. Table loading 3000kgs.

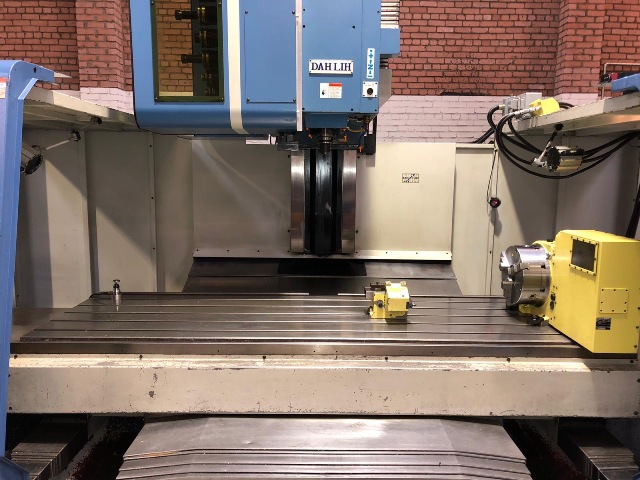

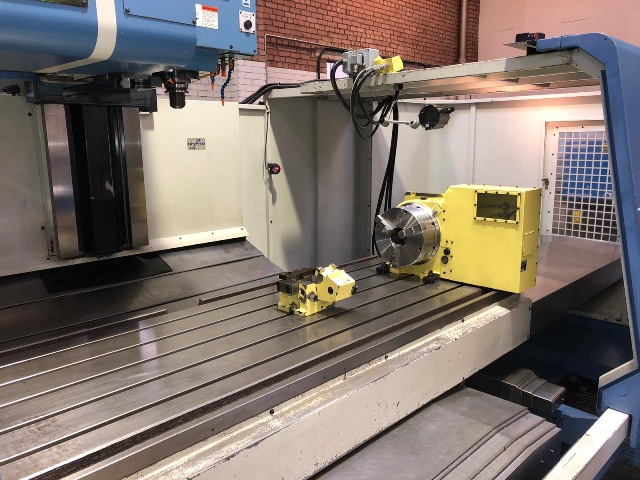

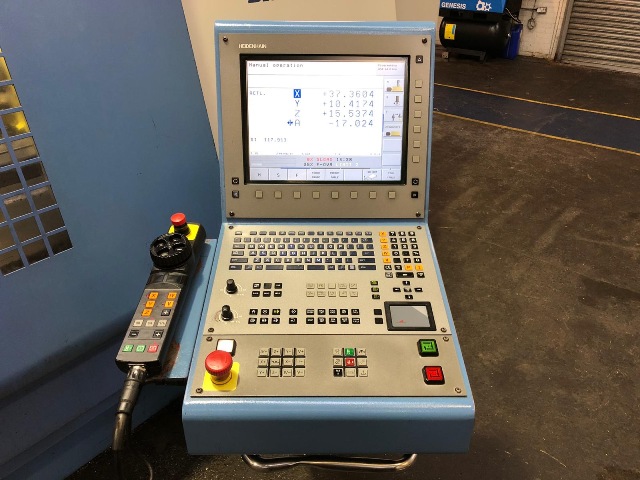

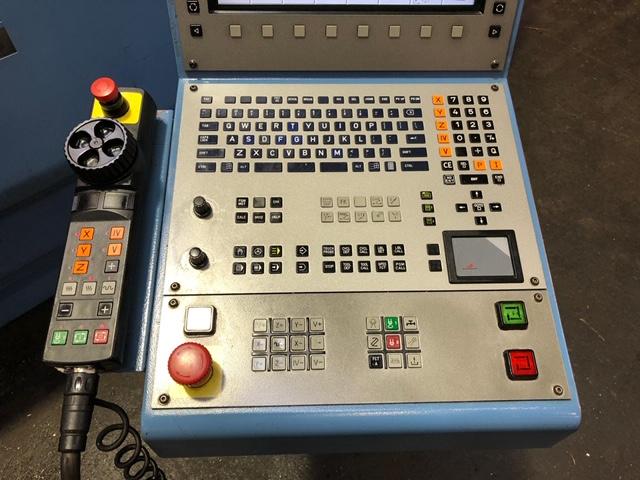

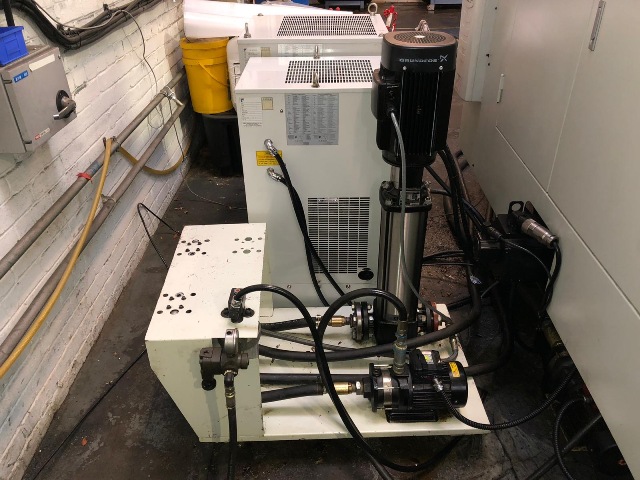

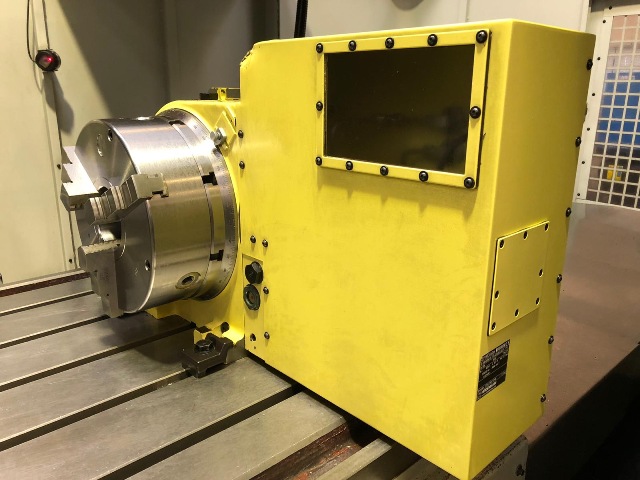

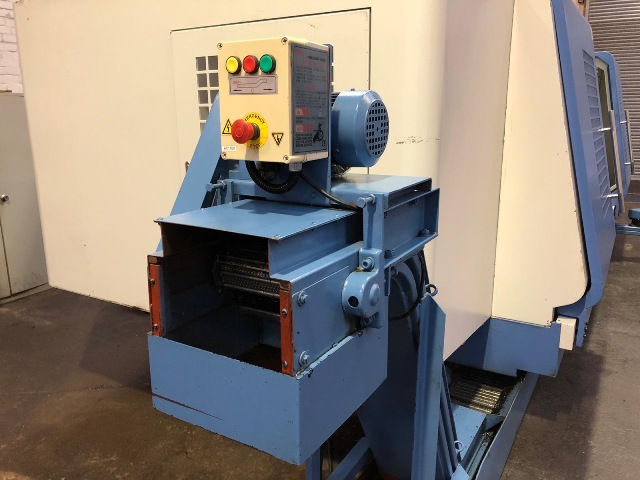

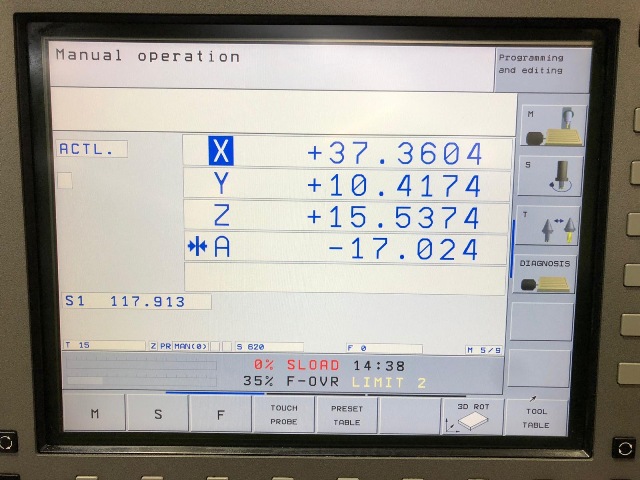

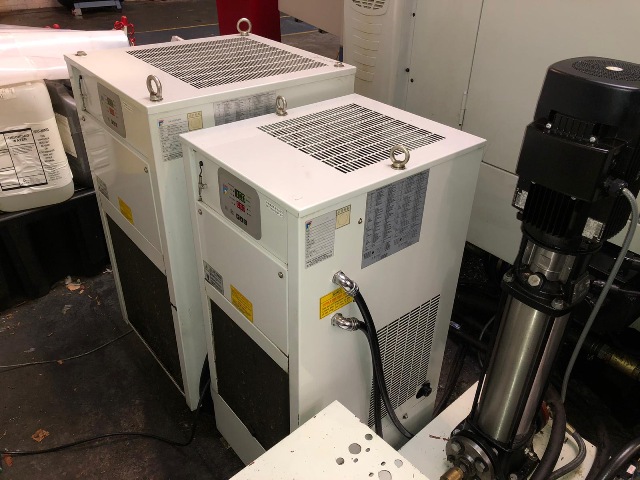

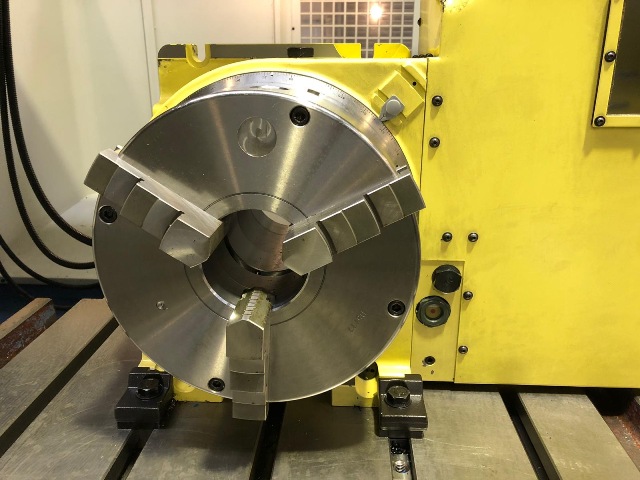

Machine has through spindle coolant, swarf conveyor,GInterlocking guarding. NIKKEN 4th Axis attachment. Gearbox. HEIDENHAIN TNC530.

Machine Dimensions L x D x H: 8600 x 4694

Machine Weight: 19000kg

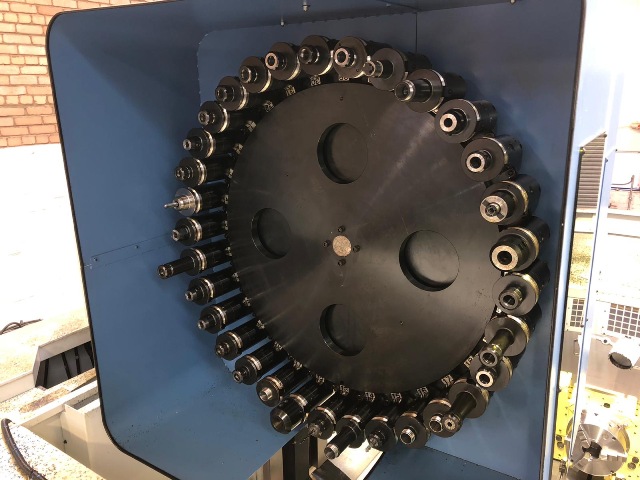

All the toolholers in the carousel is included with this lot.
