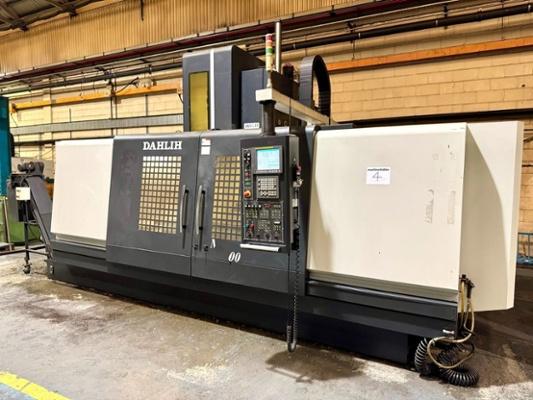

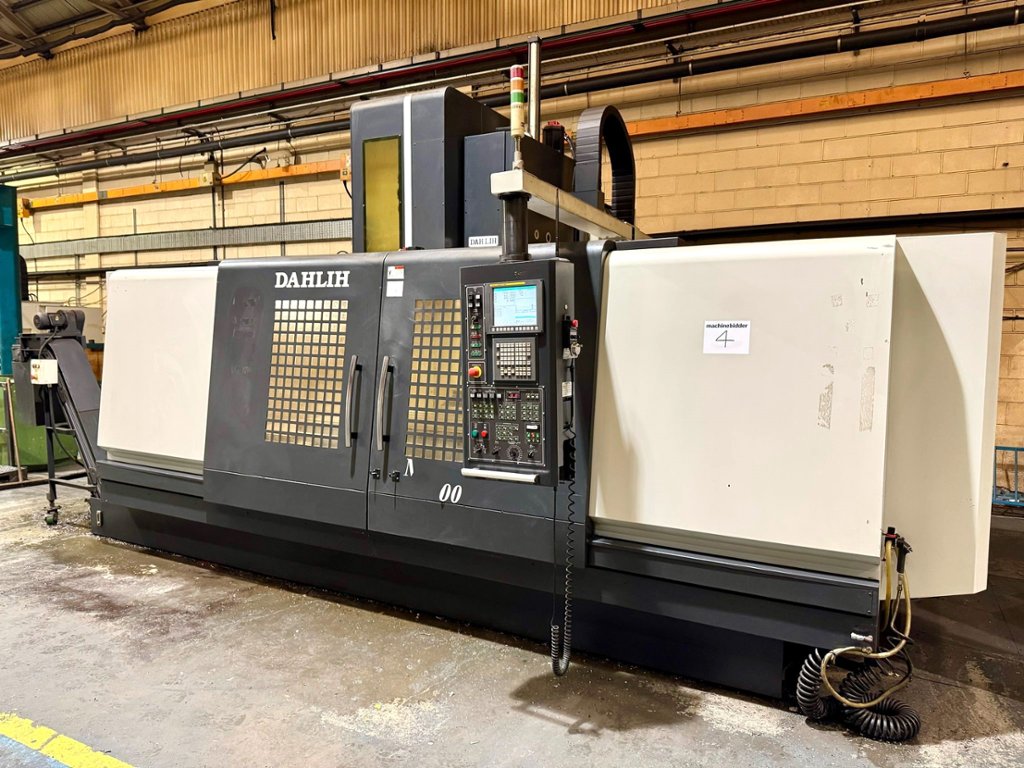

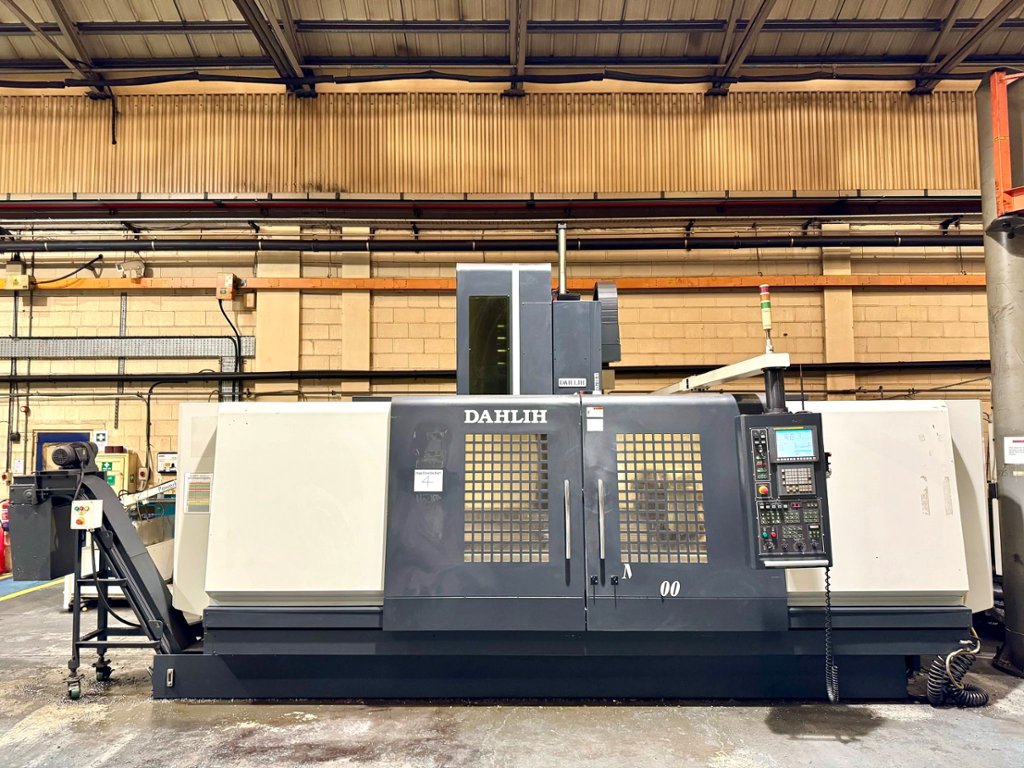

Lot 4: DAHLIH MCV2100 Vertical Machining Centre with Fanuc Series 0i-MD Control (2013)
Description

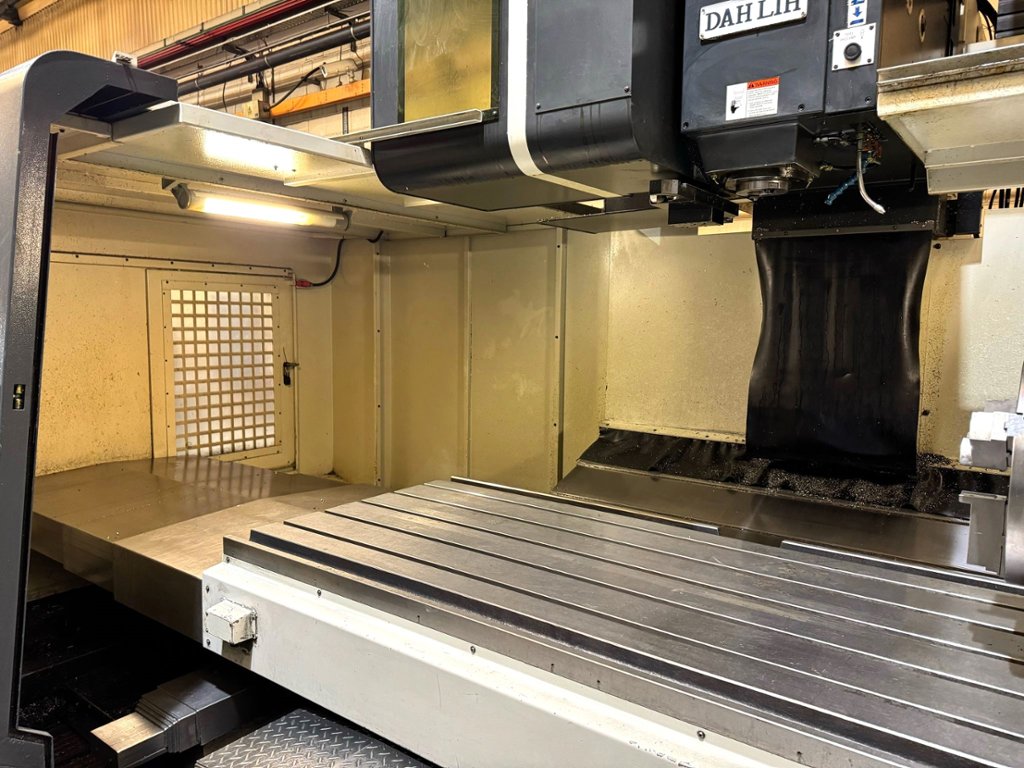

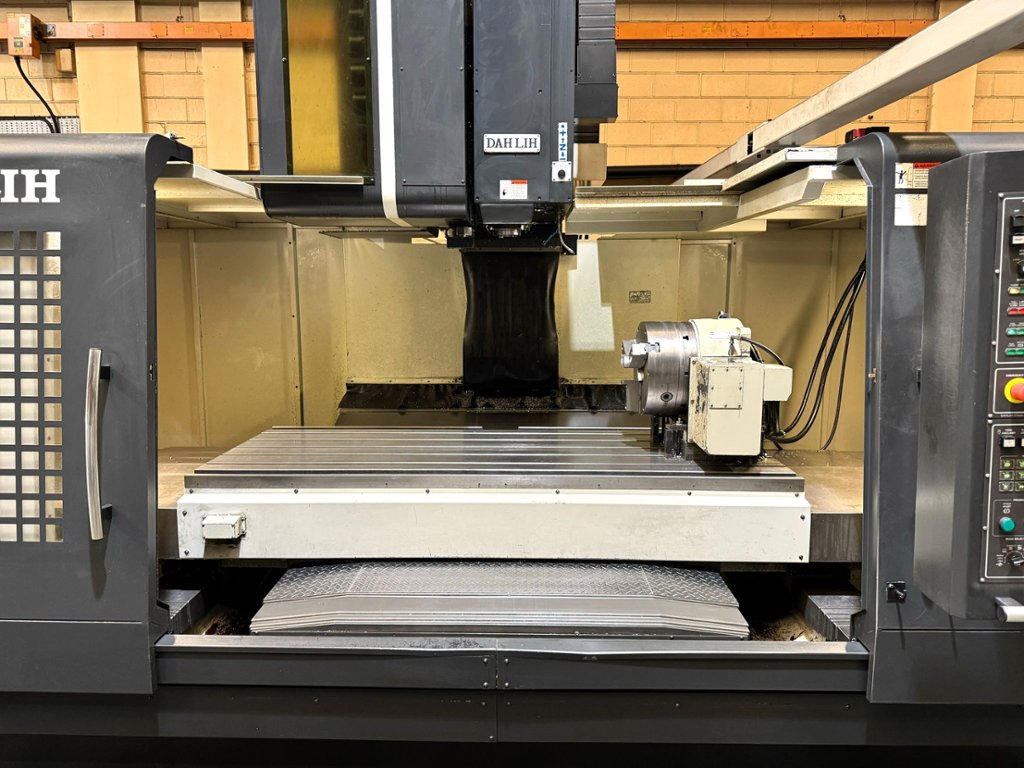

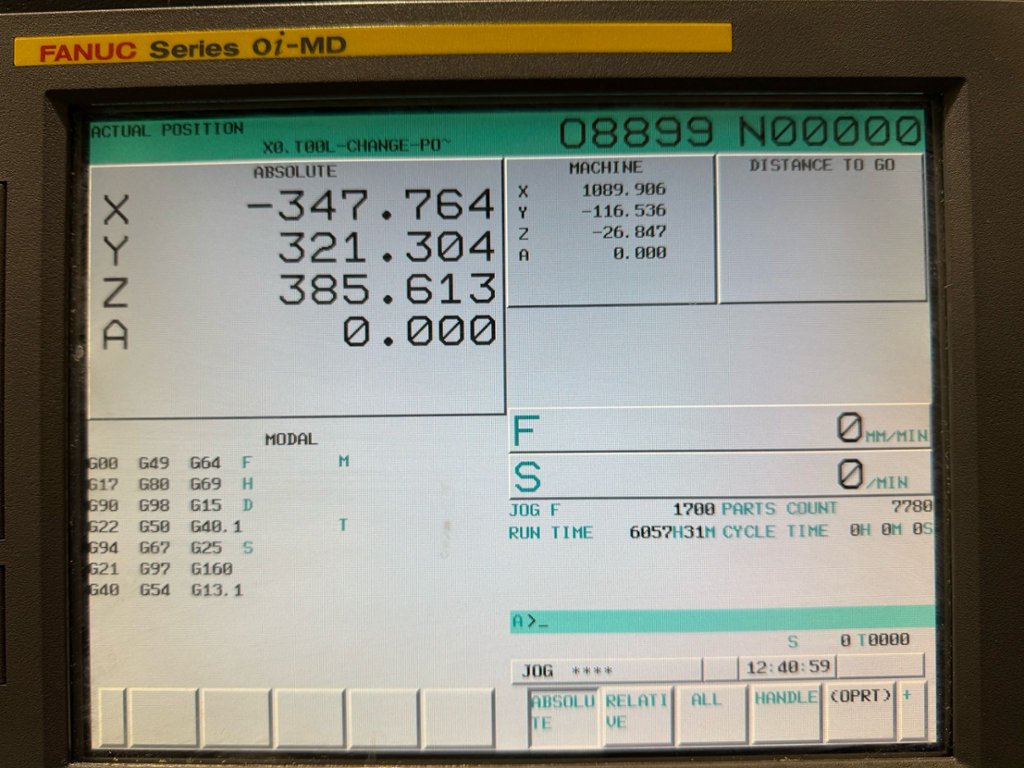

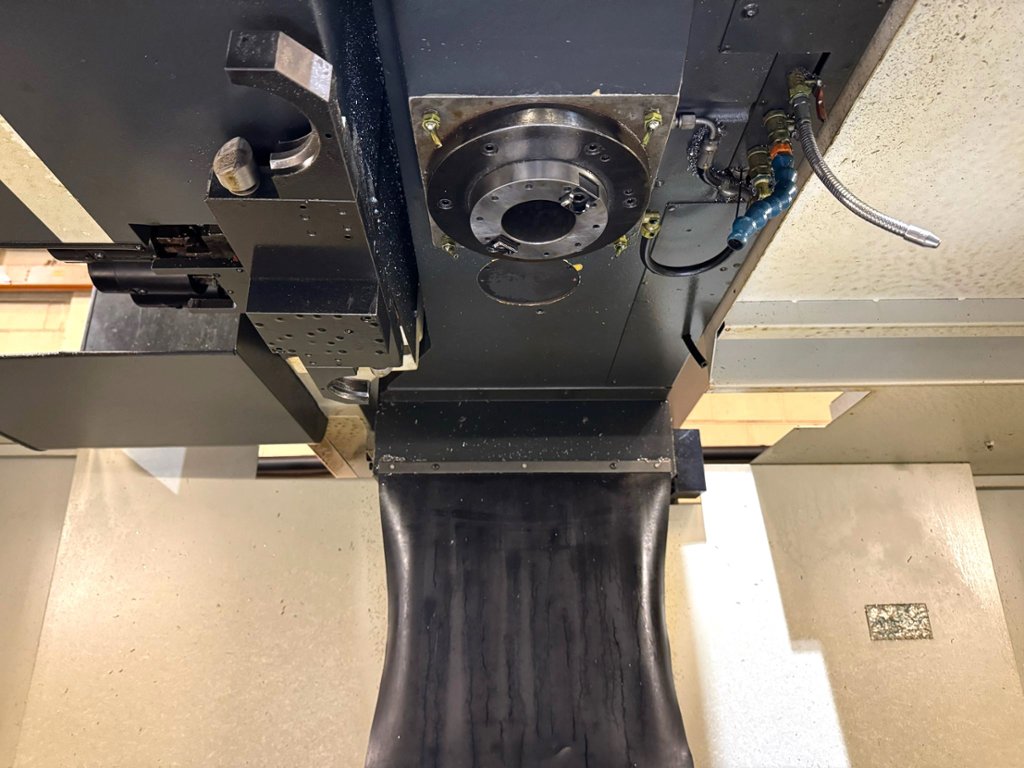

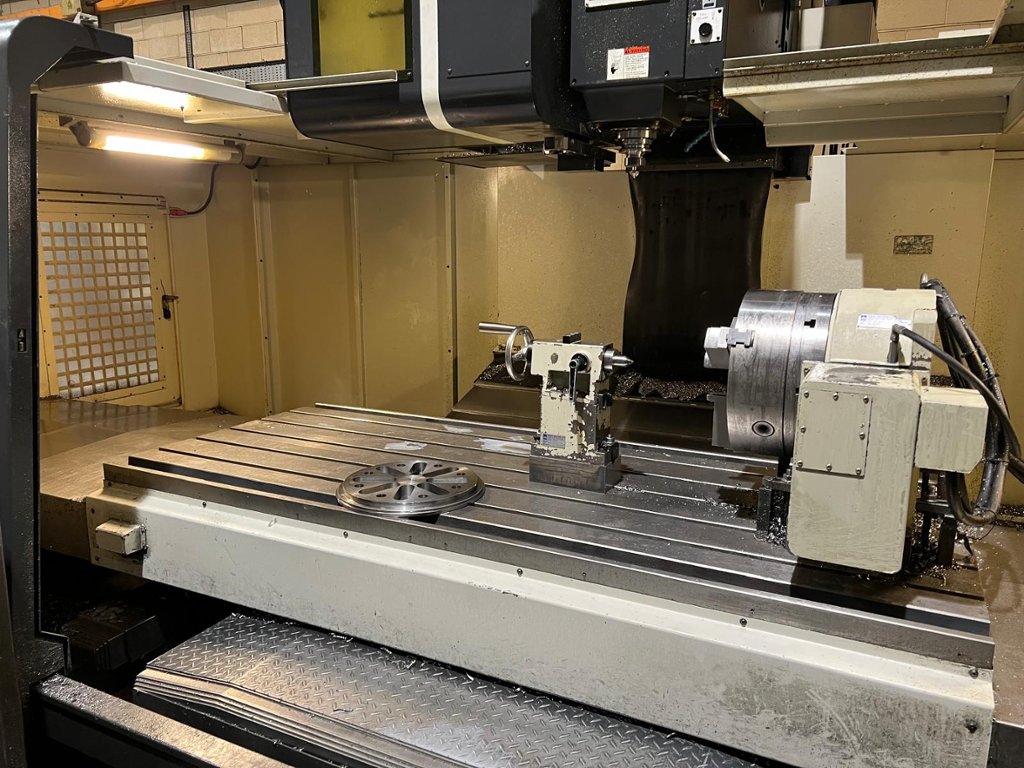

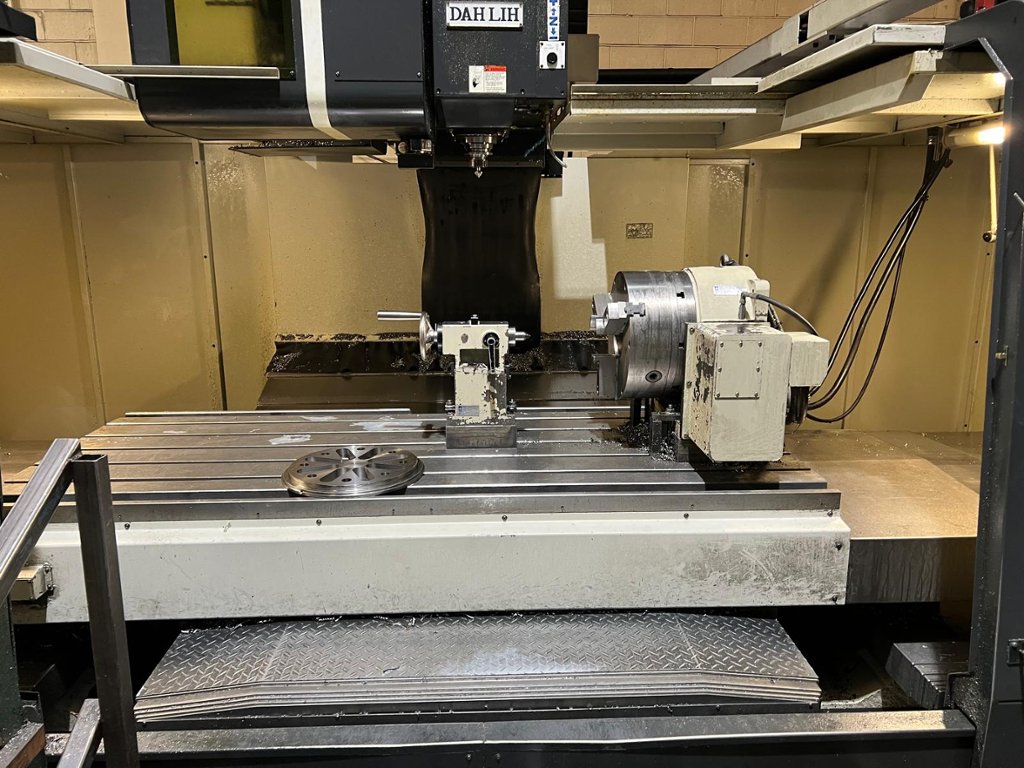

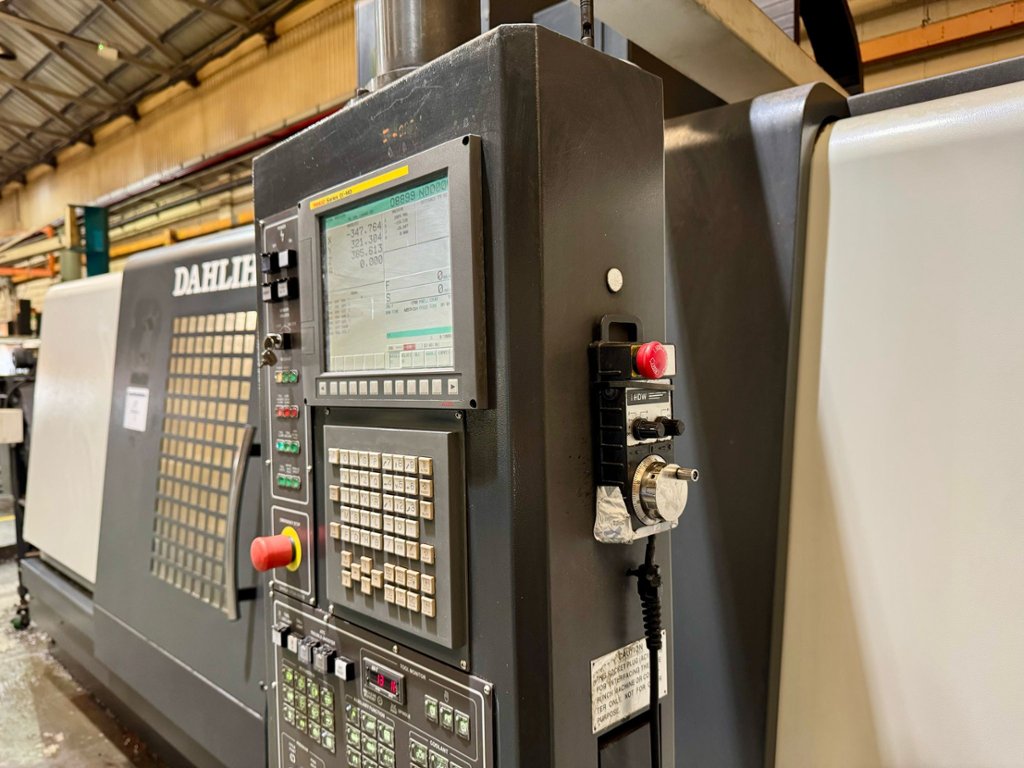

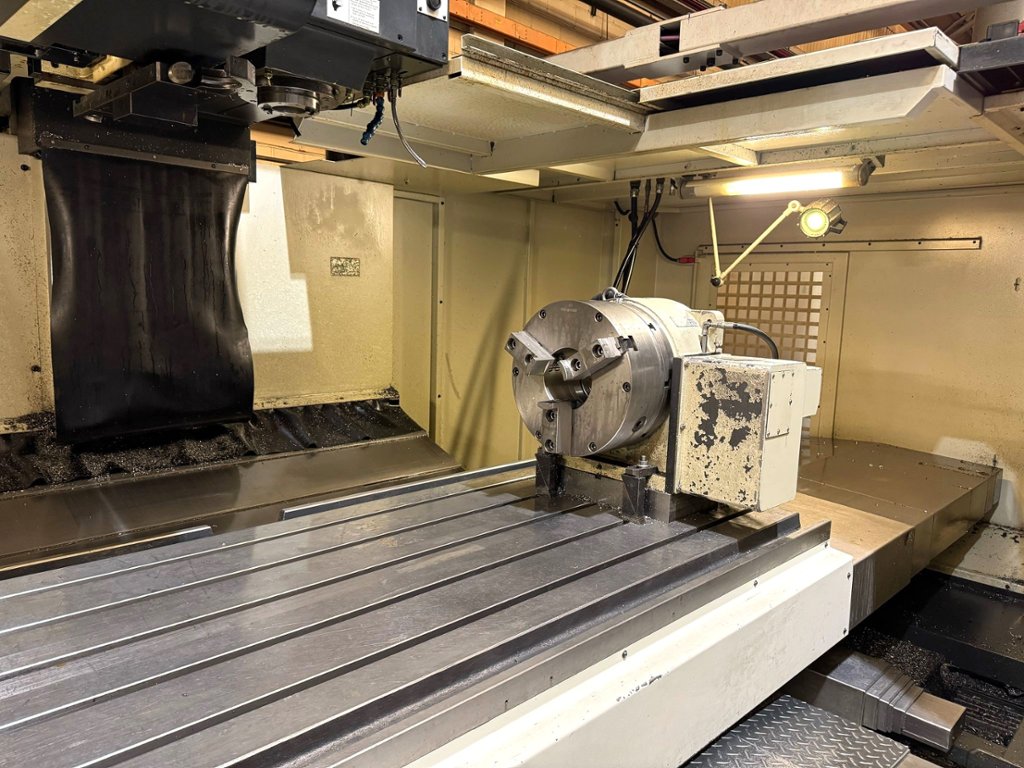

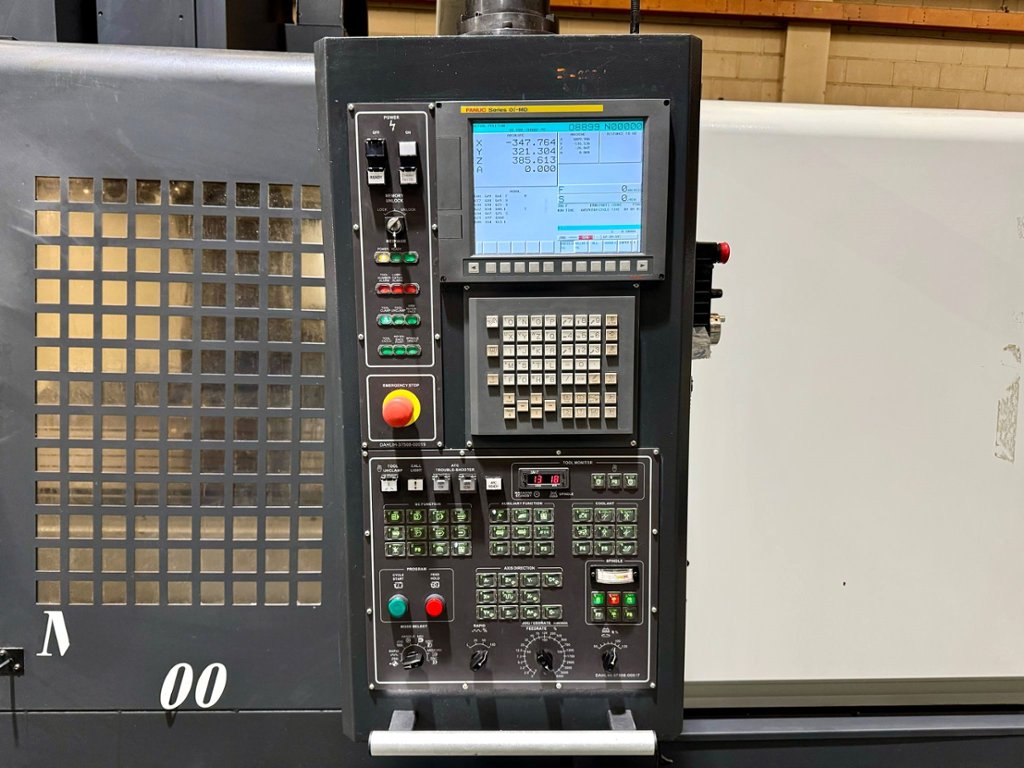

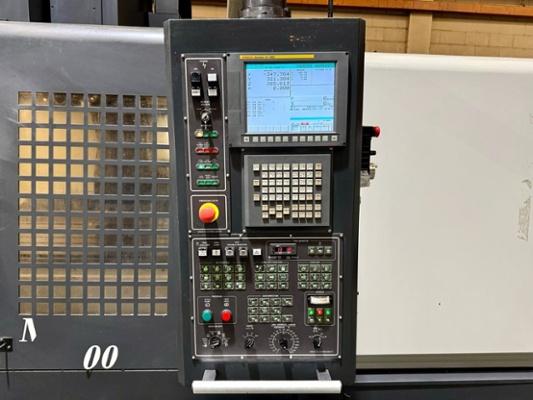

Table size 2300mm x 970mm. T slots no. & size 22 x 5mm. Table load 3000kg. X/Y/Z travels 2100/870mm/760mm. Min/Max distance table to spindle 200/960mm. Distance between spindle centre and column surface 850mm. Rapids X/Y/Z 10/10/8m/min.Spindle nose BT50. Maximum spindle speed 4500 rpm (low/high gearbox). 32 ATC. Spindle motor (cont) 15 kW. Spindle motor (rated output 30min) 18.5 kW. X/Y/Z motor power 4.2 kW. Approximate machine size 7700mm x 4694mm. Complete with 4th Axis Attachment 400mm dia. 3 Jaw Chuck. 360mm Centre Height. Approximate weight 18,000 kg. Fanuc Series 0i-MD Control. Machine Serial No. 3001100339. Year 2013.
OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
