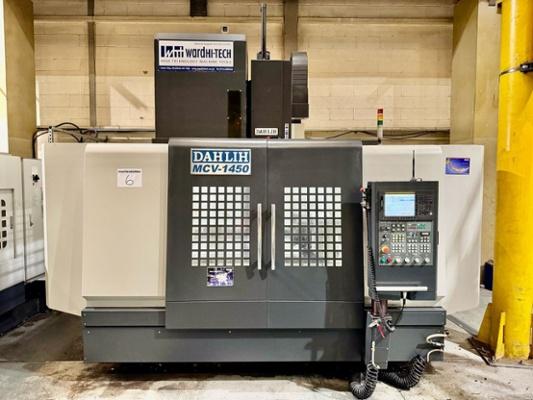

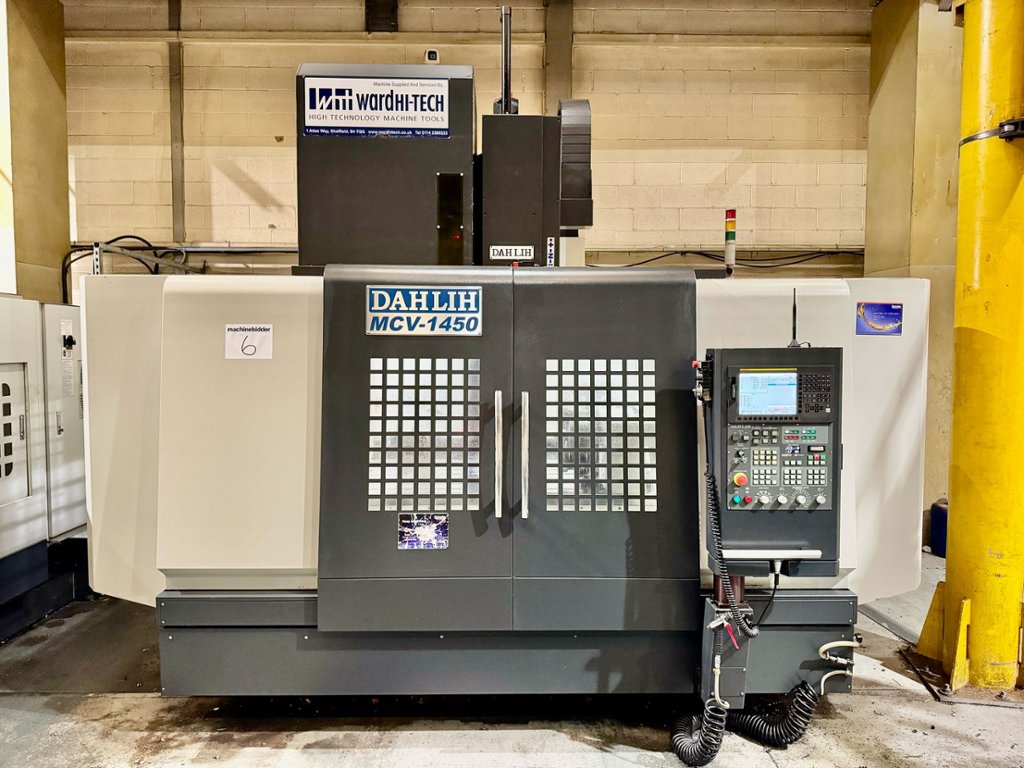

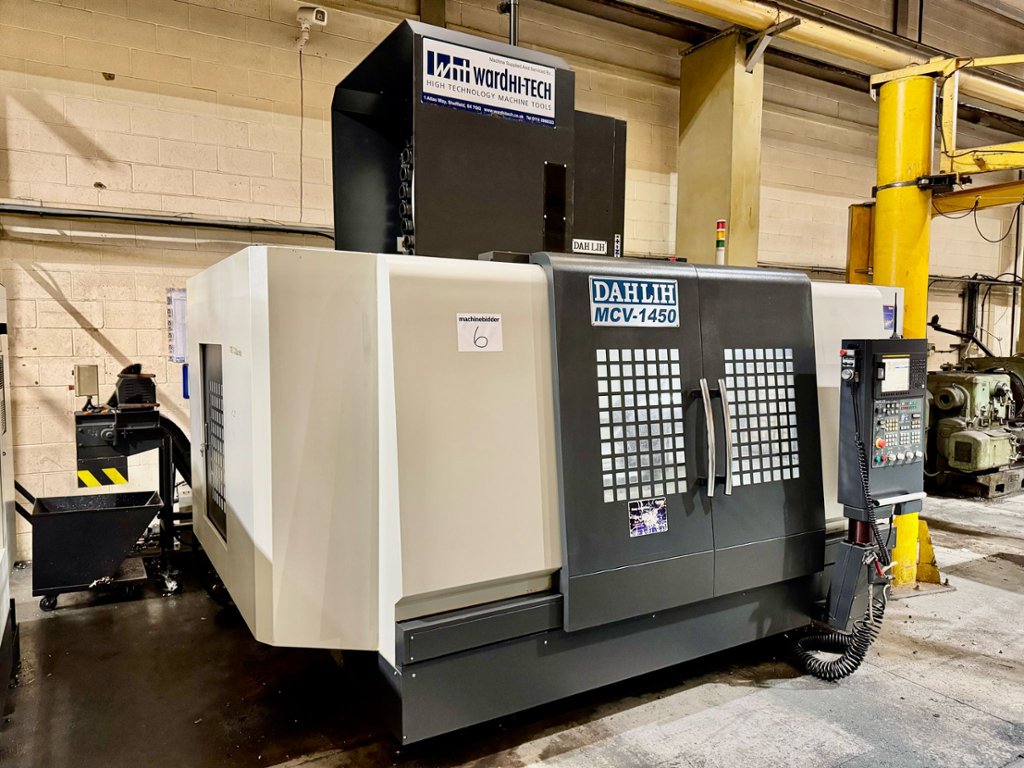

Lot 6: DAHLIH MCV1450 Vertical Machining Centre with Fanuc Series 0i-MF Control (2019)

Opening bid:
£15,000
Increment:£500
Bids:0
Ends in:24 Apr 2025 @ 13:00 (25d 19h 36m 47s)
Bid now
£
Auto bid
£

Description

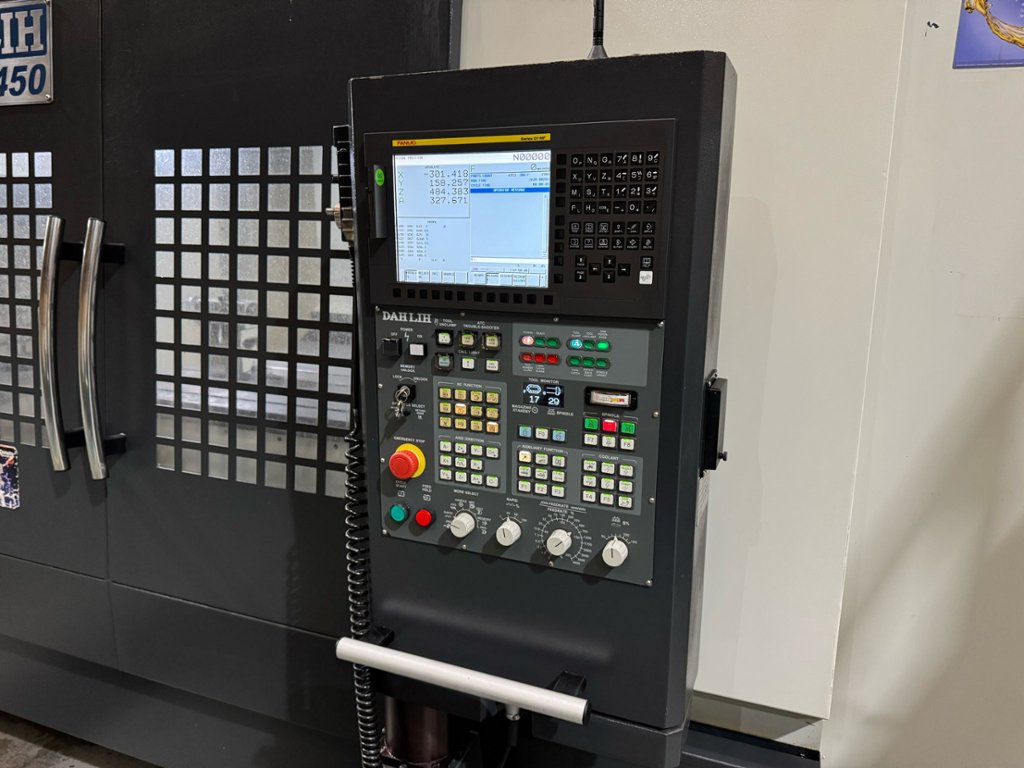

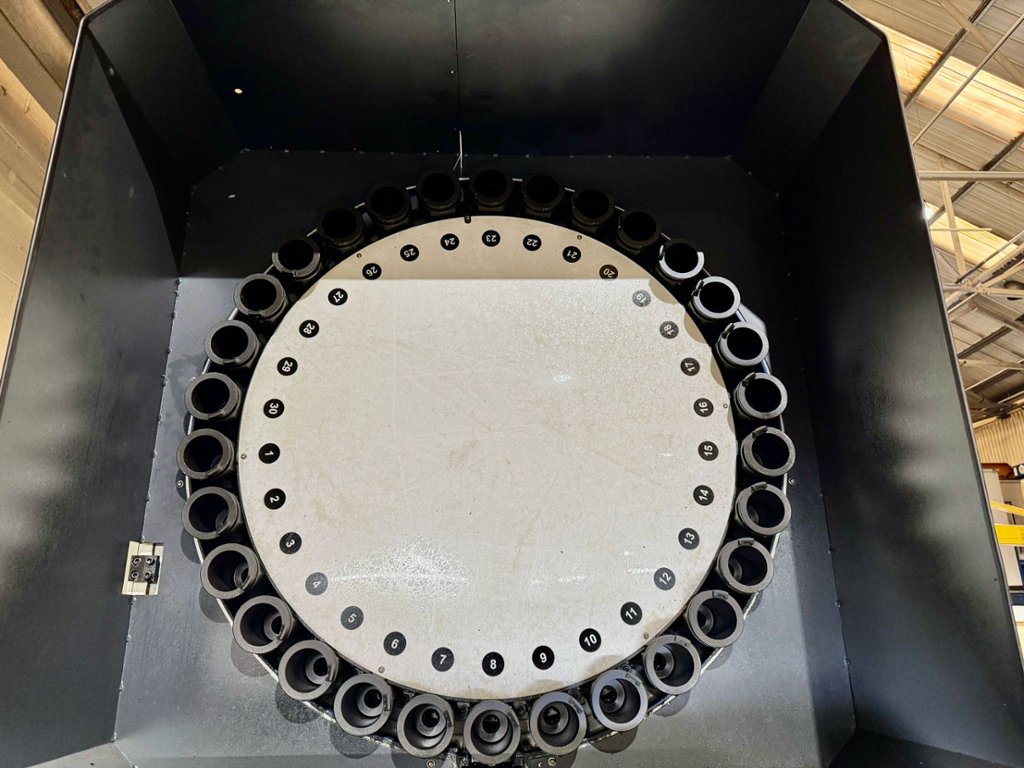

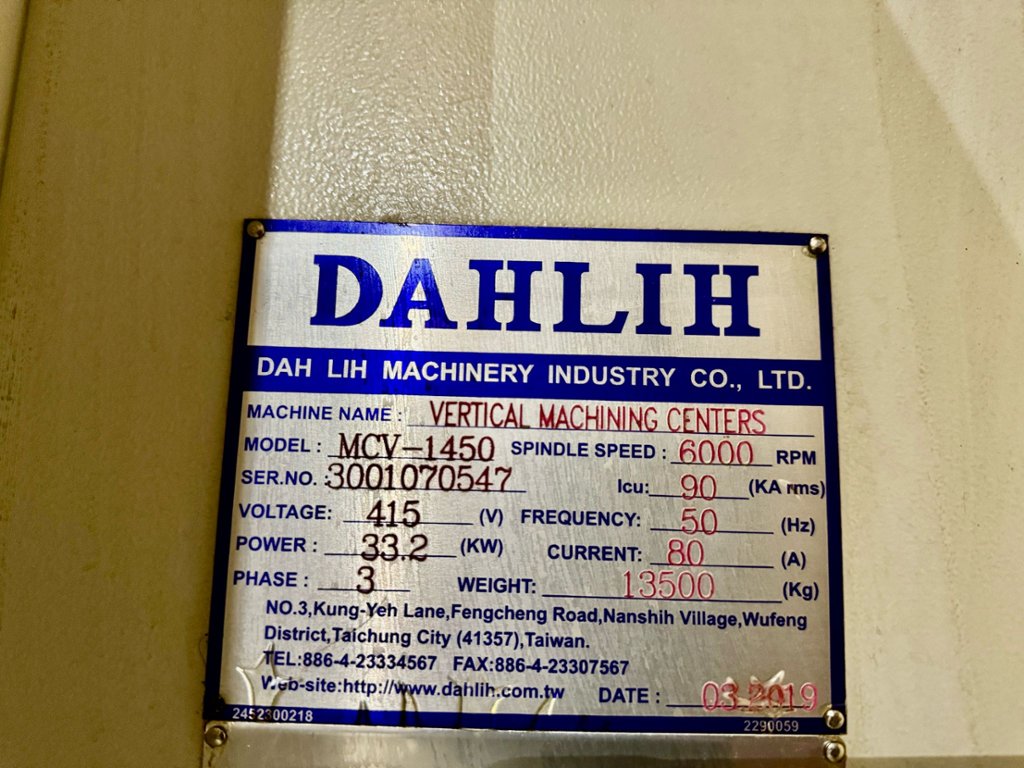

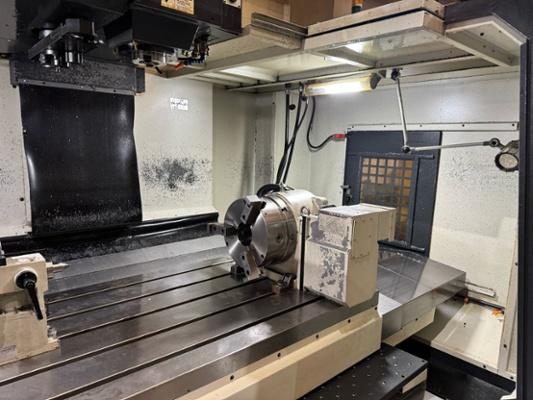

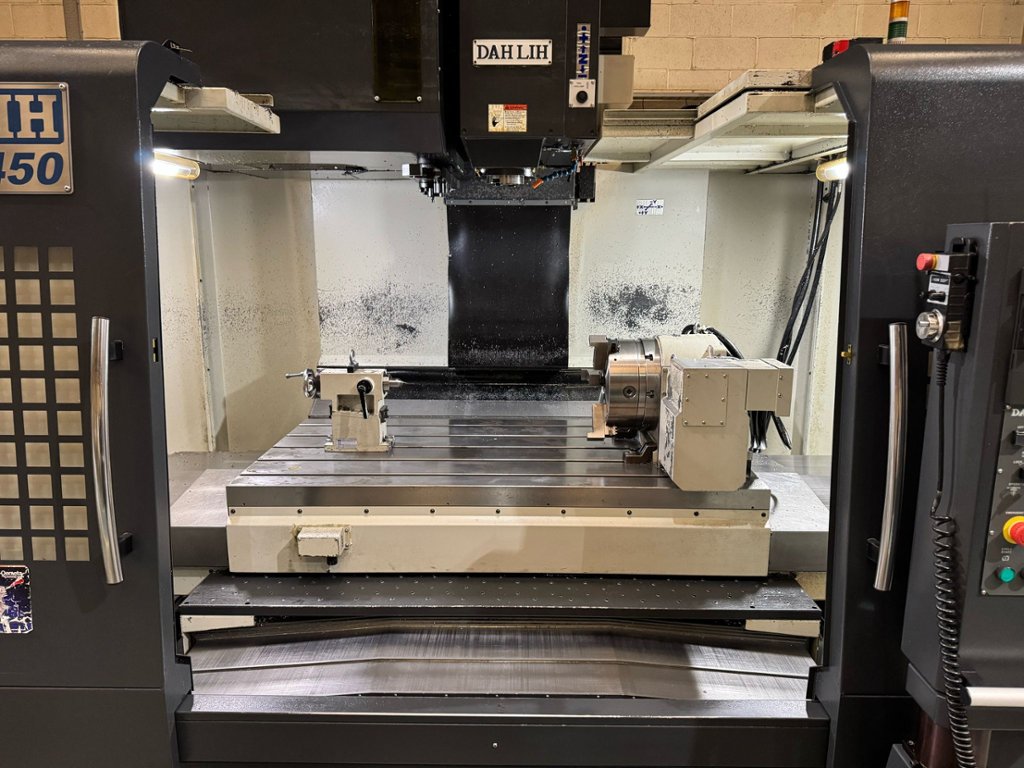

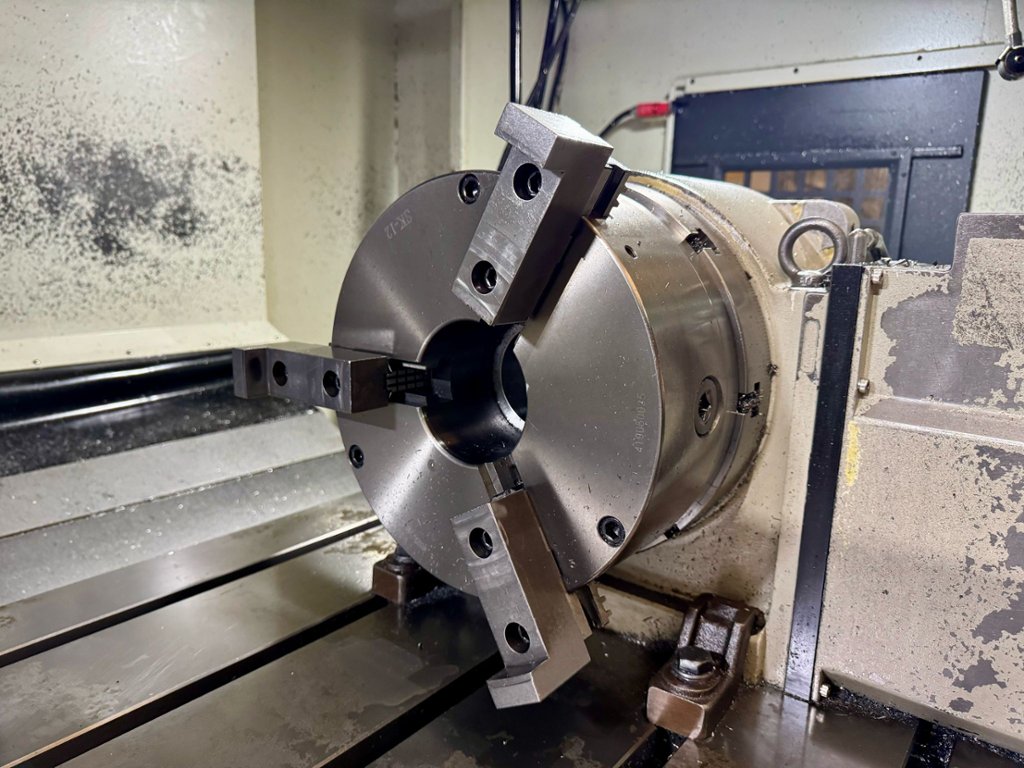

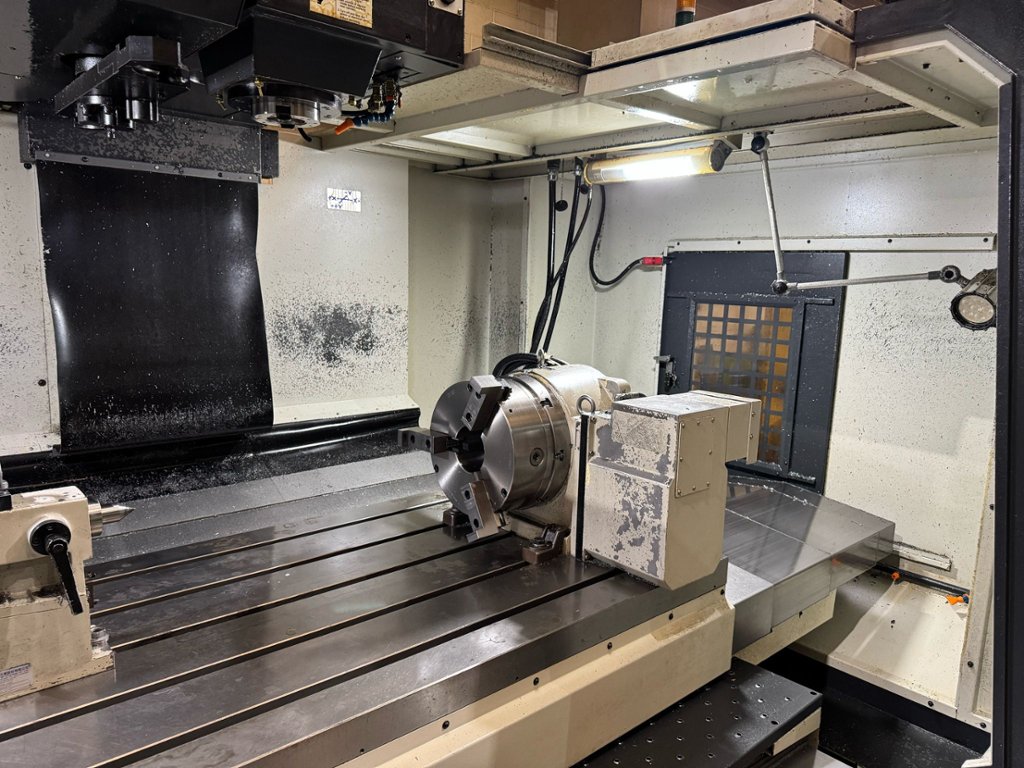

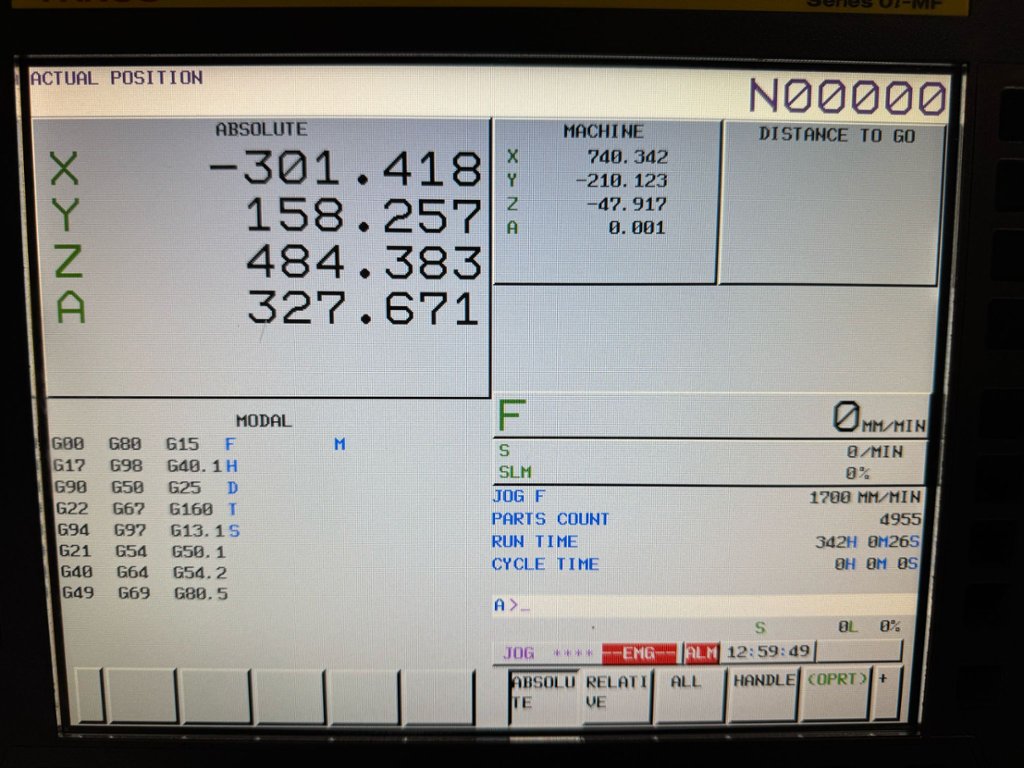

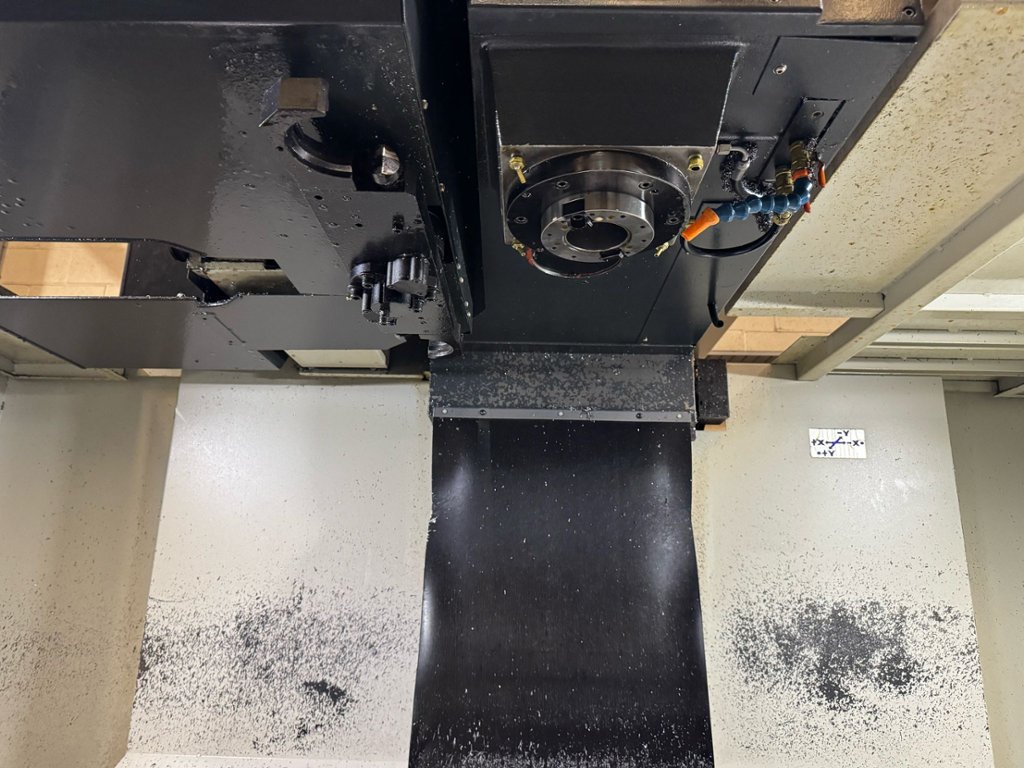

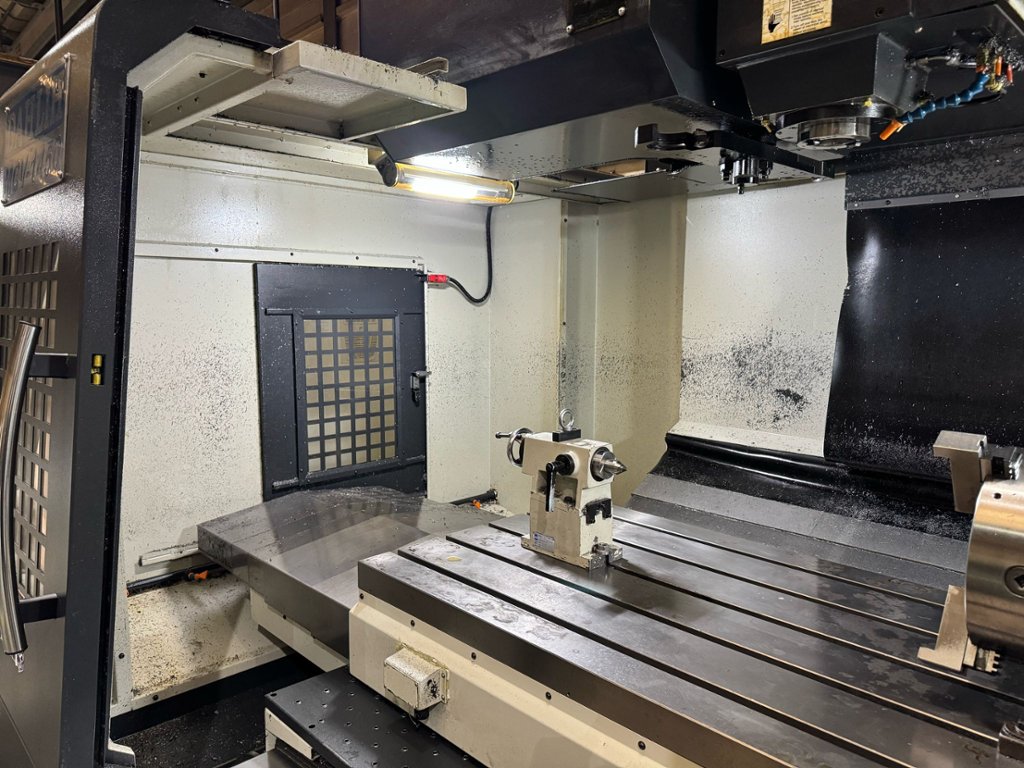

Table size 1600mm x 800mm. T slots no. & size 22 x 5mm. Table load 2000kg. X/Y/Z travels 1450/750mm/750mm. Min/Max distance table to spindle 200/950mm. Distance between spindle centre and column surface 850mm. Rapids X/Y/Z 20/20/12m/min. Spindle nose BT50. Maximum spindle speed 6000 rpm (low/high gearbox). 32 ATC. Spindle motor (cont) 11 kW. Spindle motor (rated output 30min) 15 kW. X/Y/Z motor power 4/7/4.2 kW. Approximate machine size 5330mm x 4150mm. 4th Axis Attachment 315mm dia. 3 Jaw Chuck. Approximate weight 14500 kg.Fanuc Series 0i-MF Control. Machine Serial No. 3001070547. Year 2019.

OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
