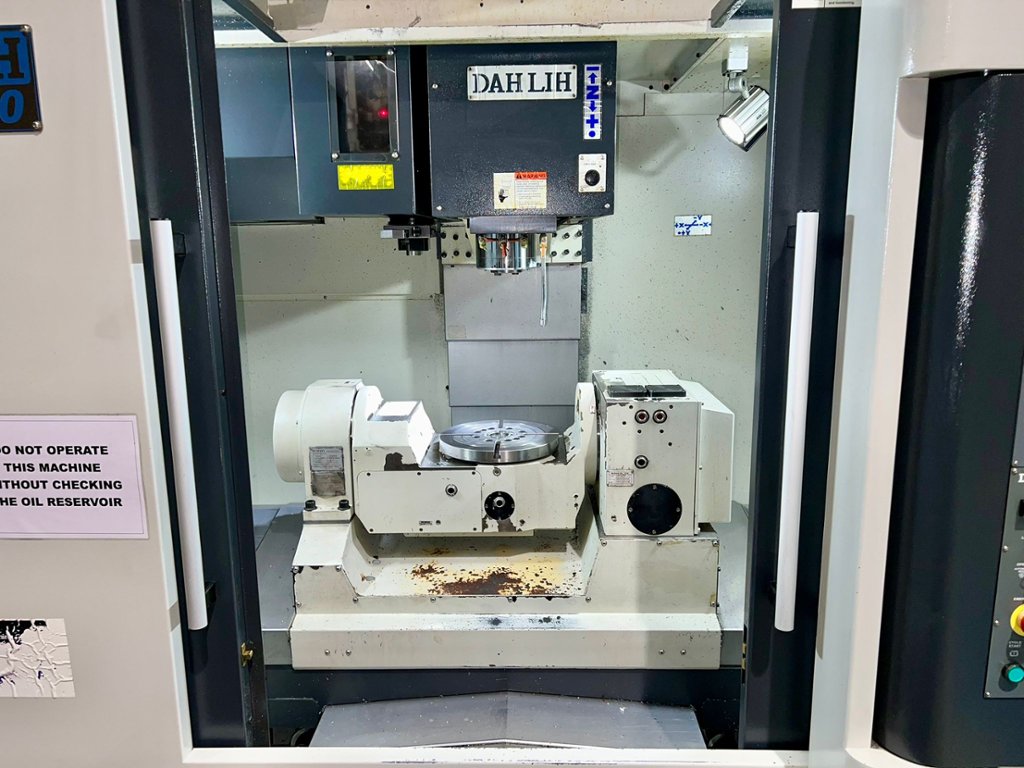

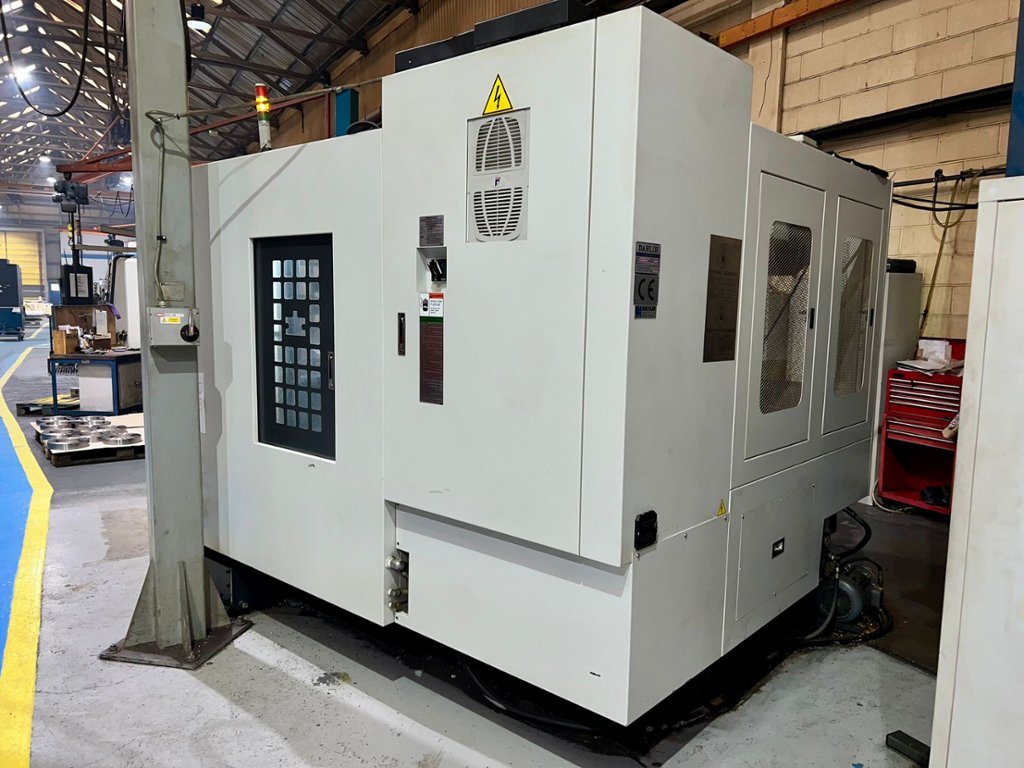

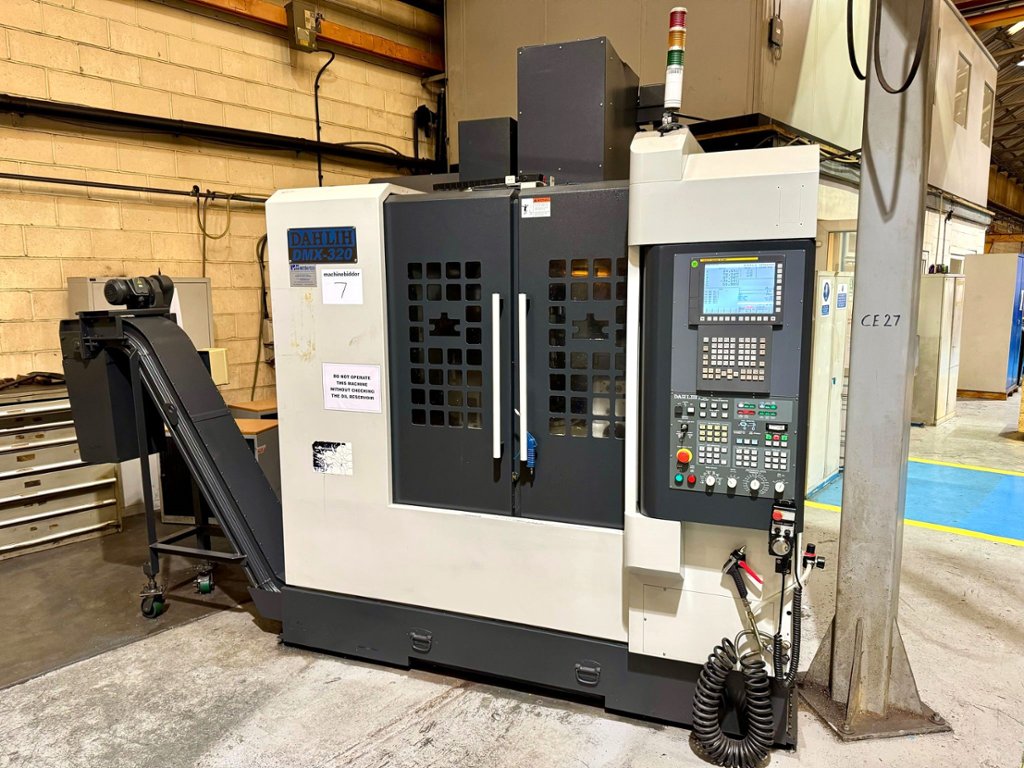

Lot 7: DAHLIH DMX320 5 Axis Vertical Machining Centre with Fanuc Series 0i-MF Control (2018)
Description

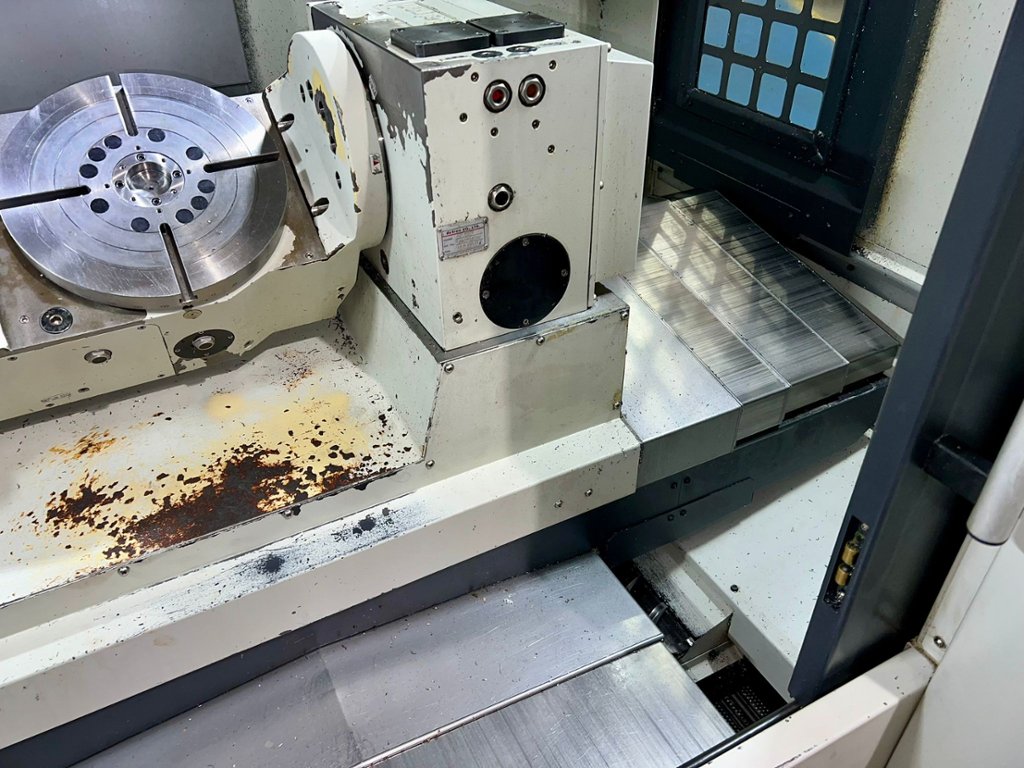

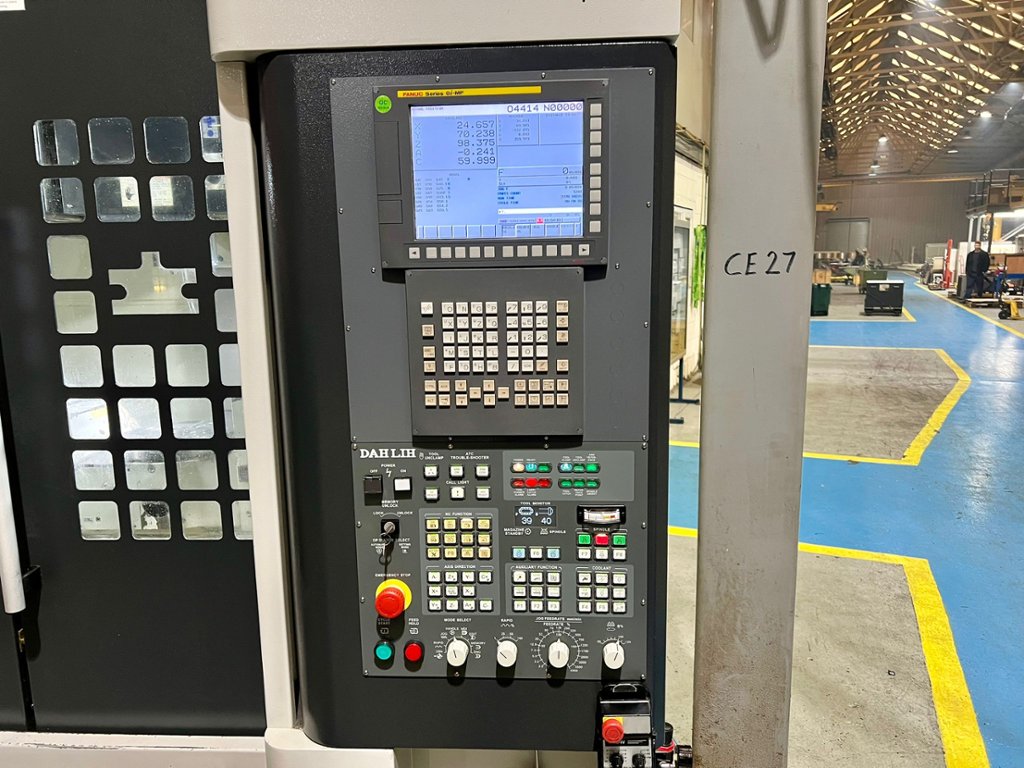

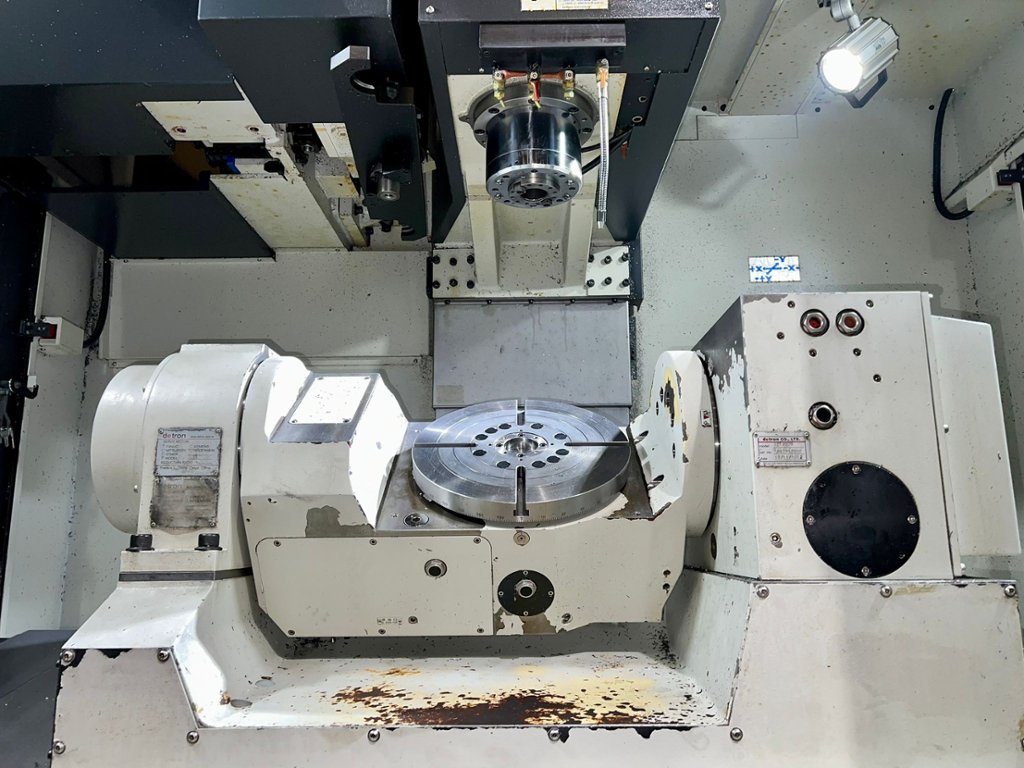

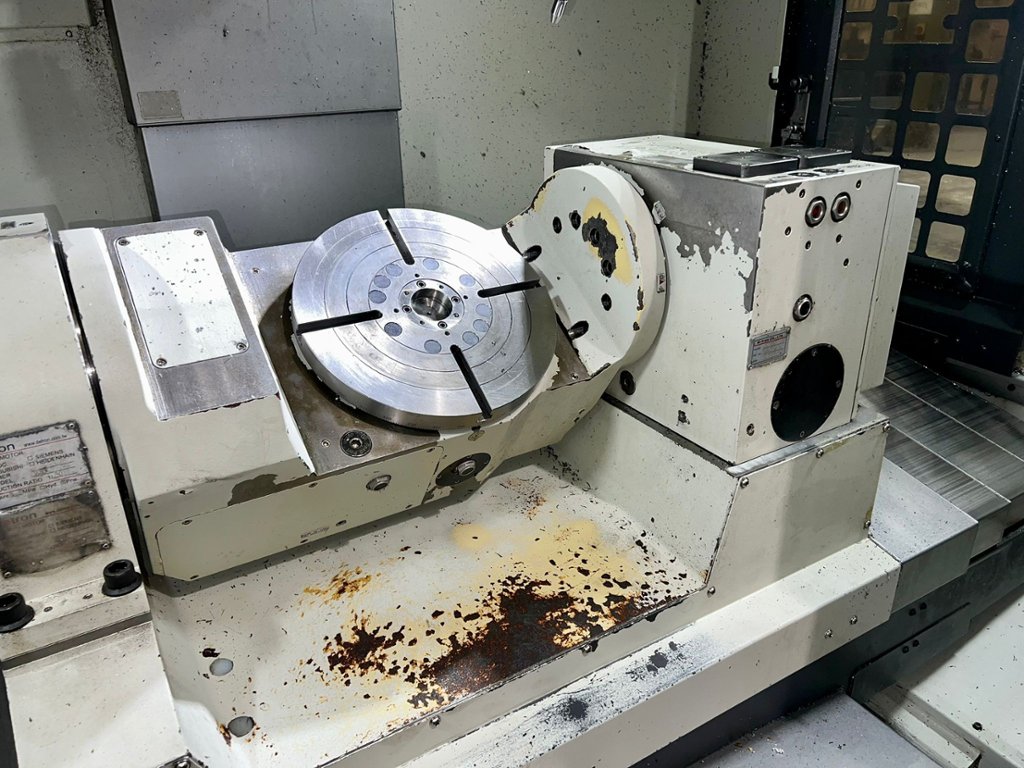

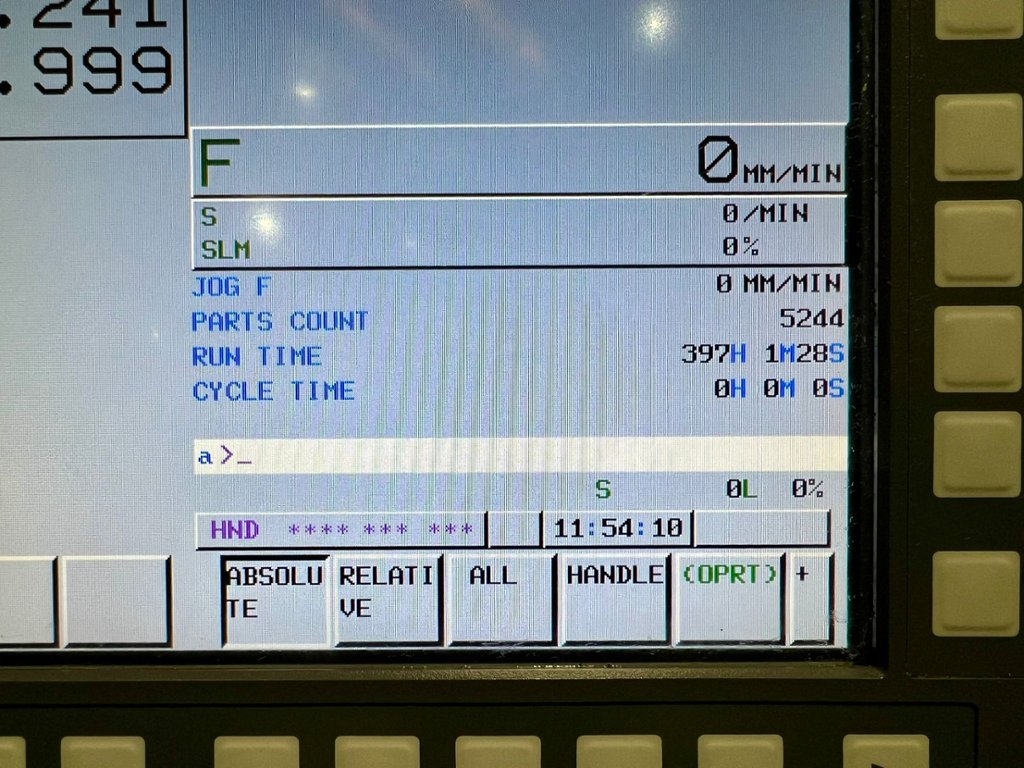

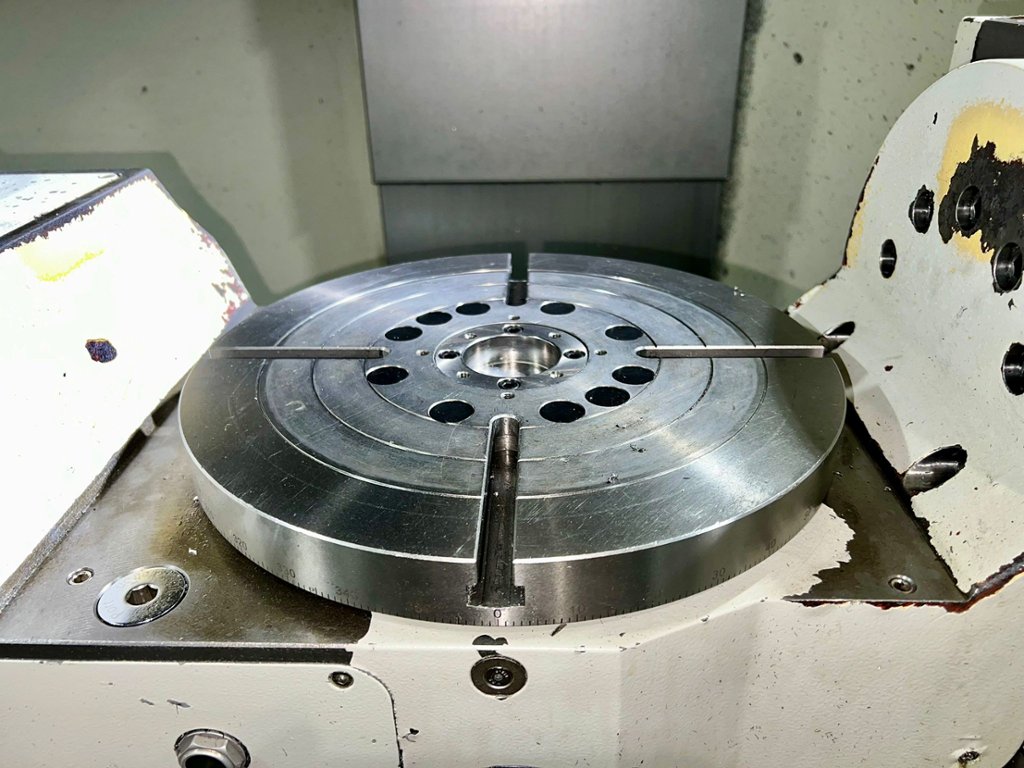

Table Size 320mm dia. T-Slots (Size x Number) 12H7 x 4. Maximum workpiece size 320mm dia. x 280mm. Torque 25kg/m. Max. Workpiece Weight 150kg. Rotation of Table (B) 360 ° x 16 rpm. . Tilting (A) +30° - -120°. X/Y/Z travels 600mm / 550mm / 500mm. Min/Max Table Top Surface to Spindle Nose 50 /550mm. Rapids X/Y/Z 40/40/30m/min. X/Y/Z Feed rates 18m/min/m. Spindle motor (30min/cont rating) 7.7/5.5kW. 24 ATC. Maximum spindle speed 10,000 rpm. Spindle taper BT40. Power requirement 36 kVA. Approximate machine size 2850mm x 2800mm x 2948mm high. Approximate weight 7000 kg. Fanuc Series 0i-MF Control. Machine Serial No. Year 2018.
OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
