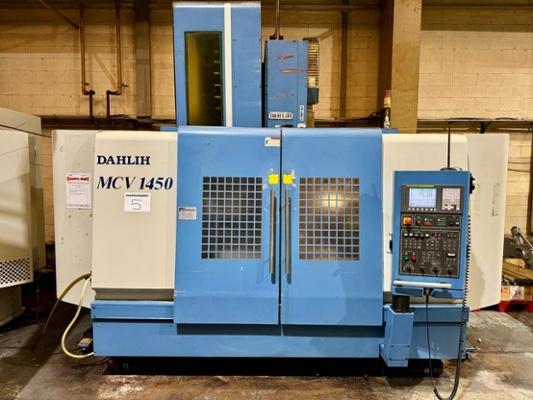

Lot 5: DAHLIH DL-MCV1450 Vertical Machining Centre with Fanuc Series 0i-MC Control (2007)
Description

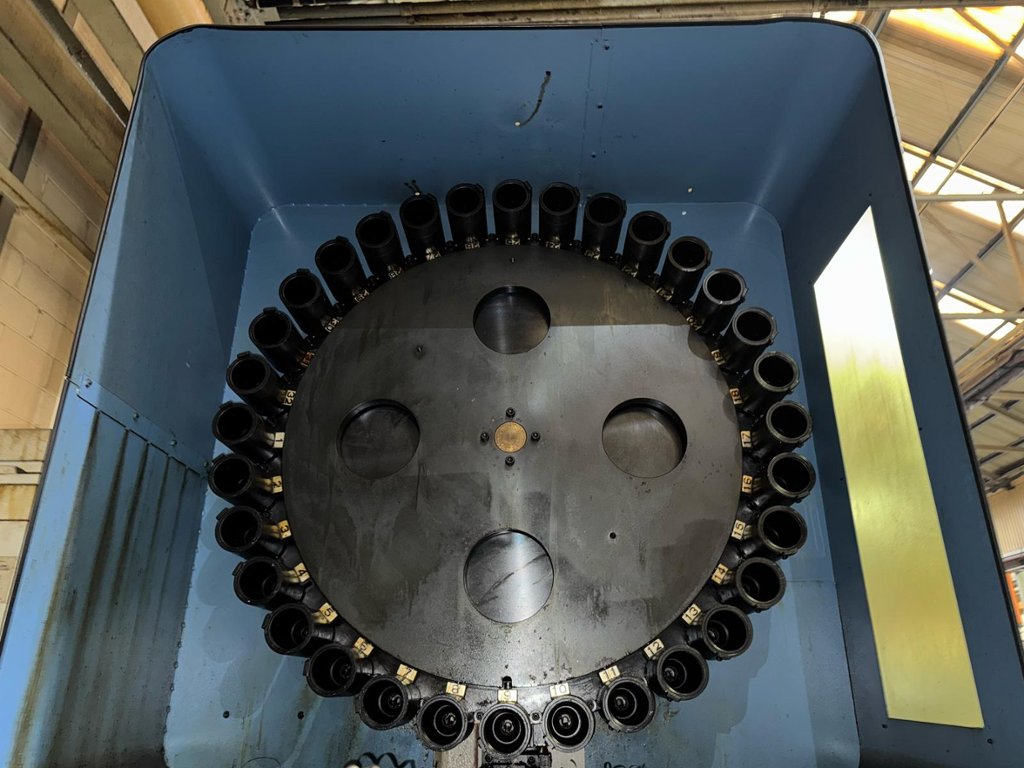

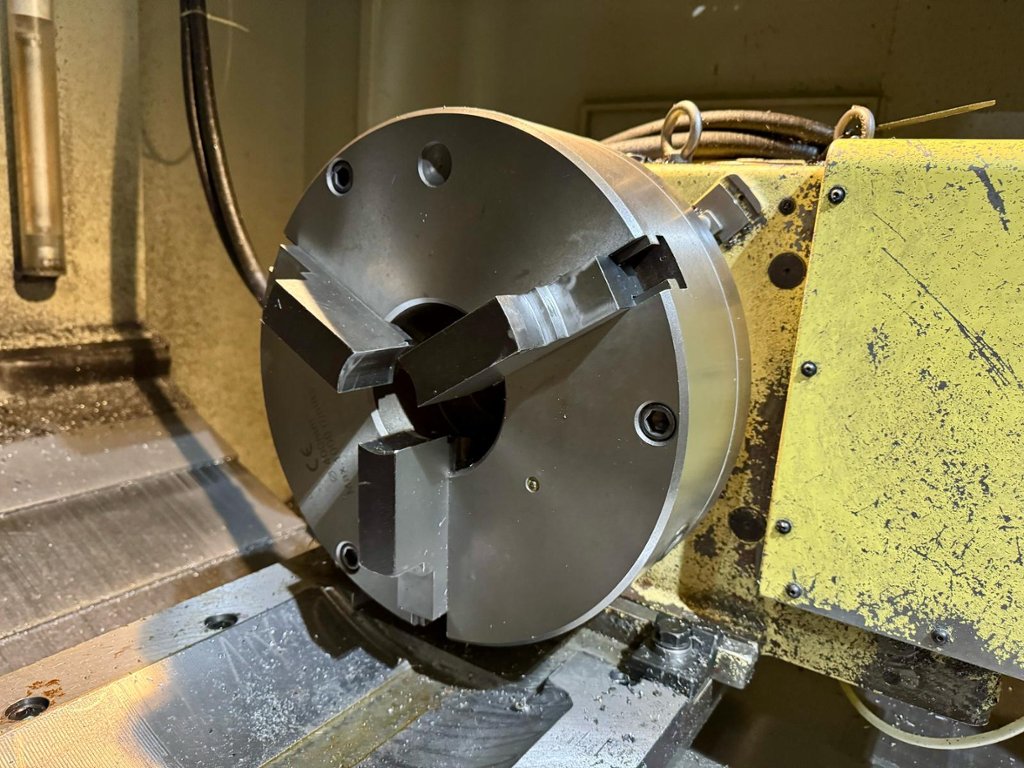

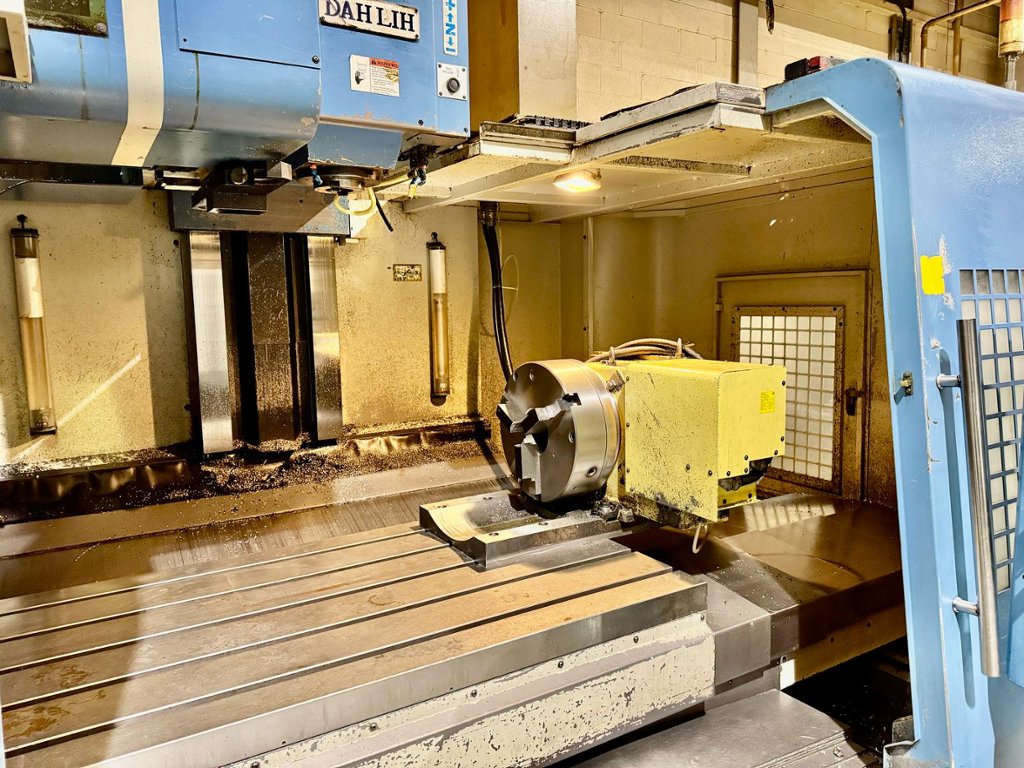

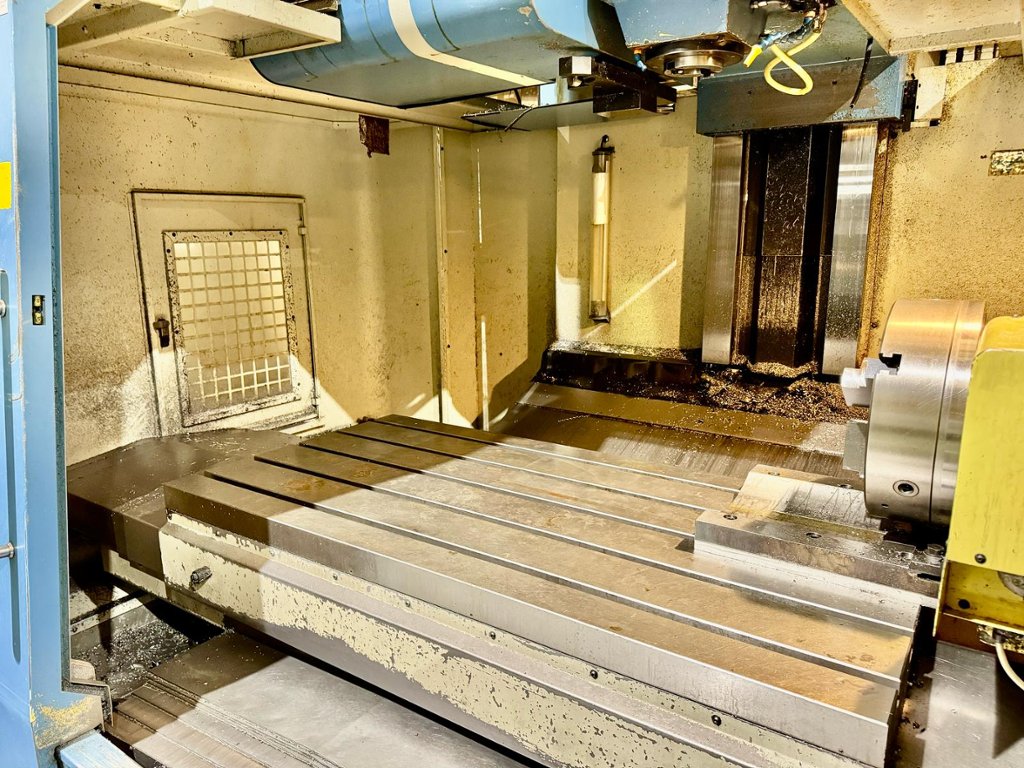

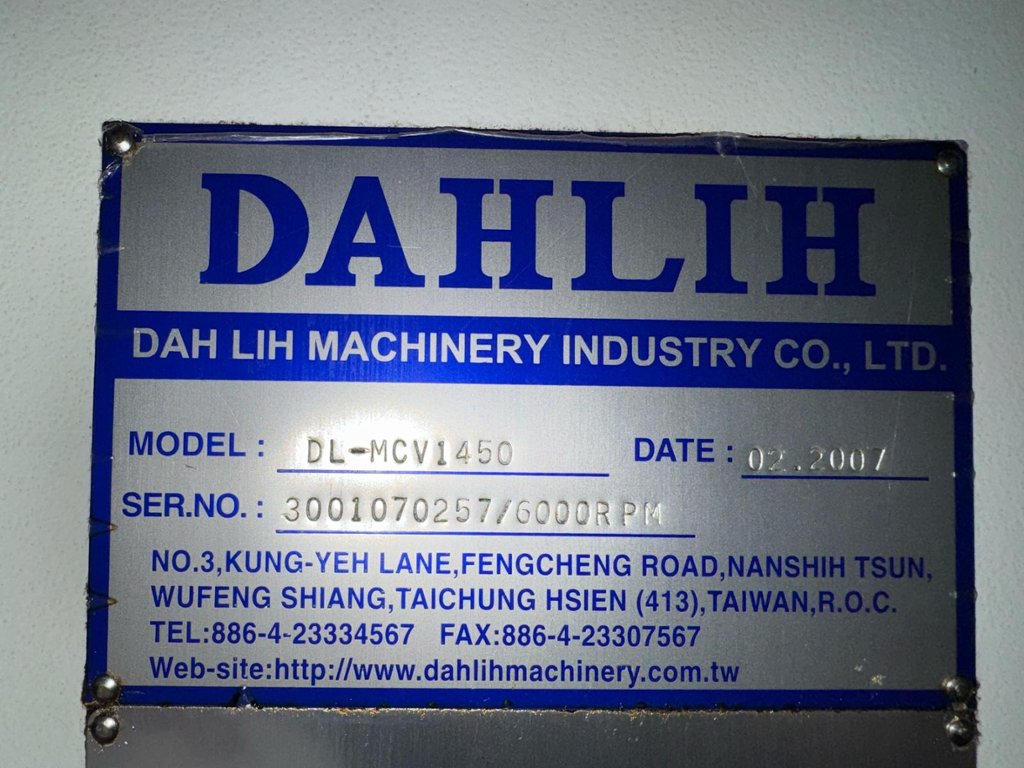

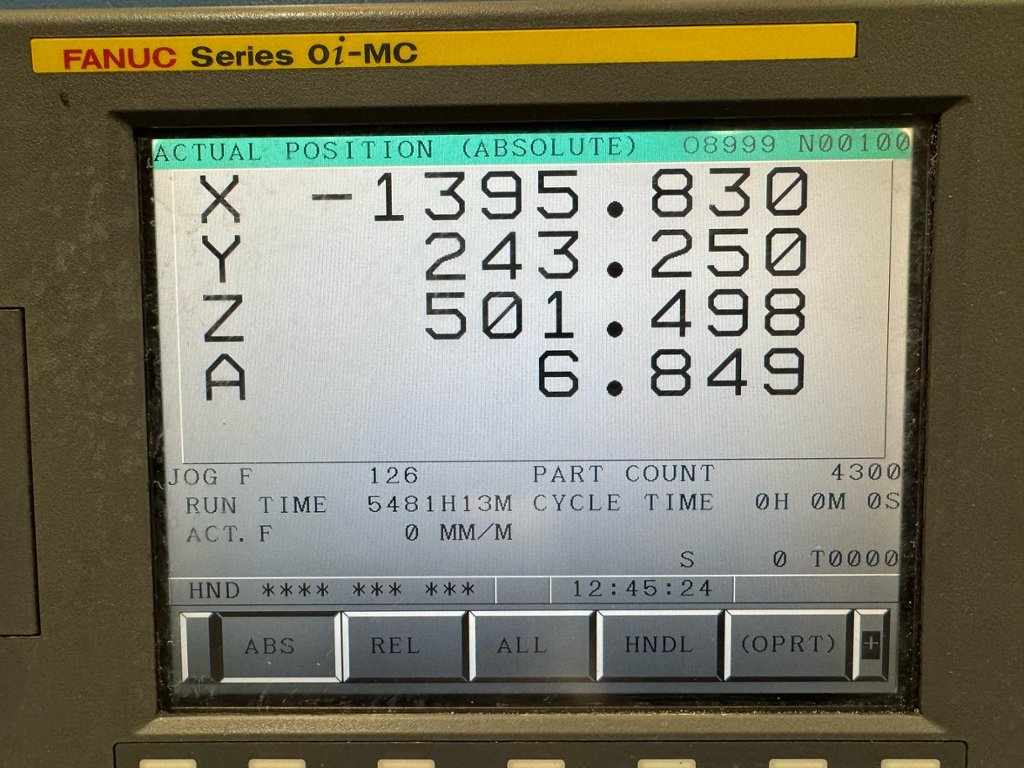

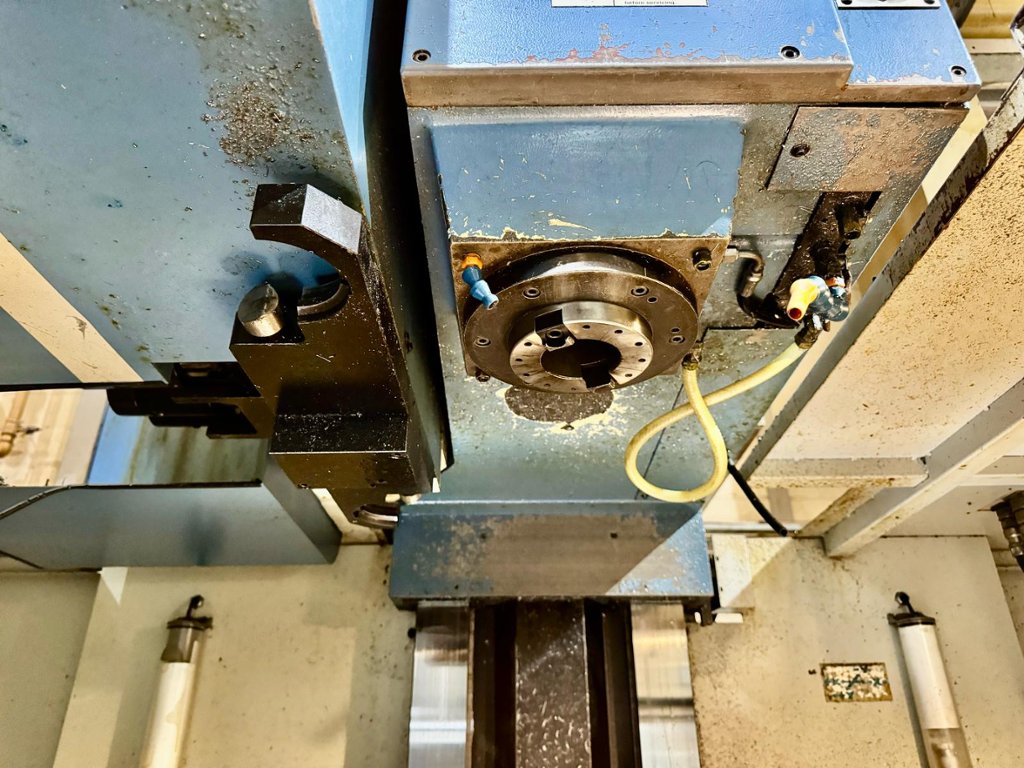

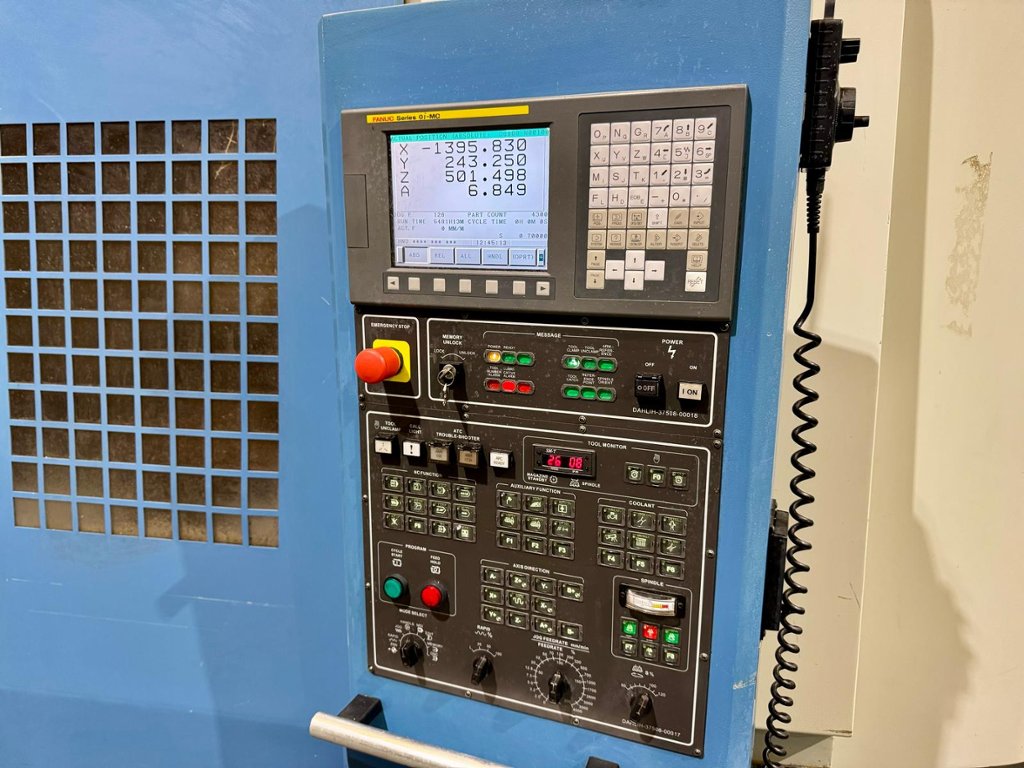

Table size 1600mm x 800mm. T slots no. & size 22 x 5mm. Table load 2000kg. X/Y/Z travels 1450/750mm/750mm. Min/Max distance table to spindle 200/950mm. Distance between spindle centre and column surface 850mm. Rapids X/Y/Z 20/20/12m/min. Spindle nose BT50. Maximum spindle speed 4500 rpm (low/high gearbox). 32 ATC. Spindle motor (cont) 11 kW. Spindle motor (rated output 30min) 15 kW. X/Y/Z motor power 4/7/4.2 kW. 4th Axis Attachment 400mm dia. 3 Jaw Chuck. Approximate machine size 5330mm x 4150mm. Approximate weight 14500 kg.Fanuc Series 0i-MC Control. Machine Serial No. 3001070257. Year 2007.
OFFERS WILL BE CONSIDERED BY EMAIL IF RECEIVED WITHIN 48 HOURS PRIOR TO THE AUCTION CLOSING
Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.
