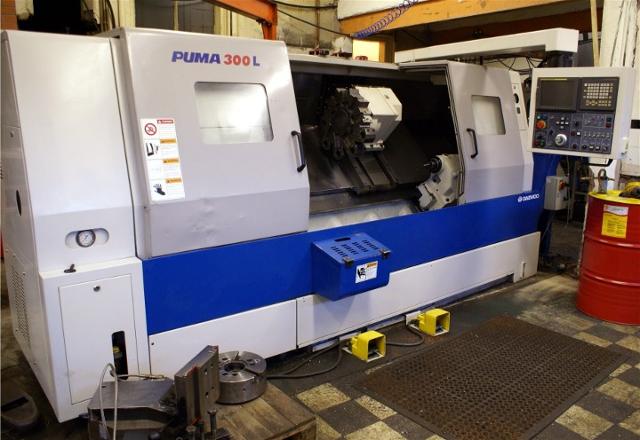

Lot 1: Daewoo Puma 300LB 2 Axis CNC Lathe with Fanuc 21i-TB Control

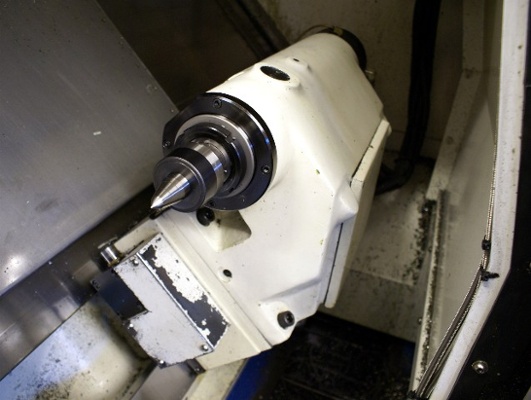

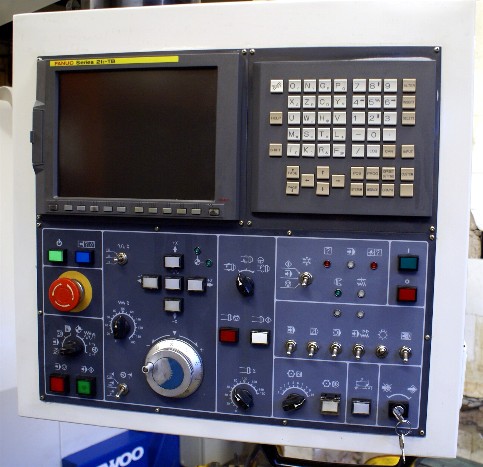

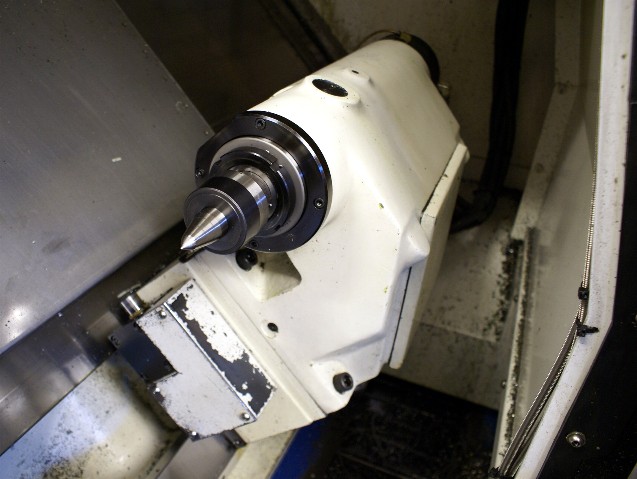

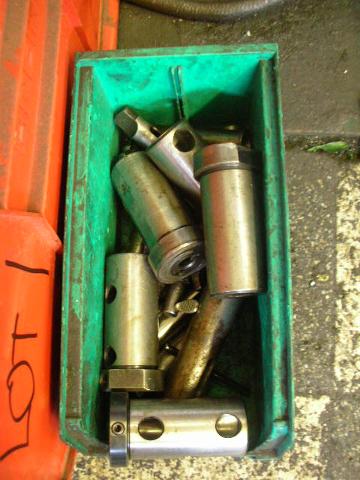

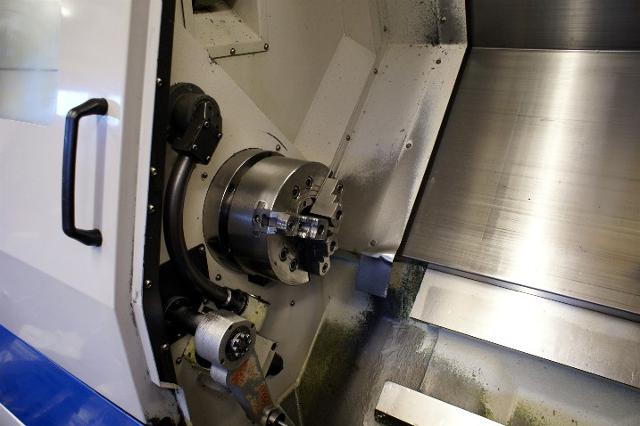

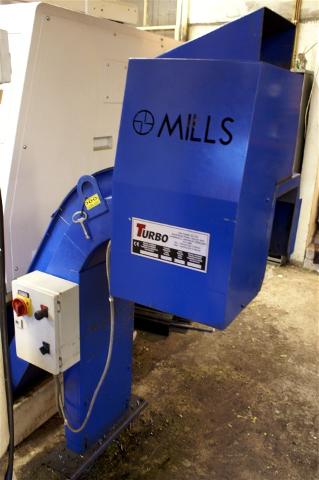

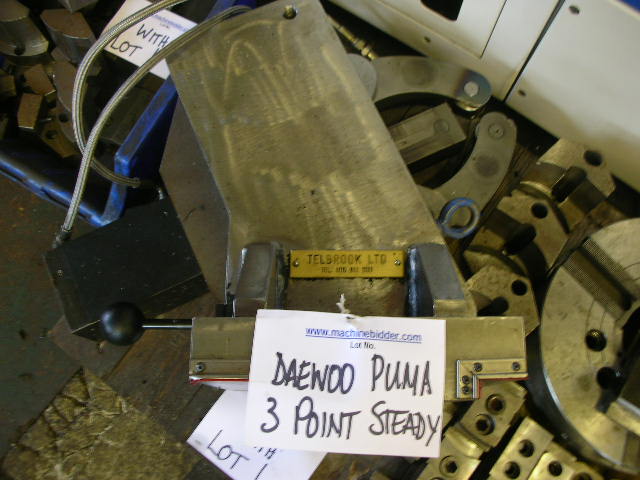

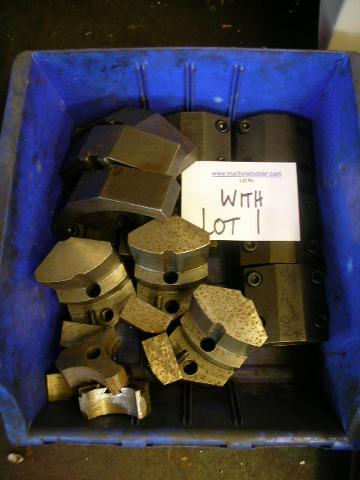

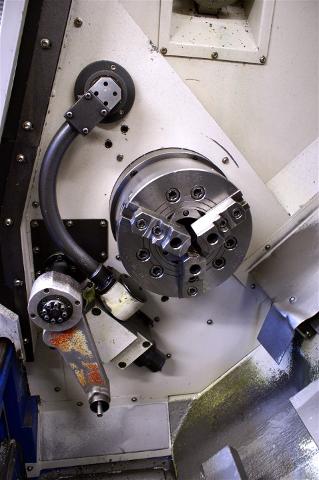

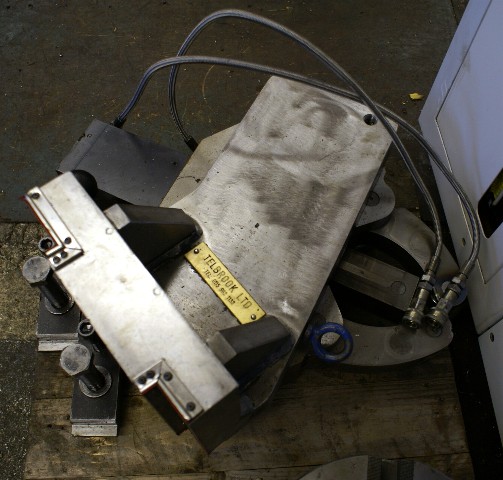

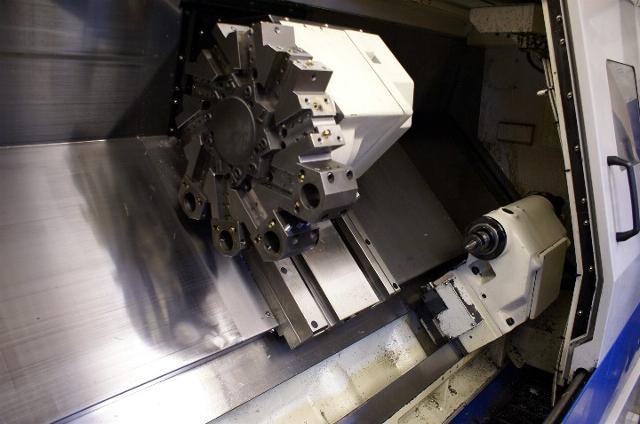

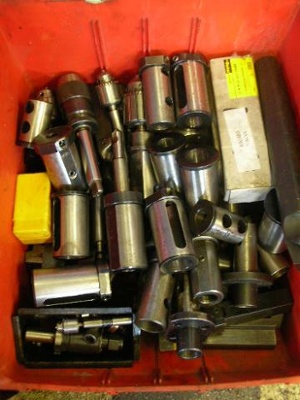

Swing over bed 589mm.Swing over saddle 449mm.Maximum cutting dia. 398mm.Maximum cutting length 1297mm.Bar capacity 77mm.Spindle speeds 30-3500 rpm.2 speed gearbox.Spindle nose A2-8.Spind;le bore 89.9mm.Machine fitted with Powergrip HS-10 250mm dia. 3 jaw hydraulic chuck.Automatic Tool Presetter.Parts Catcher.Telbrook 3 Point Programmable Roller Steady.FANUC 21i-TB CNC Control. Coolant.RS232 for DNC Interface.Kitagawa B212 300mm dia. 3 Jaw Hydraulic Chuck.Turret Toolholders.LNS Turbo Swarf Conveyor (2005).Machine Serial No.P30L1704.Rated Capacity 40.01 kva.Largest Load 18.5kW.Full Load Current 104.99 Amps.Weight of machine 6700kgs.Year of Manufacture 2004-12.

Overall Dimensions : Length (with swarf conveyor fitted) 4970mm (without swarf conveyor fitted) 4000mm. Width 1650mm.Height (Top of Pendant Control) 1990mm.
