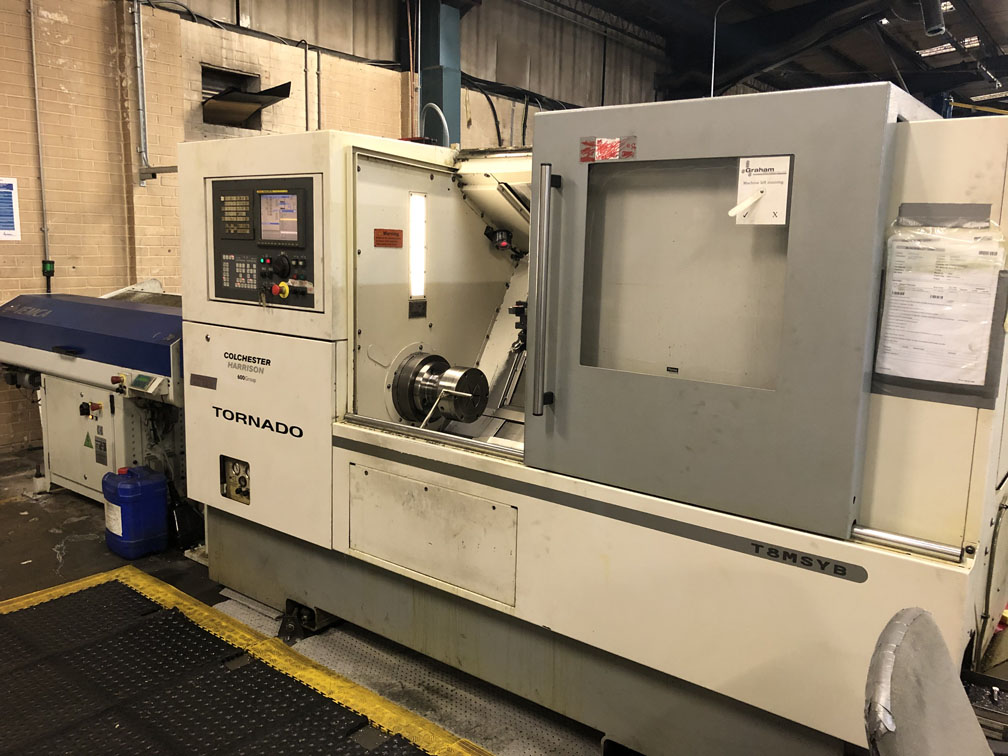

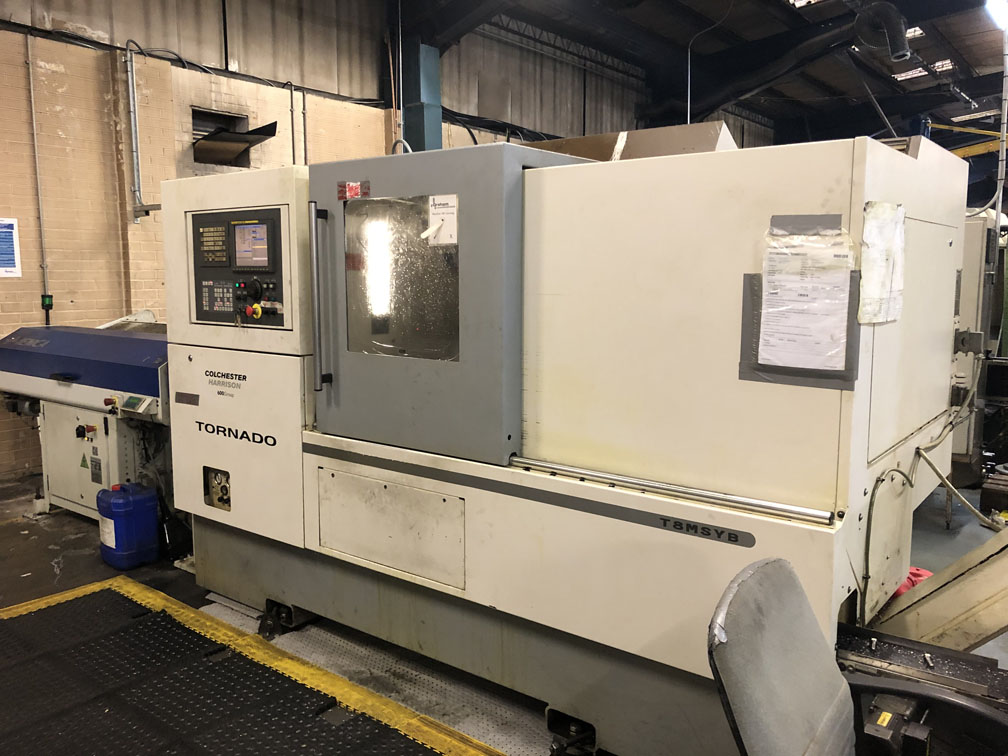

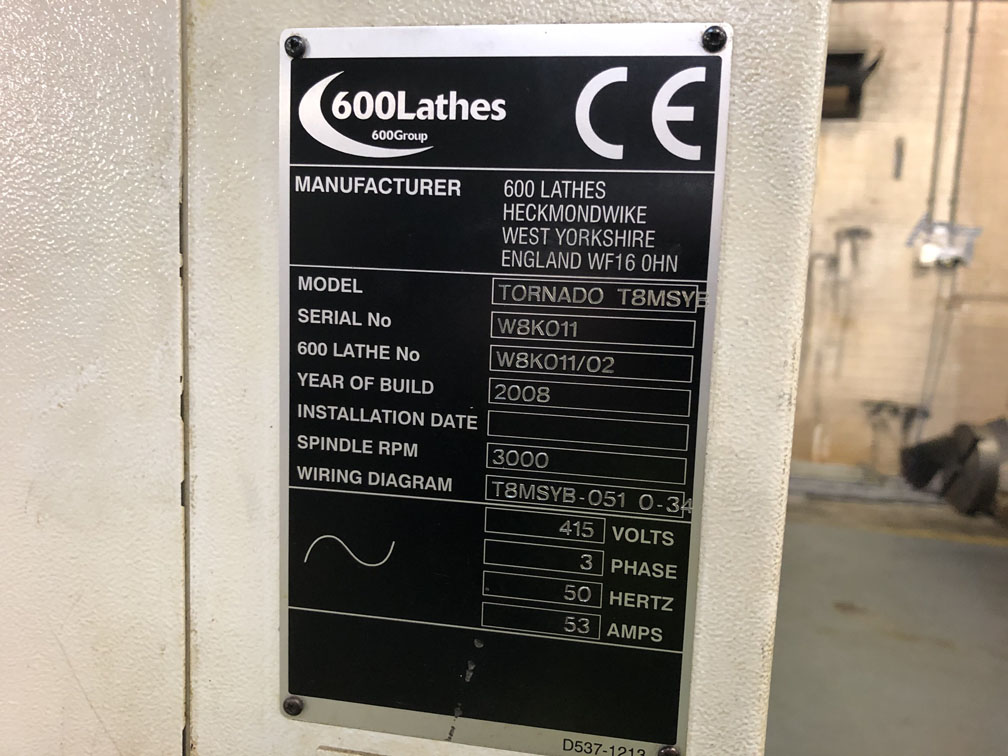

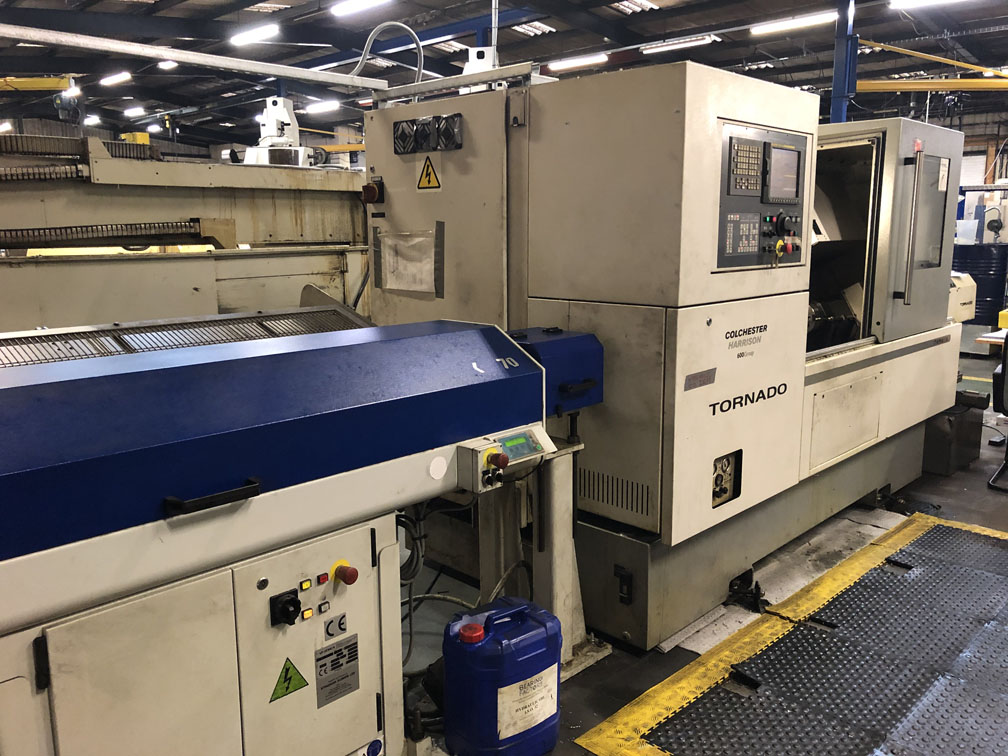

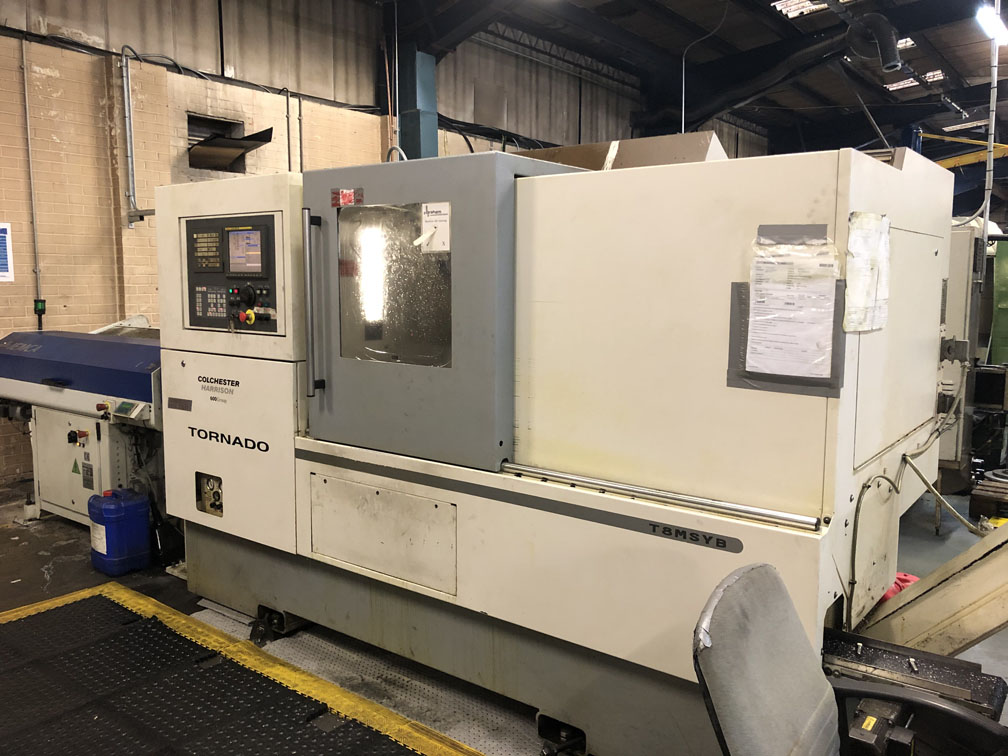

Lot 2: COLCHESTER Tornado T8MSYB 6 Axis CNC Lathe with GE Fanuc 18i-TB Control (2008)

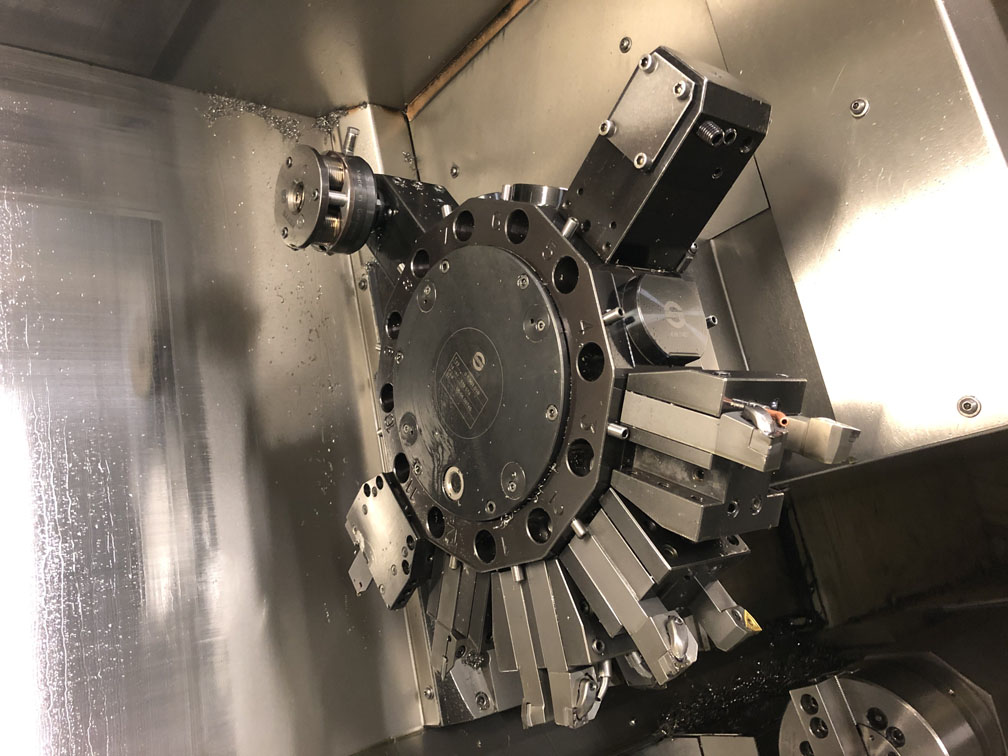

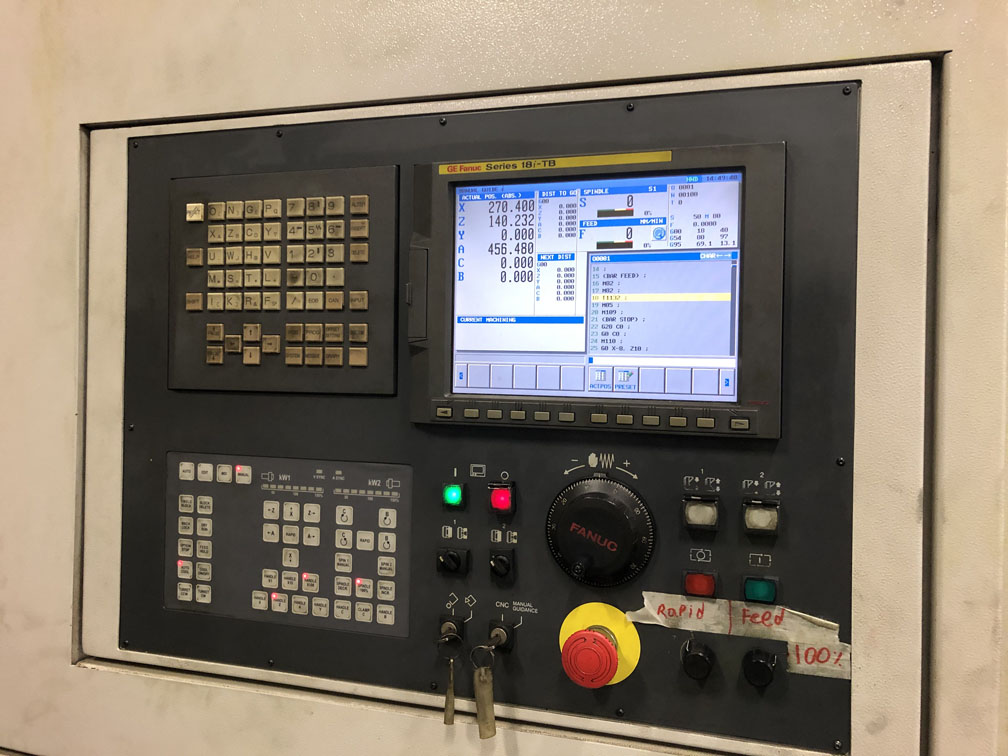

Swing over bed covers 509mm. Maximum turning dia.259mm. Maximum turning length 540mm.Spindle bore 77.4. Bar capacity 65.7mm.Spindle nose A2-6. Chuck dia.254mm.Sub spindle chuck dia. 152mm. Spindle speeds 3000rpm. Spindle power 18.64kW/22.37kW.12 station bi-directional turret with 12 driven stations. Power of driven tools 3.72kW. Driven tools speed to 5000rpm.Y axis.Fanuc-GE 18i-TB CNC Control

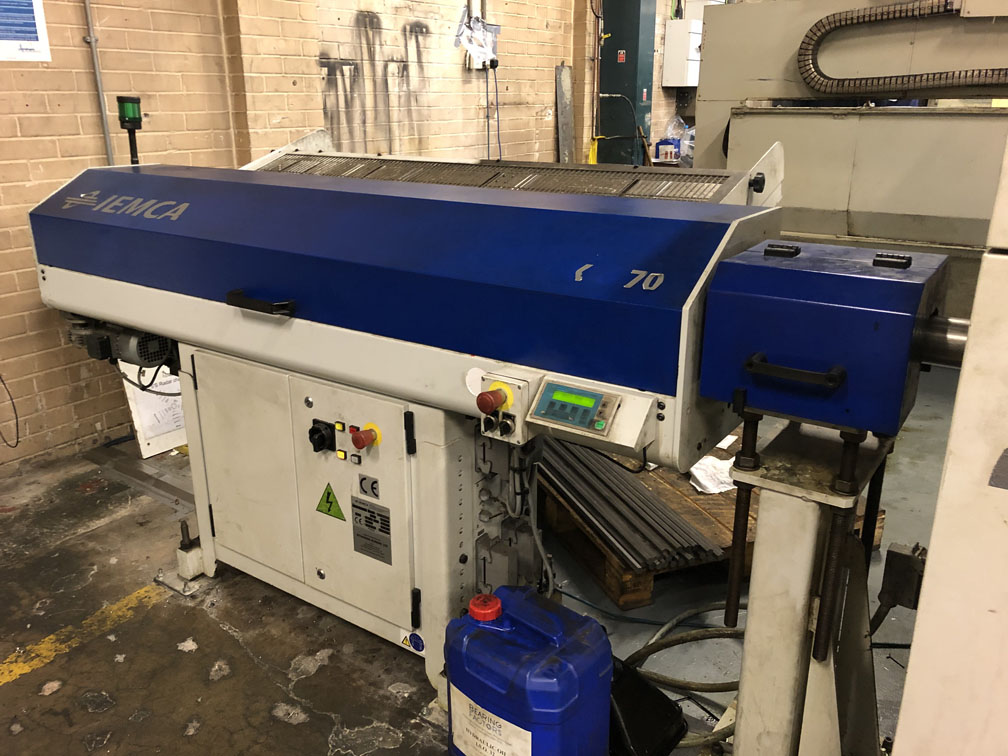

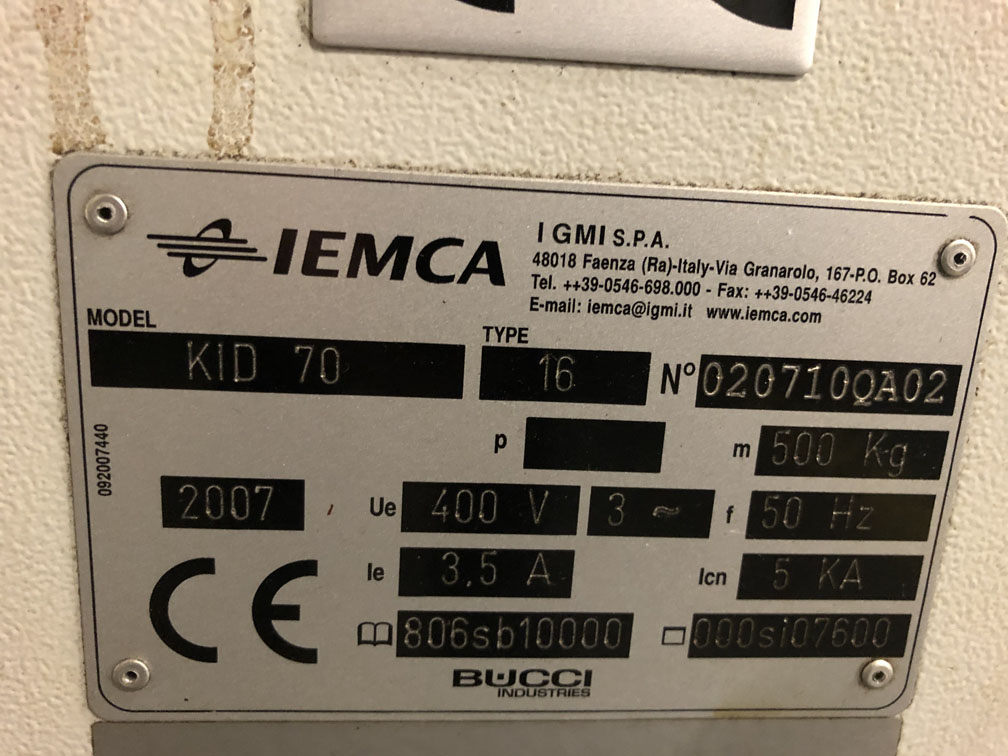

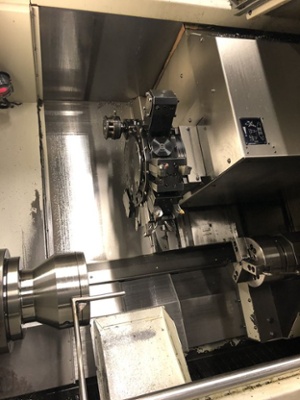

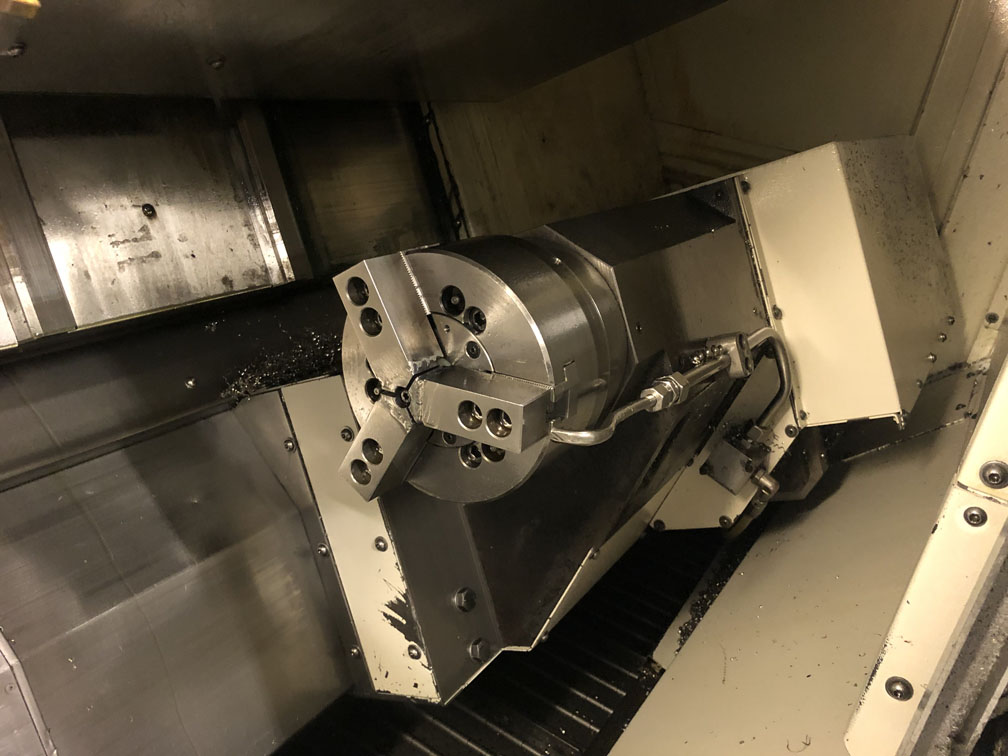

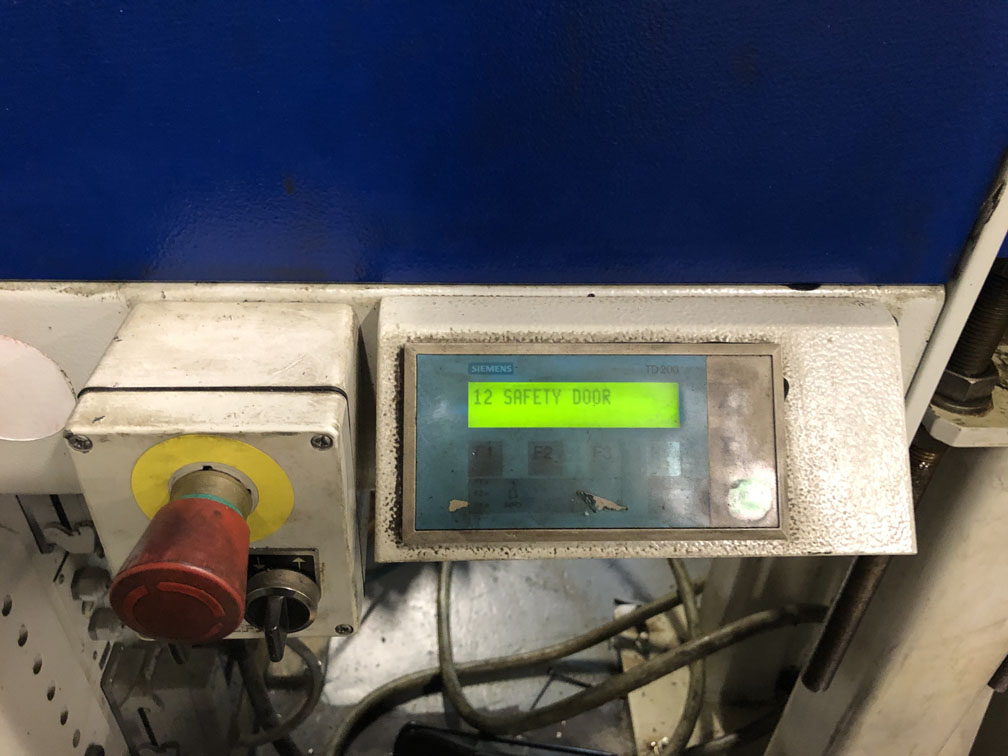

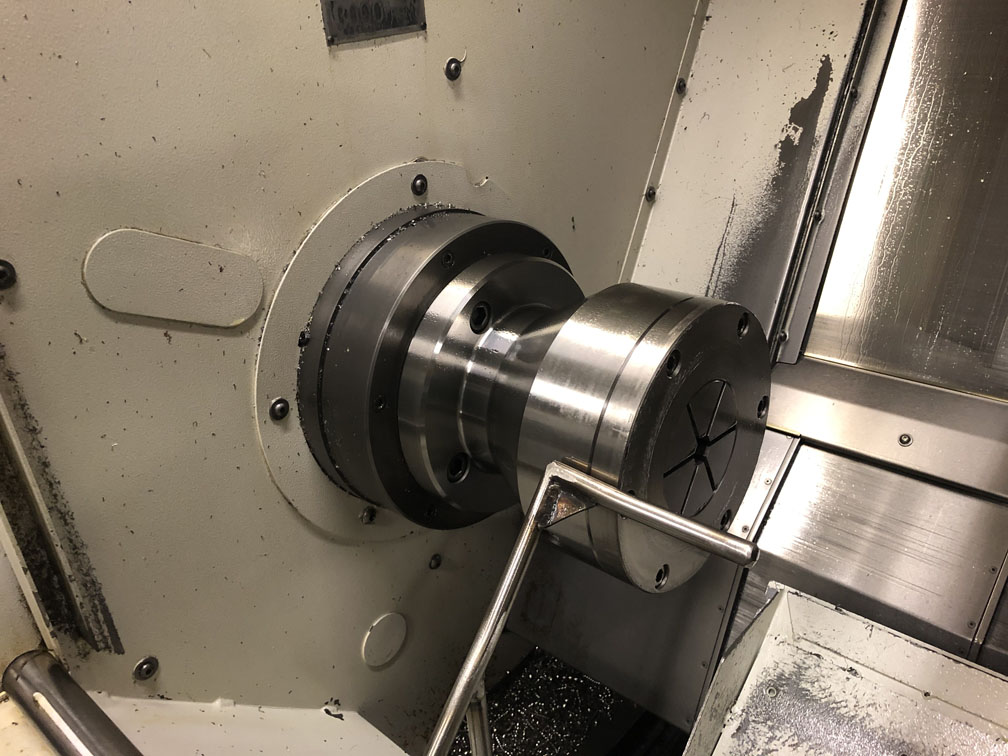

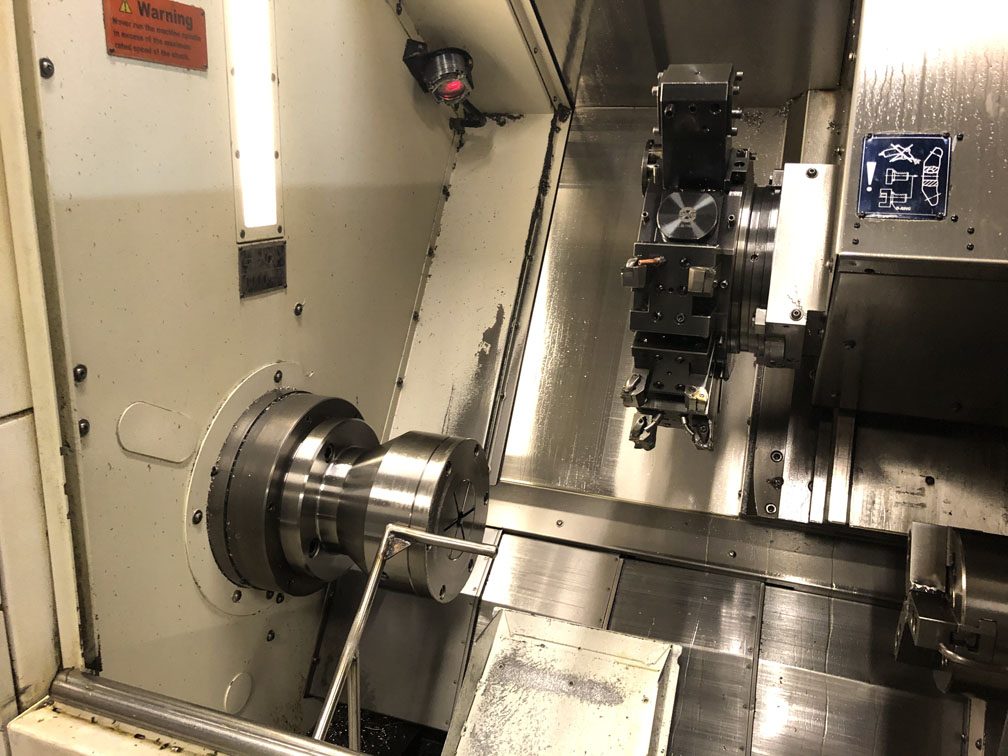

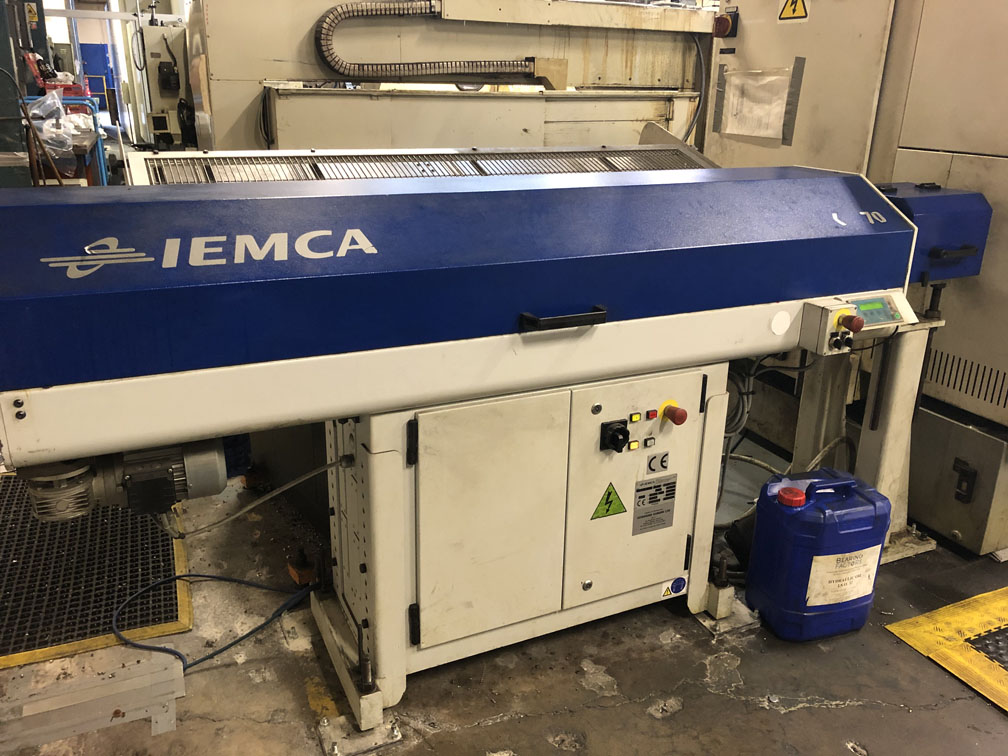

Machine has a 3 jaw chuck & collet chuck on main spindle and 3 jaw chuck fitted on sub spindle. IEMCA KID70 Barfeed with magazine

Machine dimensions: Machine and swarf conveyor 3987mm x 2000mm x 2000mm high. Barfeed length 2387mm. Machine weight 5,000 kgs

See attached manufacturers brochure and specification (non binding)
