Description

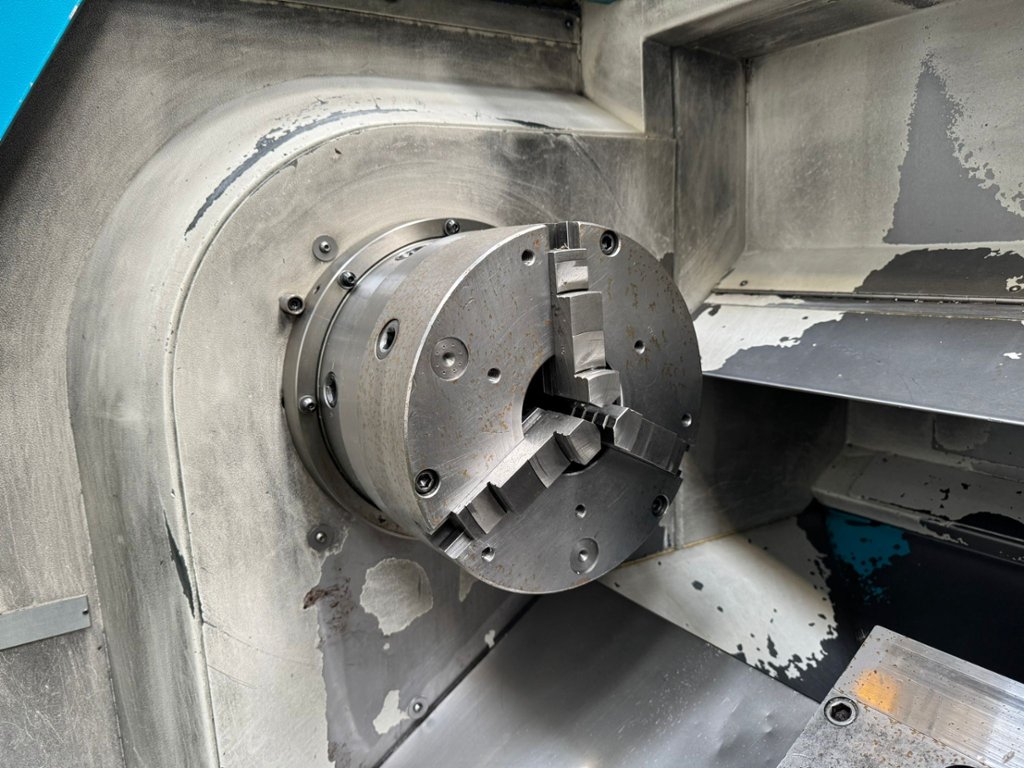

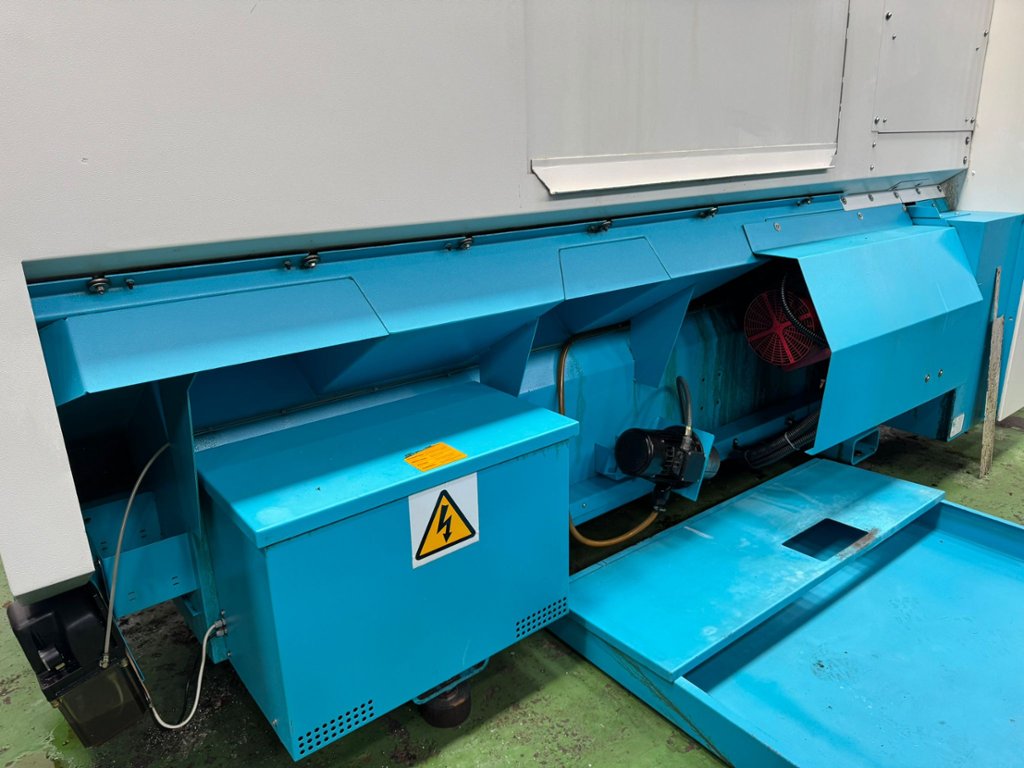

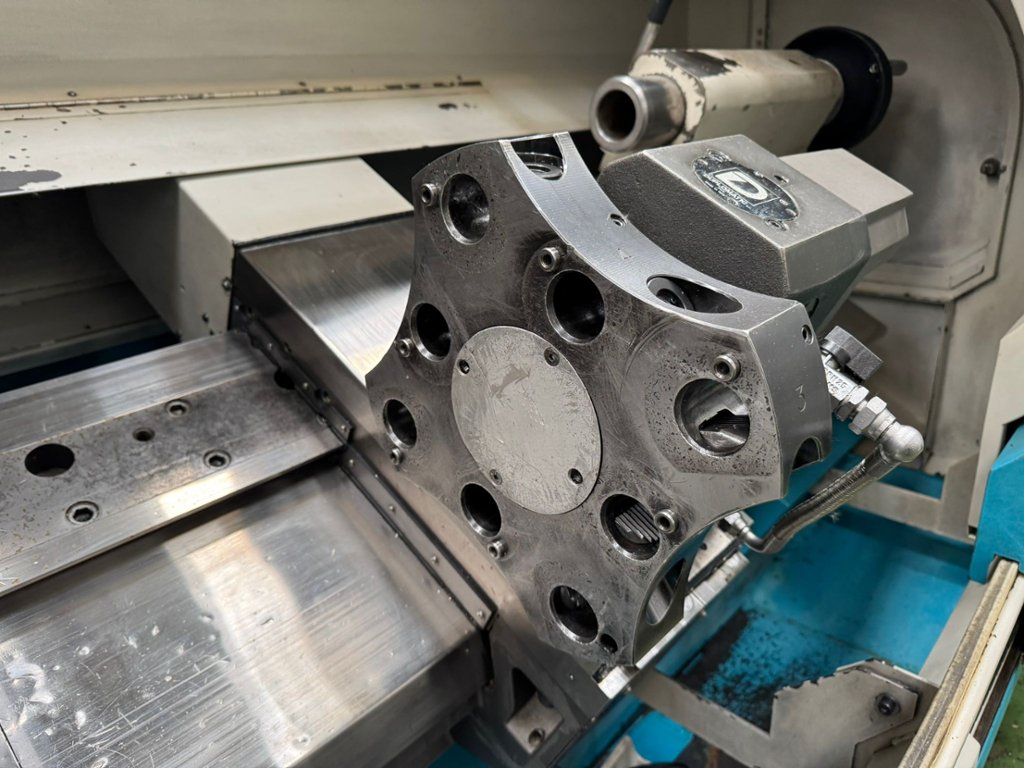

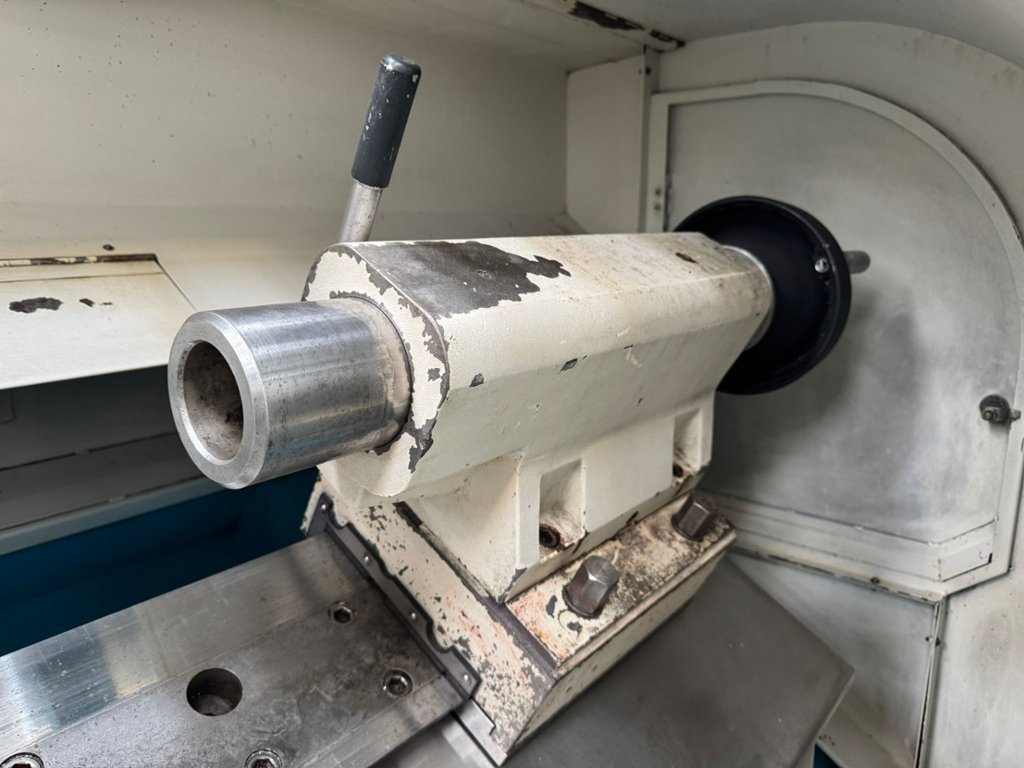

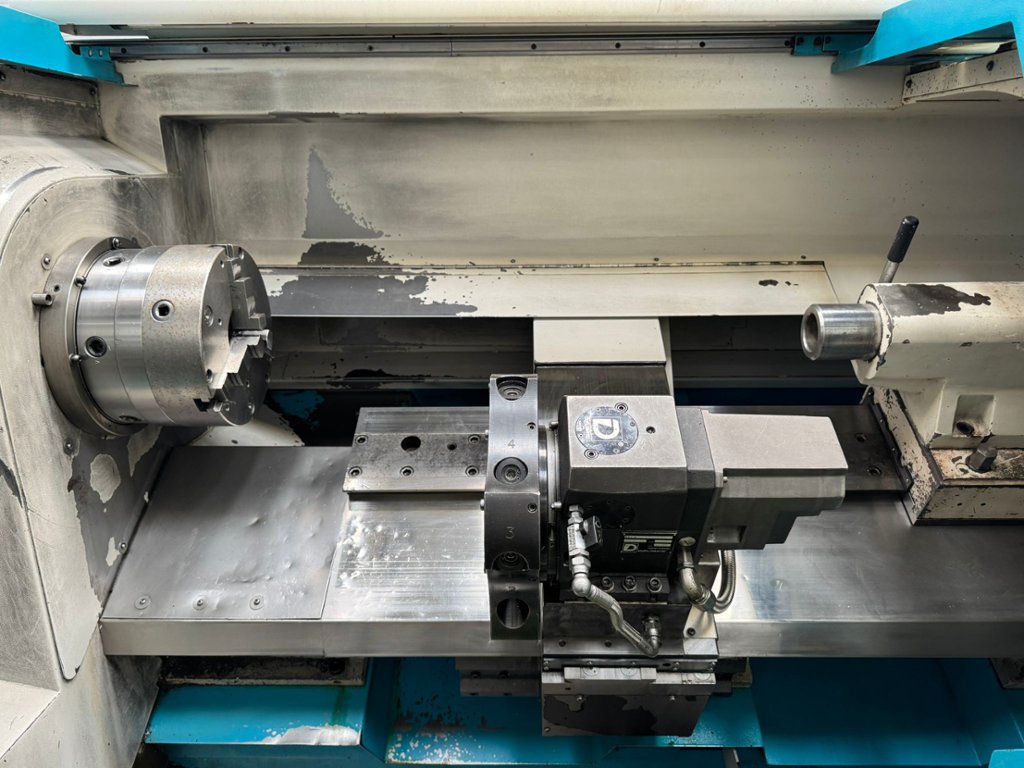

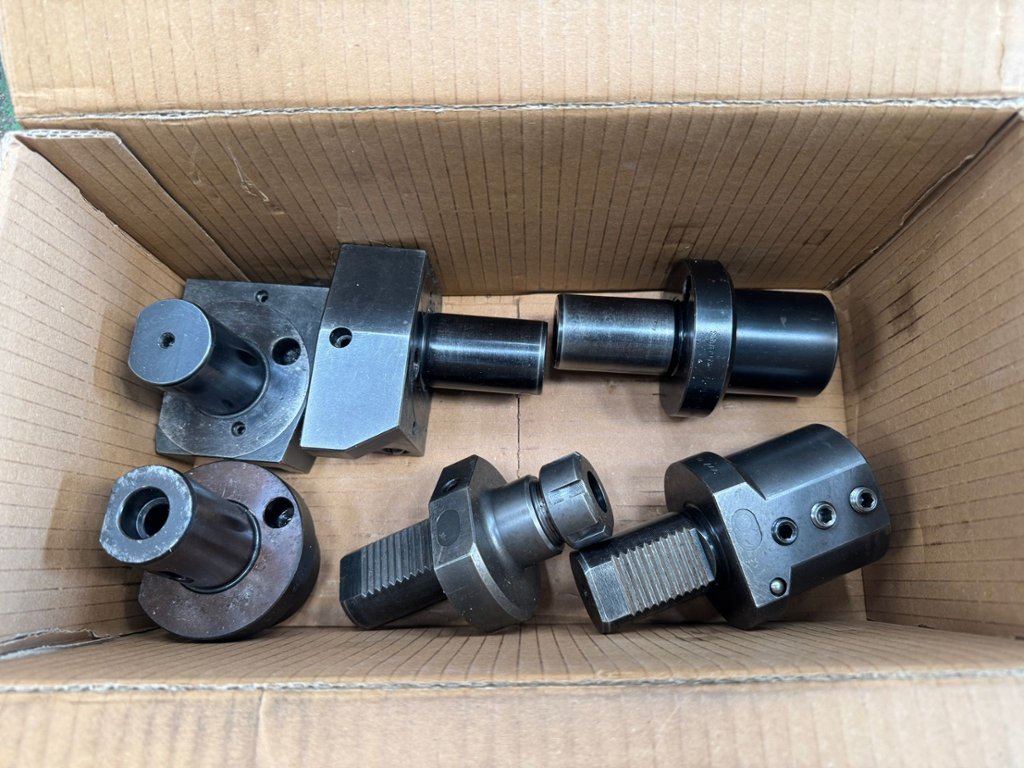

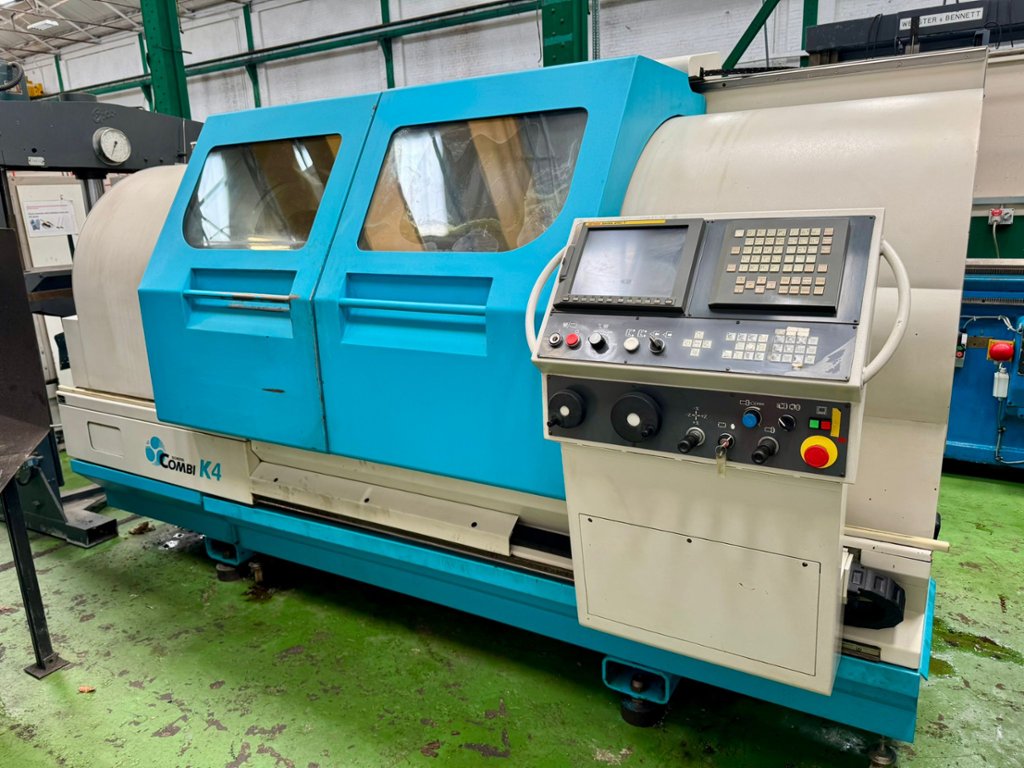

Swing over bed 554mm. Swing in gap 830mm. Swing over cross slide 370mm. Distance between centres 1200mm. X axis cross slide travel 290mm. Spindle nose Camlock D1-11. Spindle bore 102mm. Spindle motor 18.5/22kW. Spindle speeds (programmable): Low range 4.5-450 rpm. High range 18-1800 rpm. Tailstock quill taper No. 6 MT. Tailstock dia/quill travel 95mm/145mm. Bedway width 405mm. Machine complete with 3 Jaw chuck. 8 station VDI 40 indexing turret with toolholders. Interlocking Guarding. Coolant system. Lighting. Dimensions L x W x H 3300 x1900 x 1700 mm. Approximate weight 3,250 kgs
