This lot has been archived
Description

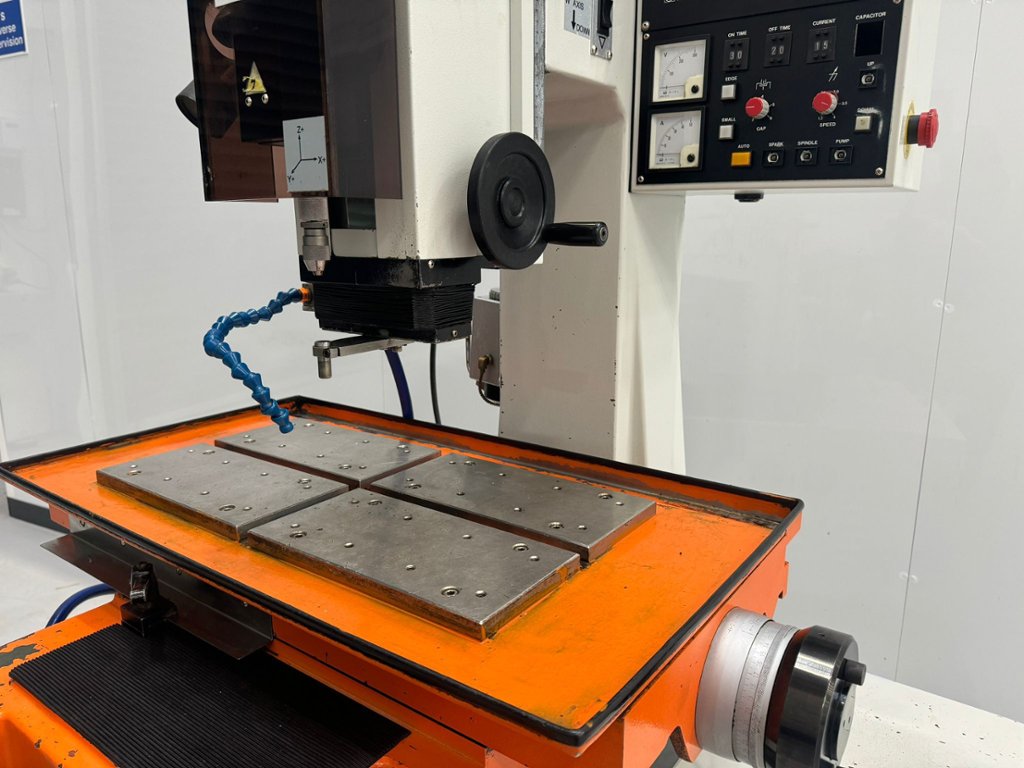

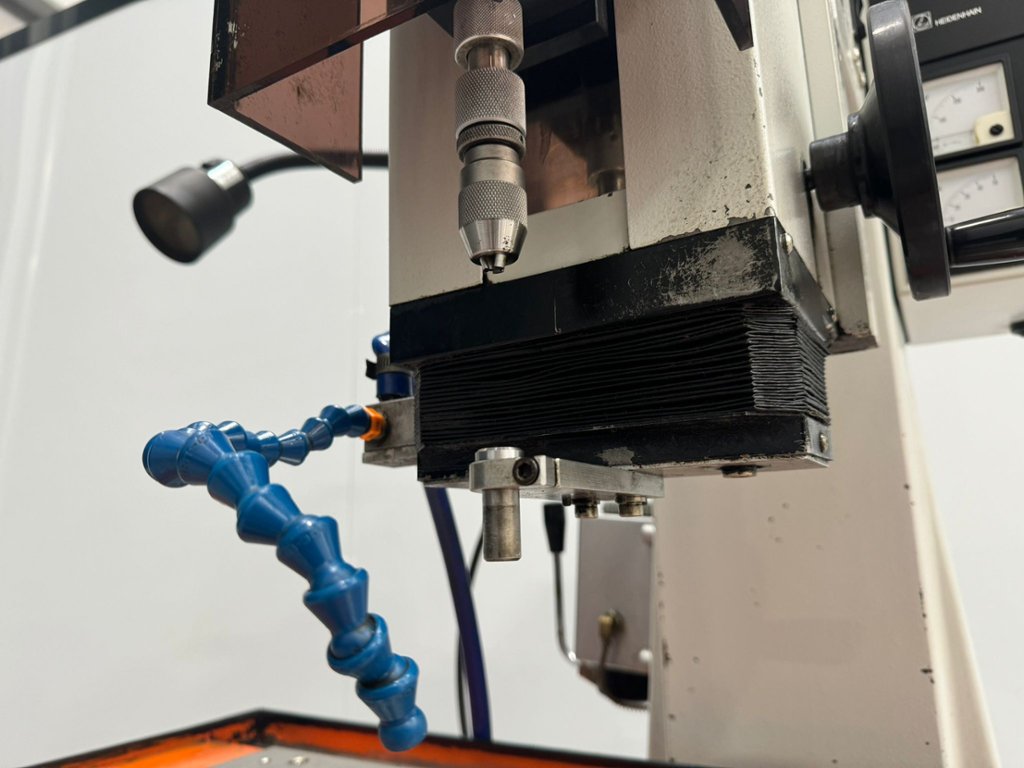

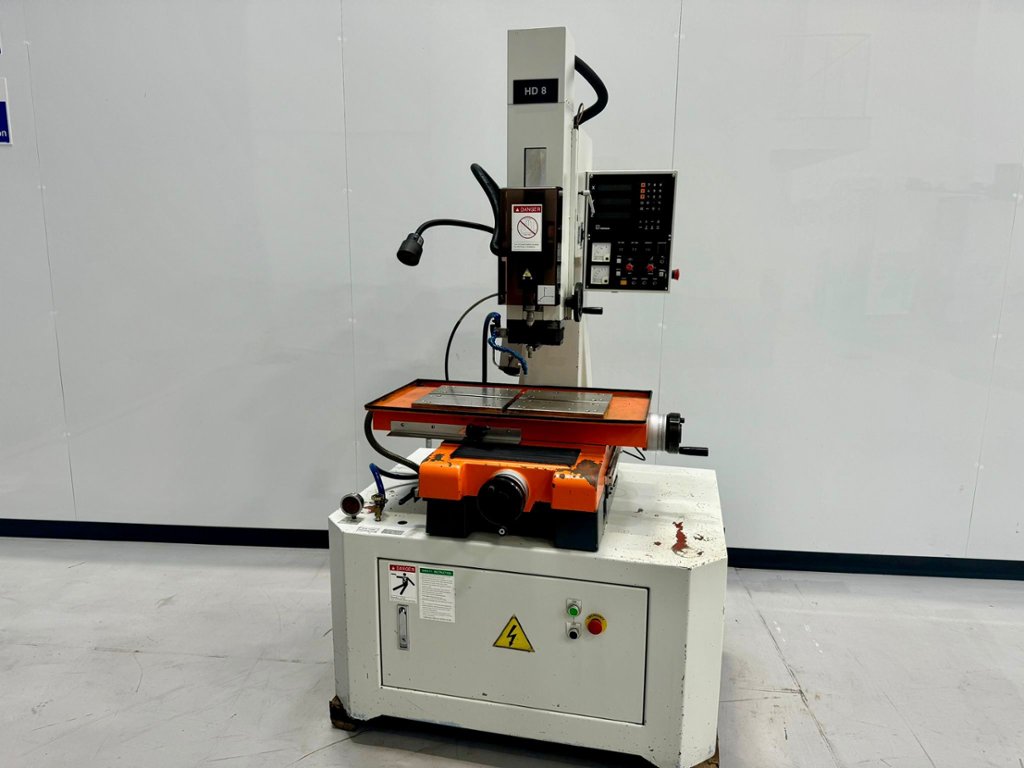

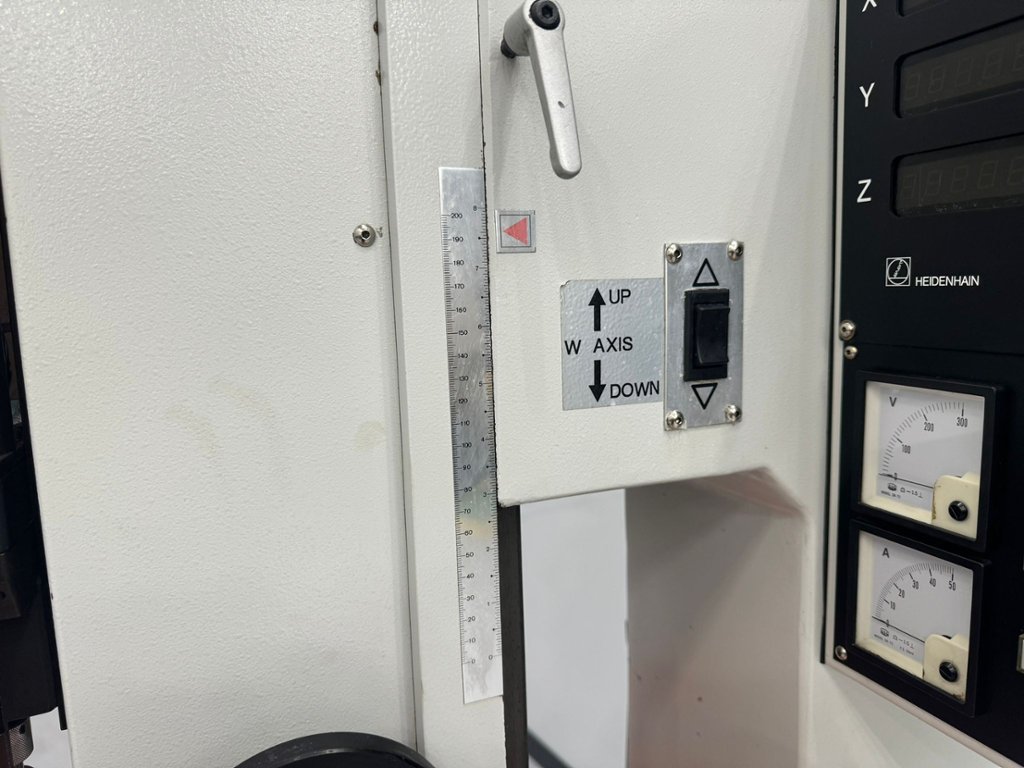

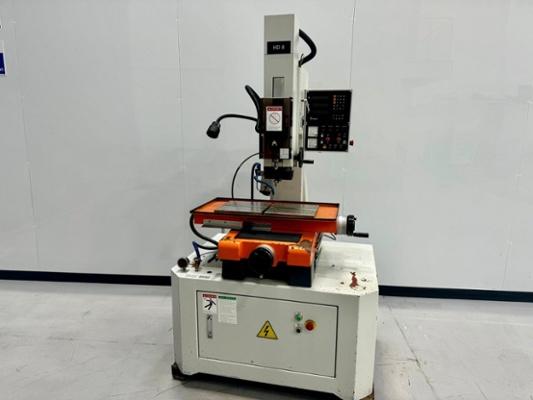

Maximum work dimension 650mm x 300mm x 300mm. Maximum workpiece weight 200kg. Capacity of dielectric 20 l. Filter (cotton material) 10 u. Table size 460mm x 210mm. Table travel X/Y Axis 350mm/250mm. Ram servo travel (Z axis) 300mm-360mm. Workhead travel (W axis) 200mm. Spindle rotary speed 200 rpm. Electrode pipe 0.1mm – 6.35mm. Electrode pipe length 300mm or 400mm. Ceramics guide to worktable 70mm-240mm. Required air pressure 6-8 kg/cm2. Required water pressure 20-100 kg/cm2. Heidenhain Control.
