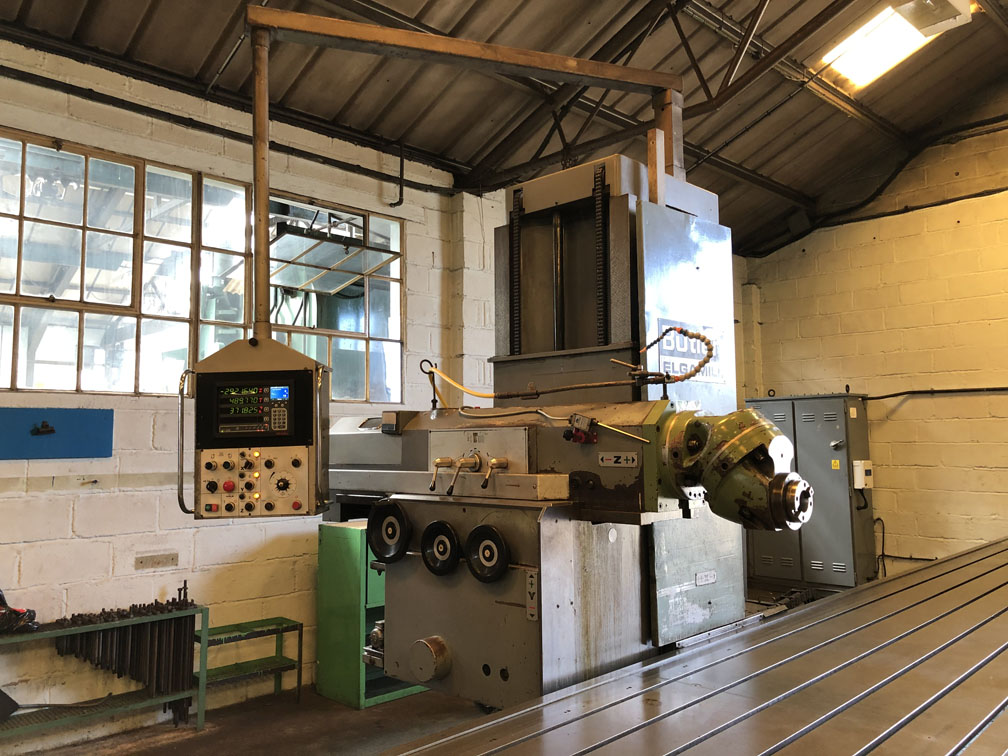

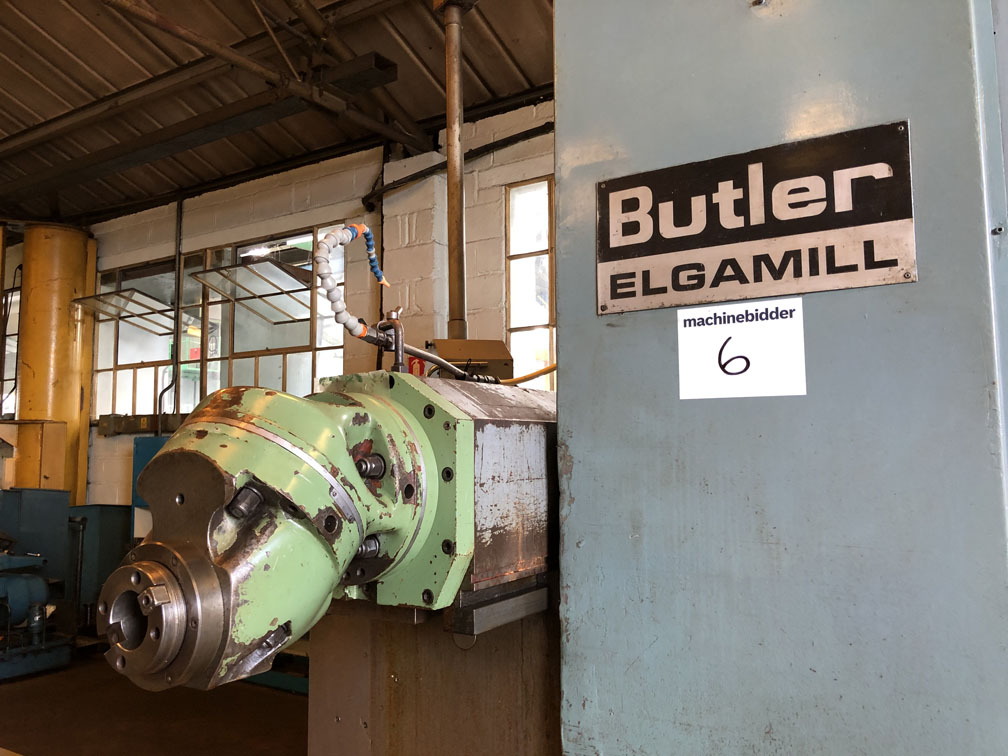

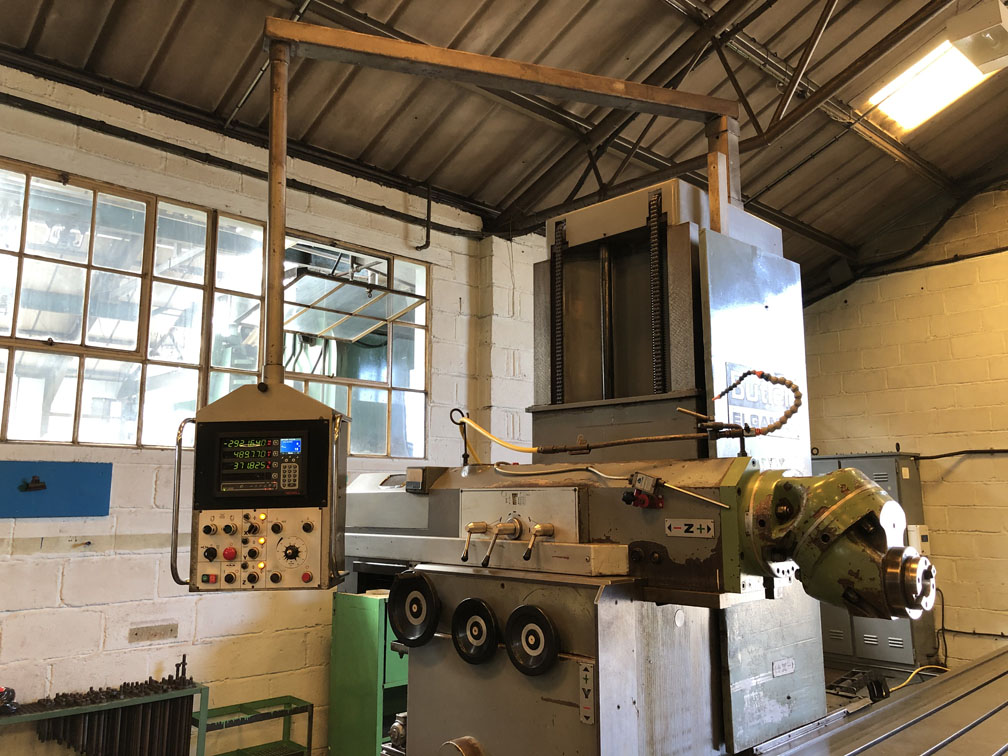

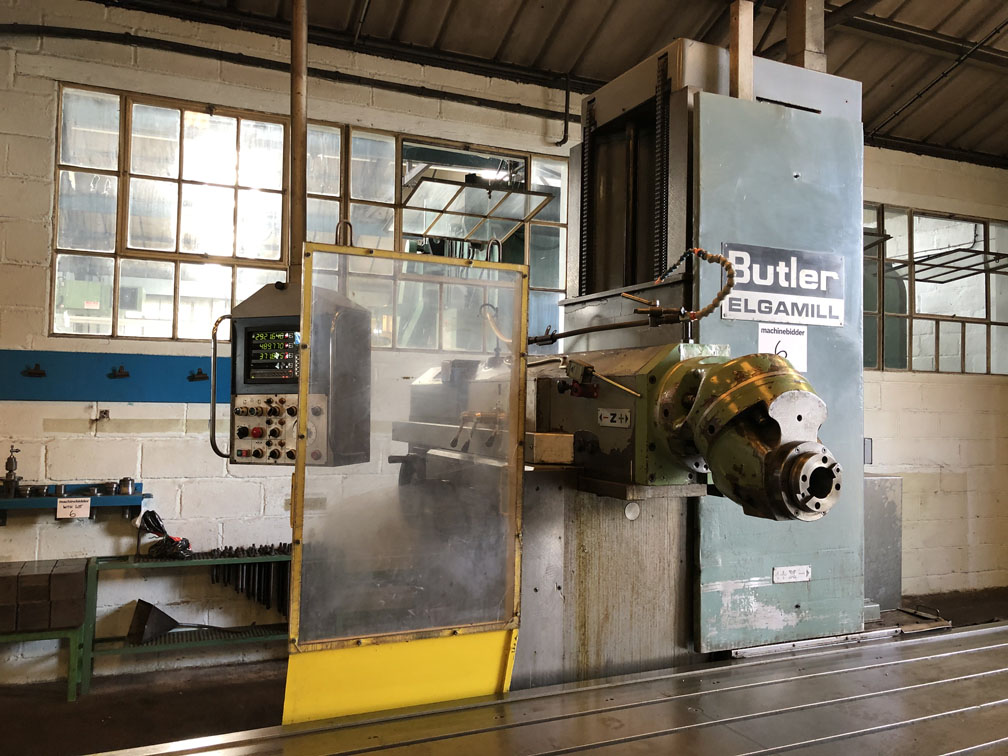

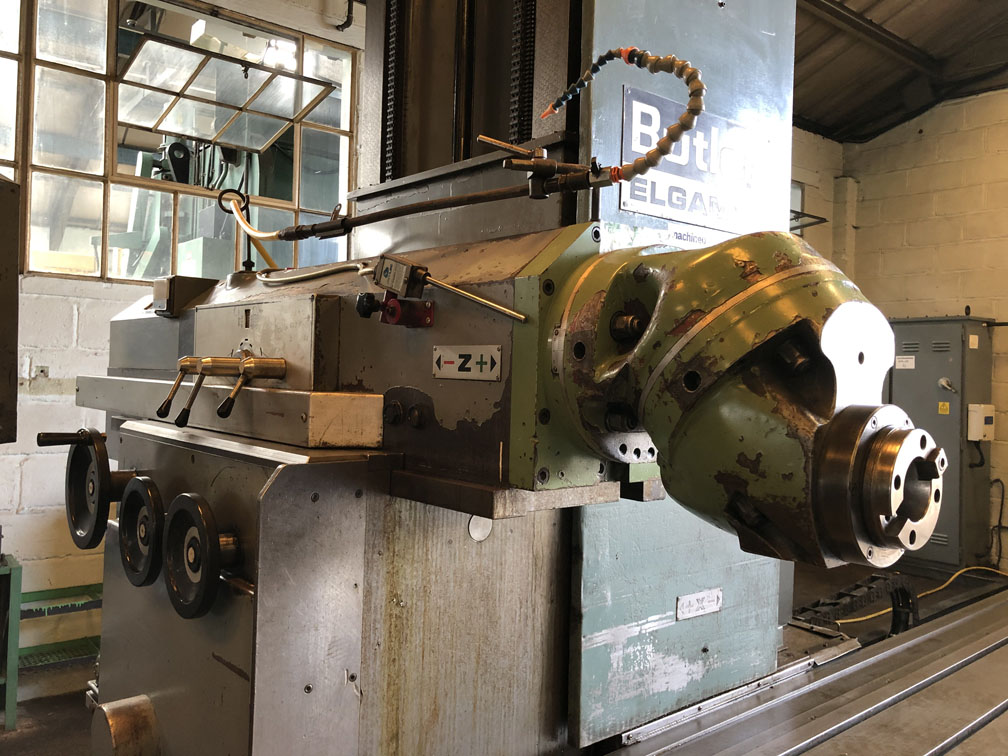

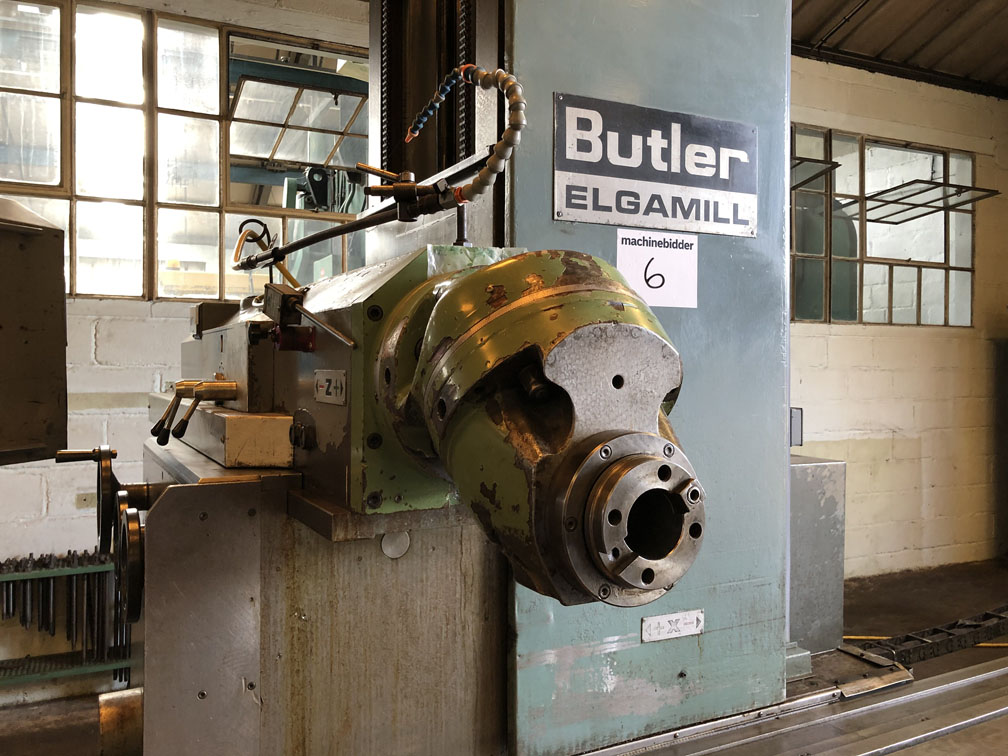

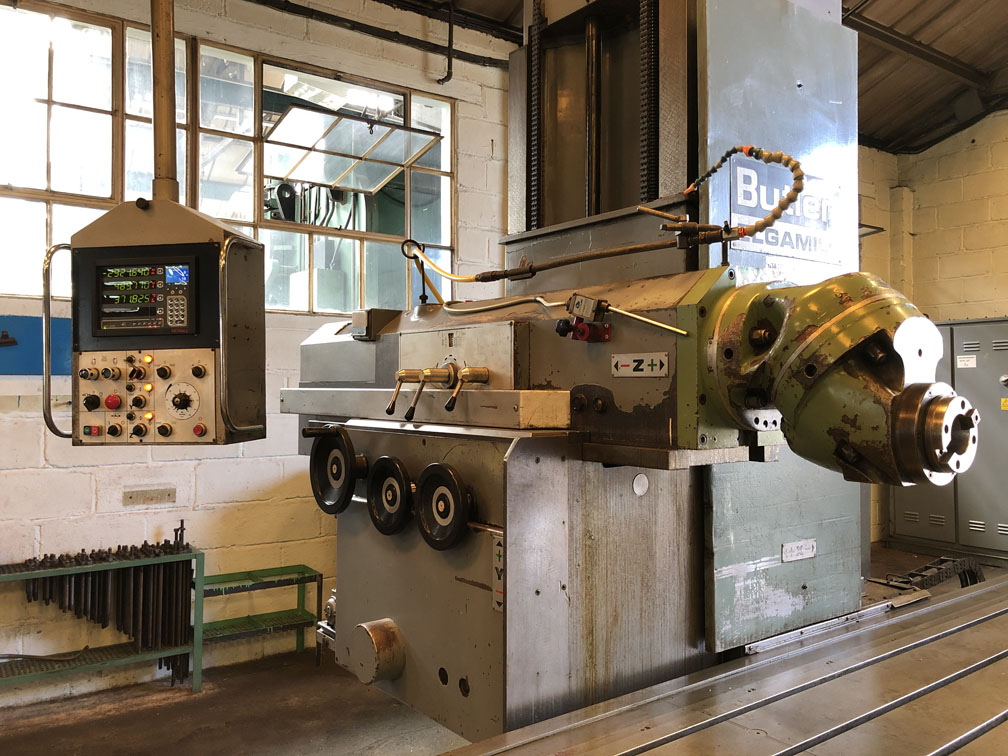

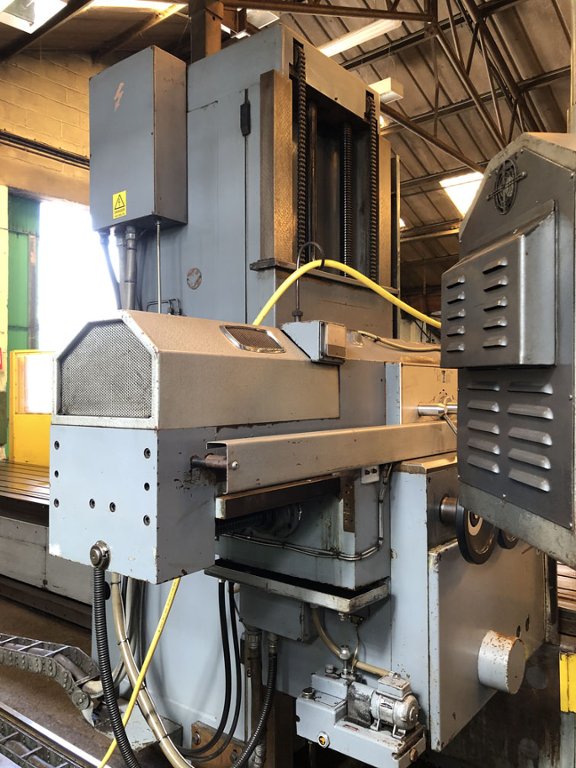

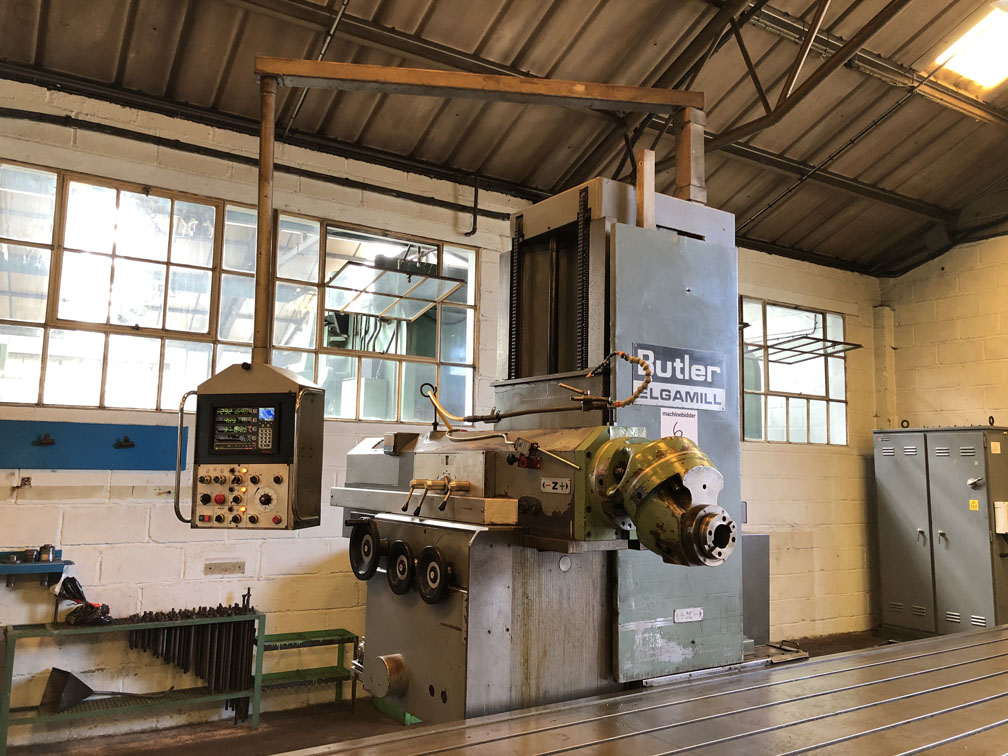

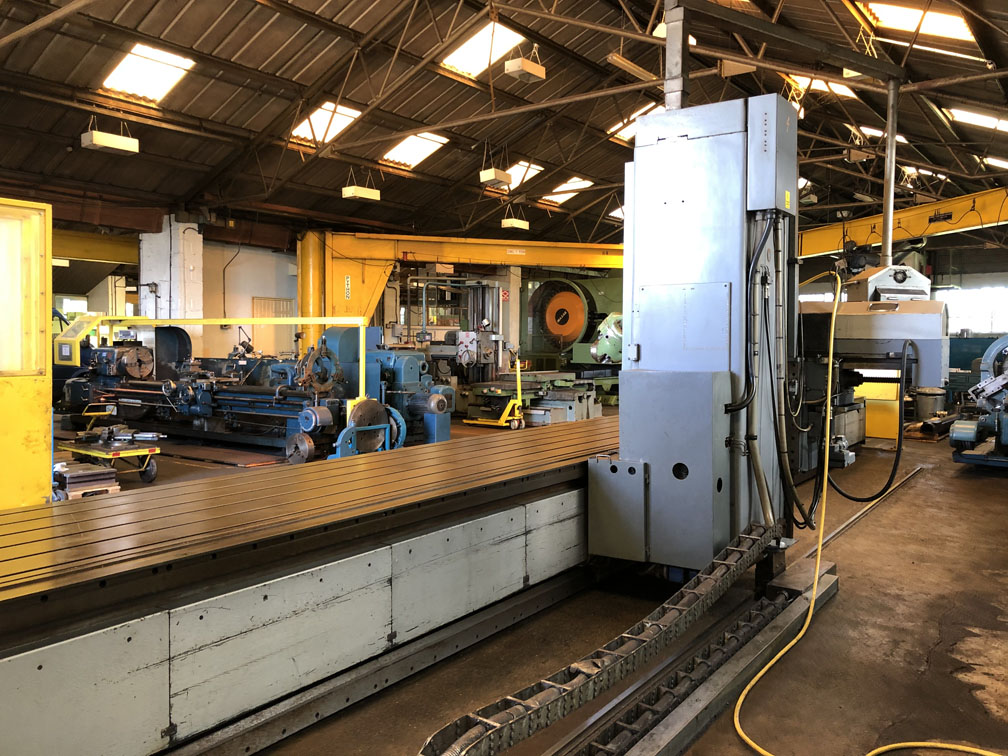

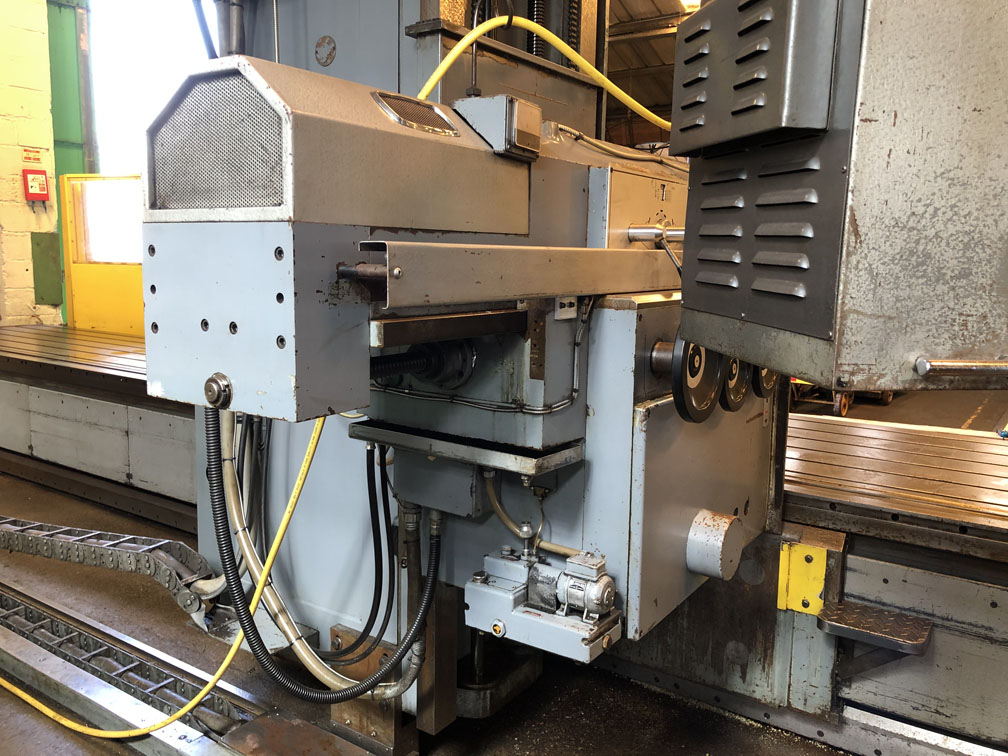

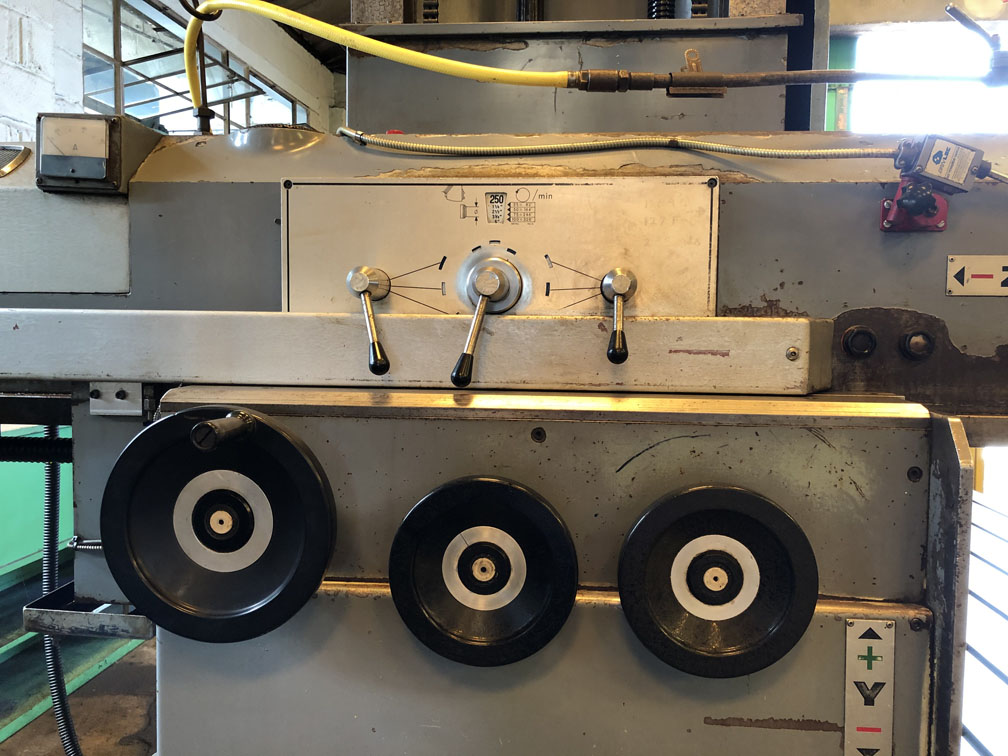

Lot 6: BUTLER Elgamill DR12VA 12 Metre Bedmill with Newall DP1200 Digital Readout

Private Treaty Sale (by negotiation)

Description

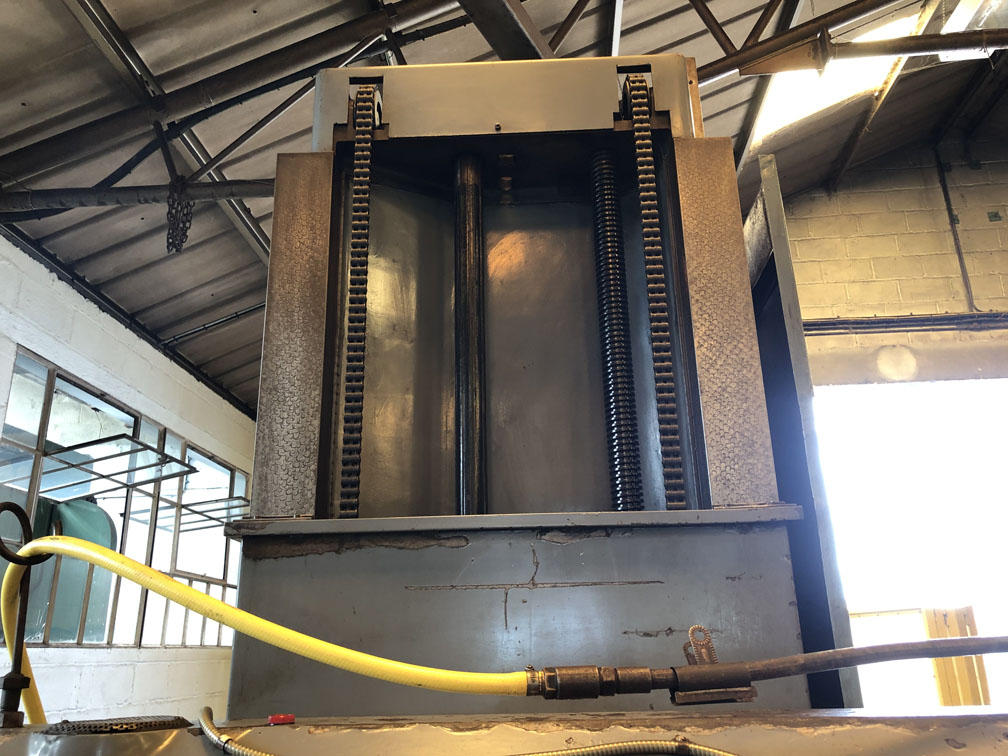

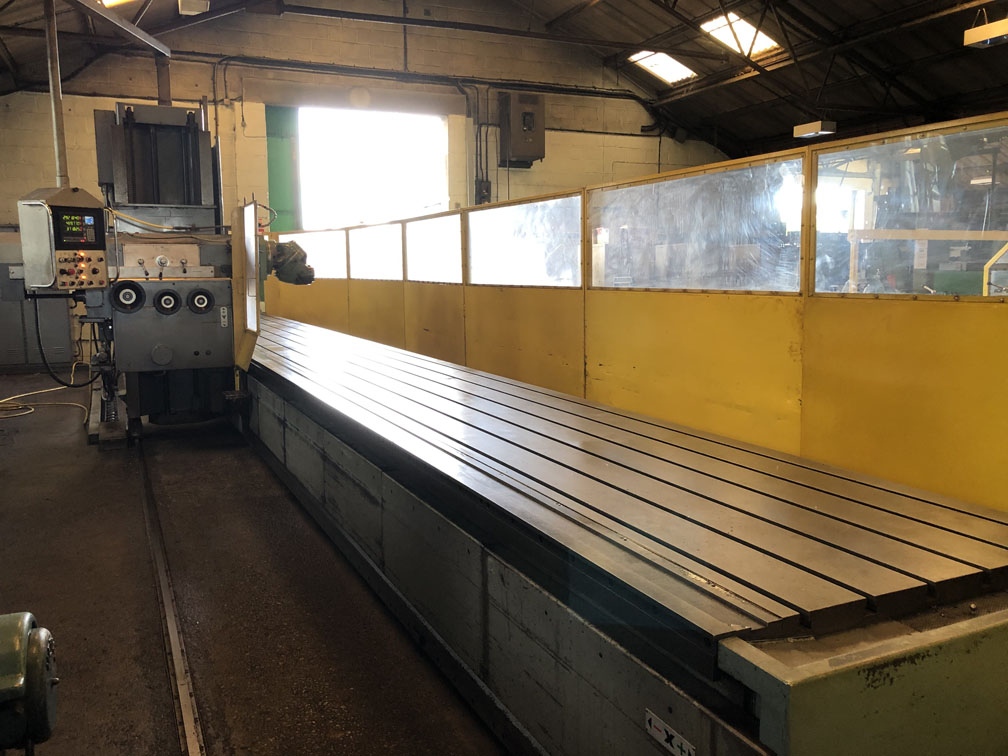

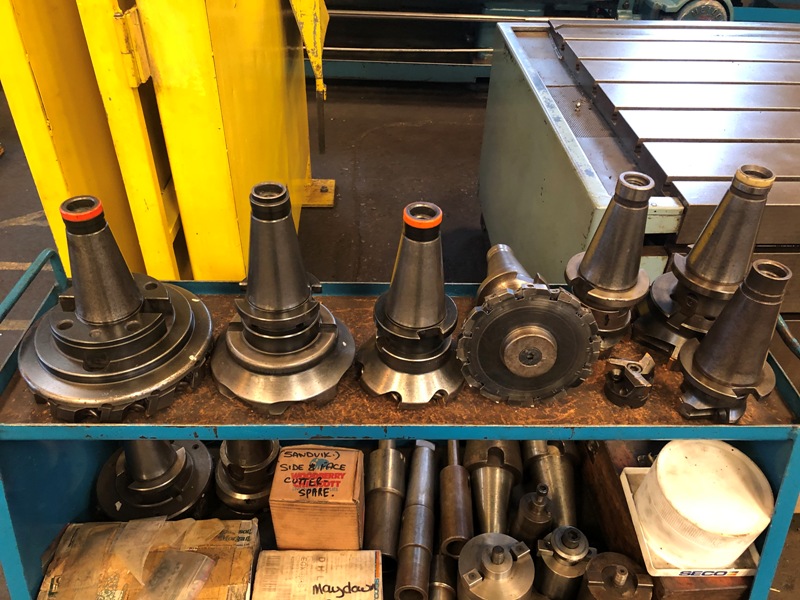

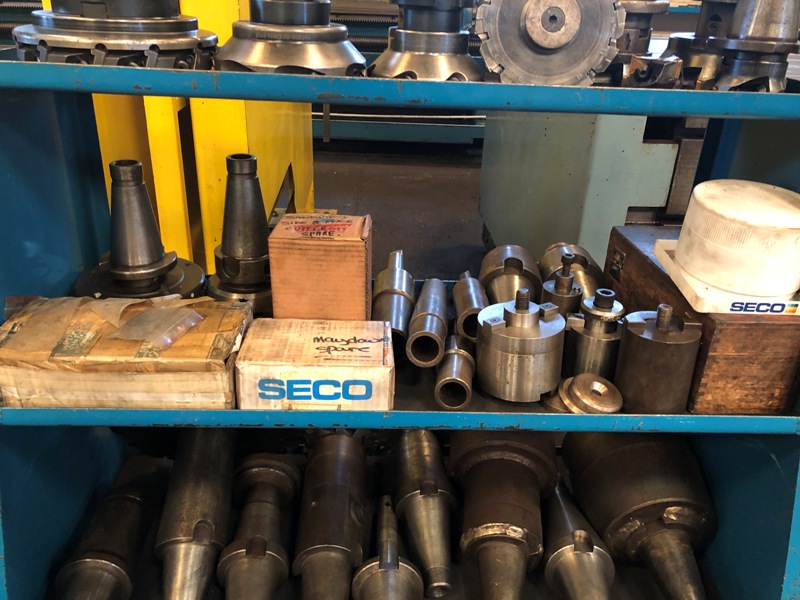

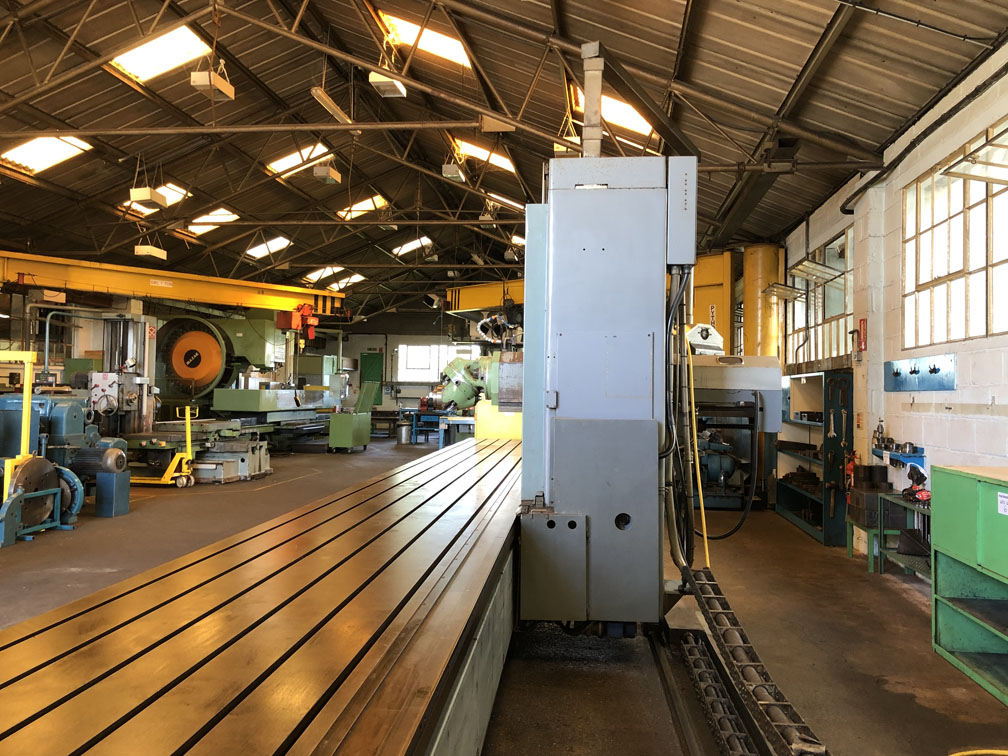

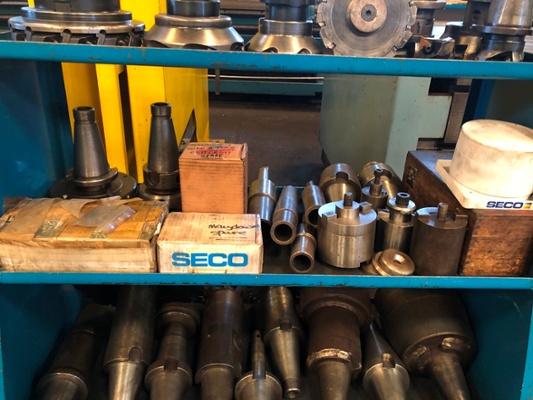

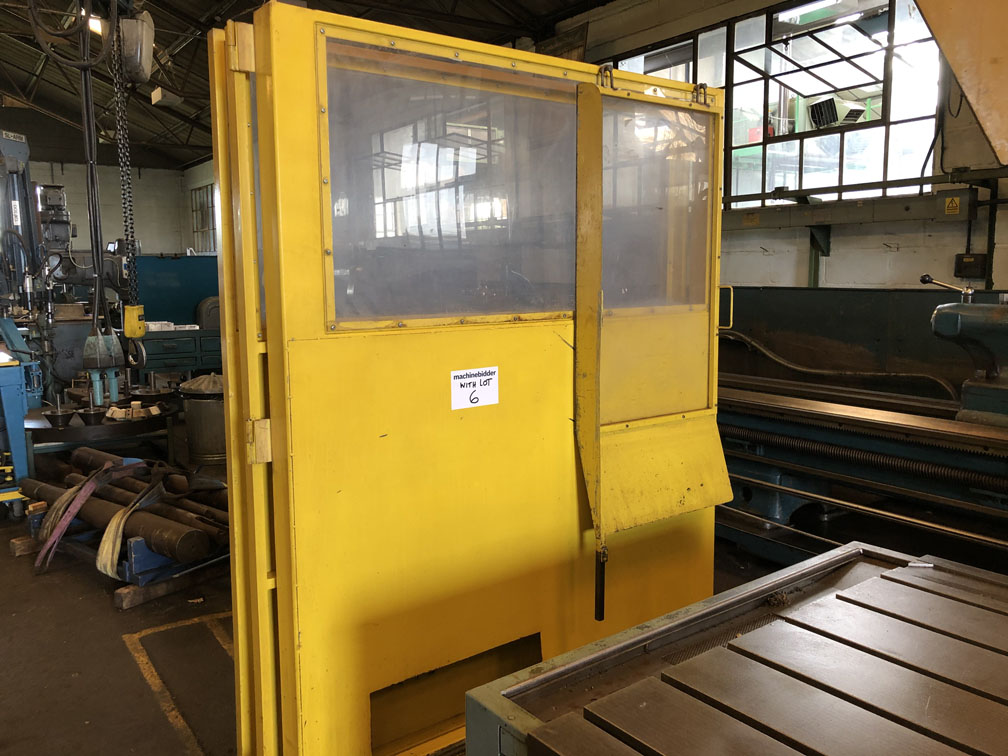

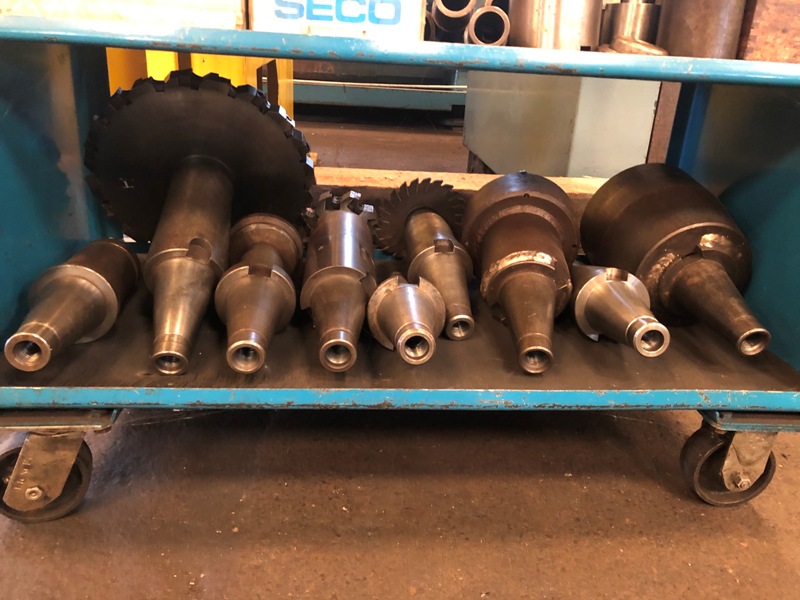

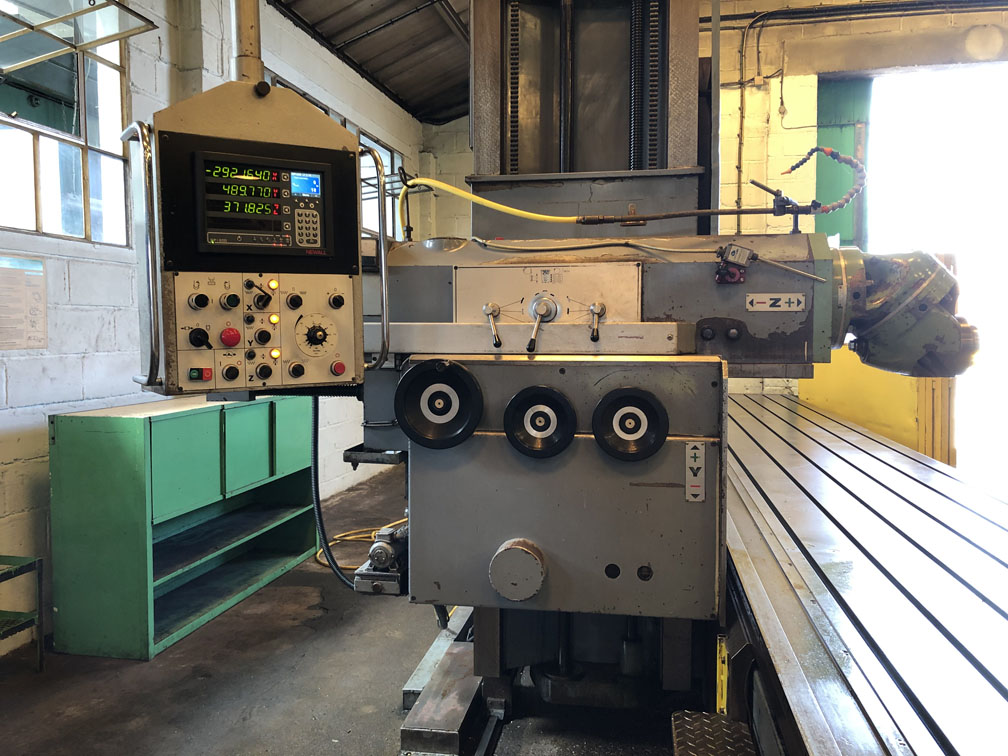

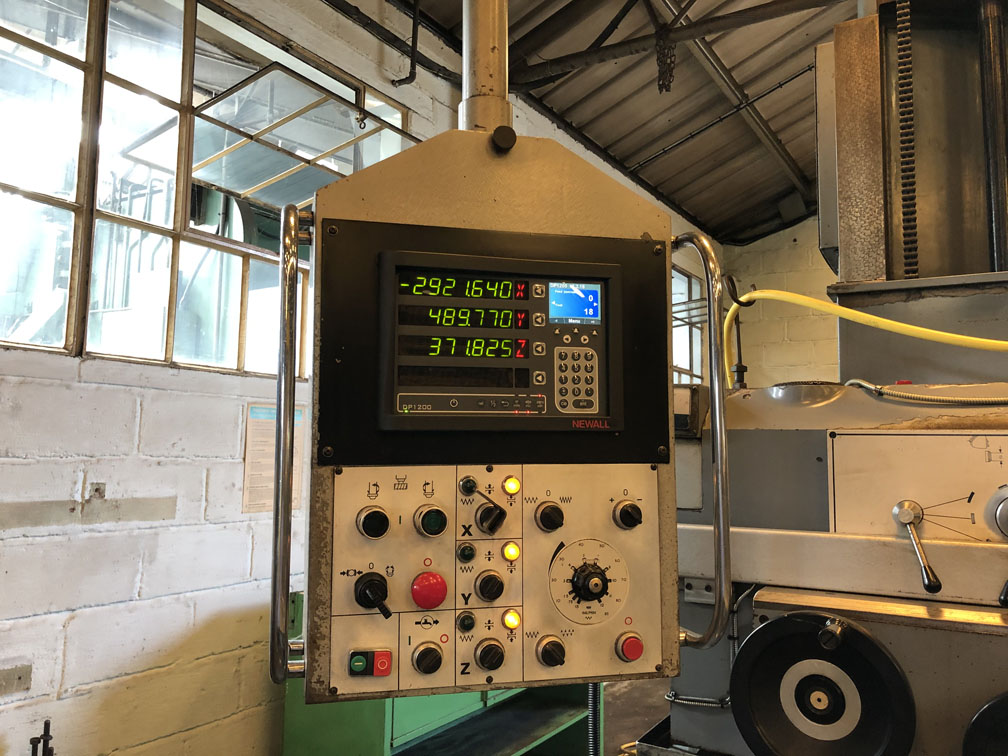

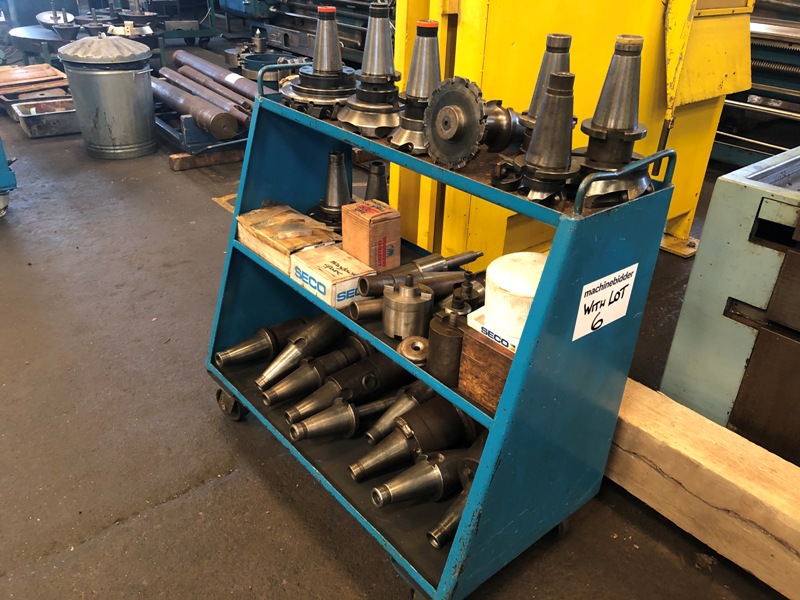

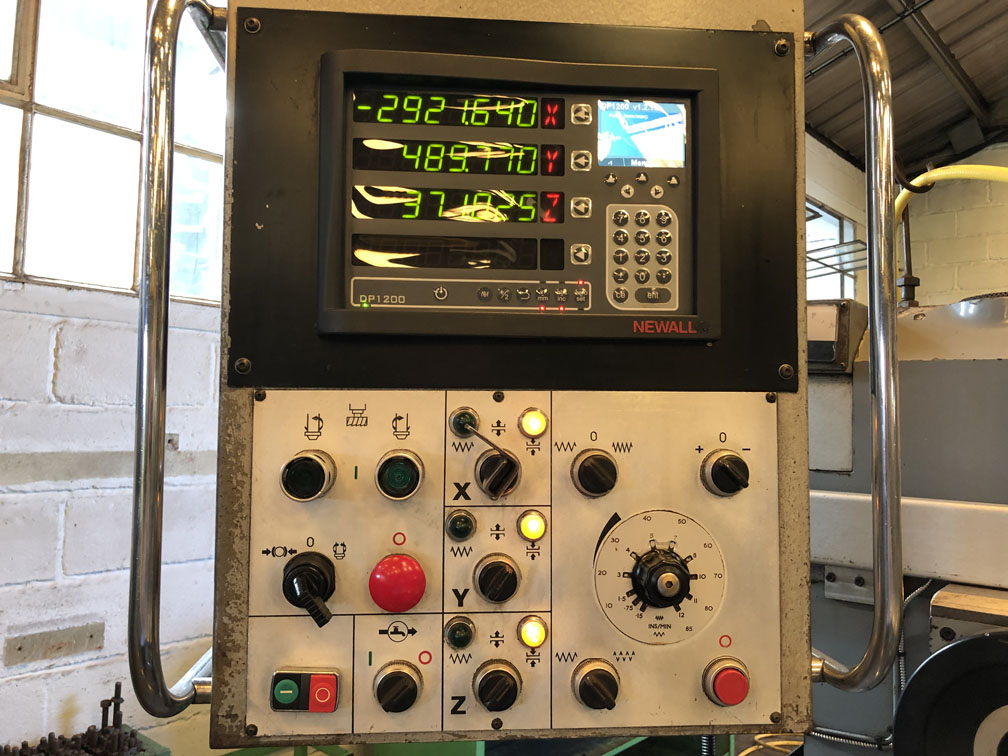

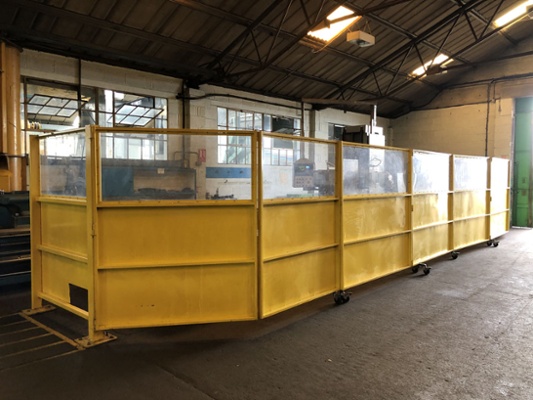

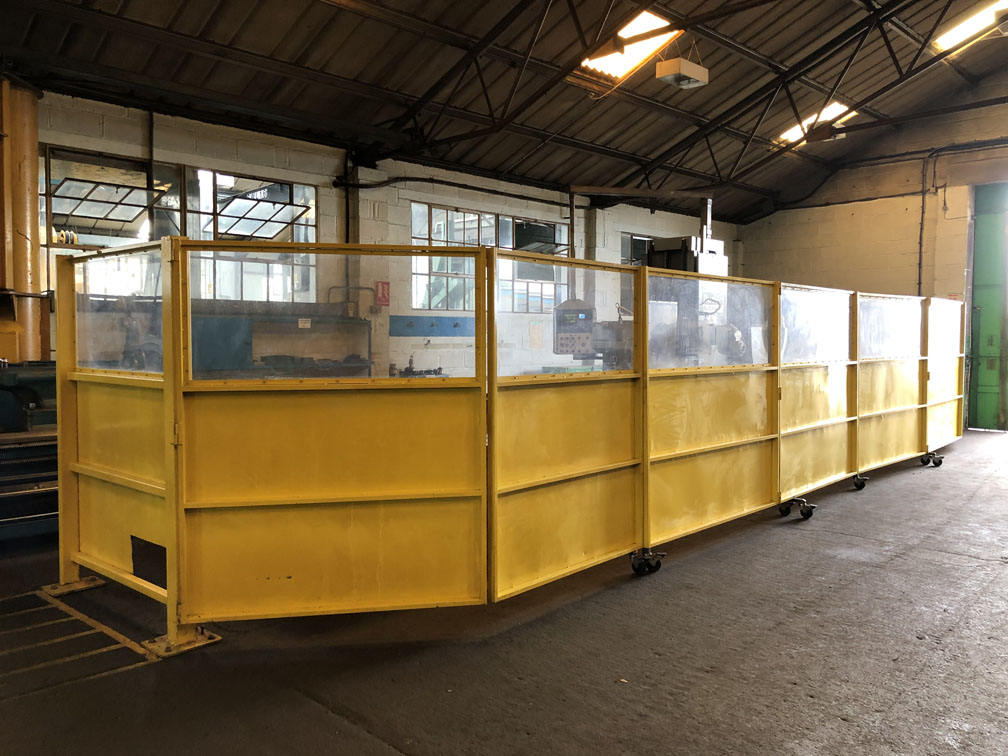

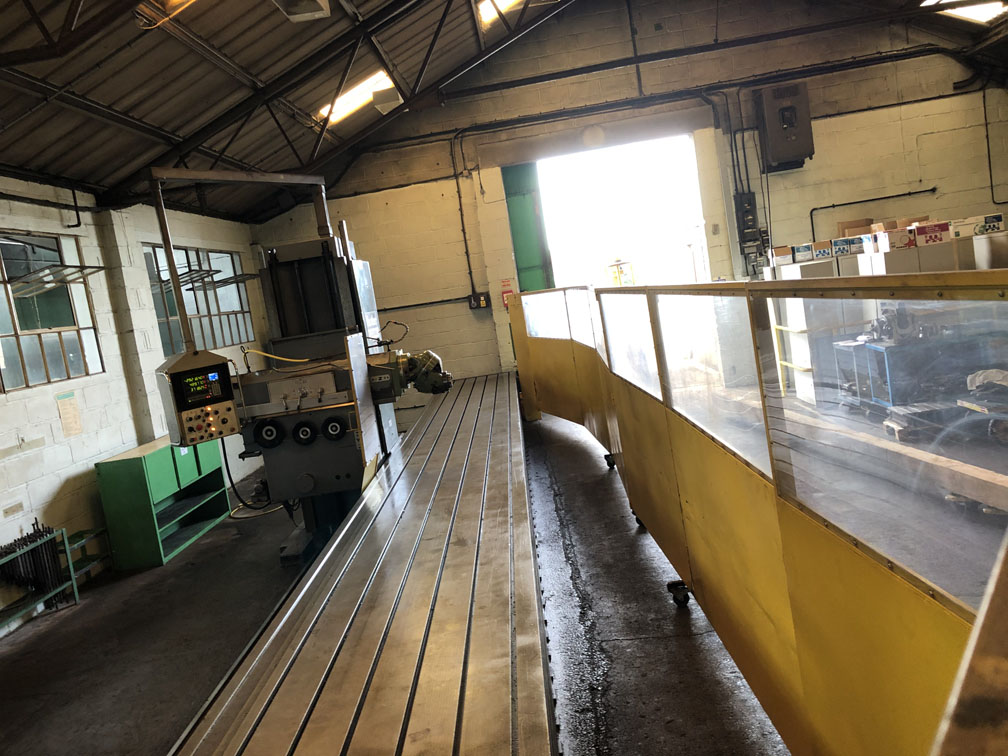

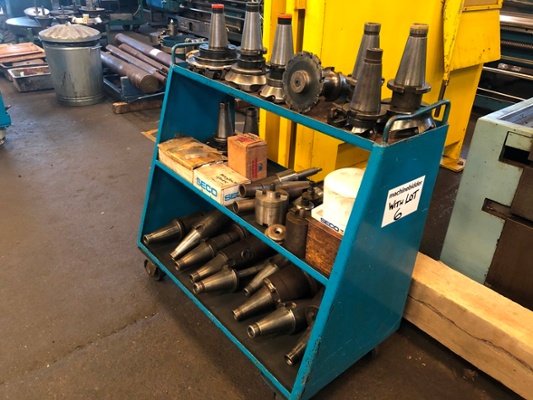

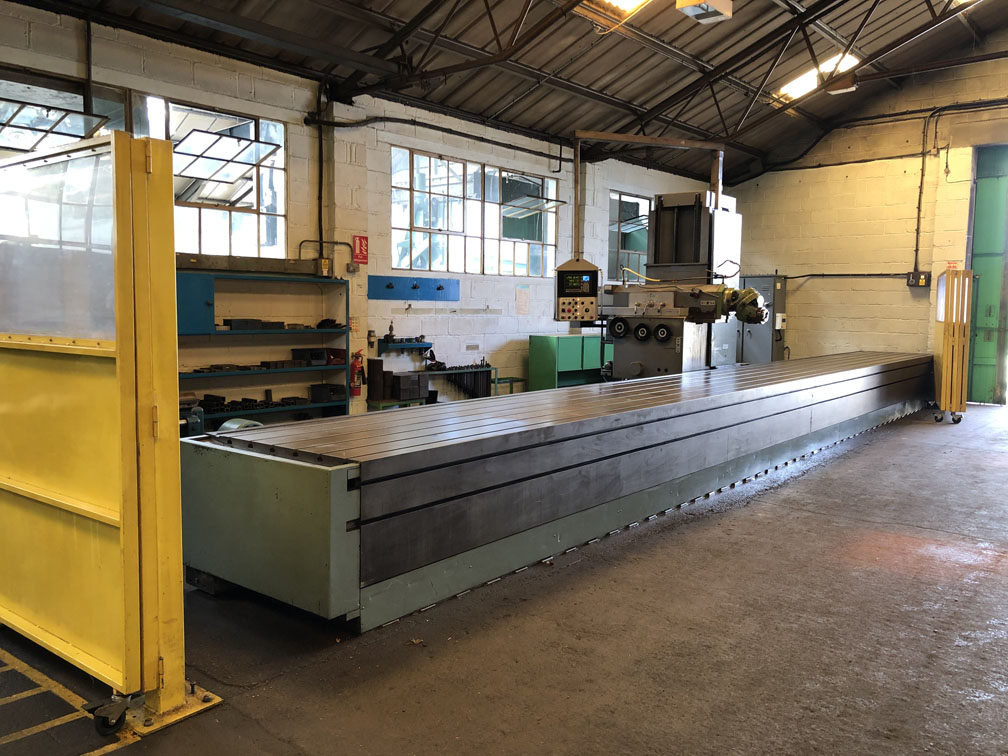

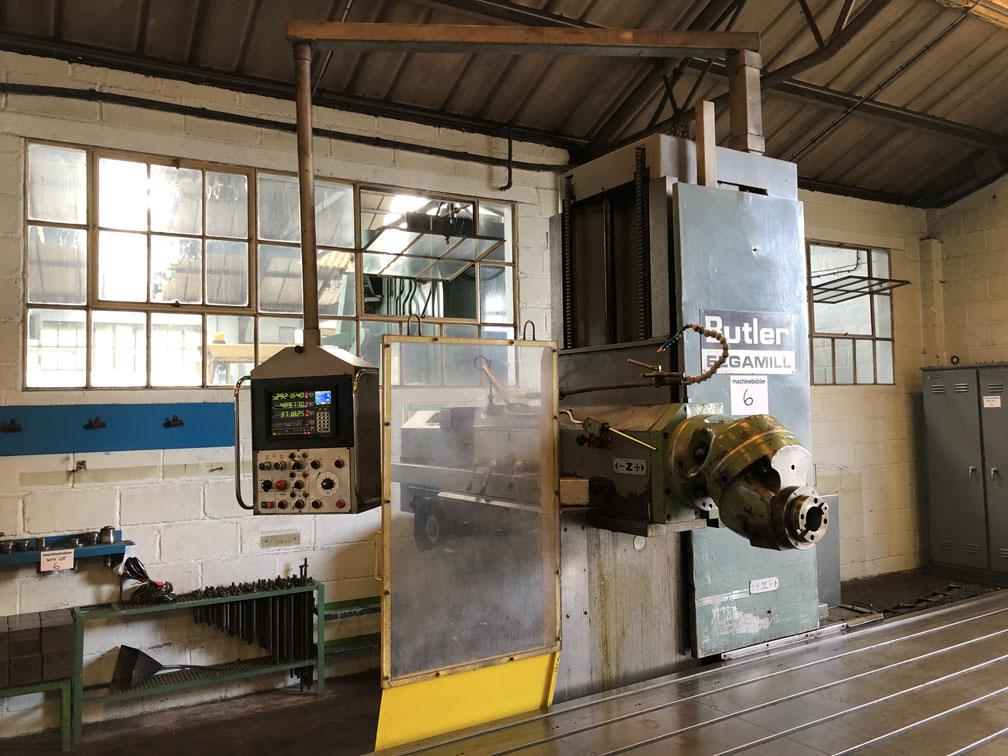

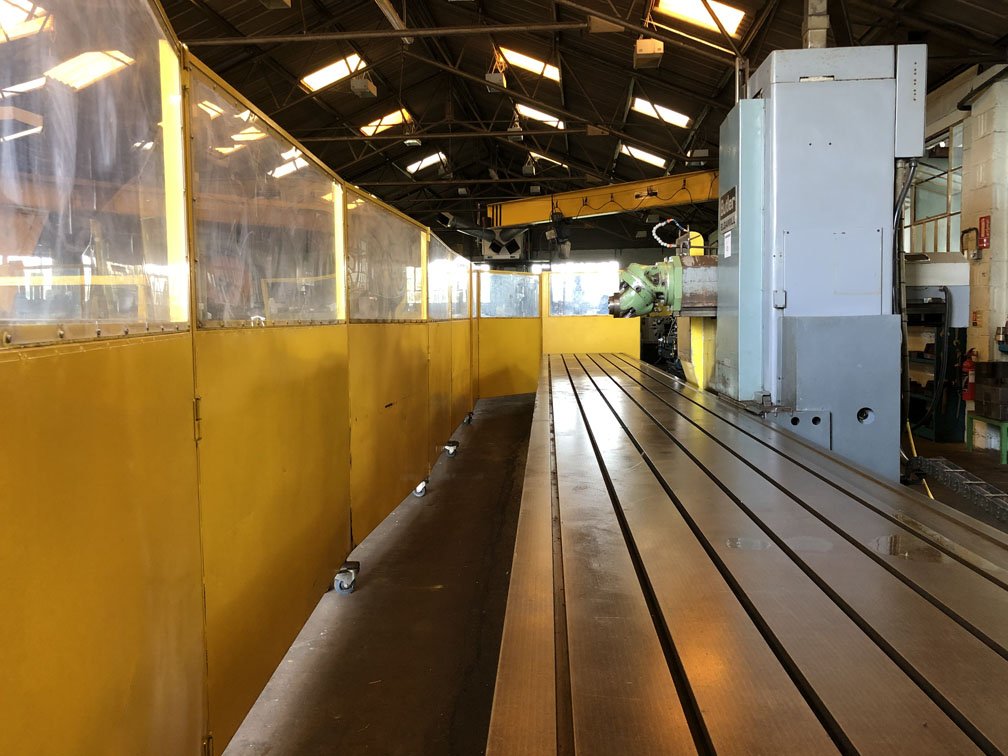

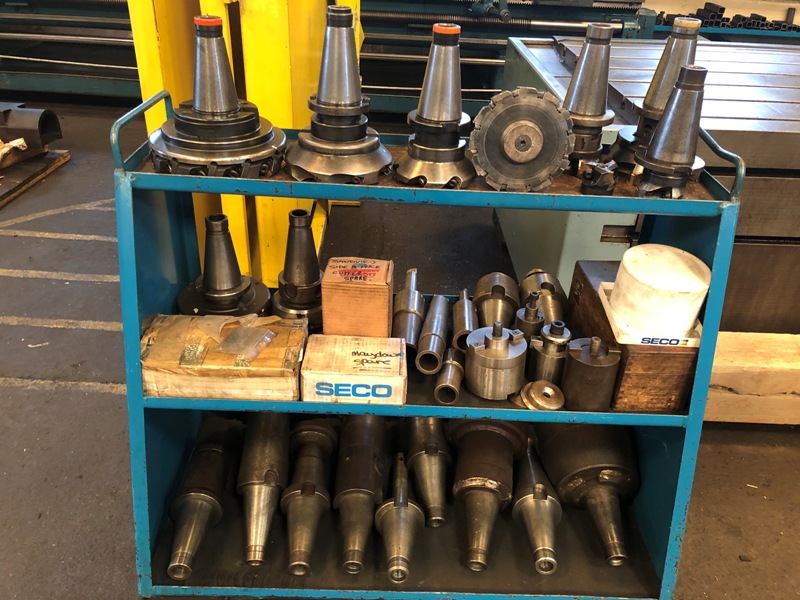

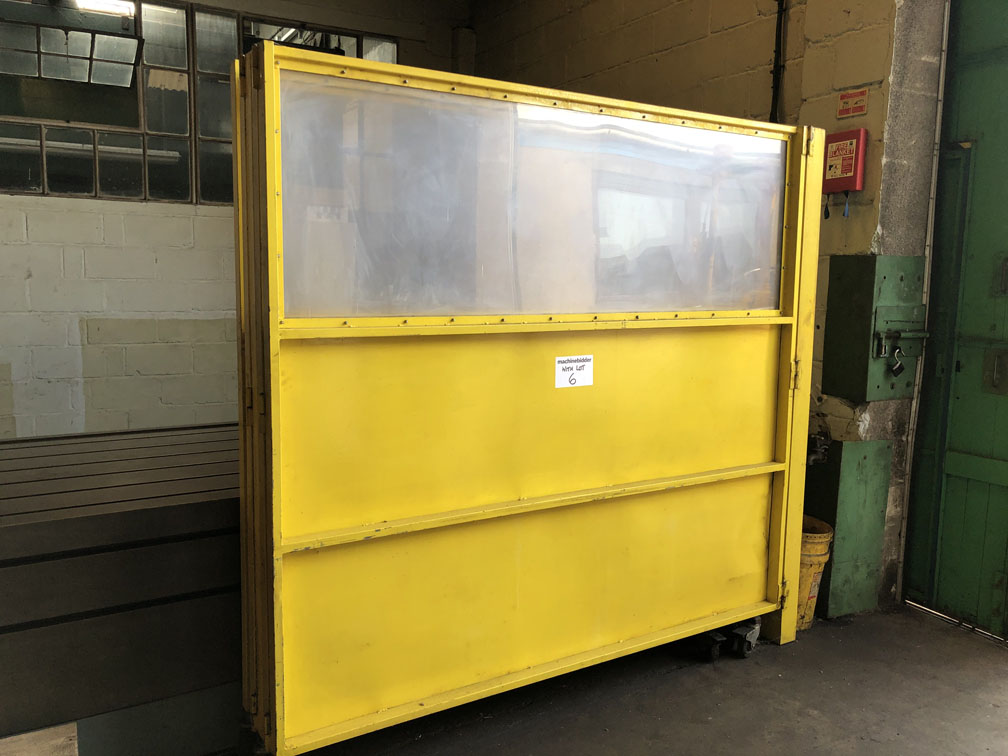

Bed size 12060mm x 1195mm x 790mm high. Overall size of bed 12400mm x 1195mm x 790mm high. Ram travel 980mm. Vertical travel 1675mm. Longitudinal travel 10300mm. Spindle speeds 30 - 2080 rpm. Spindle taper 50 ISO. Spindle motor 15 HP. Range of feeds per min 2 - 2000mm/min. Rapid traverse 2000mm/min. Newall DP1200 Digital readout. Drivloc DC Injection brake. 2 x Yellow concertina full length guards. Operators side guard. Newall DP7 Digital readout. Blue cabinet containing large quantity of Spindle tooling and tooling spares.

Dimensions 12400 x 2900mm x 3430mm (to top of pendant control) 2800mm to top of column.

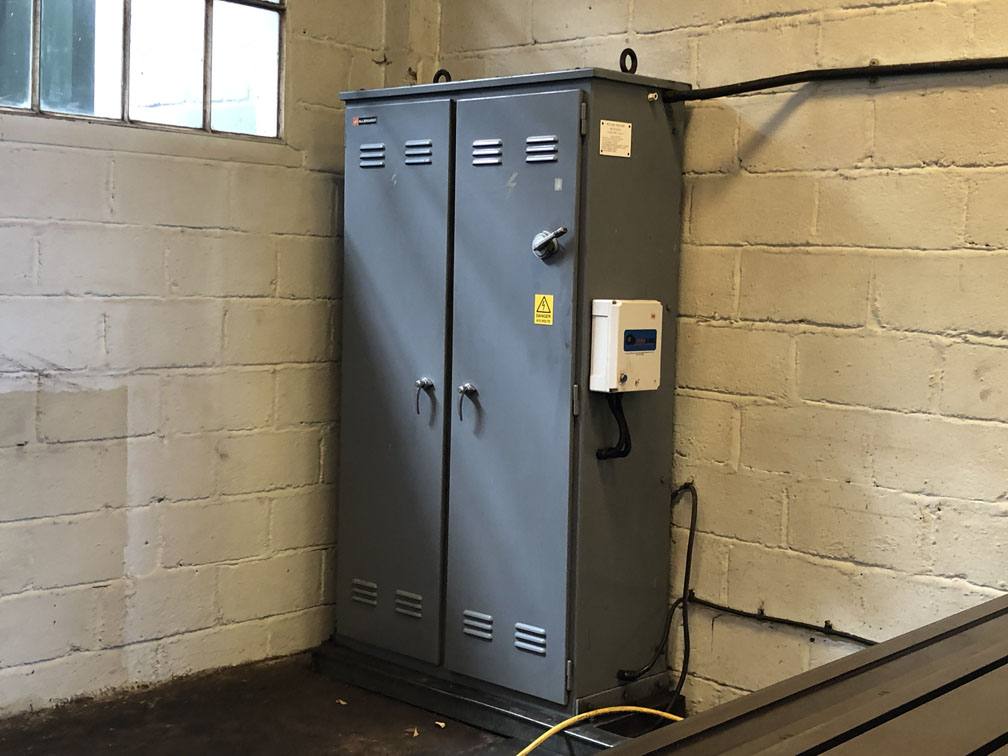

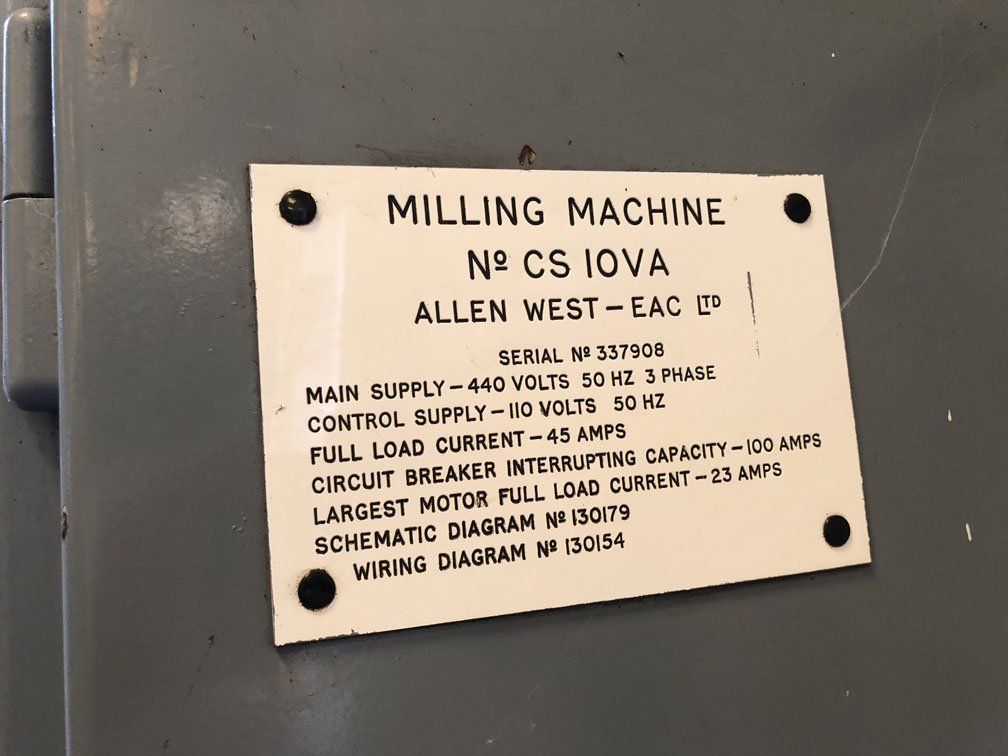

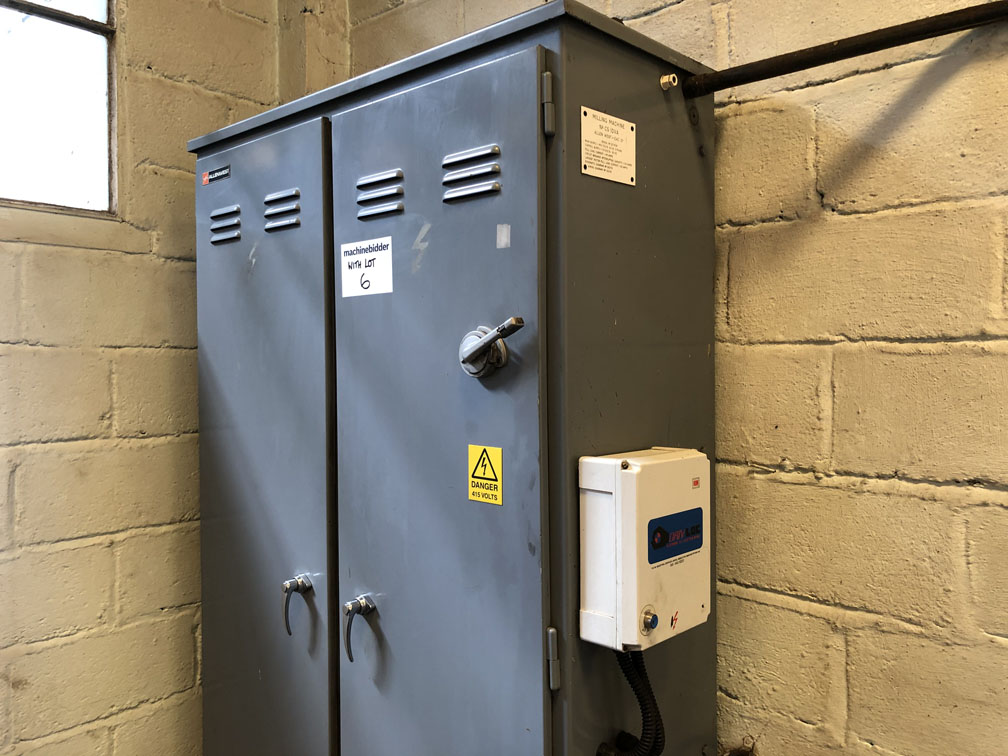

Electrical cabinet 1170mm x 500mm x 2100mm high

Approximate overall weight 24,500 kgs

Video

Other information

Please refer to the terms & conditions if you wish to negotiate on this item.
