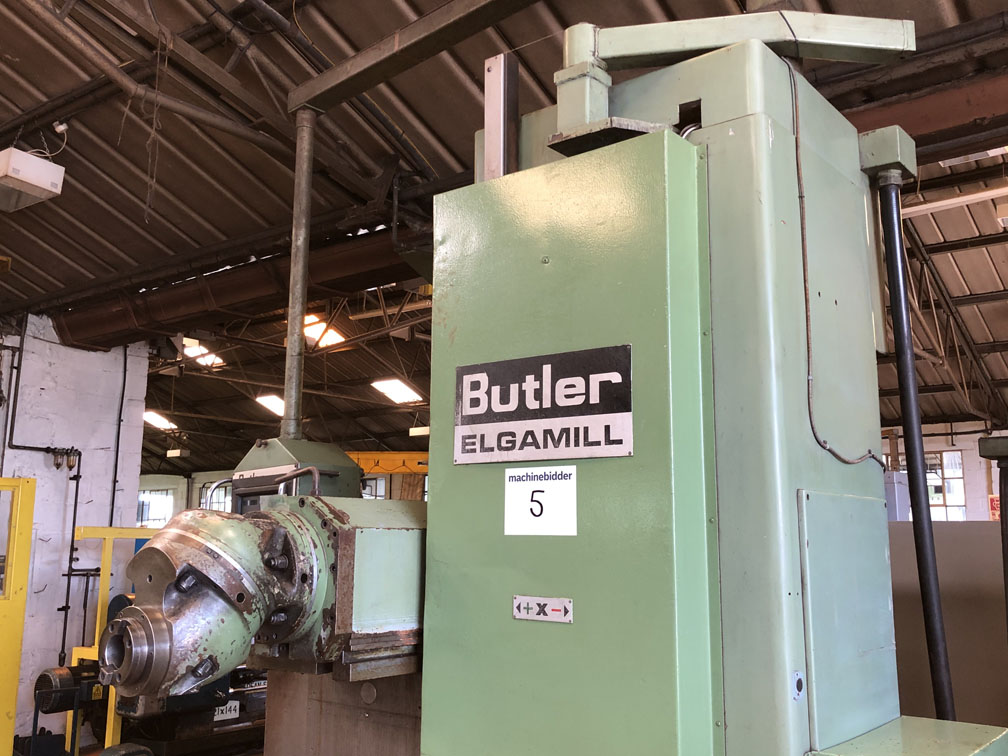

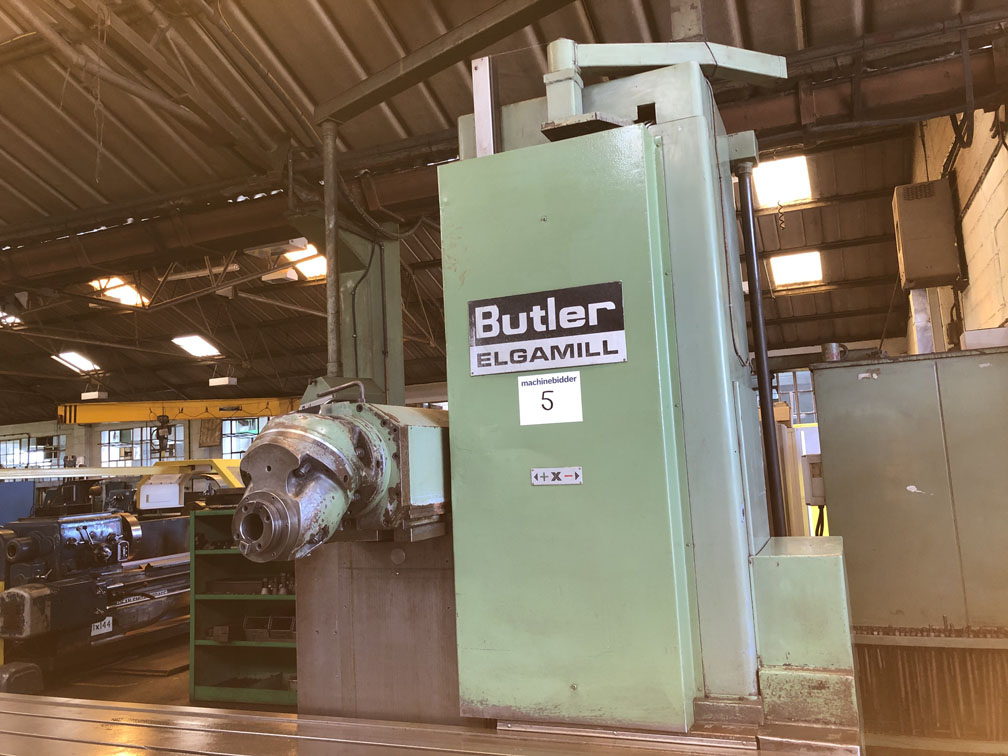

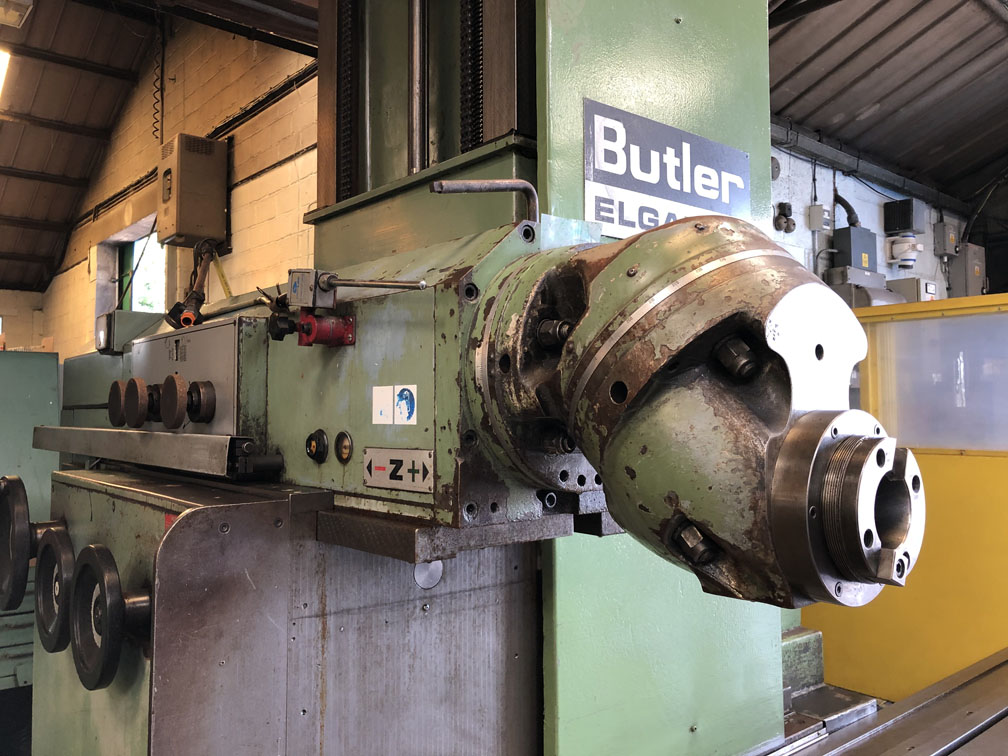

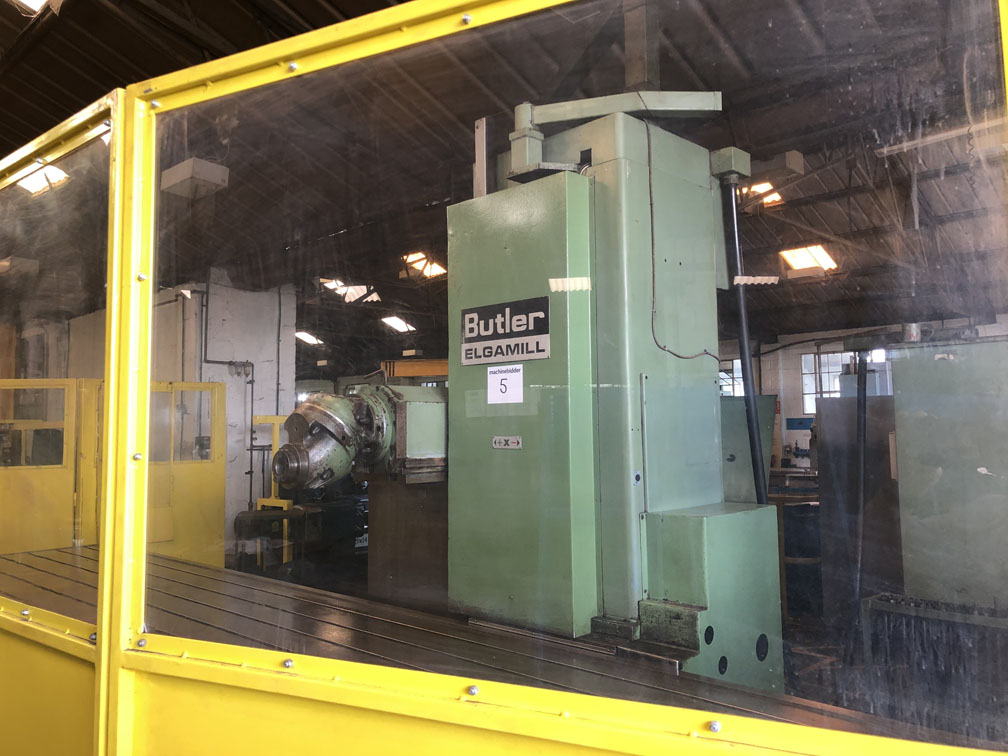

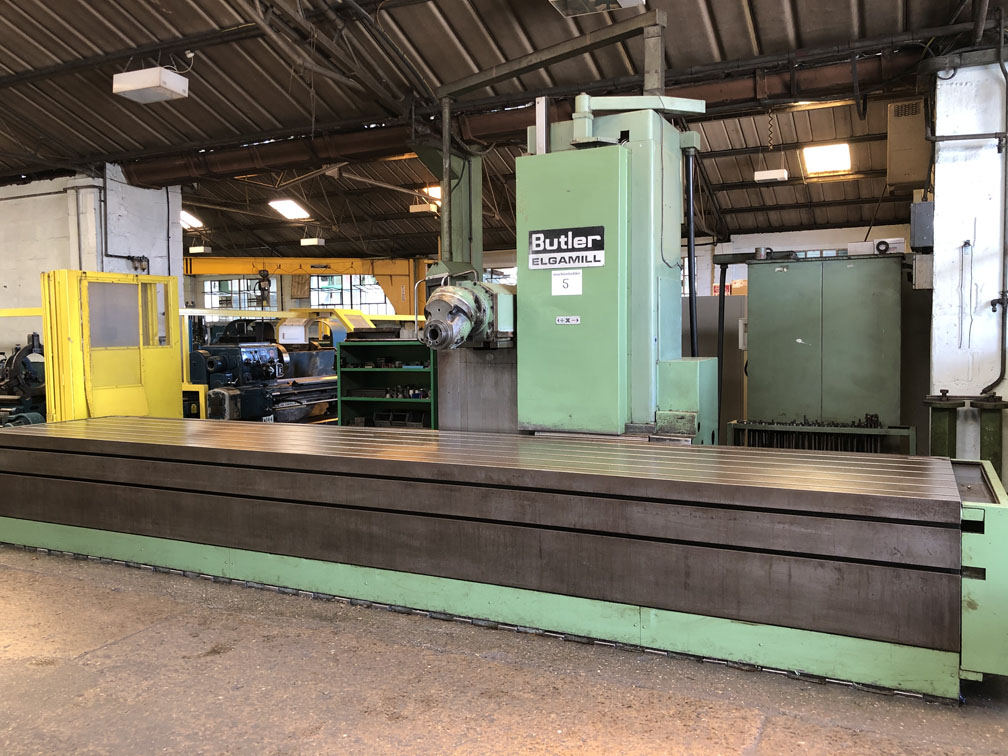

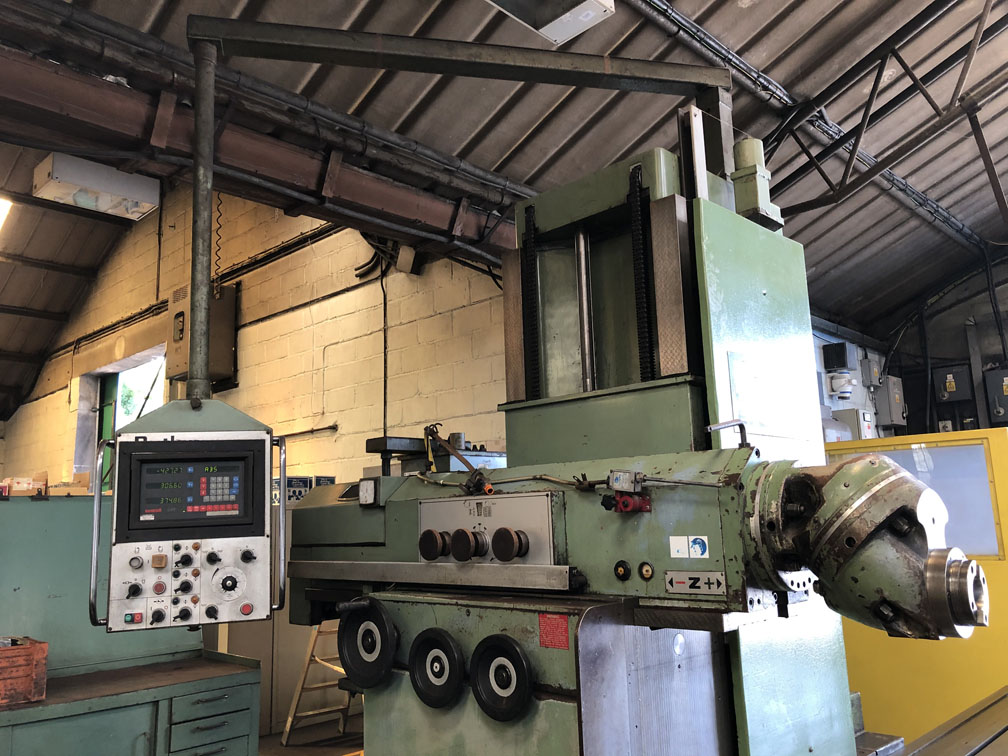

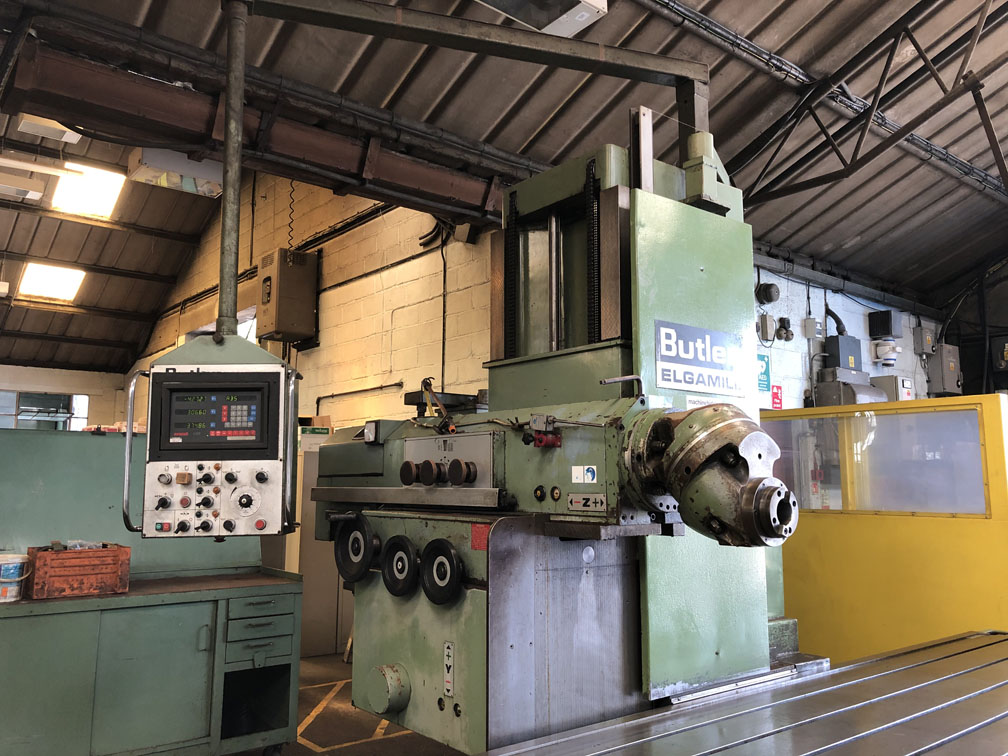

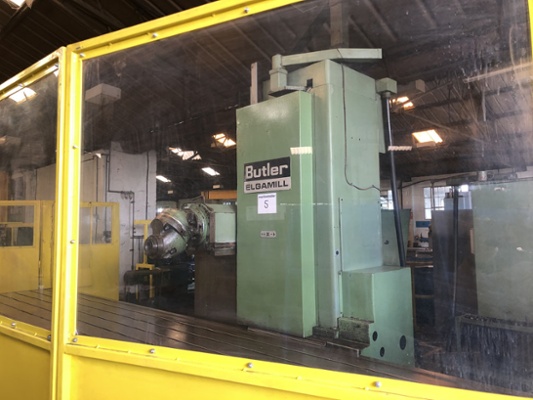

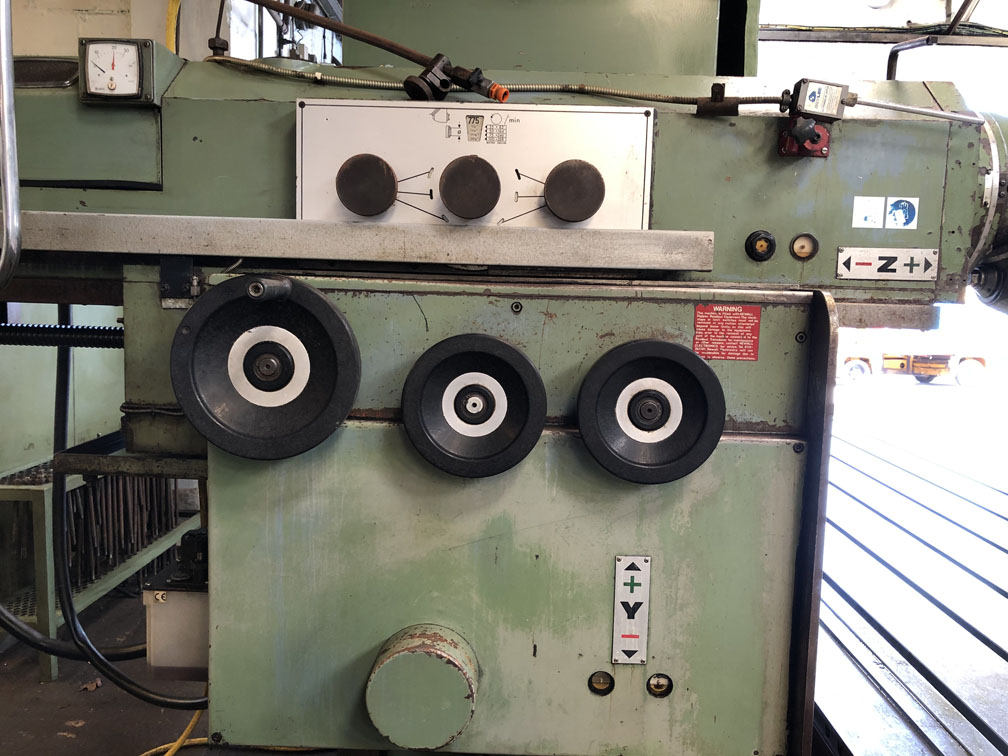

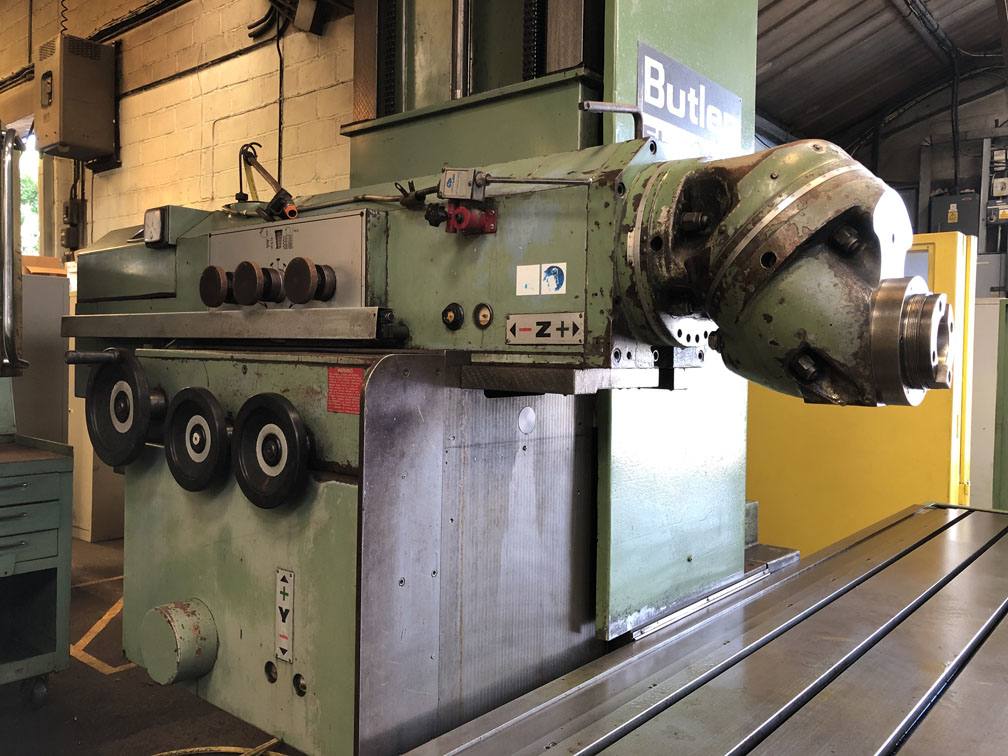

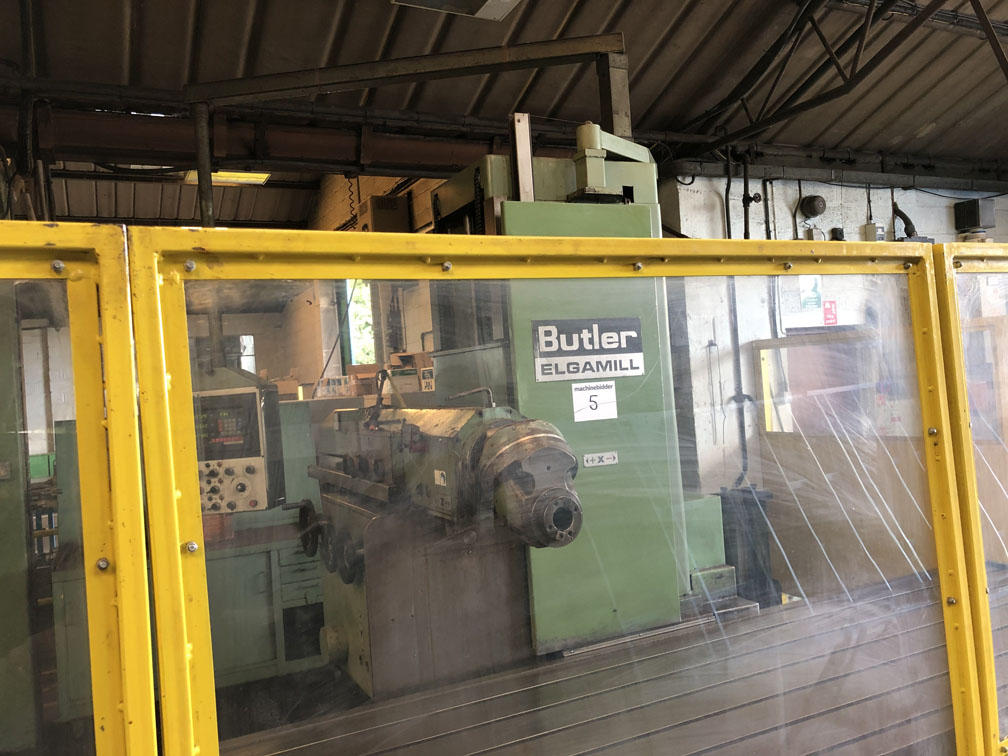

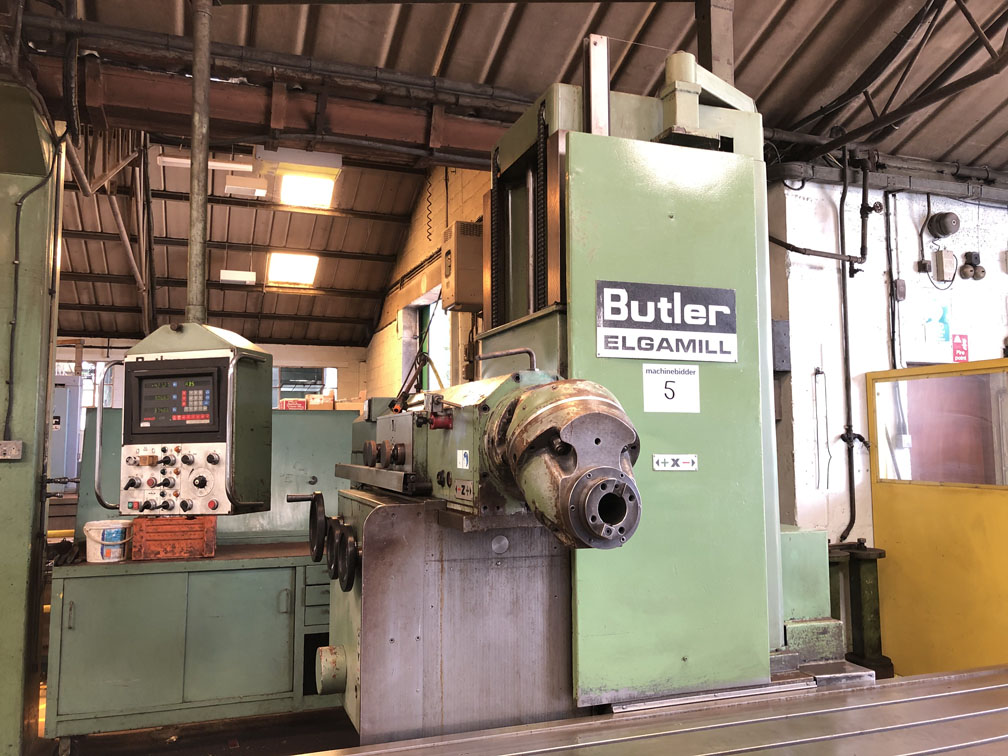

Lot 5: BUTLER Elgamill CS10VA 6 metre Bedmill with Newall DP7 Digital Readout - SALE AGREED
This lot has been archived
Description

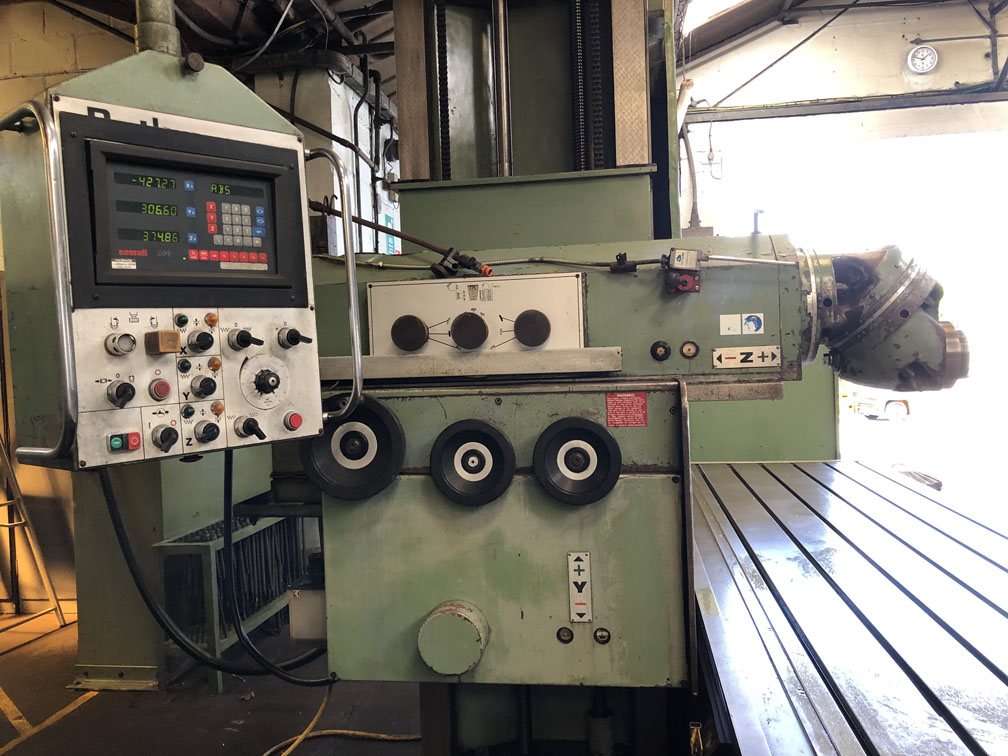

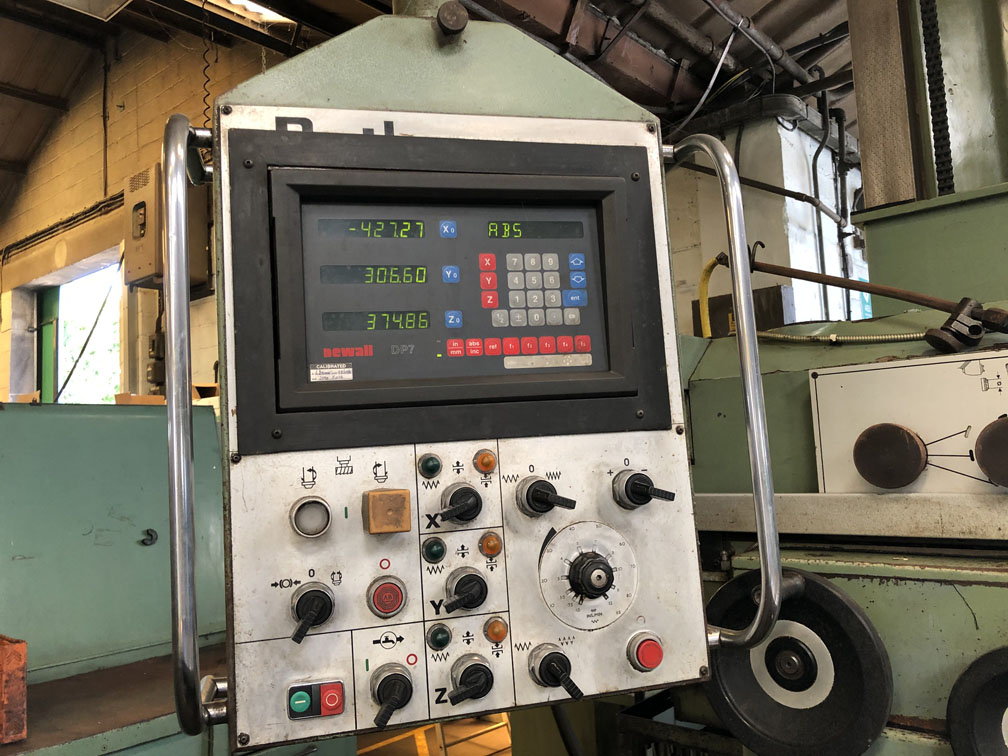

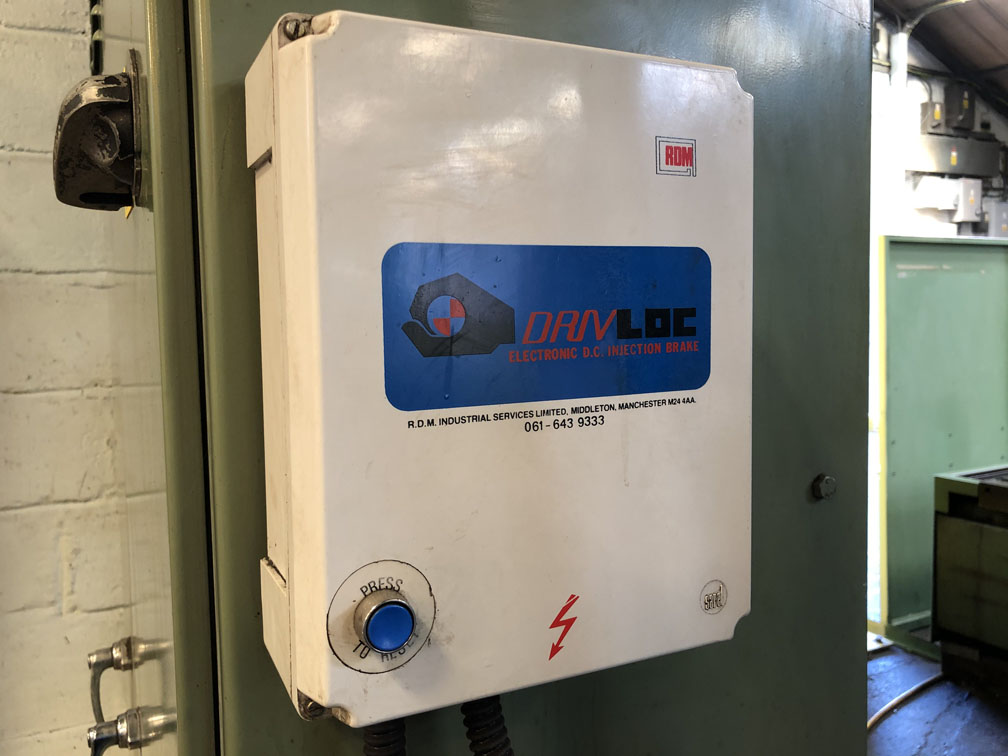

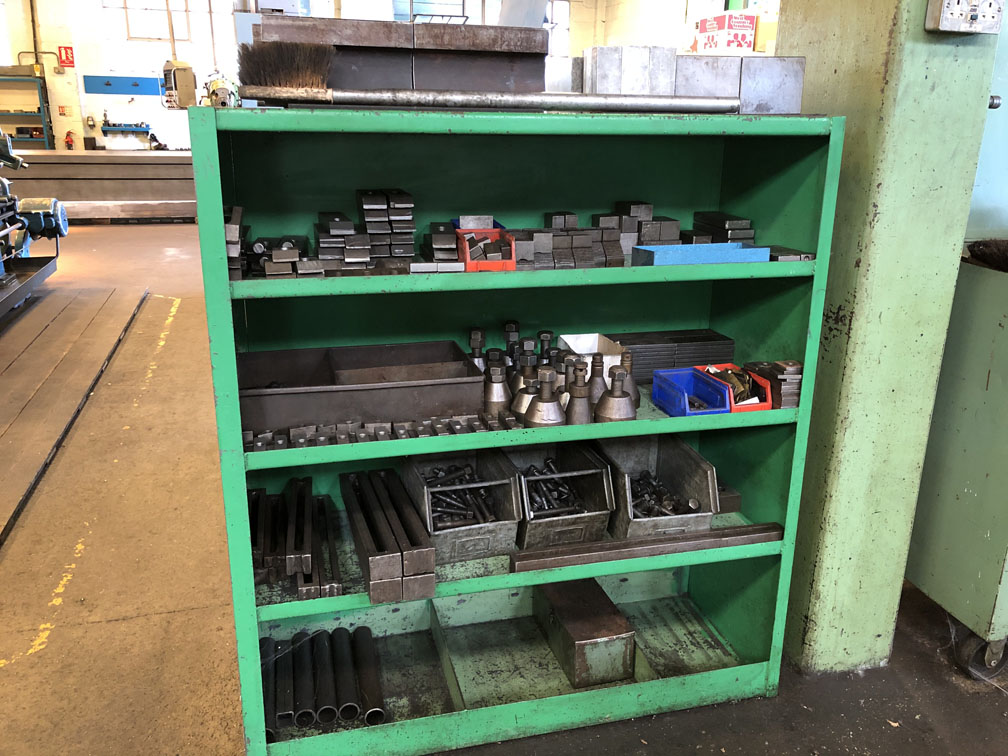

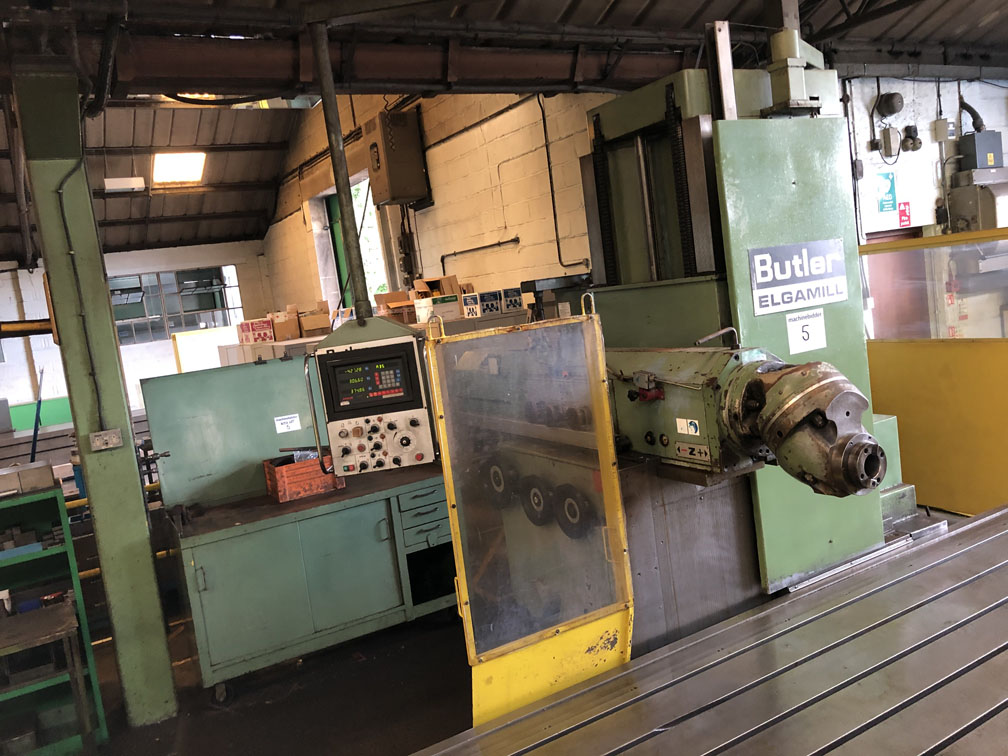

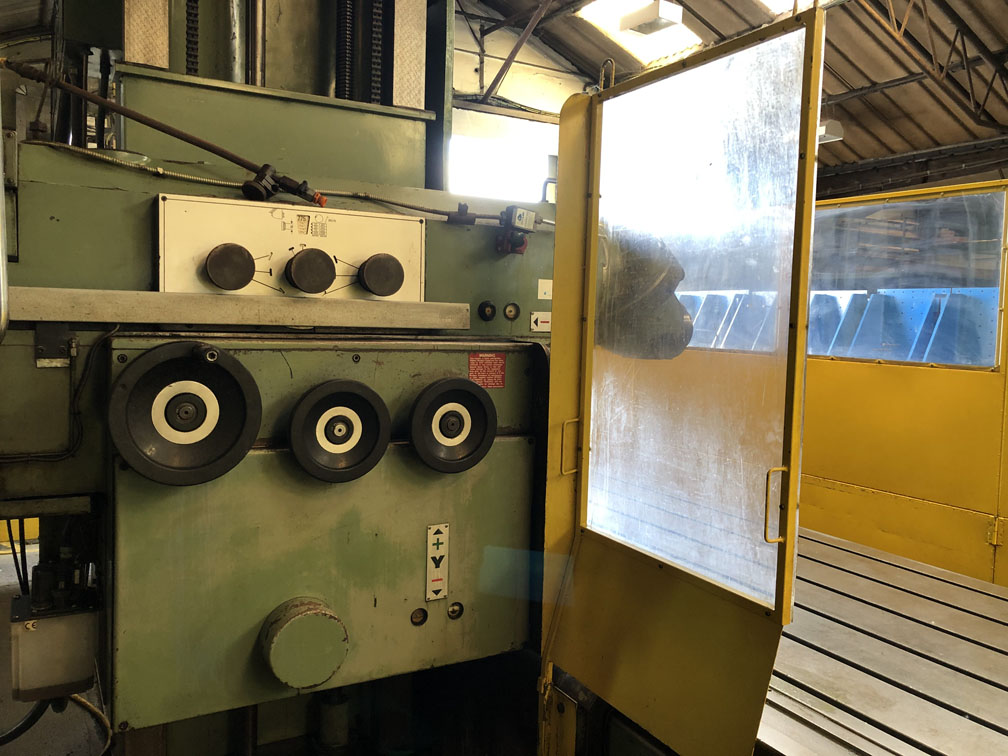

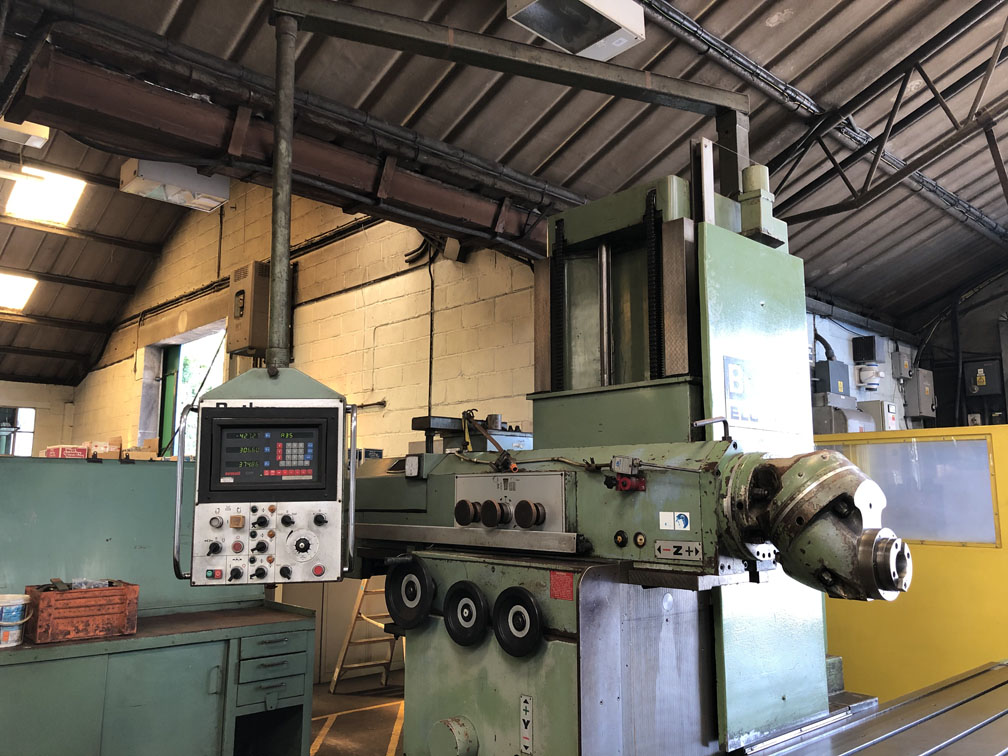

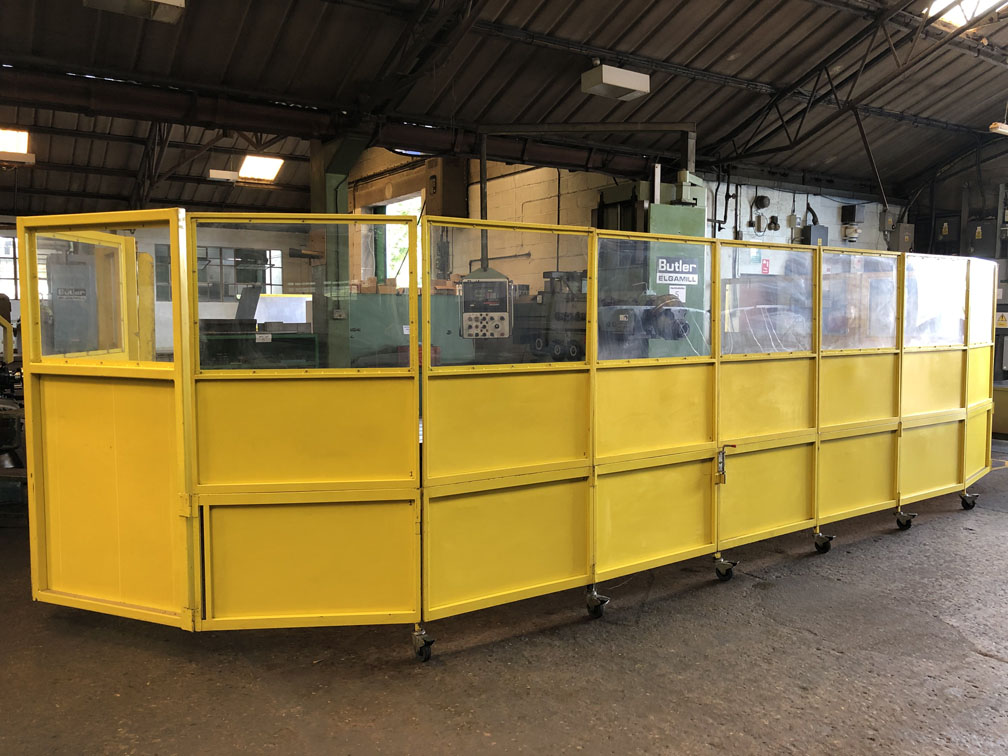

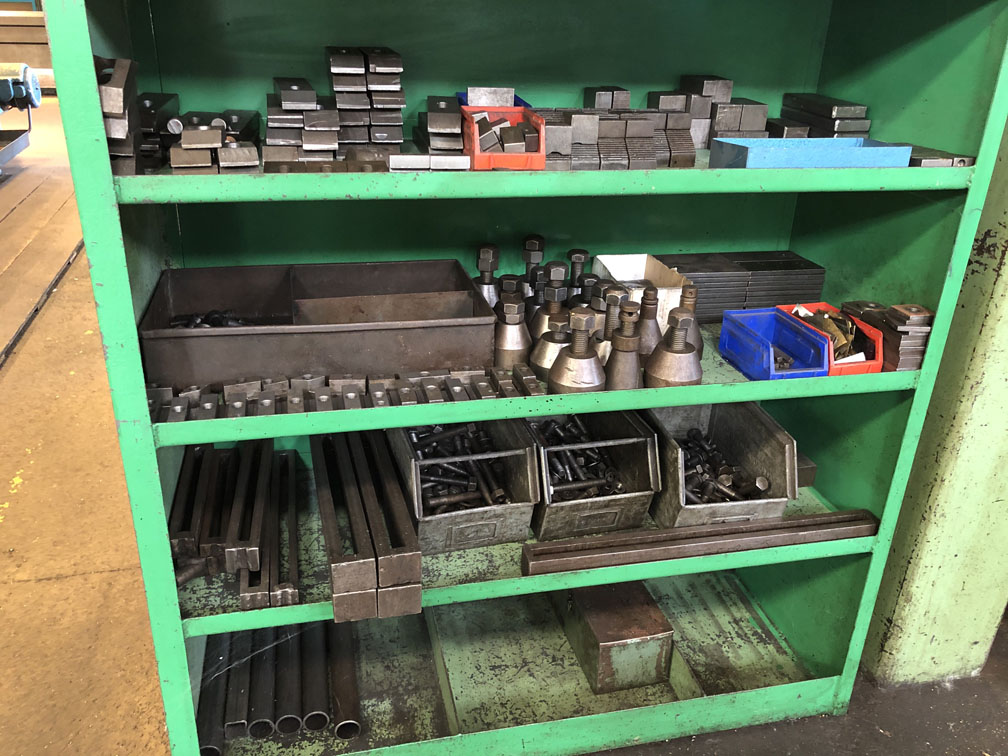

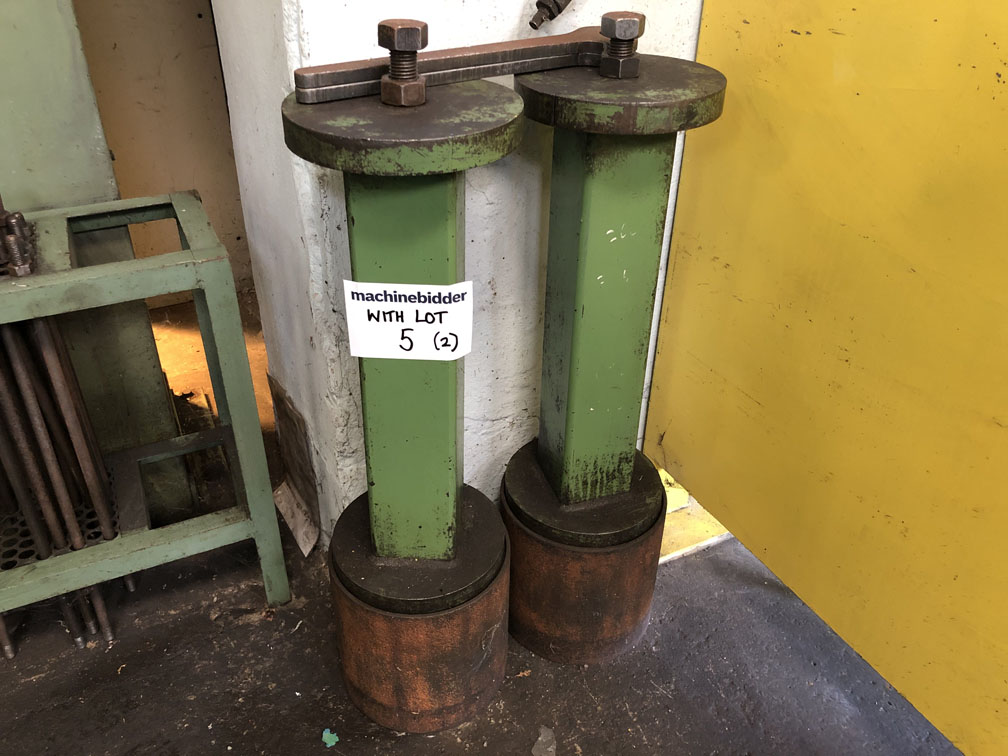

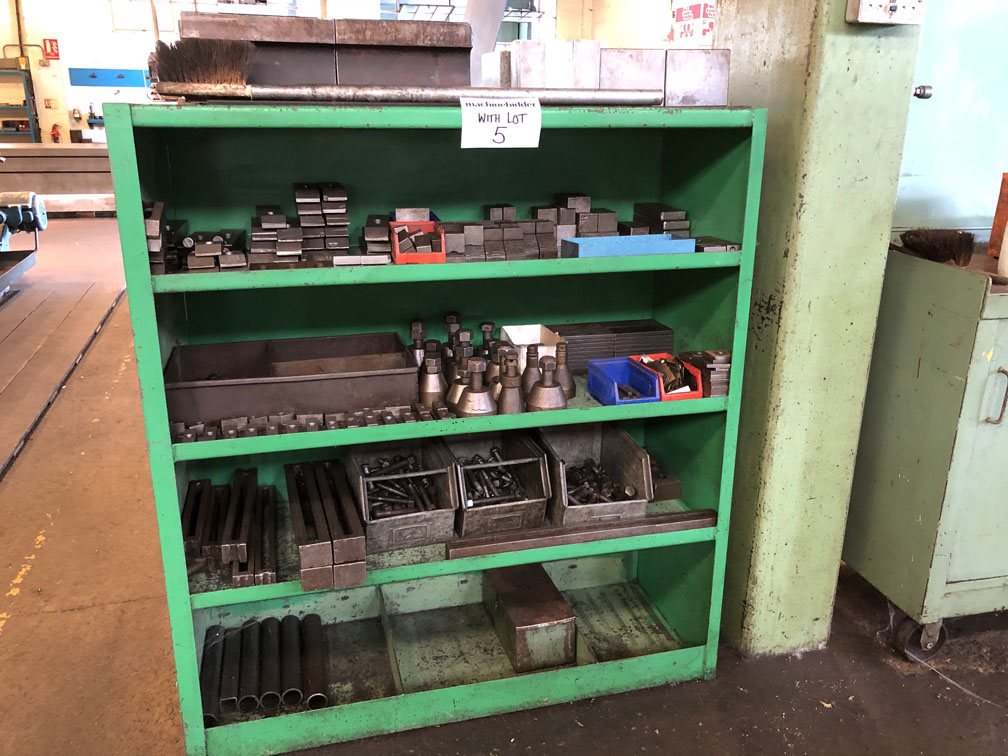

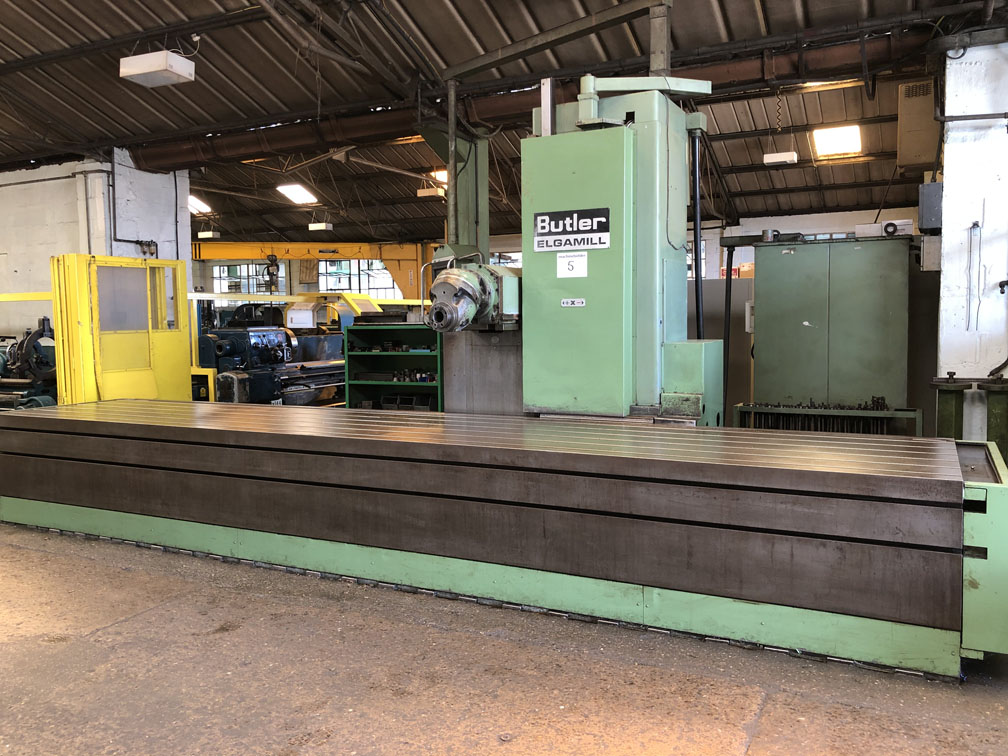

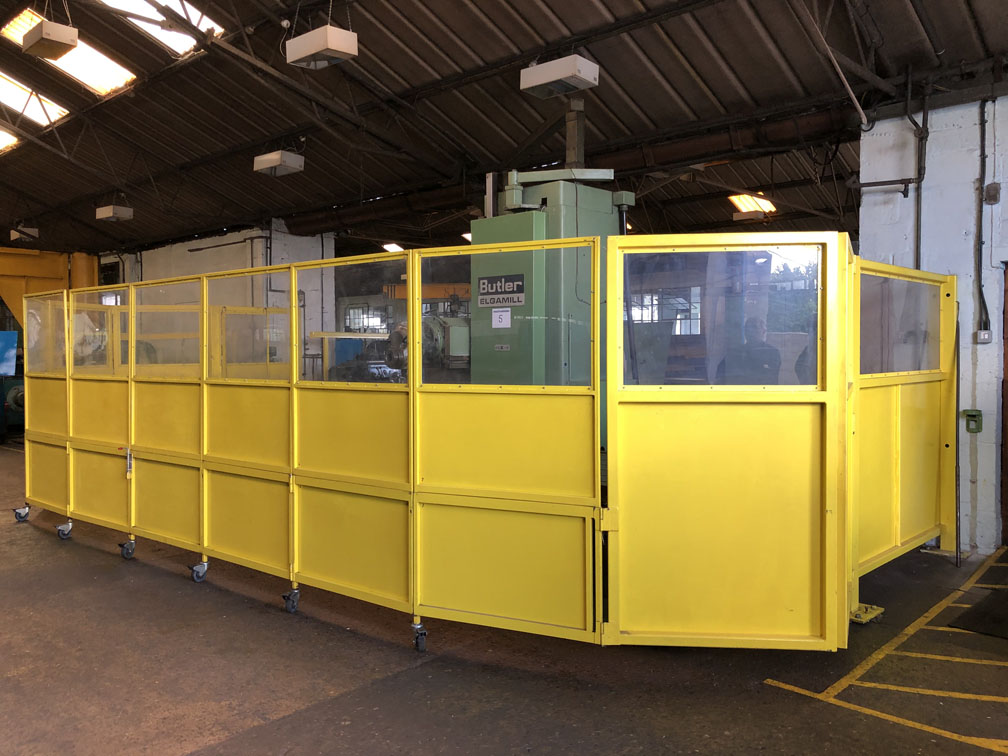

Bed size 6300mm x 1200mm x 800mm high. Overall size of bed 6380mm x 1200mm x 800mm high. Ram travel 950mm. Vertical travel 1675mm. Longitudinal travel 4300mm. Spindle speeds 30 - 2080 rpm. Spindle taper 50 ISO. Range of feeds per min 2 - 2000mm/min. Rapid traverse 2000mm/min. Drivloc DC Injection brake. 2 x Yellow concertina full length guards. Operators side guard. Spindle tooling. 2 x Work supports. Newall DP7 Digital readout.
Dimensions 6380mm x 2900mm x 3420mm (to top of pendant control) 2800mm to top of column.

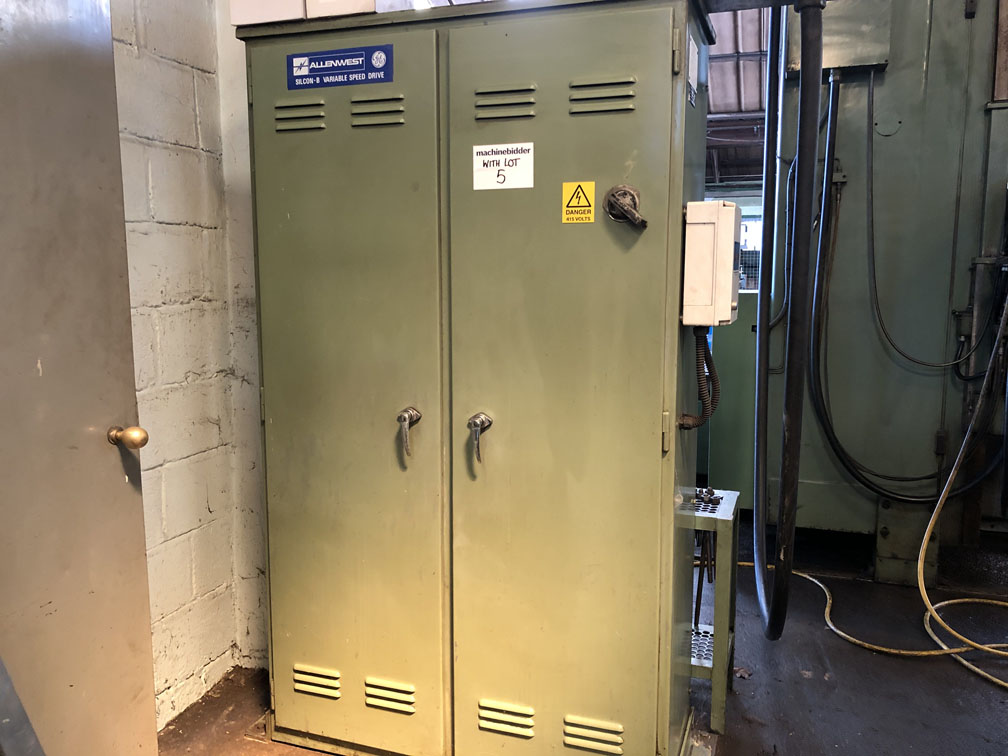

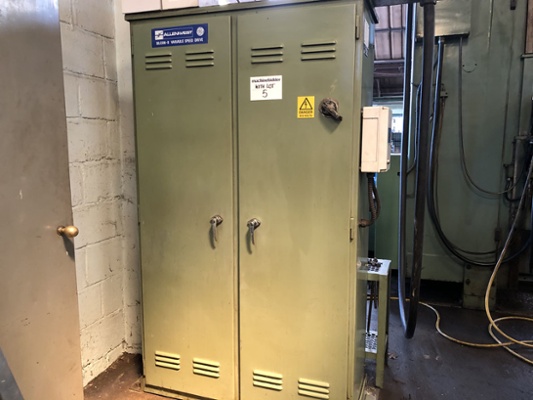

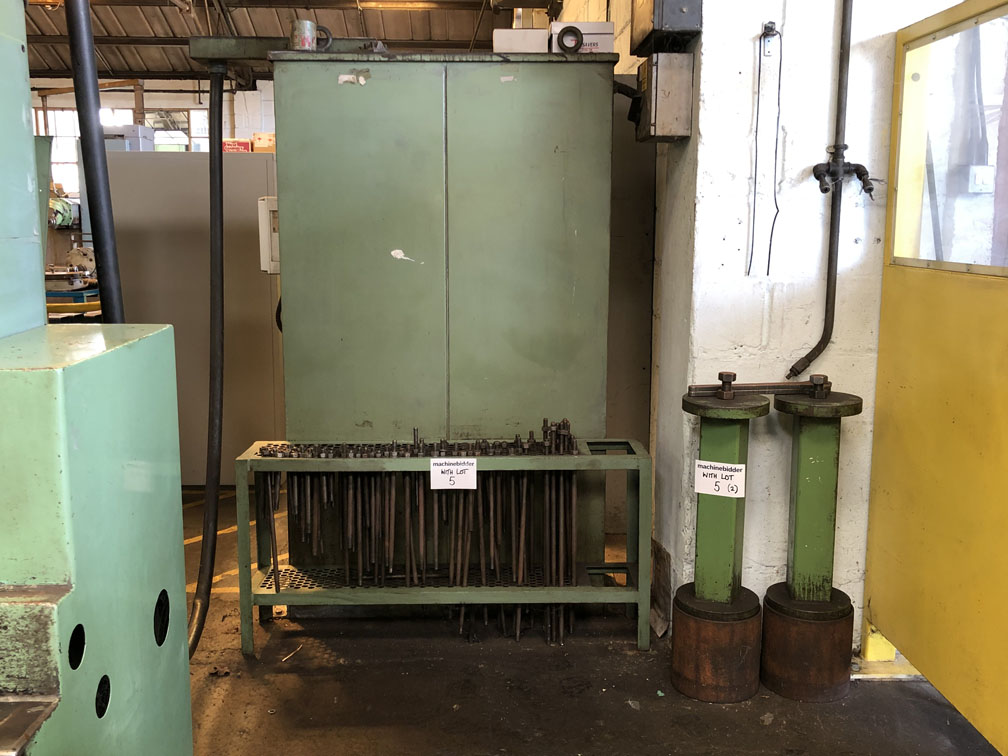

Electrical cabinet 110mm x 500mm x 2800mm high
Approximate overall weight 11956 kgs
SALE AGREED
