Description

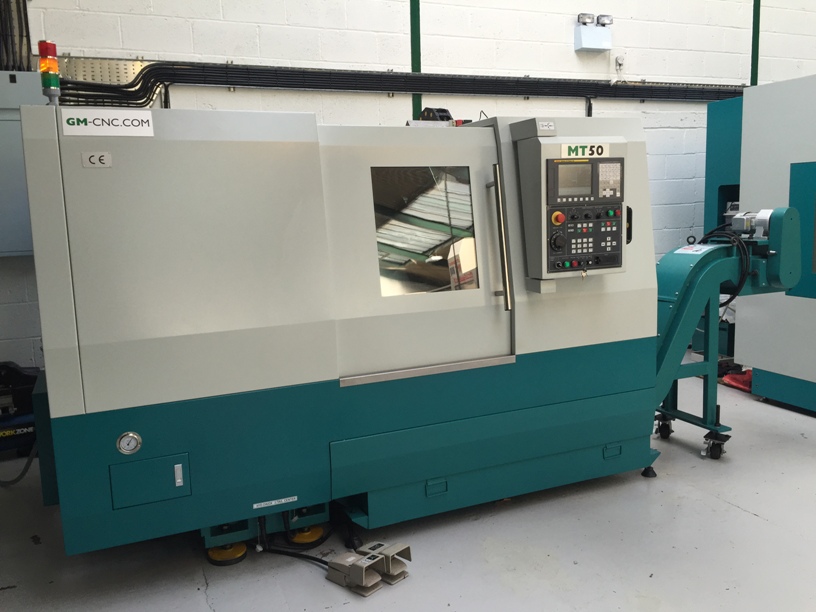

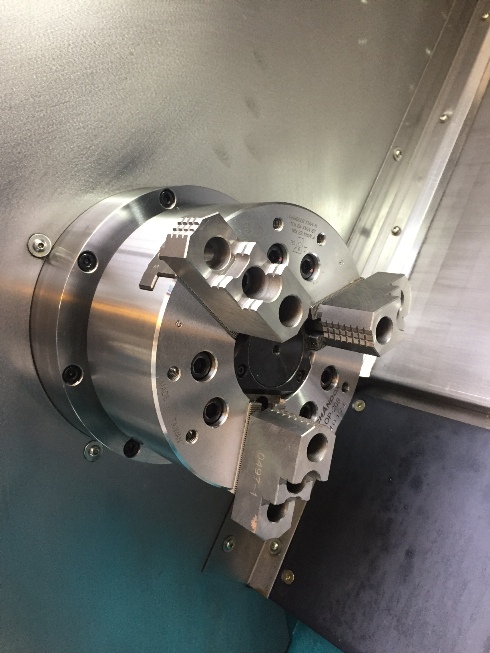

Swing over bed 600mm. Swing over slide 320mm. Max turning length 500mm. Max turning dia. 370mm. Max bar dia. 51mm. Hydraulic chuck dia. 210mm. Spindle nose A2-6. Spindle bore dia. 62mm. Spindle speeds 60-2250 rpm. Spindle power 15 kW. 8 station turret.Tailstock taper 5MT. X/Z Travel 210/550mm. Rapid traverse X/Z 12/16m/min.X/Z screw dia 28mm/40mm Power source 36 kVA. Dimensions: l x w x h 2850mm x 1810mm x 1850mm. Weight 4500 kgs. Machine new & unused.
LOCATED AT UNIT A, ACORN INDUSTRIAL ESTATE, OLDHAM, OL1 3NE
THIS ITEM CAN BE LOADED WITHOUT CHARGE TO FLAT VEHICLE.
