Lot 14: NS MAQUINAS Tube Polishing Machine. Year 2017 Number of watchers: 3

Item information

Description

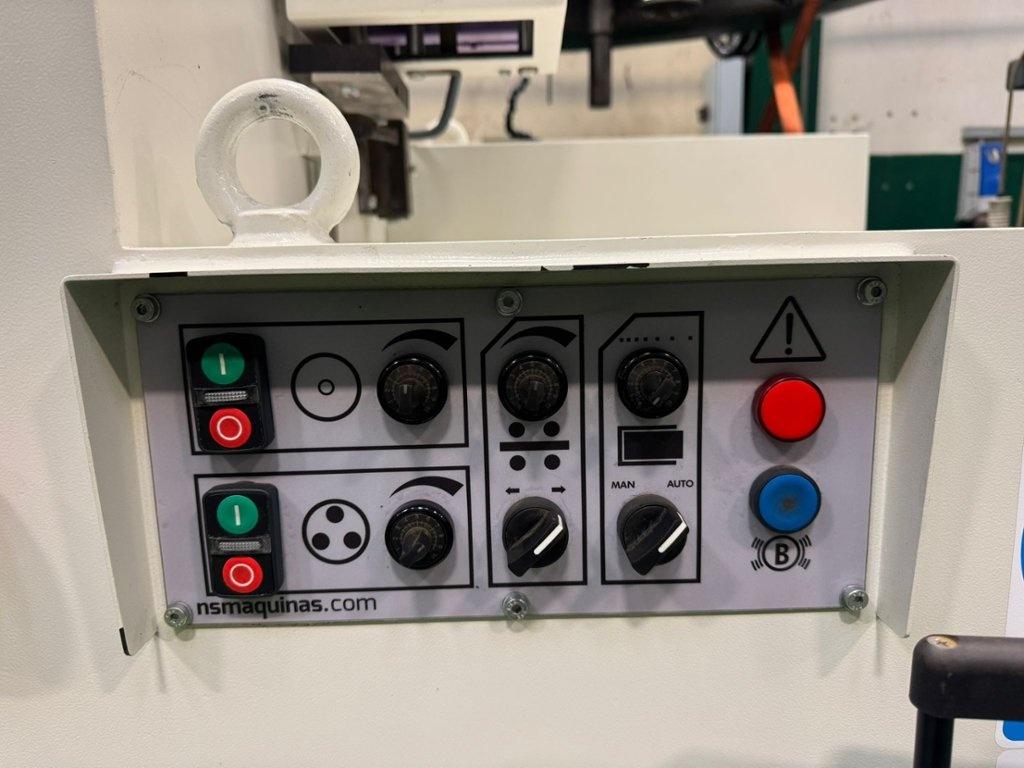

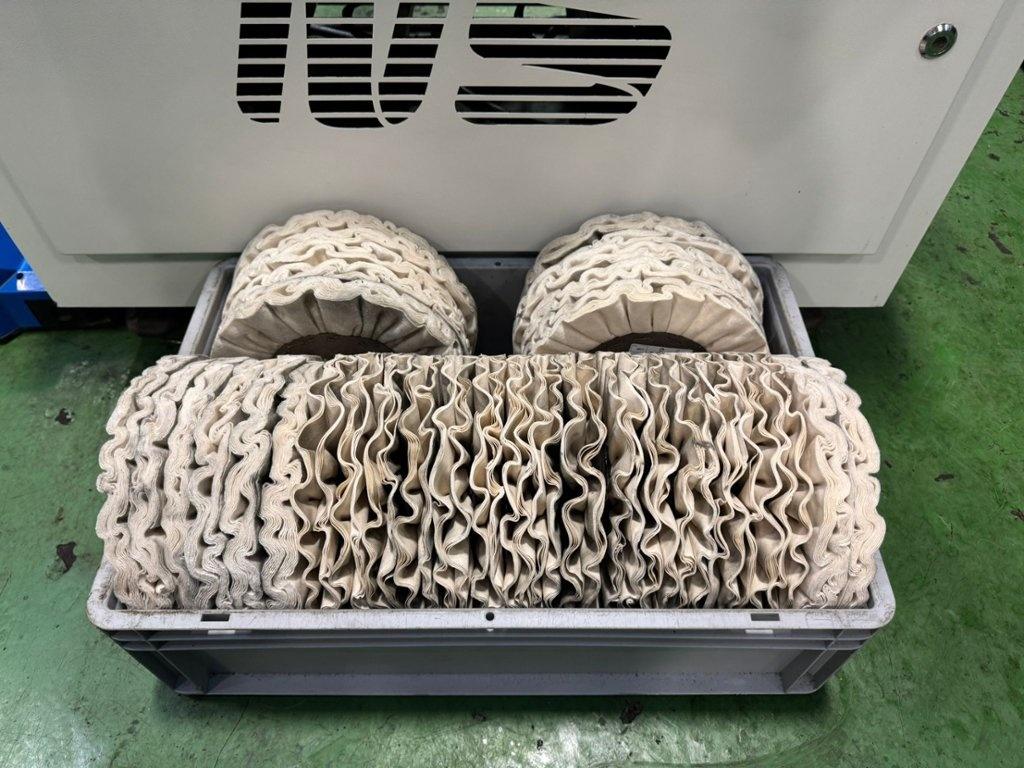

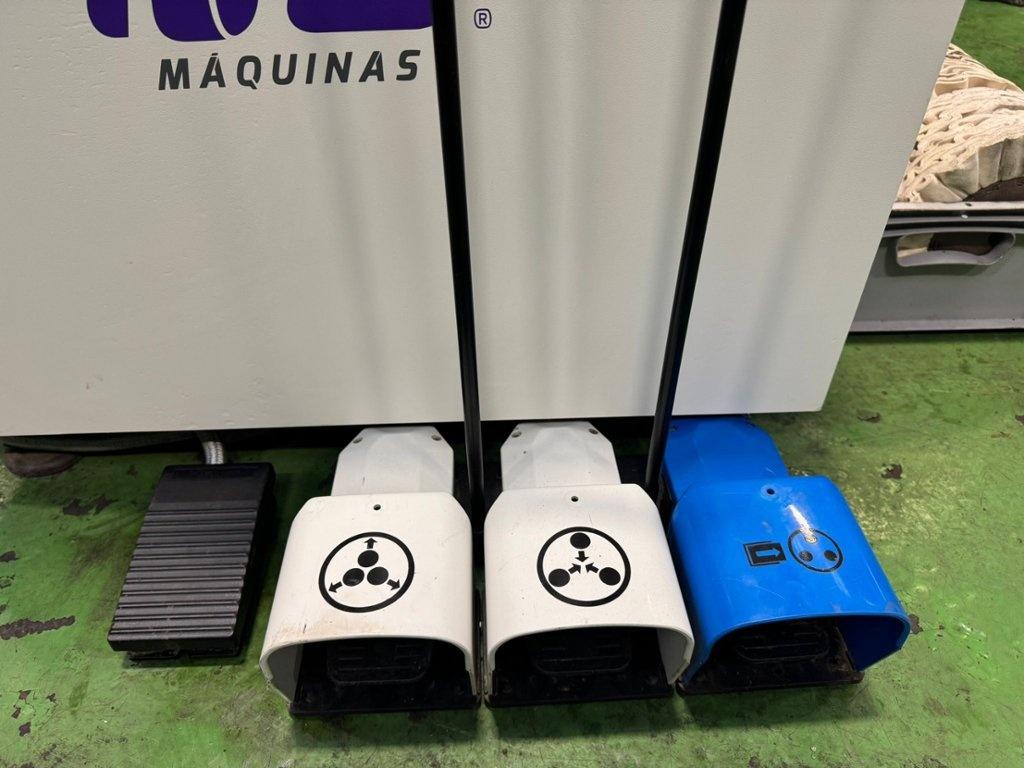

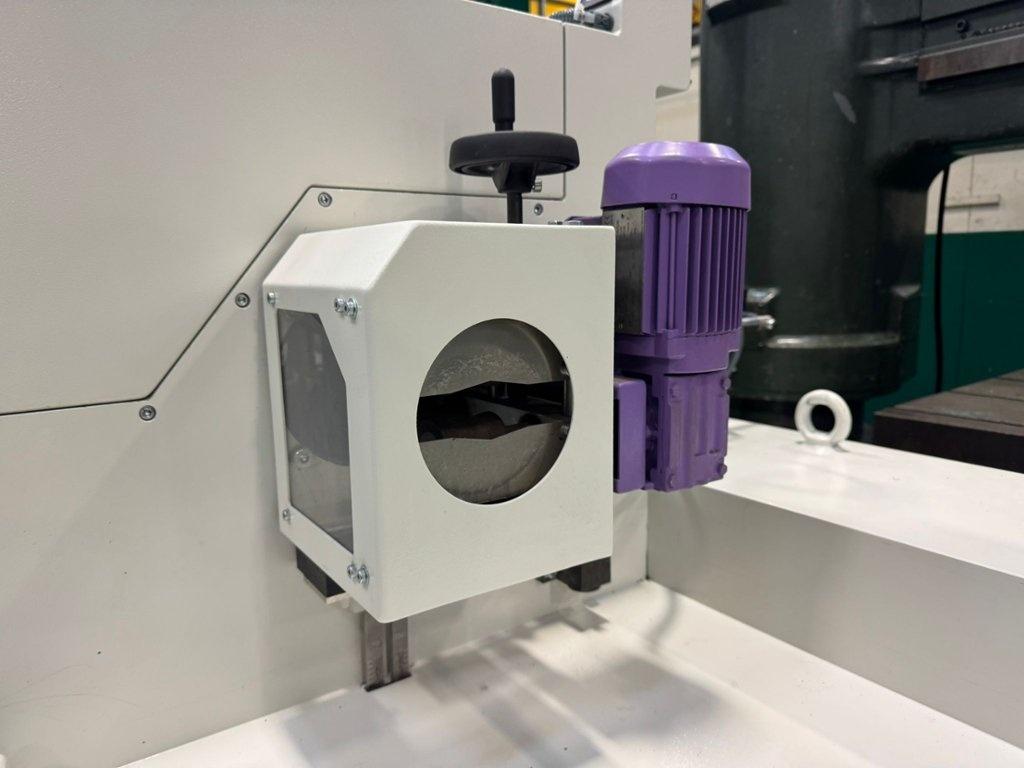

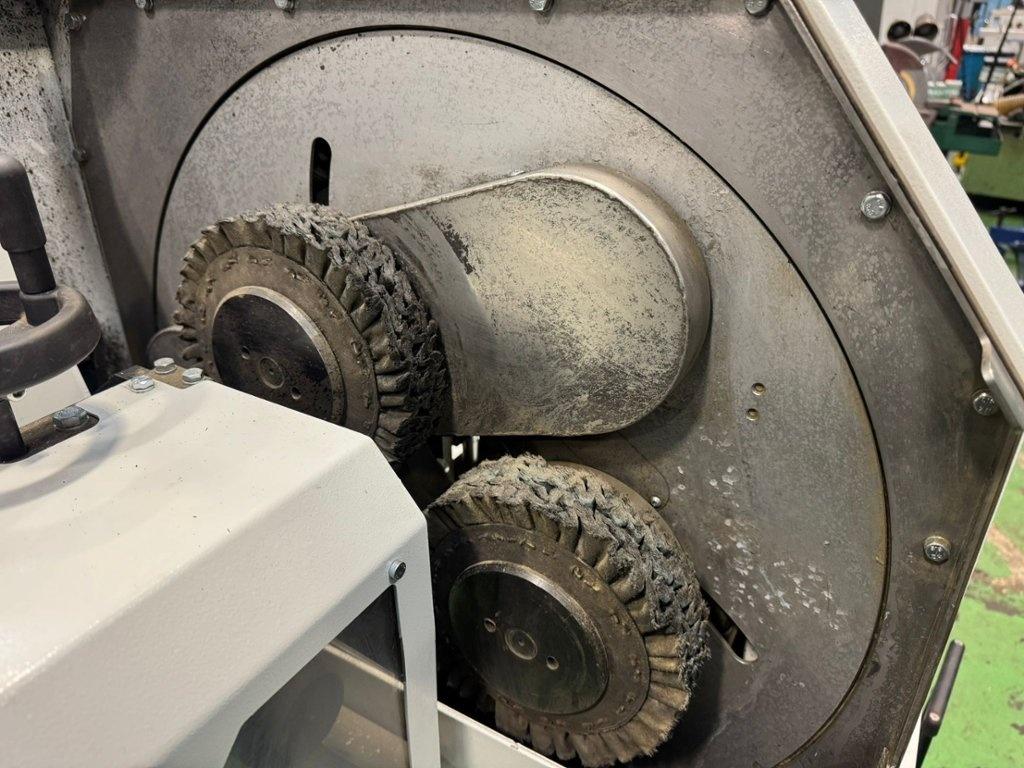

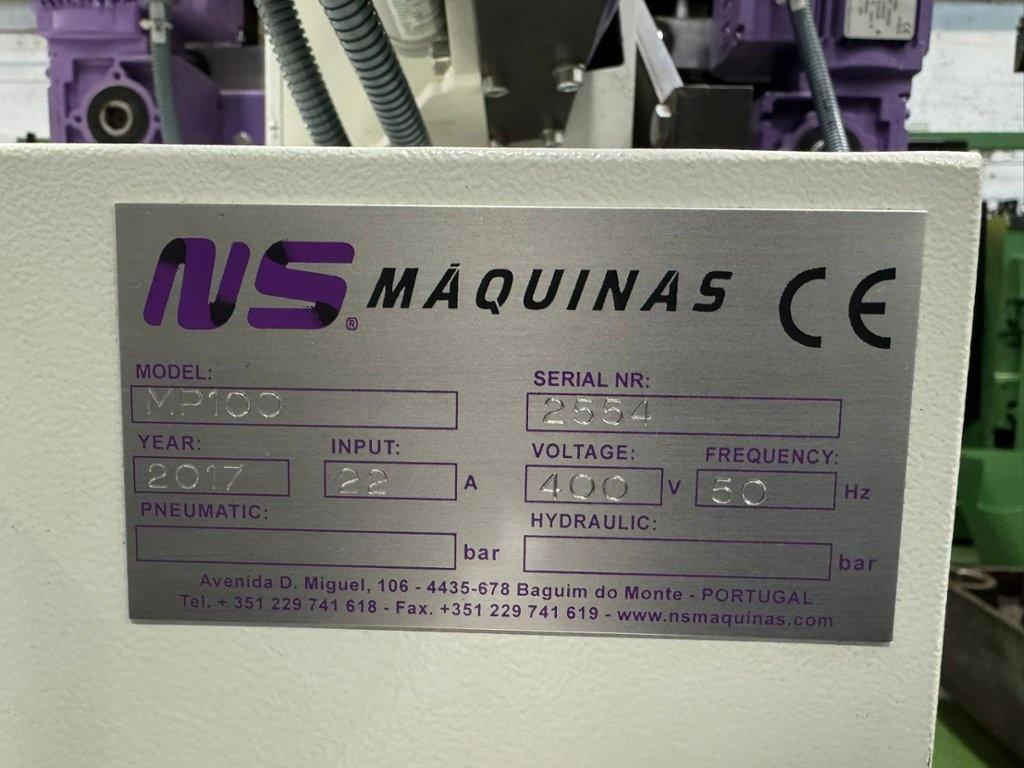

Working Capacity (mm) 40mm -114mm dia. Feeding Speed 0-3 metres/min. Polishing Wheels Speed up to 35 metres/sec. Polishing Wheels Dimensions (3x) (2x) 180mm-240mm dia. Polishing Wheels Motor (kW) 5,5. Wheel Motor (kW) 0,37. Consumption 22 amp. MP100 round tube machine mirror polishes round tubes, straight or curved. Three planetary polishing wheels rotate around the tube making high pressure and delivering a high gloss mirror polishing. The machine features brushes pressure control by foot pedal. This enables the operator to control the applied force during tube polishing operation. The automatic feeding system transports straight tubes safely through the polishing units, enabling a consistent and high mirror polishing quality. Machine Dimensions L x W x H 1250mm x1250mm x1550mm. Weight approx 420kgs.
