CNC Mill/Turns

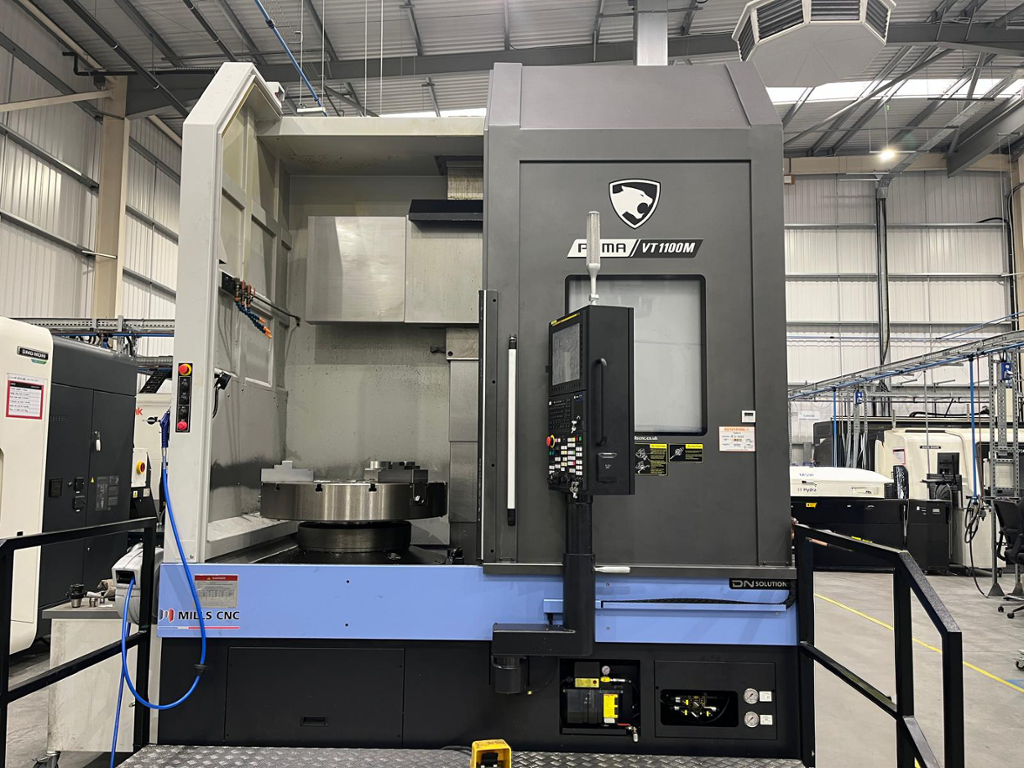

Lot 1: DOOSAN VT1100M Turning Centre with Fanuc 0iTF Control. Year 2023
Swing over bed 1270mm. Swing over saddle 1000mm. Maximum turning
diameter 1100mm. Maximum turning length 960mm. Maximum workpiece
weight (incl. chuck) 2,200kg. Spindle nose 702-4-NO.15. Spindle max
power 65 / 55 / 45kW. Spindle max torque 7,552Nm. Spindle speed
maximum 850rpm. Integral box guideway construction. X axis travel
580mm. Z axis travel 1,000mm. C axis travel 360deg. X axis rapid
traverse 20m/min. Z axis rapid traverse 20m/min. C axis rapid
traverse 14r/min. Type BMT85P. Number of stations 12. OD tool size
32mm square. Boring bar size 80mm diameter. Rotary tool power
7.5/11.0kW. Rotary tool speed 3000rpm. Rotary tool collet size ER50
(6-32mm diameter). Power requirements 98.77kVA.
Additional Accessories
Swarf Conveyor MH500 type (rear exit). Swarf bin. FSE 70 bar NOP
pump upgrade for switchable duty 3 pressures: 20, 40 and 70 bar
(back pressure) via M code. Coolant chiller. Operator working
platform. Coolant wash gun. Renishaw OLP40 inspection probe.
Filtermist FX7002F oil mist separator with F Monitor 2.
HC40G Samchully Closed Centre Chuck including 1 set of hard jaws
& 1 set of soft jaws. 2 off Face type toolholder (R78935). 2
off Cross type toolholder (R78756A).
Compete with a selection of 8 x unused live tooling
Dimensions L x W x H 2830mm x 3305mm x 4012mm. Weight
22,550kg.
550 Cutting Hours
