CNC Vertical Machining Centres

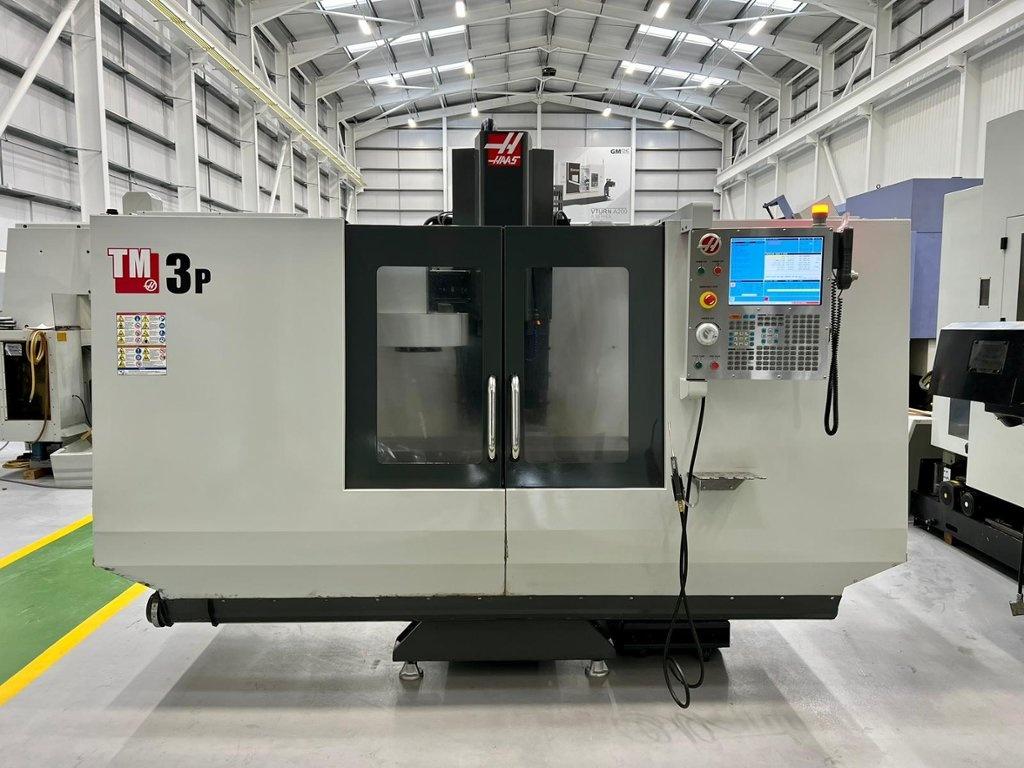

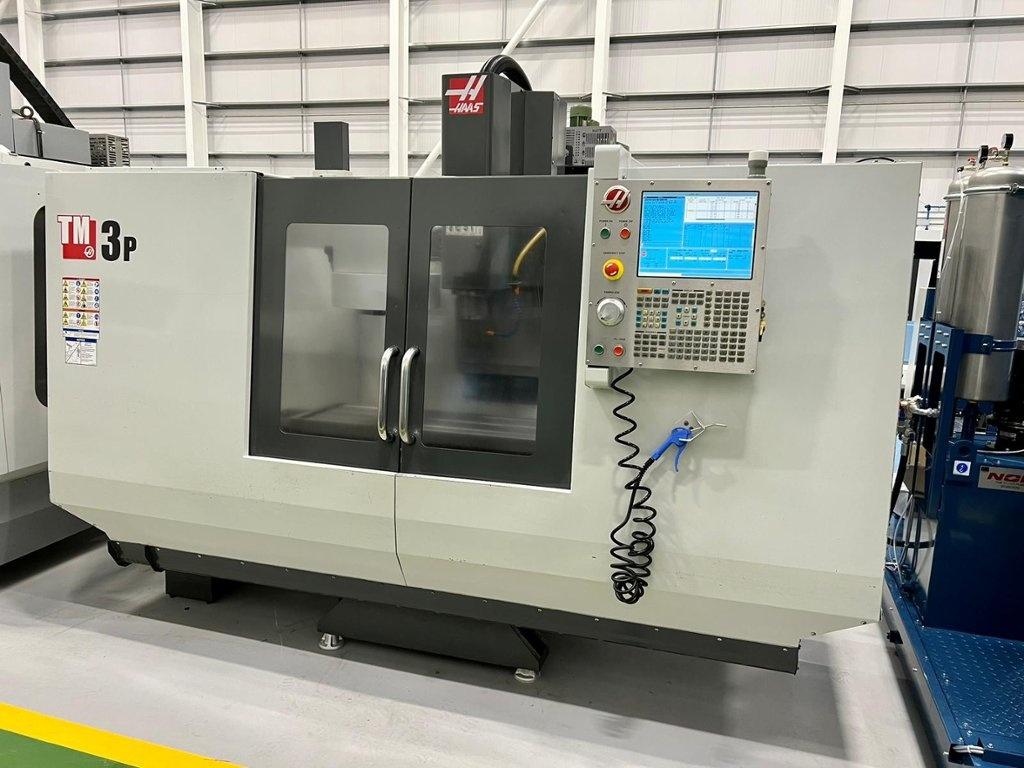

Lot 4: HAAS TM3P Vertical Machining Centre with Haas Control. Year 2015
Table Size 368 x 1467mm. Travels X/Y/Z 1016 x 508 x 406mm.
Maximum workpiece weight 454Kg. Maximum cutting feedrate
10.2m/minute. Rapid feedrates 10.2m/minute. Min – max height
under spindle: 102 – 508mm. Spindle motor power 5.6kW.
Spindle speed 6000rpm. Maximum tool diameter 89mm. Maximum tool
weight 5.4Kg. Tool change capacity 10 Stations. Tool change time
(chip to chip) 6.5 Seconds. Tool Size BT40. Current Software
Version M18.23A. Compensation tables. Intuitive Programming
Systems. Rigid Tapping. Spindle Hours 3970. Machine dimensions L x
W x H 3470 x 2457 x 2616mm
Weight 2800Kg

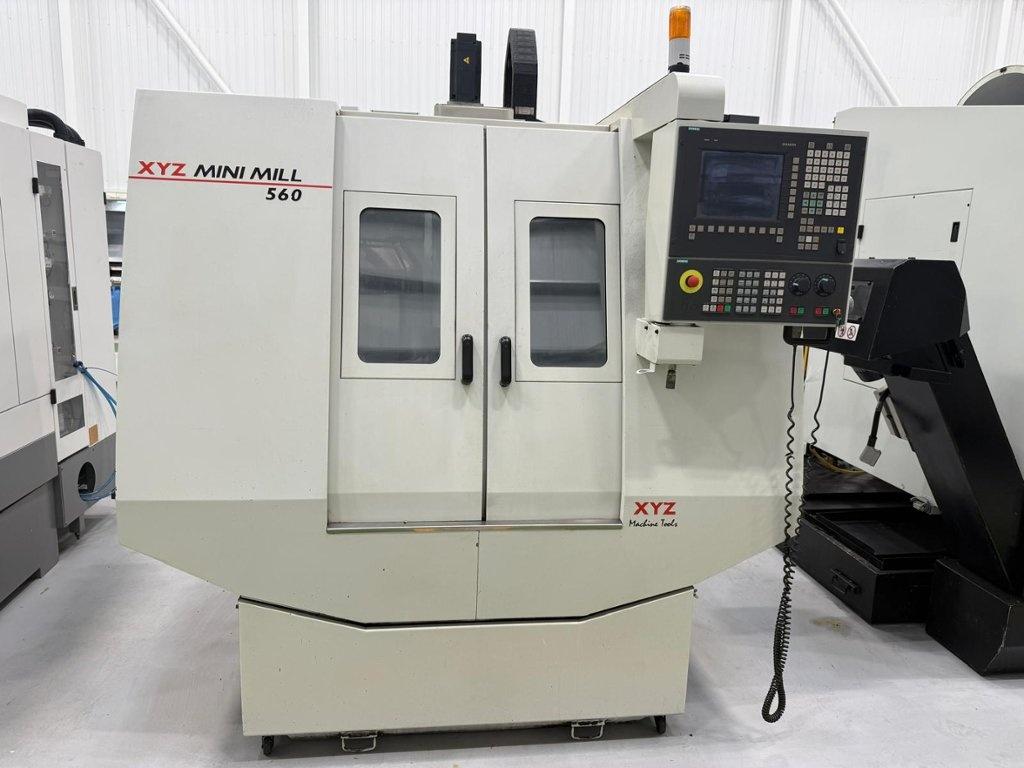

Lot 5: XYZ Mini Mill Vertical Machining Centre with Fanuc 0i-MB Control. Year 2005
Table size 610 x 370mm. T slot size 16mm. Max loading capacity 320Kg. Travels X/Y/Z 560/400/500mm. Distance from spindle nose to working table surface 100 – 600mm. Distance from spindle centre to main column 440mm. Spindle taper BT40. Spindle Speed 60 – 8000RPM. Feed rate X/Y/Z 1 – 10000mm/min. Rapid traverse rate X/Y/Z 20000mm/min. Tool magazine capacity 16. Max tool weight 8Kg. Spindle drive motor 10HP. Coolant 1/2Hp. Complete with FX4002 Filtermist. Dimensions 2400 x 1900 x 2450mm. Approx weight 2700Kg.
Lot 6: XYZ VMC1010 Vertical Machining Centre with Siemens 810D Shopmill Control. Year 2007
*MACHINE REQUIRES NEW GLASS SAFETY SCREEN* Table size 1200mm x 450mm. X/Y/Z travels 1010mm/500mm/520mm. Table loading 850kgs. Spindle Centre to column 625mm. Min/Max Spindle to Table 200mm/700mm. Min/Max Column front to Table Centre 345/905mm. Spindle speeds 60-8000 rpm. Spindle taper BT40. Spindle motor 11.18 kW. Feeds X/Y/Z to 24m/min. Rapids 24m/min. 20 Station ATC. Machine dimensions L x W x H. 3000mm x 2440mm x 2600mm. Approx Weight. 6200kgs.

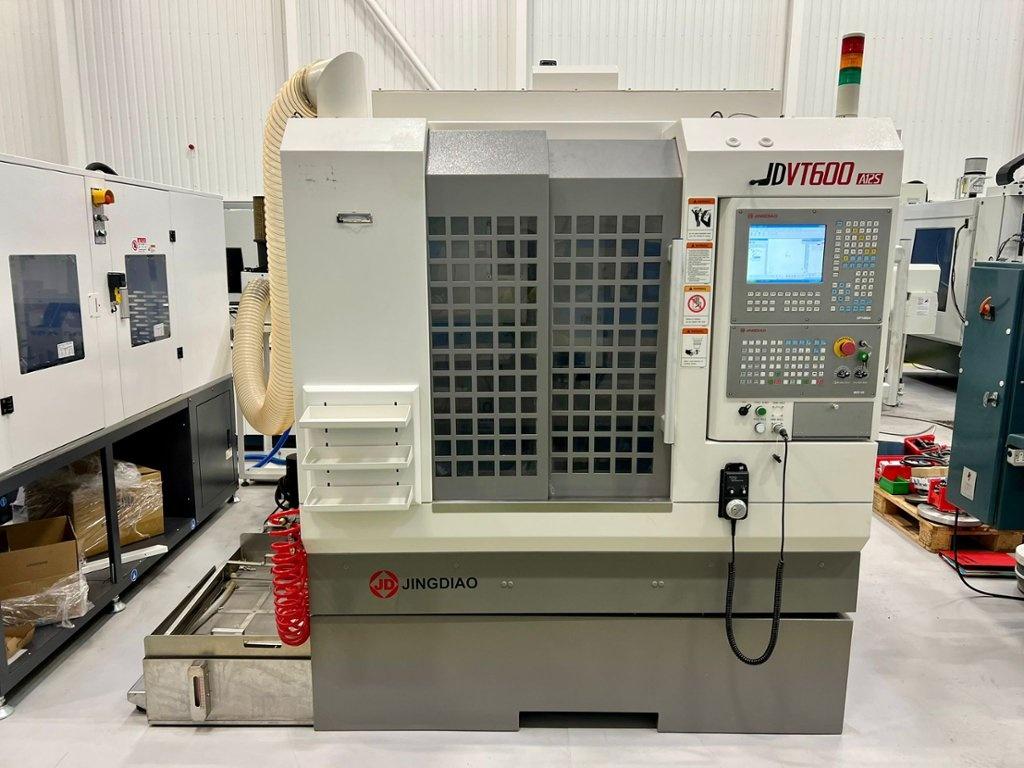

Lot 7: JINGDIAO JDVT600 Vertical Machining Centre JINGDIAO Control. Year 2015
Axis Travel (X/Y/Z) 600mm/400mm/350mm. Table Size 830mm x 450mm. Maximum Load 300kgs. Spindle Speed 20,000RPM. Spindle Taper HSK-A50. Tool Magazine Capacity 24 Tools. Rapid Feed Rate (X/Y/Z) 15m/min. Positioning Accuracy 0.005mm (X/Y/Z). Machine dimensions (L x W x H) 2590mm x 1690mm x 2370mm. Approx Weight 5800kgs.
Lot 10: CINCINNATI FTV 840-2500 Vertical Machining Centre with Fanuc 18i-MB Control. Year 2004
Spindle taper 40 ISO. X/Y/Z travels 2540mm/815mm/1070mm (increased Z axis). Rapids X/Y/Z 40 m/min. Spindle speeds to 10,000 rpm. Spindle power 12/18.5 kW. Min/Max table to spindle nose 270mm/1070mm. Through spindle coolant with air blast. 48 capacity ATC. Renishaw TS27 Tool Sensor. Swarf management system (drag type) with lowered exit height. Fully interlocking doors.
