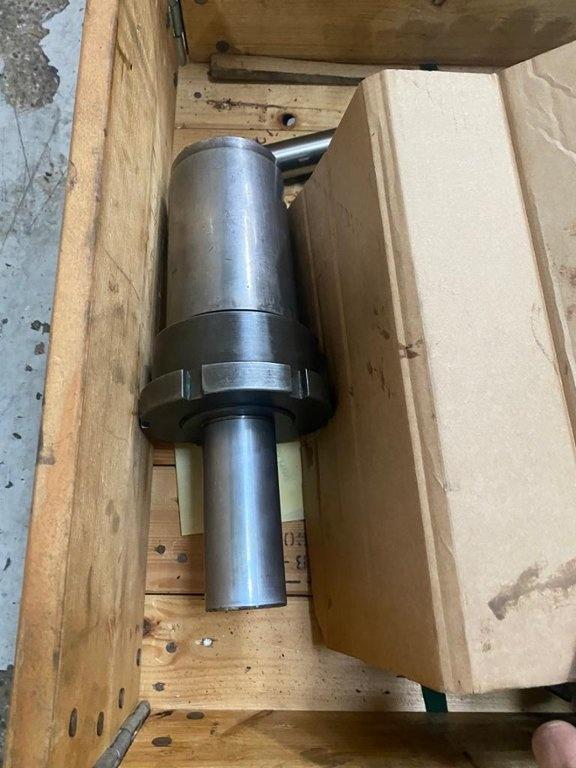

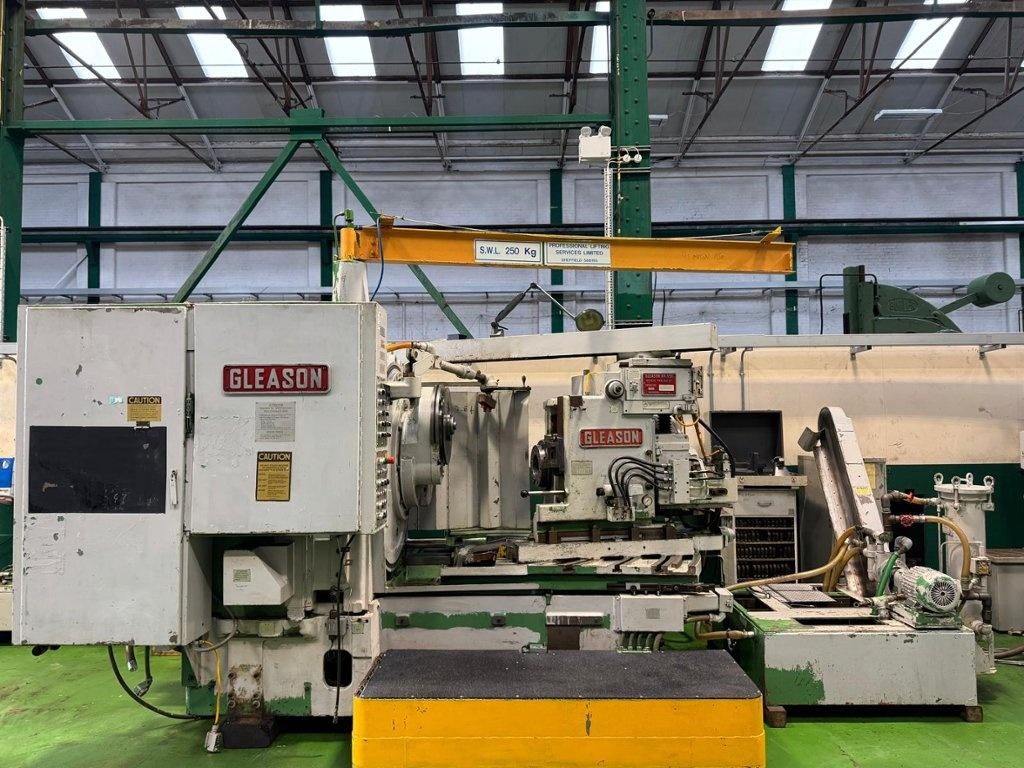

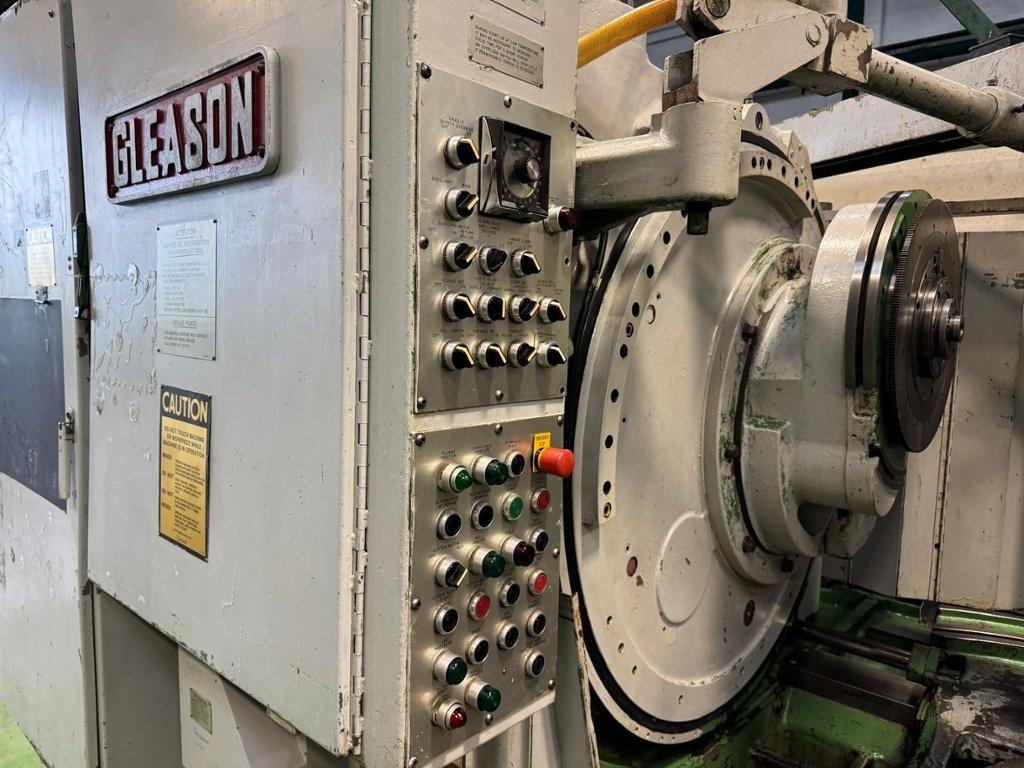

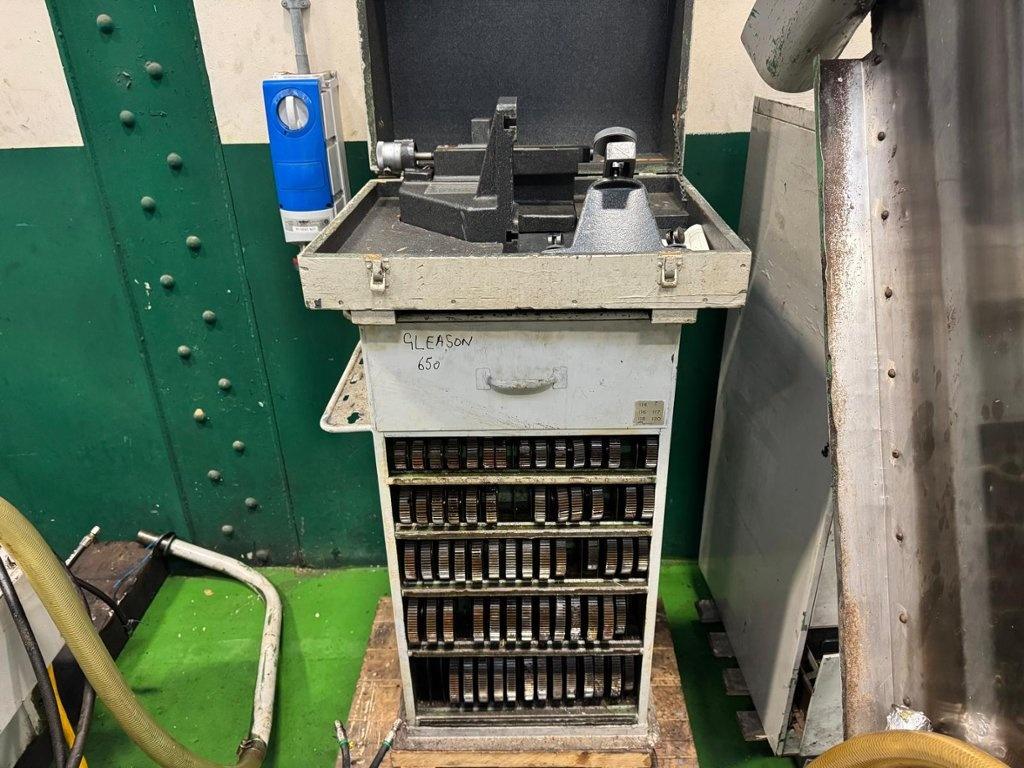

Lot 3: GLEASON 650H Hypoid Bevel Gear Generator with Change Gears & Cutters Number of watchers: 0

Bidding will be extended on individual lots if bids are placed within 10 minutes of the item's end time.

Item information

Opening bid:	£5,000
Increment:	£250
Start date:	22 Jun 2026 09:00:00 BST
End date:	09 Jul 2026 13:00:00 BST

Please note that your bid on this lot will be subject to an additional 18% Buyer's Premium and VAT at 20%.

Description

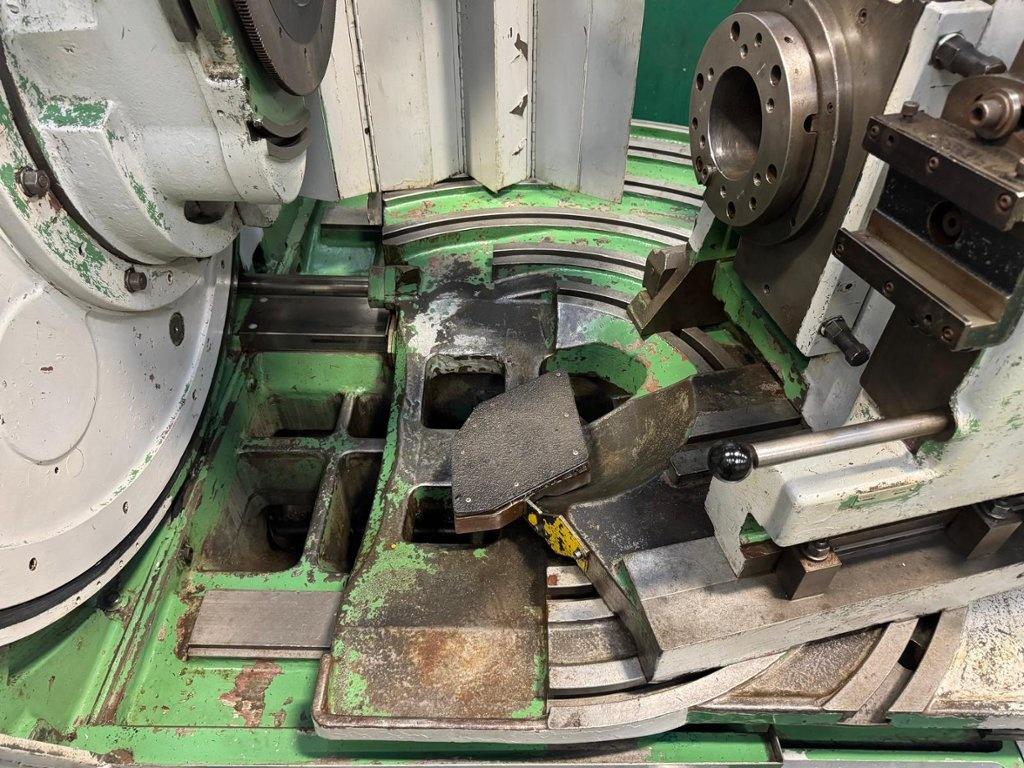

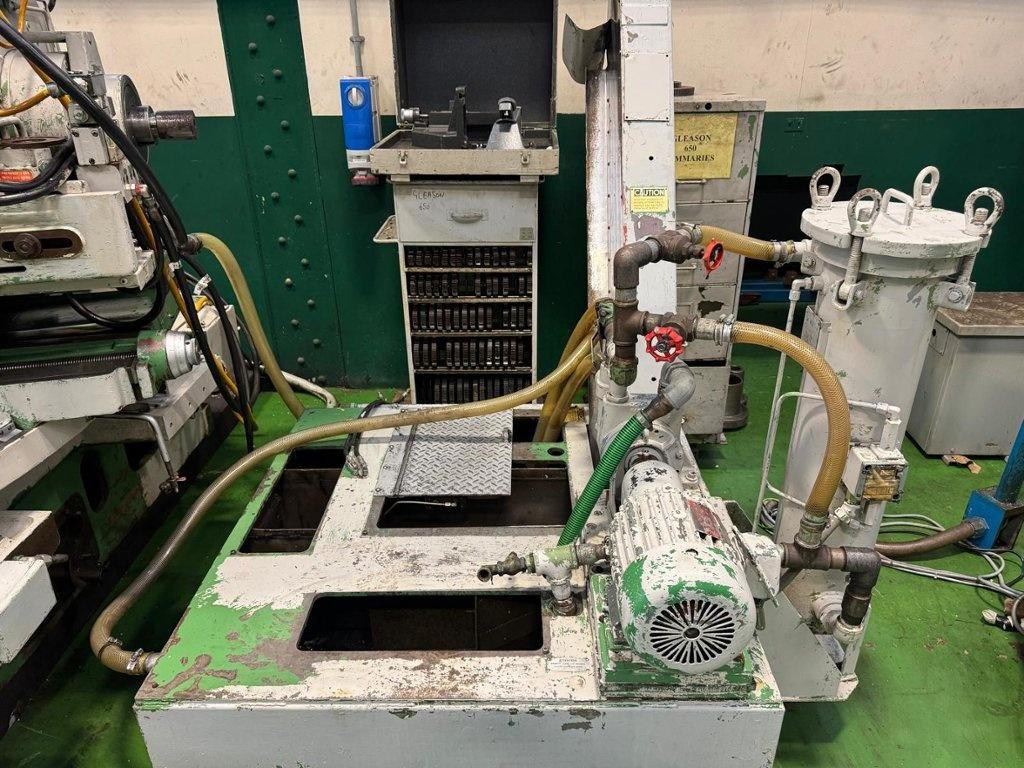

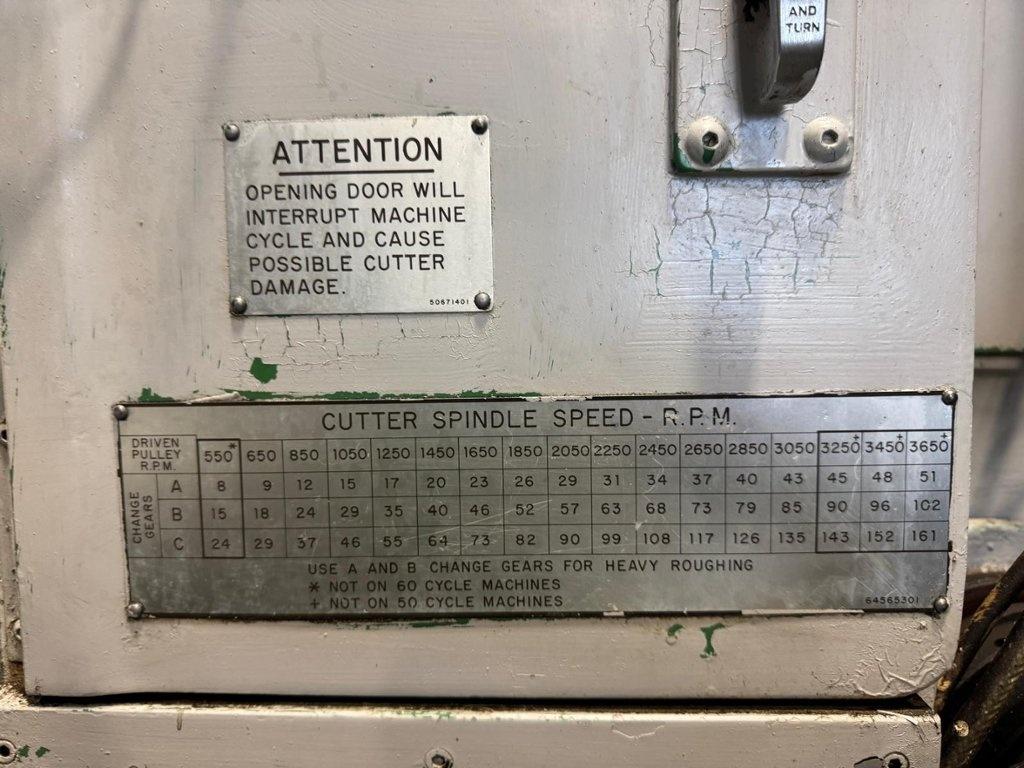

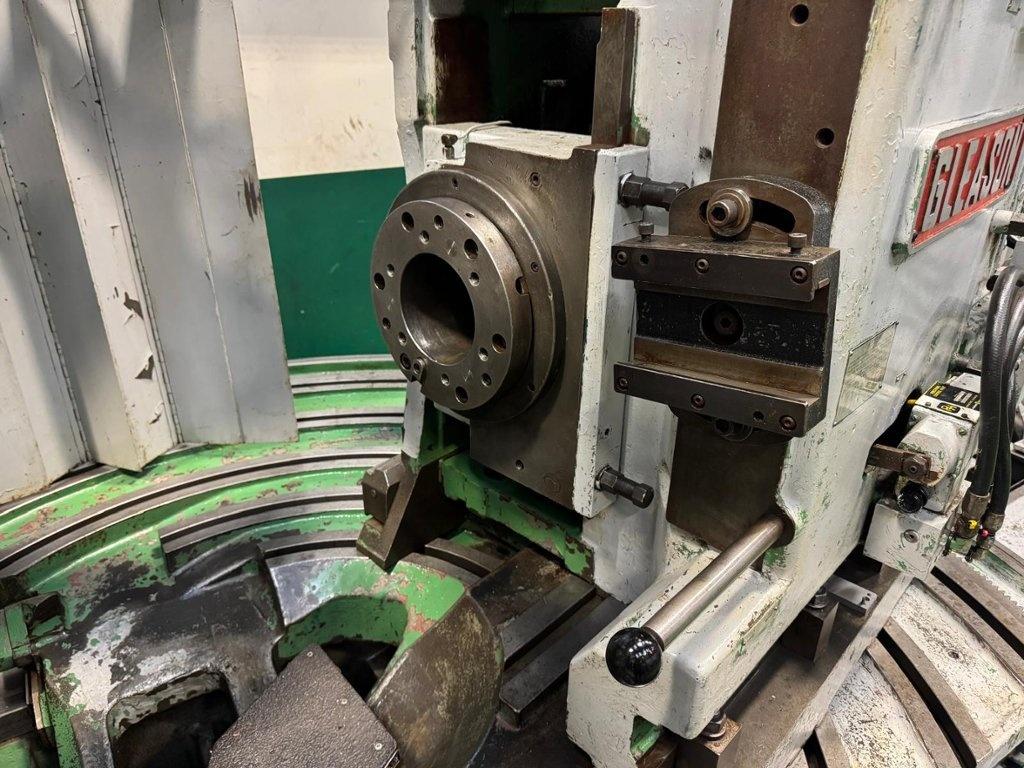

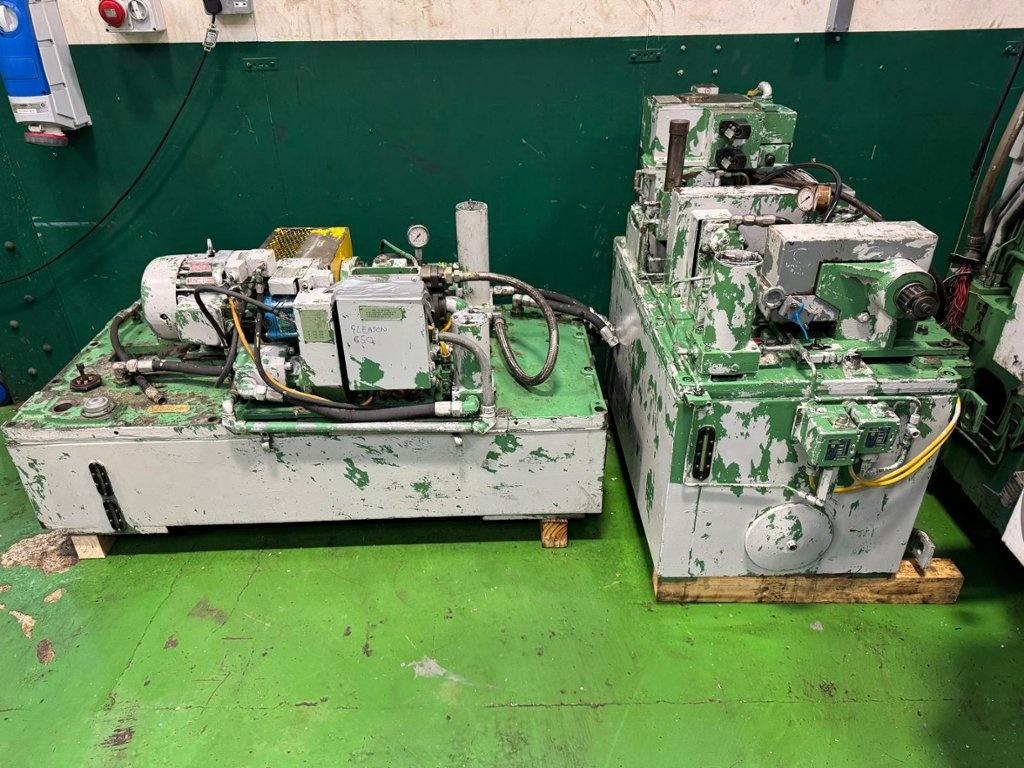

Machine is suitable for the cutting of larger spiral bevel, hypoid, and zerol bevel pinions and mating gears up to 34” diameter, 5” face, with 1.08 DP (module 23.5) cutting capability. CAPACITY: Extreme ratio 10:1.Roof angle range 0º to 90º. Gear diameter – Maximum 34”.Examples of maximum gear pitch diameters with 35º gear spiral angle using 19.7” dia. cutter at the following ratios: 1 x 1 – 28.50” . 2 x 1 – 34.00” . 5 x 1 – 34.00”. Maximum radial setting 15.00”. Full depth – Maximum 1.5” .Face width – Maximum 5”.Coarsest Pitch (module) 1.08 DP (23.5 module).Index Range 5 to 80 inclusive. WORK SPINDLE: Diameter of taper hole at large end 6”.Taper per foot 0.75”. Depth of taper 6”. Diameter through spindle of hole 5” . WORKHEAD SETTINGS : Offset above center – Maximum 4.5” . Offset below center – Maximum 4.5”. Machine center to nose of spindle – Maximum 23.5”. SPEEDS & FEEDS: Cutter speeds 6 to 167 RPM (stepless). Cycle time, infinitely variable from 7 seconds/tooth minimum. ELECTRICAL EQUIPMENT: Motors (60 Hz/50 Hz ). Cutter drive motor, 15HP 1800 RPM /1500 RPM. Hydraulic motor, 7.5HP 1200 RPM/1500 RPM. Coolant motor, 2HP 1200 RPM /1500 RPM.D.C. generating drive motor, 6HP 1200 RPM. Dimensions L x W x H (Floorspace) Inclusive of Hydraulic Unit, Electrical Cabinet & Swarf Conveyor. 235” x 123” x 92.5”. Approximate weight of Machine 26,682 kgs. Accessories 5,000 kgs.
